IR-LOCK
Price:
$ 125.00
Stock:
Sold out

Description

Includes IR-LOCK filter and IR Lens (pre-installed) and 5x Standard IR LEDs (see the MarkOne Beacon if you need reliable long range detection). The Kickstarter page is a good place to get familiar with IR-LOCK, and also to see product demonstrations. Or just watch the videos below!

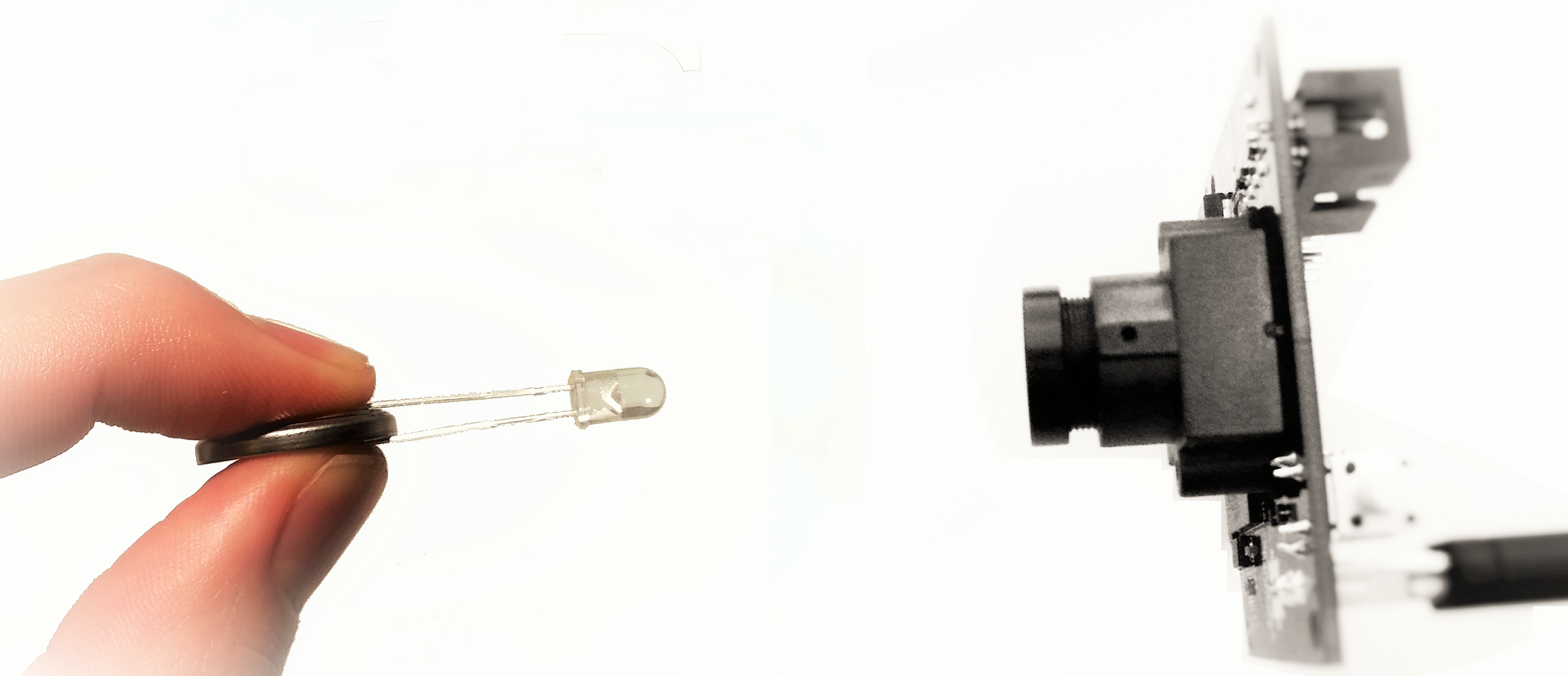

The starter kit is intended for short-range, indoor tracking (~15 ft depending on operating environment)

Use MarkOne or a Beacon for long range, outdoor tracking.

Compatible Software/Hardware: APM:Copter, Pixhawk, Arduino, Rasberry Pi, Python, Linux.

Sensor Weight: 21.5 g

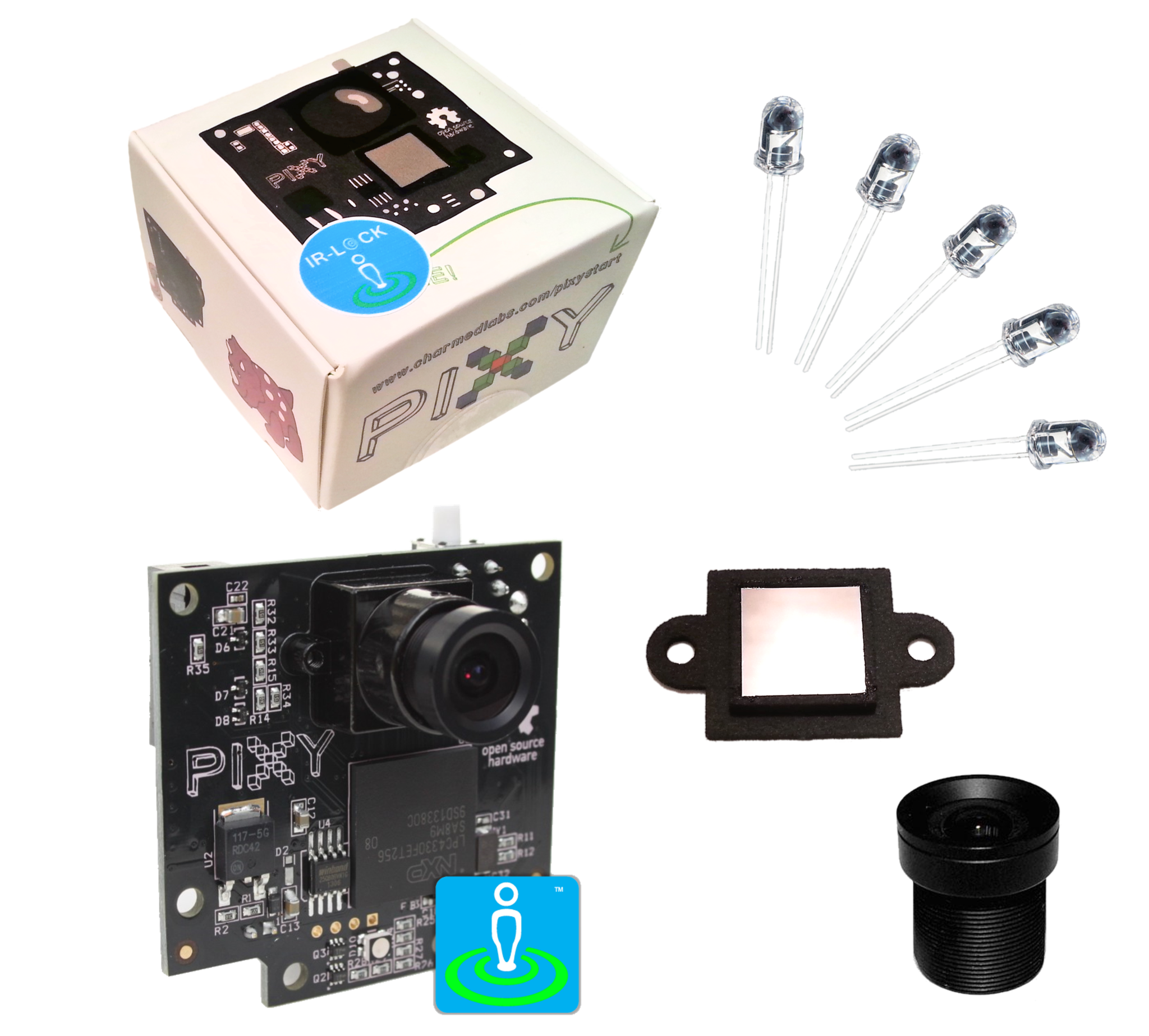

KIT INCLUDES
1x IR-LOCK Sensor (IR-LOCK filter and 3.6mm lens are pre-installed)
5x Standard IR LEDs

General Instructions (using standard LEDs)

Drone Documentation (using MarkOne)

Dimensions and Hole Layout





Buy a pan/tilt kit to create a cool tracking demo:



Or you can build an IR-tracking robot!



IR-LOCK goes airborne:
