The Airbot Systems distribution board not only simplifies the connection of ESCs, but also greatly reduces the number of cables and wires. The installation on a drone guarantees a much cleaner aesthetic result.
Description
Manufacturer: Airbot Systems

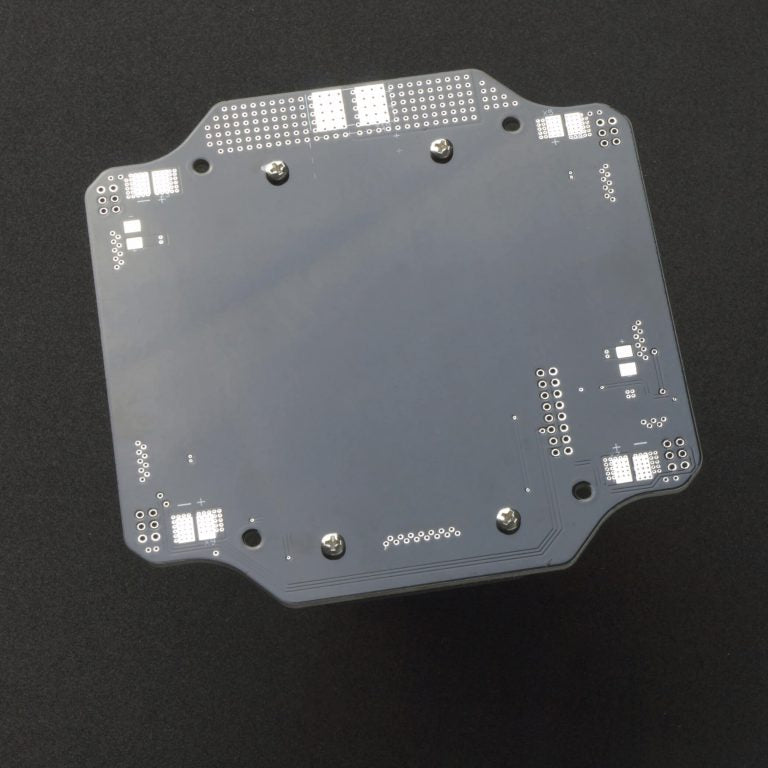

The power distribution board is the most reliable solution for connecting motors through ESCs. The Airbot Systems board can connect up to 8 motors and can support up to 180 amperes.
The dimensions of the card allow to install the autopilot directly on it.

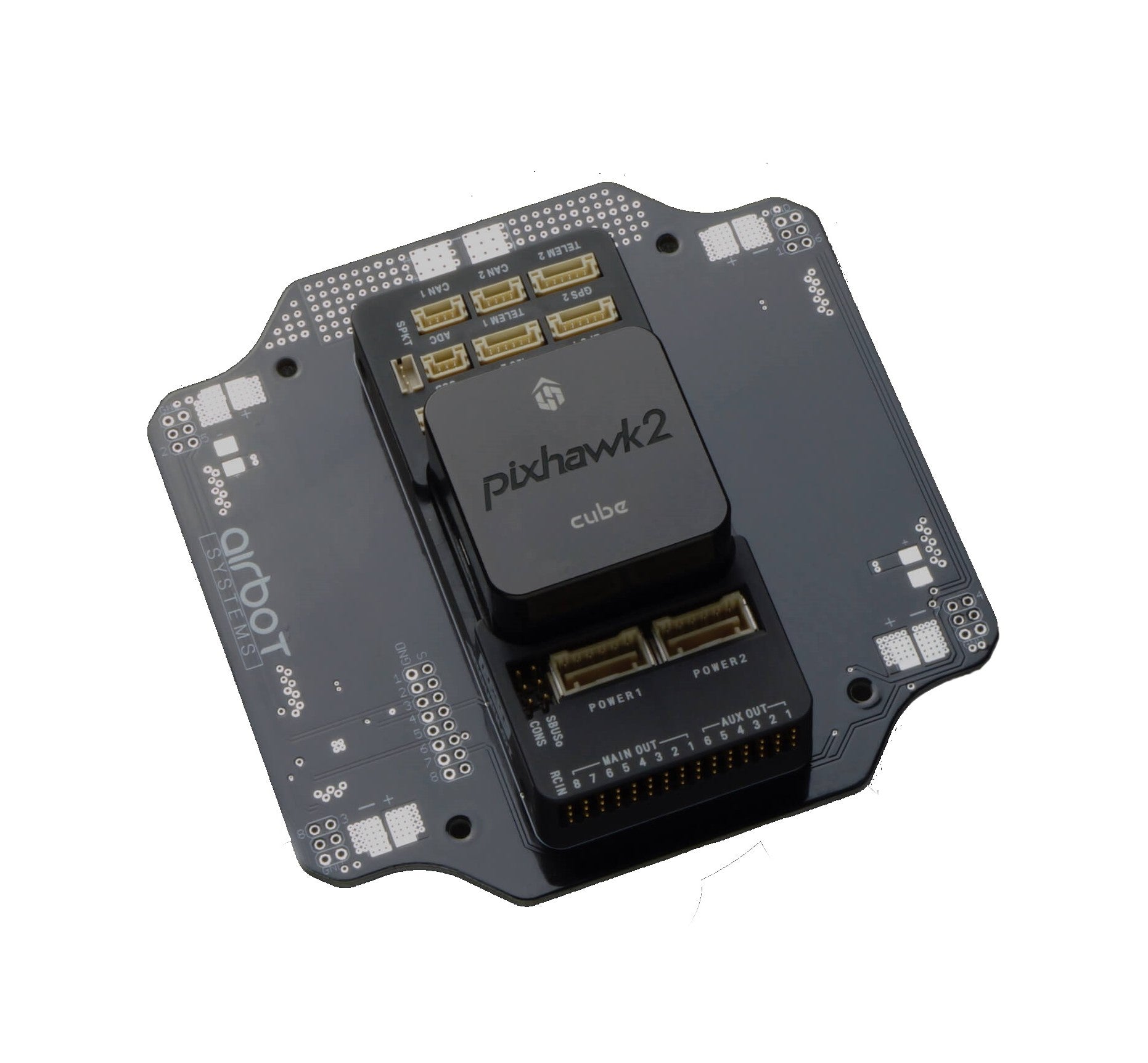

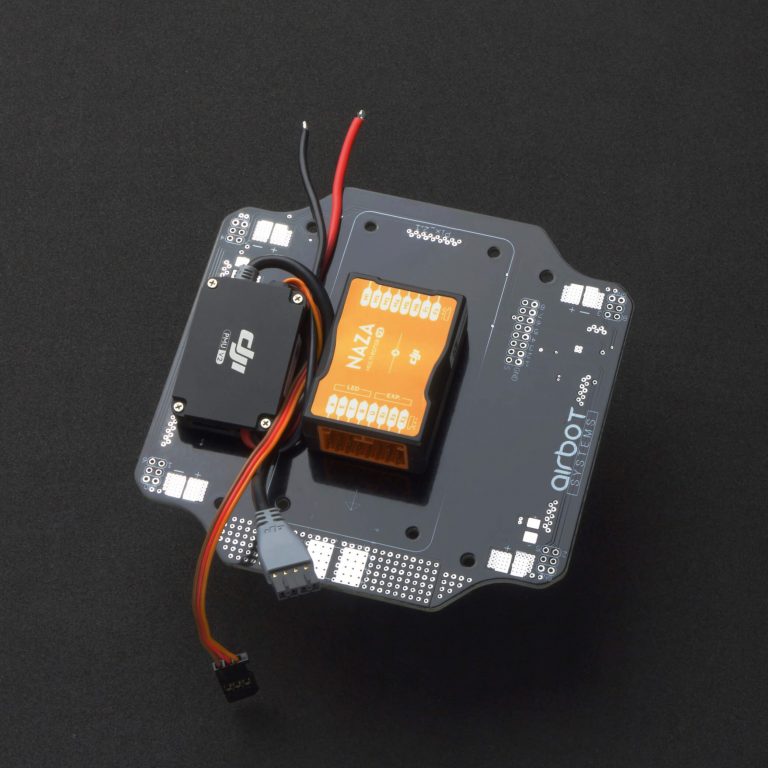

The distribution board is compatible with many flight controllers, such as the Pixhawk 2.1 (a location with mounting holes is present on the map), but also with other systems, such as DJI flight controllers.
TECHNICAL CHARACTERISTICS :
Dimensions: 114 x 115 mm
Mounting Hole Dimensions: 65 x 85 mm
Weight: 65g
PWM Distribution: Yes (8 signals)
Compatible Autopilots: Pixhawk 2.1, Pixhawk, APM, DJI, others
Max. Current: 180A
Number of engines: 8 motors max
Battery connection: 2 batteries in parallel
Pads connection accessories: 4 (2 above / 2 below)
