Description
MPN: ENT-UMAC-3220-1050
Manufacturer: Unusual Machines

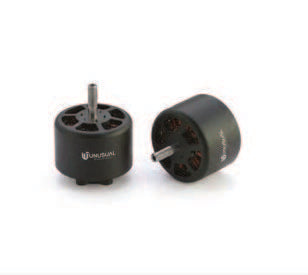

The Unusual Machines UM3220 1050KV Motor is engineered for multirotor platforms requiring increased thrust capability while maintaining thermal stability and predictable performance. Optimized for 5S–6S power systems, the UM3220 1050KV delivers responsive torque and power suited to payload-capable enterprise UAV configurations.
Its optimized 1050KV winding is focused on power and performance, while the 12N14P stator and rotor configuration and precision EZO 695ZZ bearings support smooth, reliable operation. High thermal tolerance makes the motor suitable for intermittent high-load operation in professional UAV systems.
Key Features
| Feature | Details |
|---|---|
| KV Rating | 1050KV |
| Power System | 5S–6S |
| Design Focus | Power and performance |
| Stator / Rotor Configuration | 12N14P |
| Thermal Performance | High thermal tolerance for intermittent high-load operation |
| Bearings | Precision EZO 695ZZ |
| Application | Payload-capable enterprise and professional UAV platforms |
Technical Specifications
| Parameter | Specification |
|---|---|
| KV Rating | 1050 KV |
| Stator Teeth / Magnetic Poles | 12N14P |
| Winding Configuration | 5T |
| Maximum Voltage | 25.2V (5S–6S) |
| Maximum Current | 85A for 3 seconds |
| Maximum Rotor Temperature | 100°C |
| Specification | 180°C |
| Bearings | EZO 695ZZ |
Motor Parameters
| Parameter | Specification |
|---|---|
| No-Load Current (Io @ 10V) | 2.5A |
| Winding Resistance (Rm) | 30 mΩ |
| Line Inductance | 10 µH |

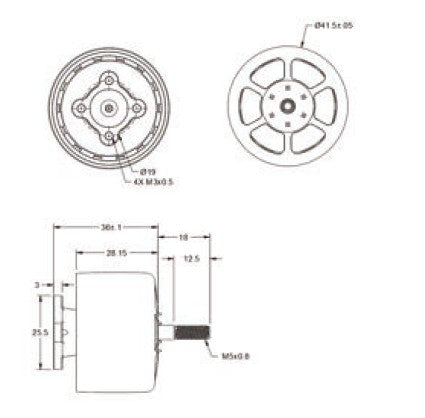

Physical Properties
| Parameter | Specification |
|---|---|
| Weight, Excluding Wires | 142.4g |
| Weight, Including 3 × 20cm 16AWG Wires | 148.6g |
| Overall Length | 54.0mm |
| Body Length | 36.0mm |
| Shaft Diameter | 5mm |
| Motor Diameter | 41.5mm |
| Mounting Pattern | 4 × M3, PCD Ø19mm |
