Description
MPN: ENT-UMAC-2807-1300
Manufacturer: Unusual Machines

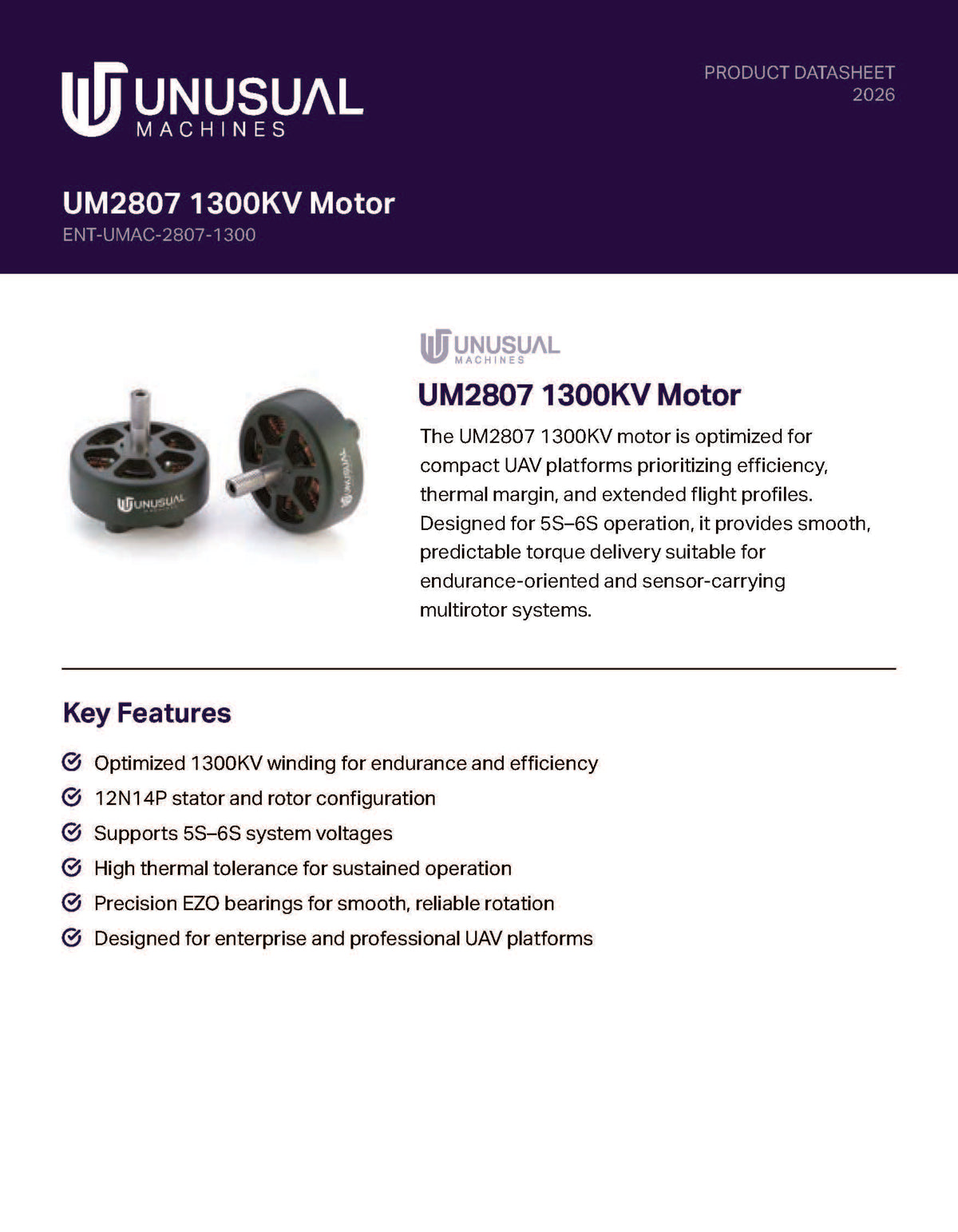

The Unusual Machines UM2807 1300KV Motor is optimized for compact UAV platforms that prioritize efficiency, thermal margin, and extended flight profiles. Designed for 5S–6S operation, it provides smooth, predictable torque delivery suited to endurance-oriented and sensor-carrying multirotor systems.
Its optimized 1300KV winding is designed for endurance and efficiency, while the 12N14P stator and rotor configuration and precision EZO 684ZZ bearings support smooth, reliable rotation. High thermal tolerance makes the UM2807 1300KV well suited to sustained professional UAV operation.
Key Features
| Feature | Details |
|---|---|
| KV Rating | 1300KV |
| Power System | 5S–6S |
| Design Focus | Endurance and efficiency |
| Stator / Rotor Configuration | 12N14P |
| Thermal Performance | High thermal tolerance for sustained operation |
| Bearings | Precision EZO 684ZZ |
| Application | Enterprise and professional UAV platforms |

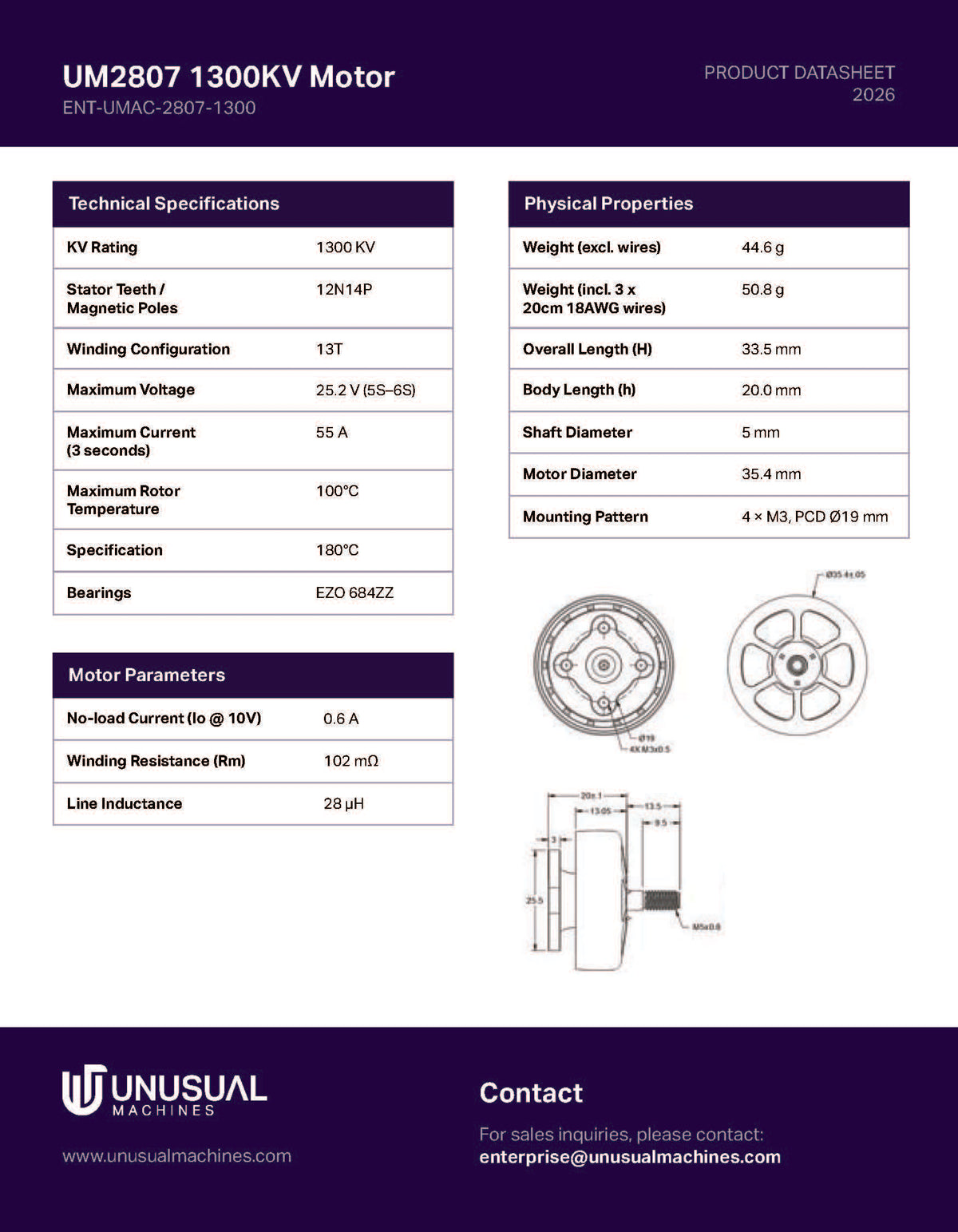

Technical Specifications
| Parameter | Specification |
|---|---|
| KV Rating | 1300 KV |
| Stator Teeth / Magnetic Poles | 12N14P |
| Winding Configuration | 13T |
| Maximum Voltage | 25.2V (5S–6S) |
| Maximum Current | 55A for 3 seconds |
| Maximum Rotor Temperature | 100°C |
| Specification | 180°C |
| Bearings | EZO 684ZZ |
Motor Parameters
| Parameter | Specification |
|---|---|
| No-Load Current (Io @ 10V) | 0.6A |
| Winding Resistance (Rm) | 102 mΩ |
| Line Inductance | 28 µH |
Physical Properties
| Parameter | Specification |
|---|---|
| Weight, Excluding Wires | 44.6g |
| Weight, Including 3 × 20cm 18AWG Wires | 50.8g |
| Overall Length | 33.5mm |
| Body Length | 20.0mm |
| Shaft Diameter | 5mm |
| Motor Diameter | 35.4mm |
| Mounting Pattern | 4 × M3, PCD Ø19mm |
