Note: The Cube Red Pro is currently in a design update phase. Units purchased will not include future upgrade revisions.

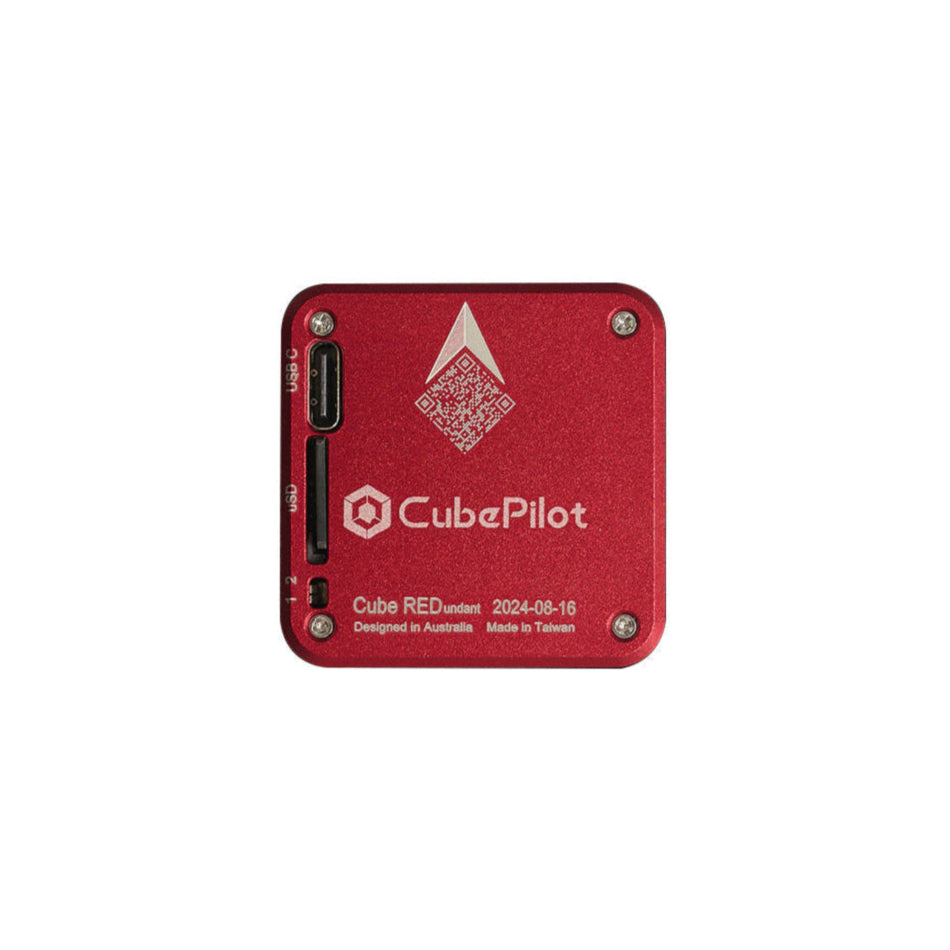

The Cube Red is a next-generation UAV autopilot module designed for advanced development, testing, and high-performance flight control systems. Built on a dual-core STM32H7 architecture, it delivers powerful processing capability with double-precision floating point support for demanding autonomous applications.
This beta version is intended for development environments and early-stage integration. It introduces advanced connectivity and sensor redundancy, including Ethernet, CAN FD, and multiple IMUs, making it ideal for next-generation UAV platforms and research-focused deployments.
Fully compatible with ArduPilot and PX4, the Cube Red supports multirotor, fixed-wing, and VTOL aircraft configurations.
System Specifications
Parameter
Specification
Processor
Dual STM32H7 (H7)
FPU
Double Precision Supported
IMUs
4 Sets
Barometers
3
Autopilot Support
ArduPilot / PX4
Connectivity & Interfaces
Interface
Details
Ethernet
Supported
CAN FD
Supported
DSI Output
Yes
USB
Type-C Debug Interface
Static Air Port
Isolated
Key Features
NDAA 2023 compliant autopilot module
Dual H7 processors for high-performance computing
Beta hardware for development and testing use
CAN FD support for advanced peripheral integration
Ethernet interface for high-speed data transfer
Multiple IMUs and barometers for redundancy
Replaceable enclosed housing with isolated static air ducts
Designed for UAV developers and integrators building advanced autonomous systems requiring high-performance processing, networking, and sensor redundancy.
