Description
MPN: AK80-6 48V DB
Manufacturer: T-Motor
**We are not importing more of this T-Motor product at this time. The current webstore inventory is all that we have available for shipment.
• Highly Integrated & High Torque Module
• Reducer and Controller in One
• Large Torque
• Applied to Exoskeleton, Quadruped Robotic Dog
• Easy Configuration with RUBIK Link
• 12Bit Encoder & UART/CAN Interface

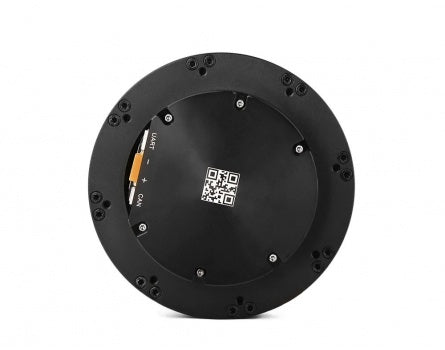

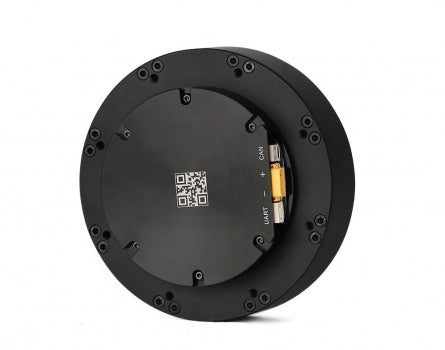

The AK80-6 actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque. Utilizing a portable drive solution, the AK80-6 Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to reach the target efficiently.
CubeMars offers highly customizable motor modules.
AK80-6 Actuator Specifications:
- Operating Voltage: 48V
- Rated Torque: 6Nm
- Rated Speed: 600rpm
Genuine T-Motor product. IR-LOCK orders ship from US warehouses, so you do not need to worry about import taxes and delays (for US customers).
If you need more T-Motor products than are currently in-stock, please let us know.
For complete products specs, see the T-Motor website.
