Description
MPN: AK10-9 V2.0 KV100 DB
Manufacturer: T-Motor
• Highly integrated
• MIT power and servo control modes
• Input & output dual encoders
• Rated torque 18Nm
• Peak torque 48Nm
• Max speed 26rad/s

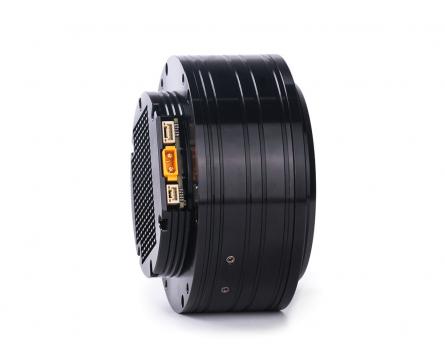

The AK10-9 V2.0 actuator integrates a high-performance brushless DC motor, a self-developed planetary reducer, an encoder, and an integrated drive, enabling smooth operation with high torque.
Utilizing a portable drive solution, the AK10-9 V2.0Power Module supports both servo and MIT modes. It breaks away from conventions by achieving synchronized control of position, velocity, and acceleration, adapting to PID settings automatically and eliminating complexity to reach the target efficiently.
CubeMars offers highly customizable motor modules.
AK10-9 V2.0 Actuator Specifications:
- Operating Voltage: 48V
- Rated Torque: 18Nm
- Rated Speed: 220rpm
Genuine T-Motor product. IR-LOCK orders ship from US warehouses, so you do not need to worry about import taxes and delays (for US customers).
If you need more T-Motor products than are currently in-stock, please let us know.
For complete products specs, see the T-Motor website.
