Description
MPN: ANT-900-RFDFLEX1-300mm-RPSMA
Manufacturer: RFDesign

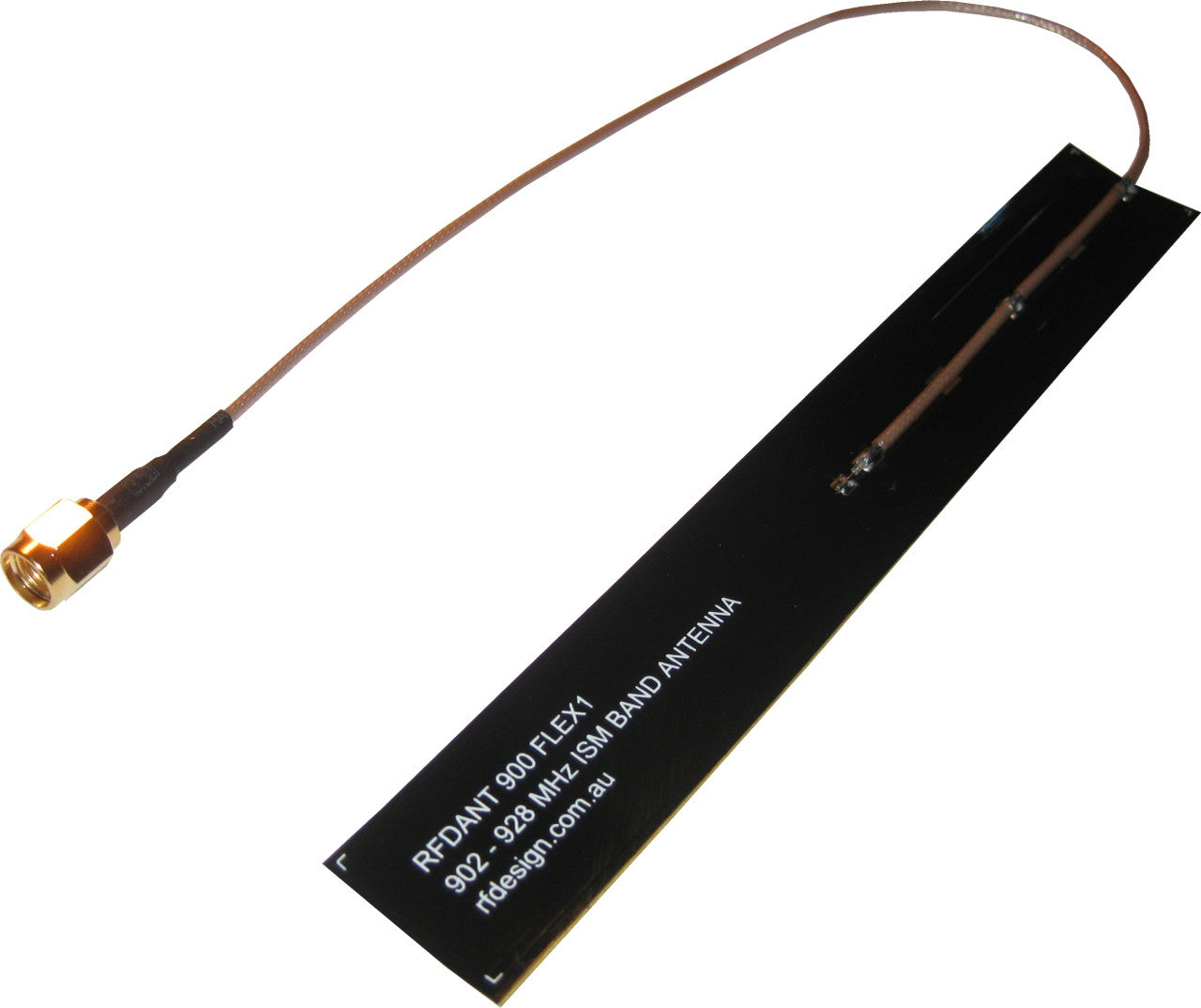

The RFDesign 900MHz Flexible Antenna is a lightweight, low-profile antenna engineered for operation within the 902–928 MHz ISM band. Designed for UAV telemetry and long-range communication systems, it provides reliable RF performance while maintaining minimal weight and aerodynamic impact.
This antenna is optimized for free-space operation or installation on RF-transparent materials such as foam wings, balsa structures, thin fiberglass, or lightweight fuselages. With better than -10 dB return loss across the operating band, it remains stable and relatively insensitive to mounting conditions.
The antenna features integrated feed point matching and a built-in balun for feed cable isolation, improving signal integrity and reducing unwanted interference. Gold-plated pads and black solder resist support clean installation and secure electrical connections.
Ideal for use with 900 MHz telemetry radios and RFD systems in professional UAV and unmanned applications.
Specifications
-
Frequency Range: 902–928 MHz
-
Return Loss: < -10 dB
-
Antenna Size: 150 × 21 × 0.1 mm
-
Cable Type: RG316
-
Total Length (including cable): 385 mm
-
Connector: RP-SMA
-
Weight: 7.3 g
Designed for efficient integration into lightweight airframes requiring dependable 900 MHz communication performance.
