Description
MPN: RFD900-Videolink
Manufacturer: RFDesign

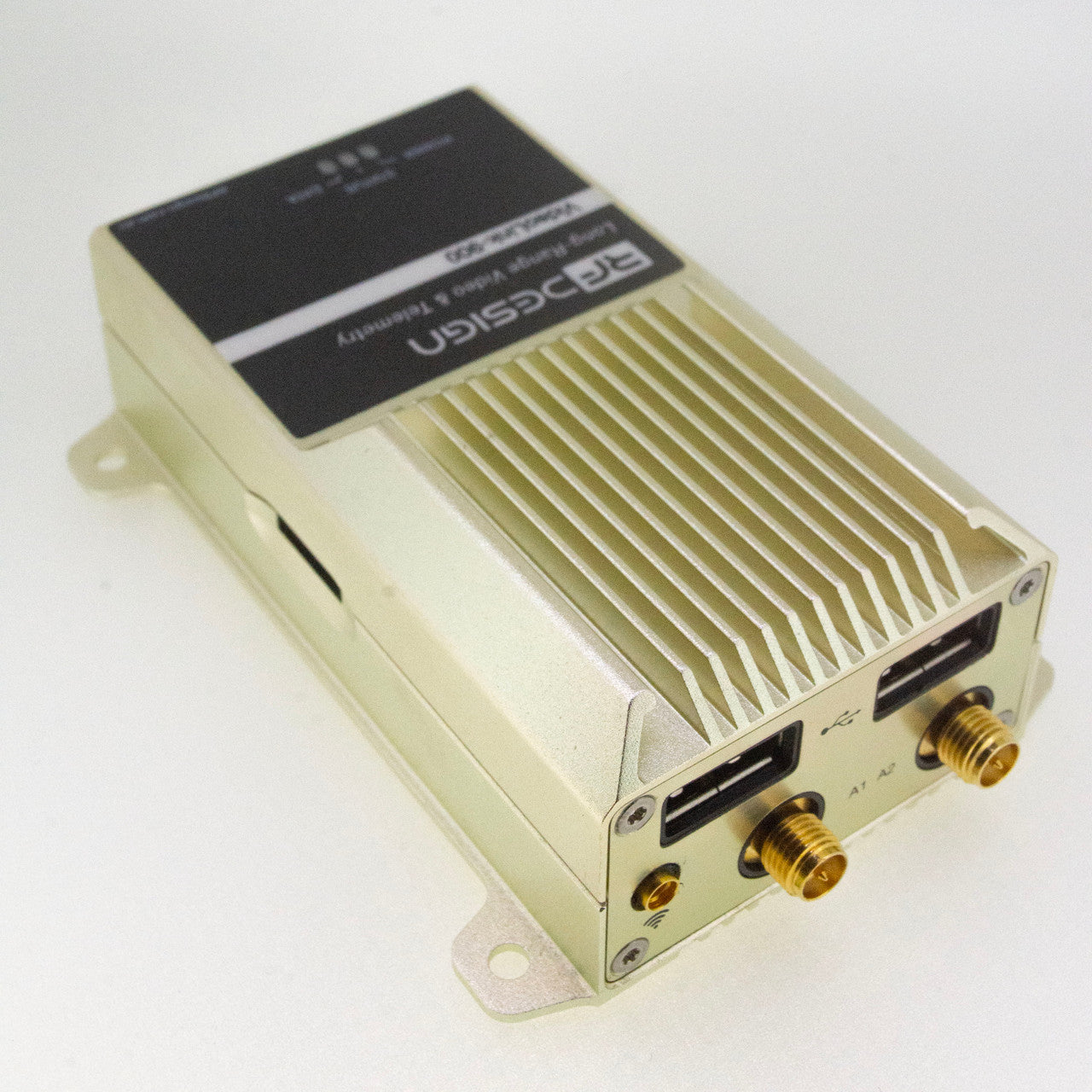

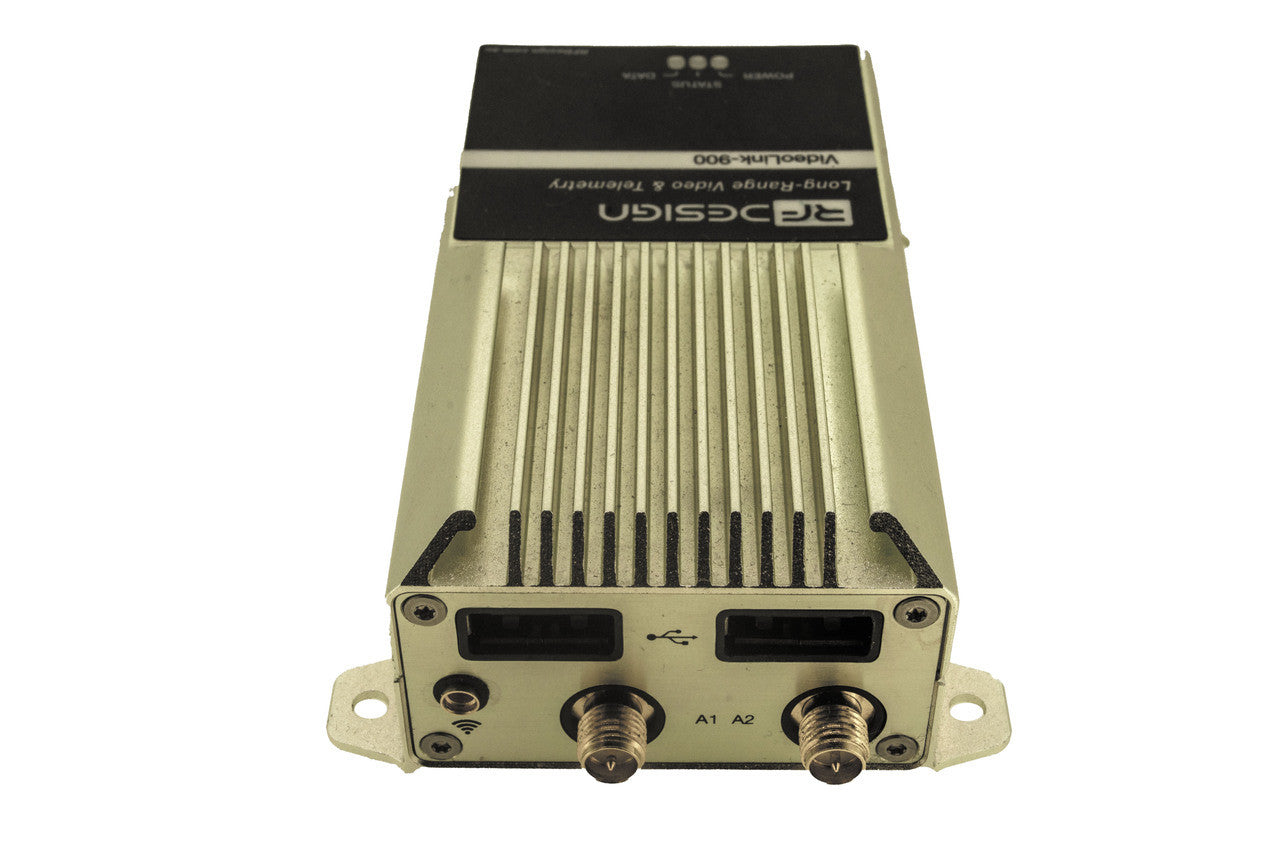

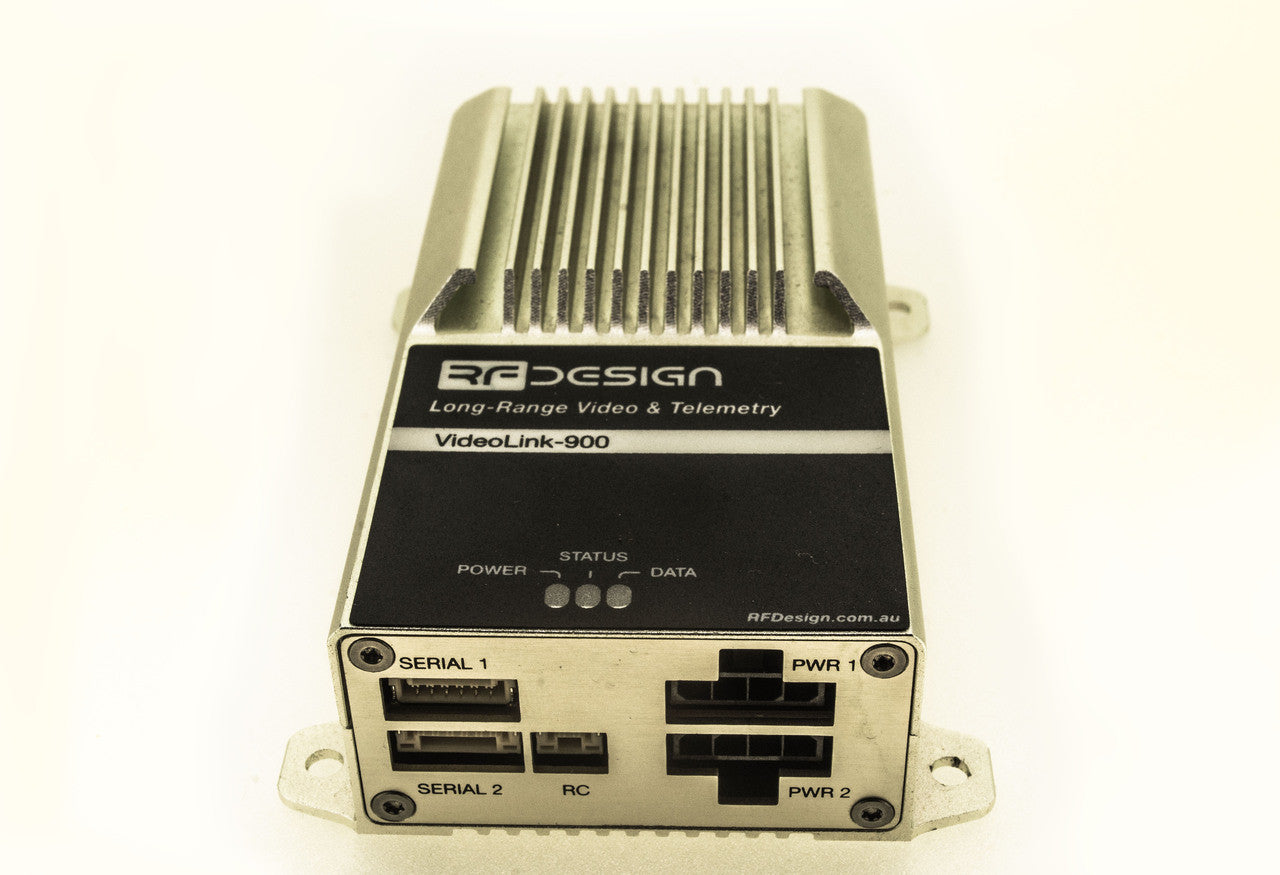

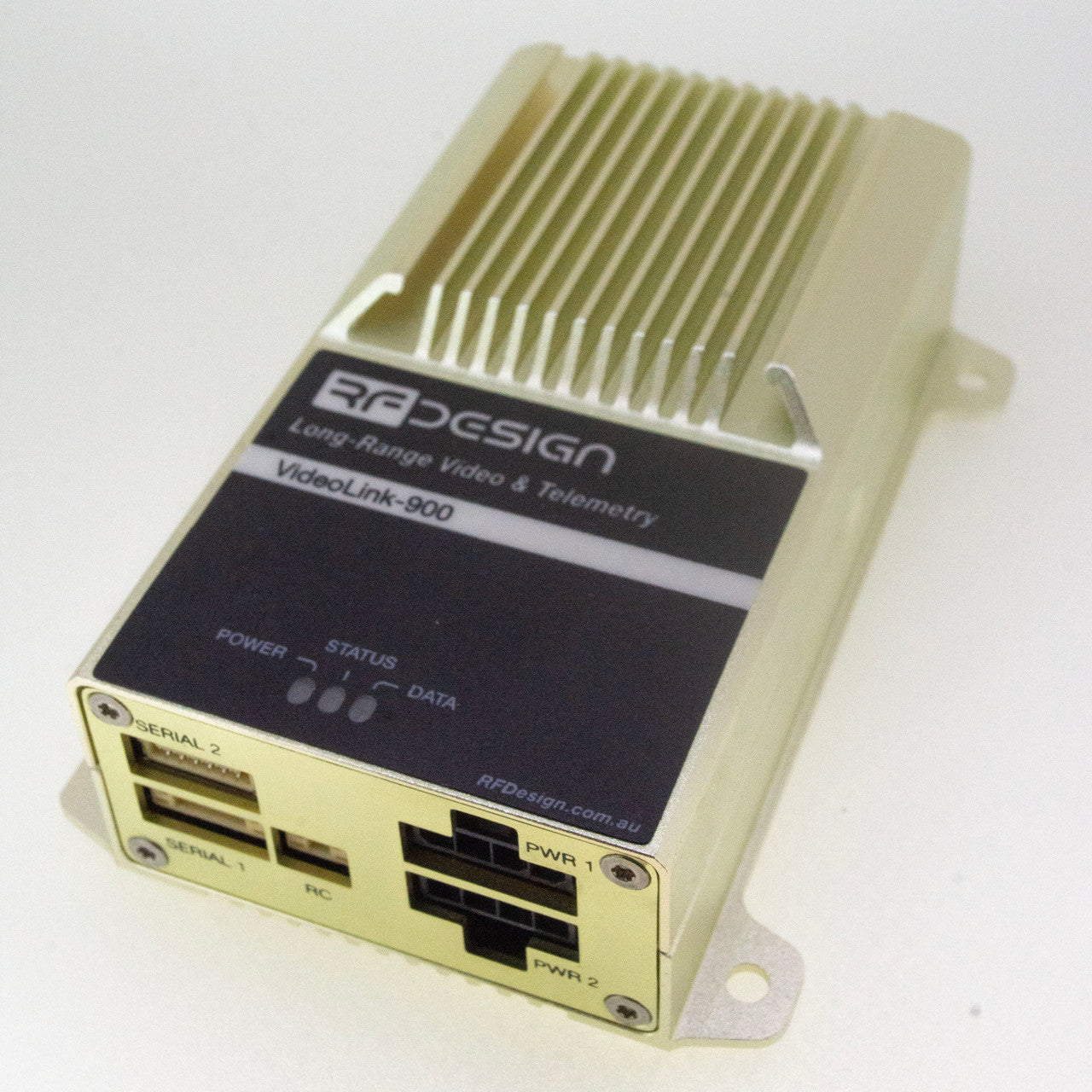

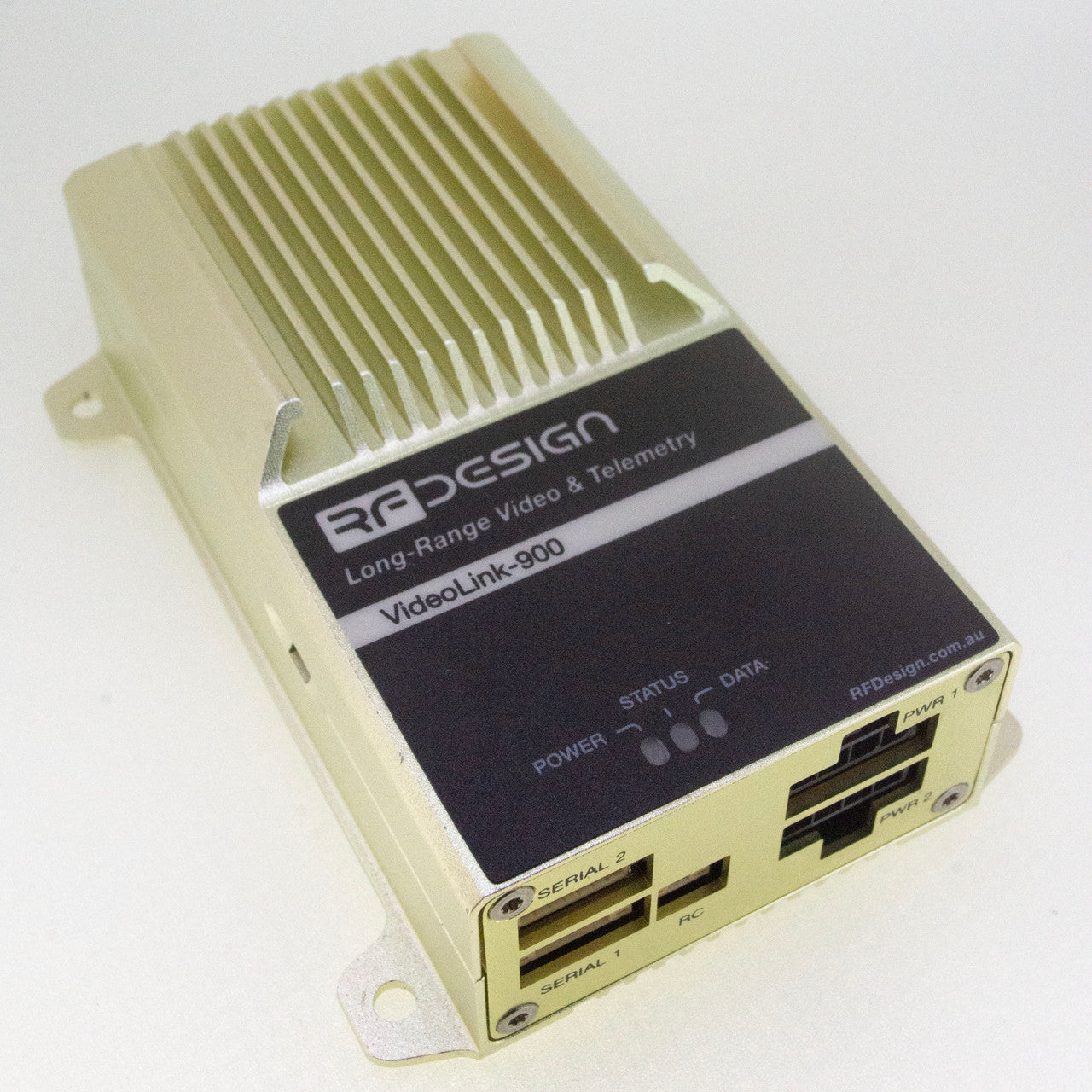

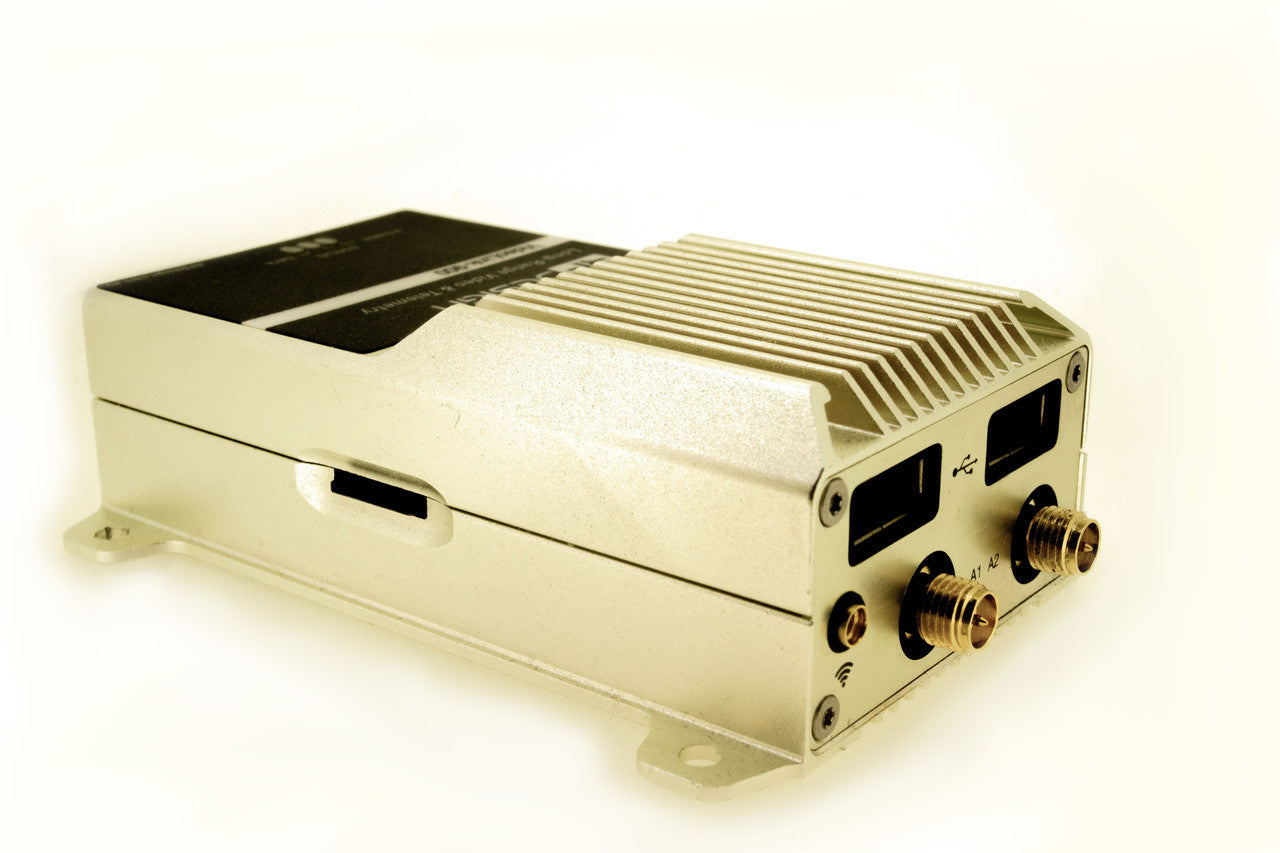

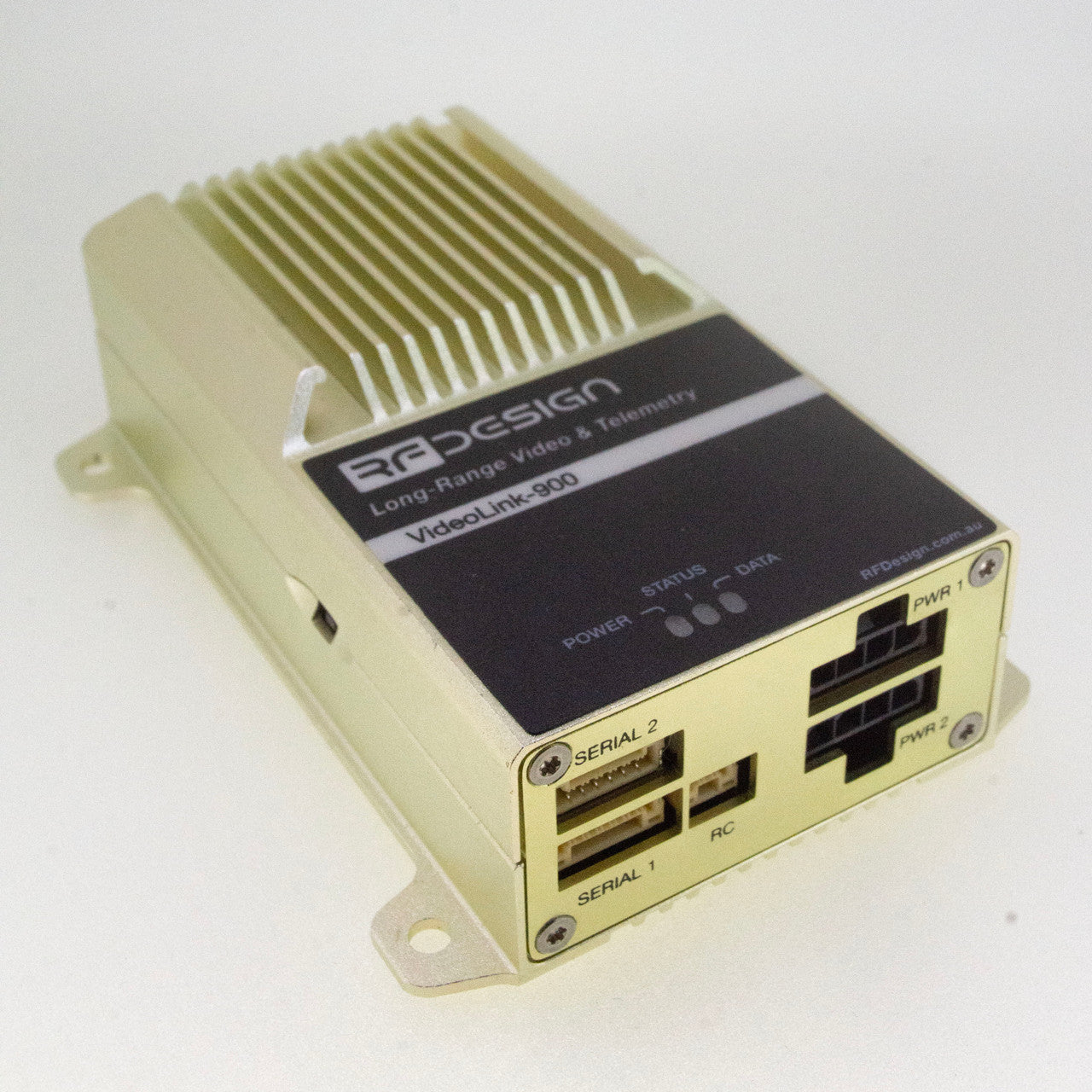

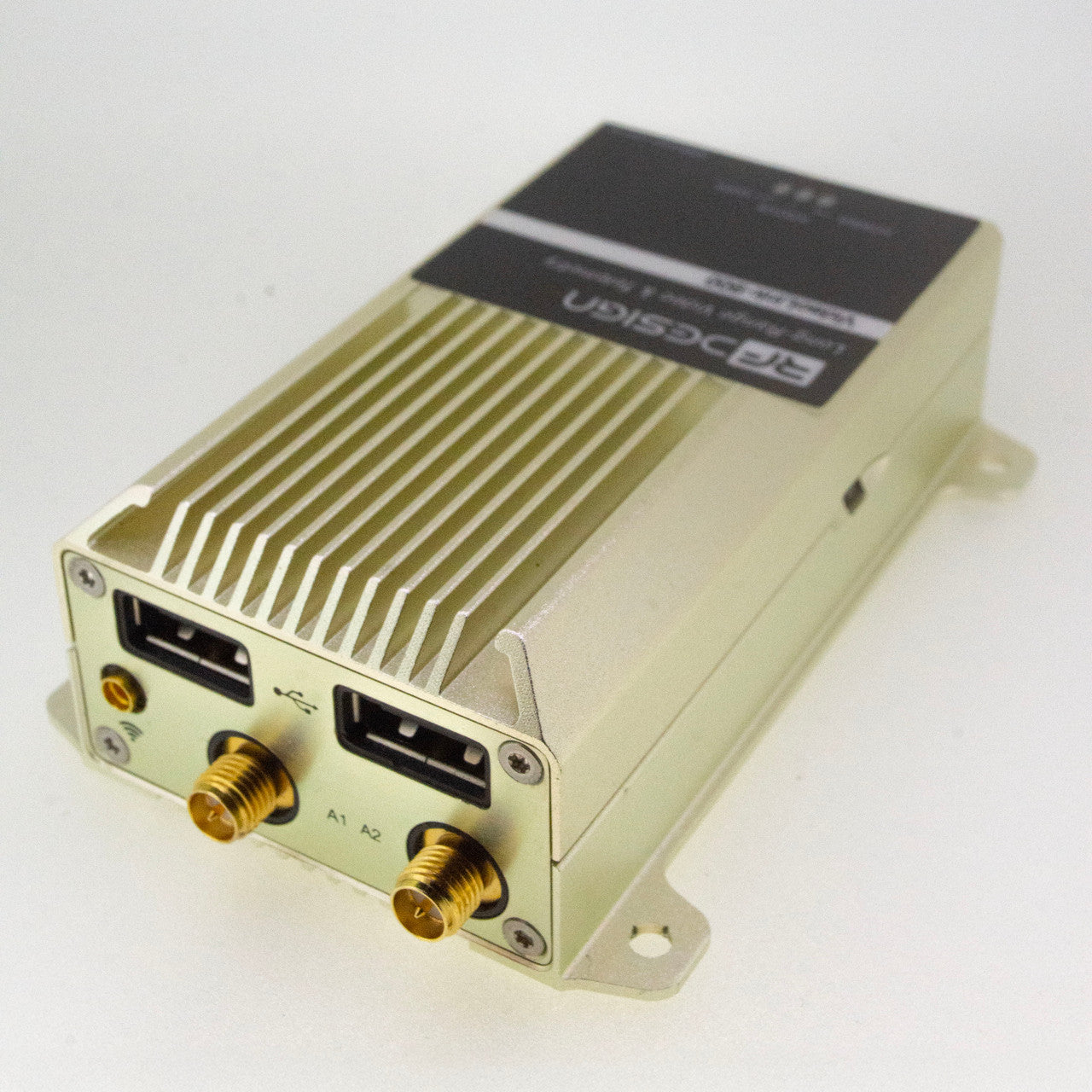

The RFD900 VideoLink (MPN: RFD900-Videolink) is a long-range video and telemetry modem designed for professional UAV, robotics, and remote surveillance applications. Combining RFDesign’s proven long-range telemetry platform with low-latency video transmission, VideoLink delivers reliable situational awareness well beyond traditional Wi-Fi systems.
Tested in demanding field conditions, the system supports video and telemetry transmission at ranges exceeding 5 km (line-of-sight, antenna and configuration dependent). Built for integration into Cube-based and MAVLink-compatible platforms, VideoLink provides a rugged, compact, and deployment-ready solution.
Quickstart Guide, Data Files and Documents for the VideoLink can be found at:
https://rfdx.atlassian.net/wiki/spaces/TS/pages/689831937/RFD+VideoLink
Key Features
-
5+ km range (LOS, antenna and configuration dependent)
-
Real-time H.264 video streaming
-
Video resolution up to 720p
-
Integrated telemetry + video over MAVLink
-
UVC (USB Video Class) camera support
-
1W RF output power (902–928 MHz, user configurable)
-
Redundant power input (6–55V wide range)
-
Web-based configuration via 2.4GHz Wi-Fi
-
PPM / SBUS passthrough for control signals
-
AES hardware encryption (up to 256-bit)
-
Built-in thermal and overcurrent protection
-
Designed and built in Australia — NDAA compliant

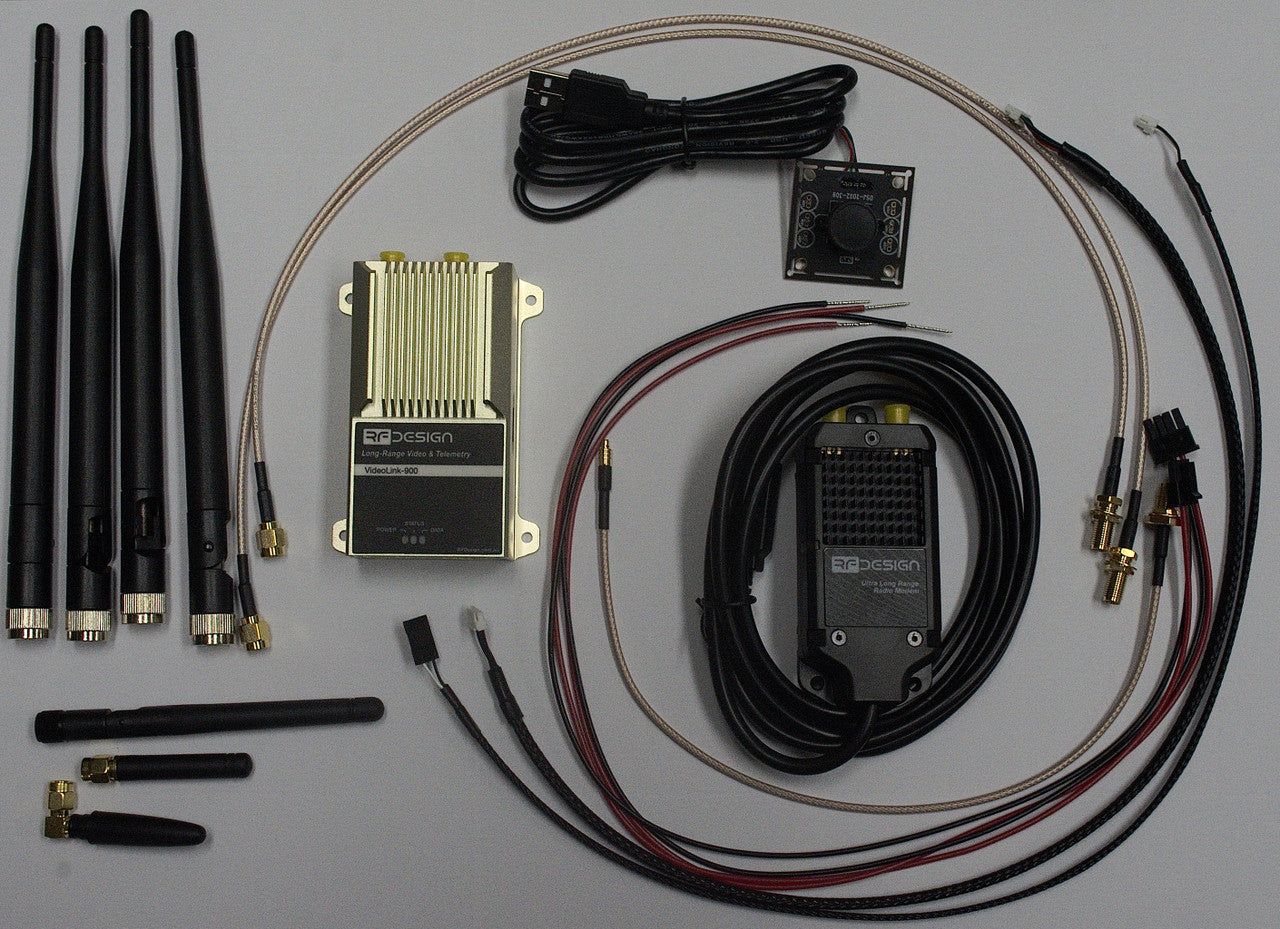

What’s Included
-
1 × VideoLink Module
-
1 × MicroSD Card (preloaded with latest firmware)
-
1 × VL RFD900X2 Modem with Enclosure Assembly
-
1 × USB Camera (DFRobot FIT0892)
-
4 × 900MHz 3dBi Dipole Antennas (RP-SMA)
-
1 × 868–900MHz 2dBi Right Angle Monopole (RP-SMA)
-
1 × 868–900MHz 2dBi Monopole (RP-SMA)
-
1 × 2.4GHz 2dBi Dipole Antenna (RP-SMA)
-
1 × FTDI 3.3V Cable (installed in enclosure)
-
2 × VideoLink Power Cables (500mm)
-
1 × PPM/SBUS Cable (500mm)
-
2 × RP-SMA Extension Cables (300mm)
-
1 × Serial Cable Straight Through (500mm)
-
1 × MMCX to Bulkhead RP-SMA RG316 Cable (300mm)
The RFD900 VideoLink system is engineered for secure, long-distance UAV video and telemetry transmission in commercial, industrial, and government-grade applications.
