Description
MPN: BUNDLE-RFD868ux-TXMOD V2
Manufacturer: RFDesign
The RFD868ux TXMOD V2 Bundle is an all-in-one long-range telemetry and RC control solution designed for professional UAV platforms. Built around the RFD TXMOD JR-style transmitter module and the RFD868ux telemetry modem, this system enables simultaneous RC PPM control and MAVLink telemetry transmission over a long-range RF link.
Designed for use with radio transmitters that accept JR-style modules, the TXMOD integrates directly into compatible controllers, including FrSky Taranis, JR, FrSky Horus, and RadioMaster TX16S-class systems. It transmits RC control signals to the aircraft while receiving real-time telemetry data from the vehicle.
The V2 release adds support for SPORT telemetry data returned from the aircraft to the RC transmitter, enhancing system feedback and integration. The built-in WiFi interface enables browser-based configuration and allows telemetry data broadcasting to a computer or smart device for monitoring and diagnostics.
This bundle provides a complete long-range RC and telemetry bridge between the ground transmitter and aircraft, ideal for professional, research, and industrial unmanned systems.
Compatibility Note:
TXMOD works with X and UX modems only.
Please see the files.rfdesign.com.au website for datasheets and user documentation. http://files.rfdesign.com.au/

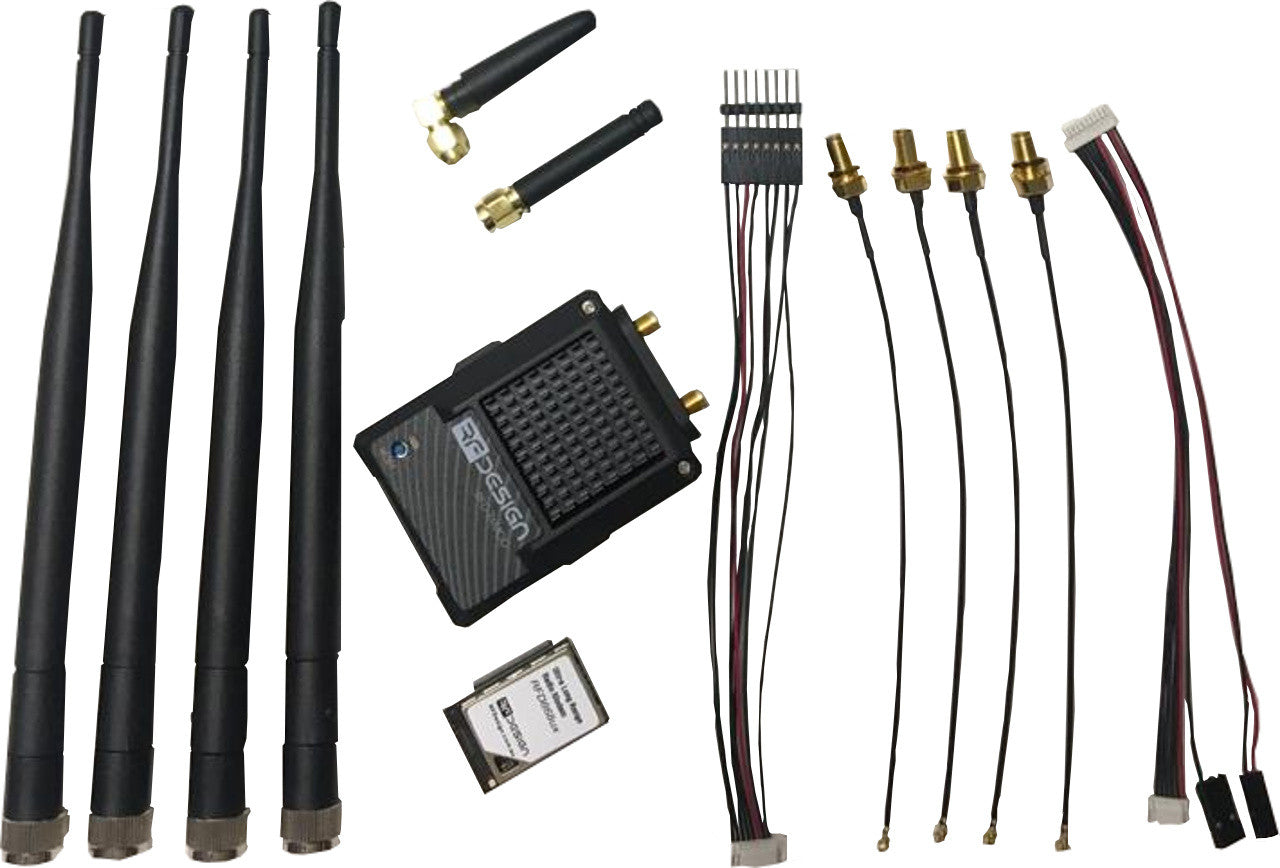

The RFD868ux TXMOD kit consists of:

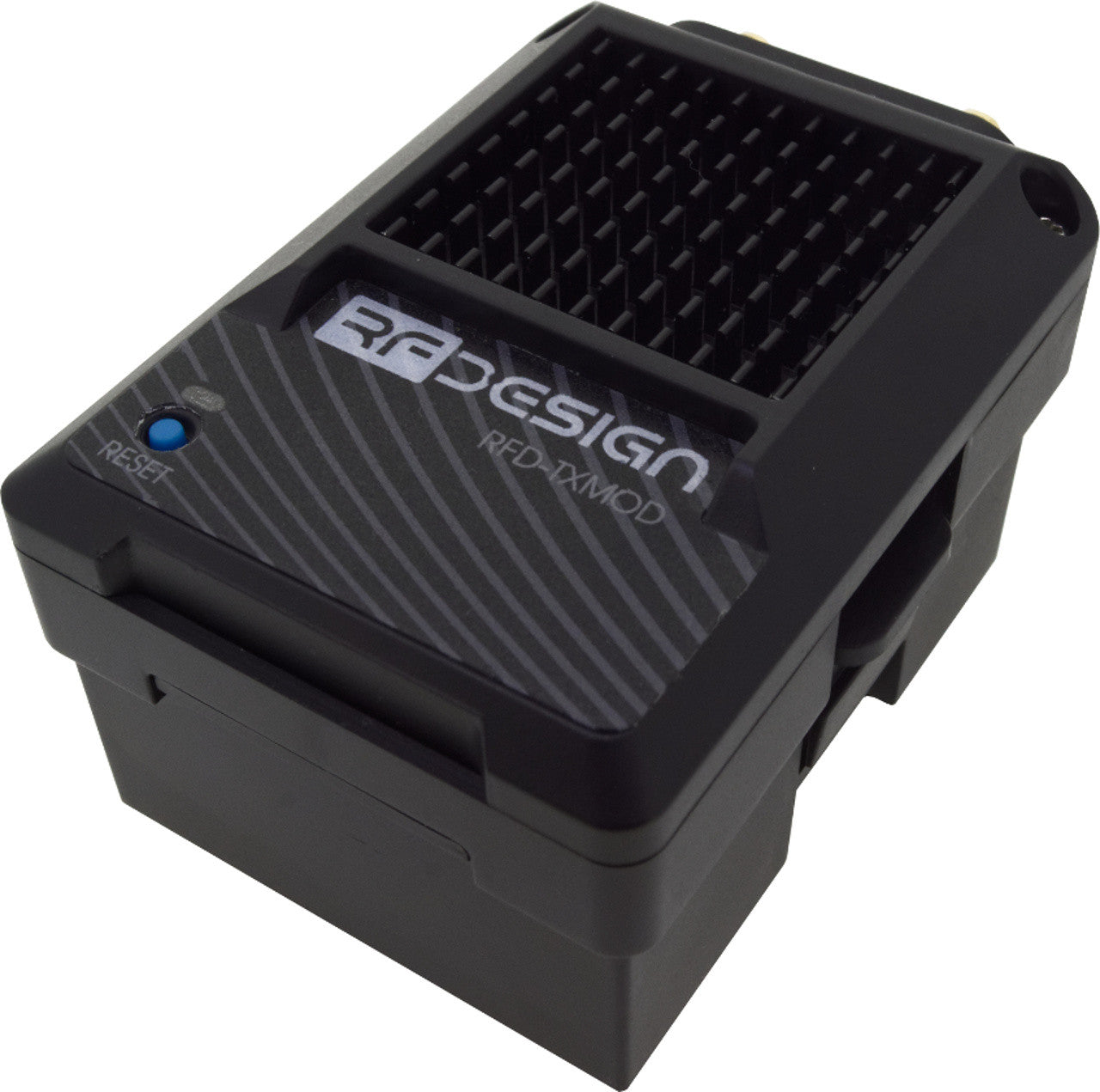

- (17.2) 1 x RFD868 TXMOD https://store.rfdesign.com.au/rfd868-txmod-rc-transmitter-module/
- (7.4) 1 x RFD868ux Radio Modem with new version v3.15 or later firmware https://store.rfdesign.com.au/rfd-868ux-modem/
- (8.3) 1 x Antenna, 868-900MHz Quarter wave monopole 2.1dBi
- (8.2) 1 x Antenna, 868-900MHz Right Angle Quarter wave monopole 2.1dBi
- (8.4) 4 x Antennas, 868-900MHz Half wave dipole 3dBi
- (2.4) 1 x 900ux to 8 way socket cable (900ux) https://store.rfdesign.com.au/900ux-to-8-way-socket-cable-900ux/
- (11.6) 4 x RFD900u antenna cable (RPSMA) https://store.rfdesign.com.au/rfd900u-antenna-cable-rpsma/
- (2.3) 1 x PIXH2 to RFD900ux Telemetry Cable - 150mm https://store.rfdesign.com.au/pixh2-to-rfd900ux-telemetry-cable-150mm/
