RF Extension Cable - RPSMA(M)-RPSMA(F) 15cm


Click here to be notified when this product is back in stock.


SKU: CABLE-RPSMA-EXT-15cm

Manufacturer: RFDesign



Product Description

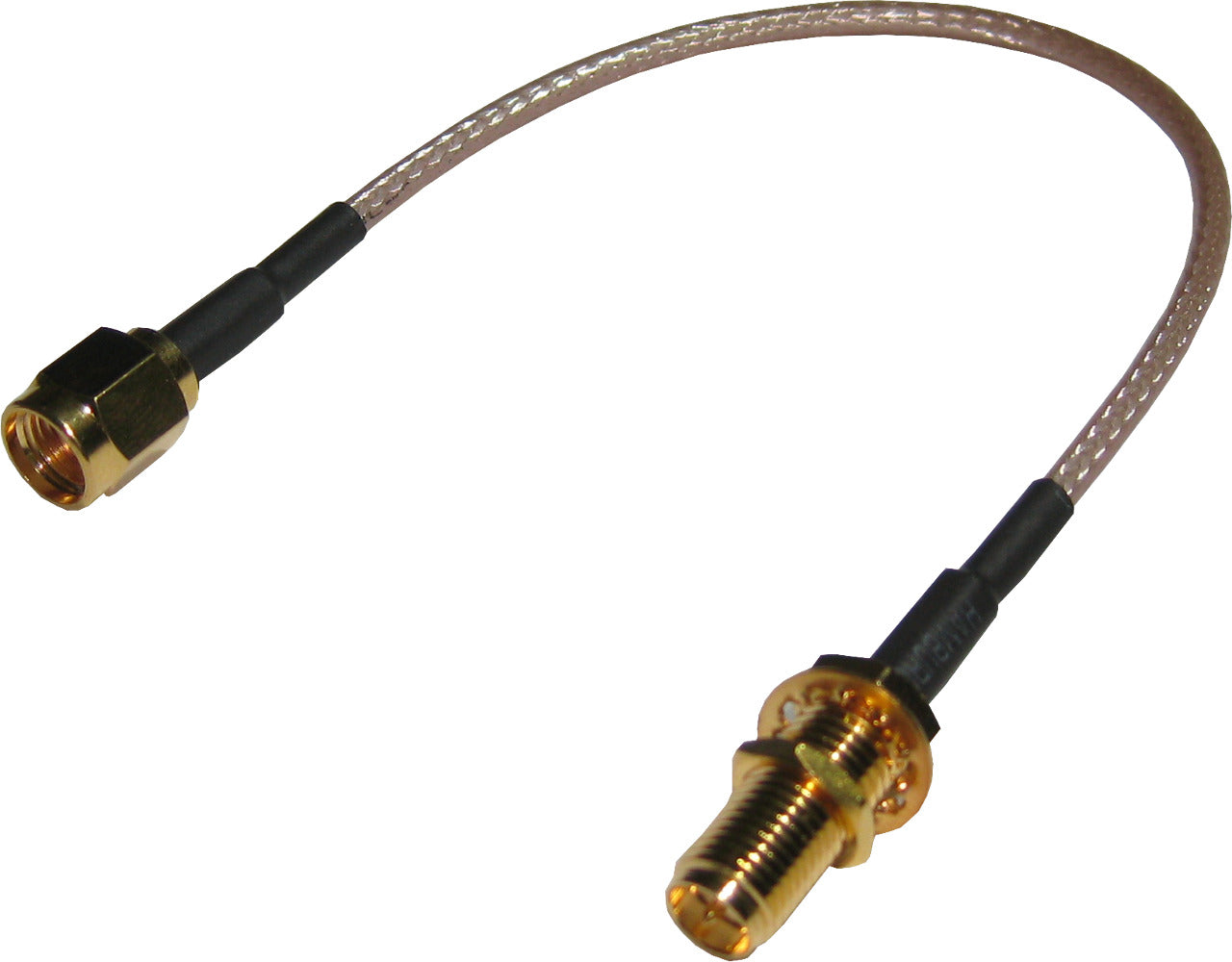

This is an RF extension cable with RPSMA male/female terminations.

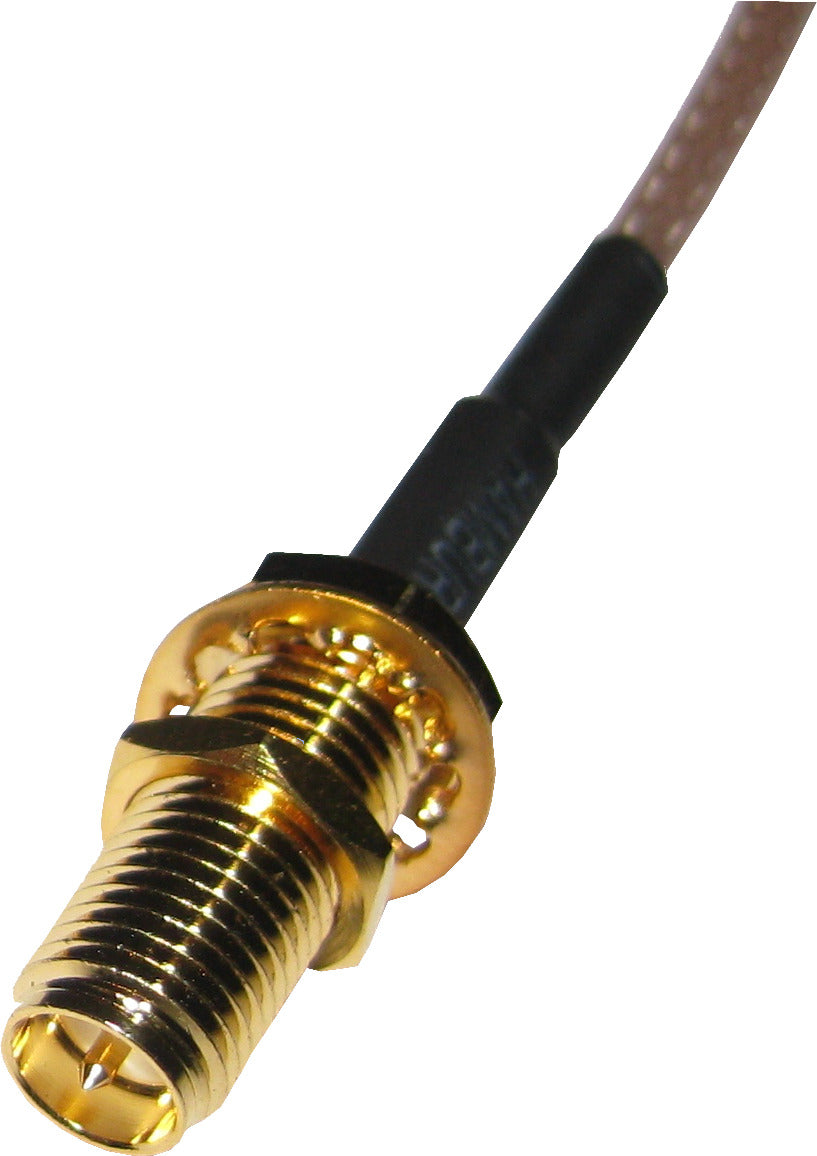

It has a bulkhead fitting on the RPSMA(F) end to allow mounting through panels to get the best antenna location.

The bulkhead fitting will allow approximately a 6mm thick wall to be penetrated, with allowance for the lock washer, nut and terminating cable/antenna to be connected on the other side.

They can be connected end to end to make custom lengths (losses will be added together on subsequent cable lengths.



Specifications:

Total length: 17.7 cm ( 6.96 in )
Insertion loss @ 915 MHz : 0.25 dB - typical
Insertion loss @ 2450 MHz : 0.4 dB - typical
Insertion loss @ 5550 MHz : 0.71 dB - typical
Cable type : RG316
Cable thickness : 2mm
Weight : 9.3g ( 0.33 oz )
