Description
SKU: MAUCH-053
Manufacturer: Mauch Electronics
Input voltage 4-14S, max. 60V
User Manual: DOWNLOAD

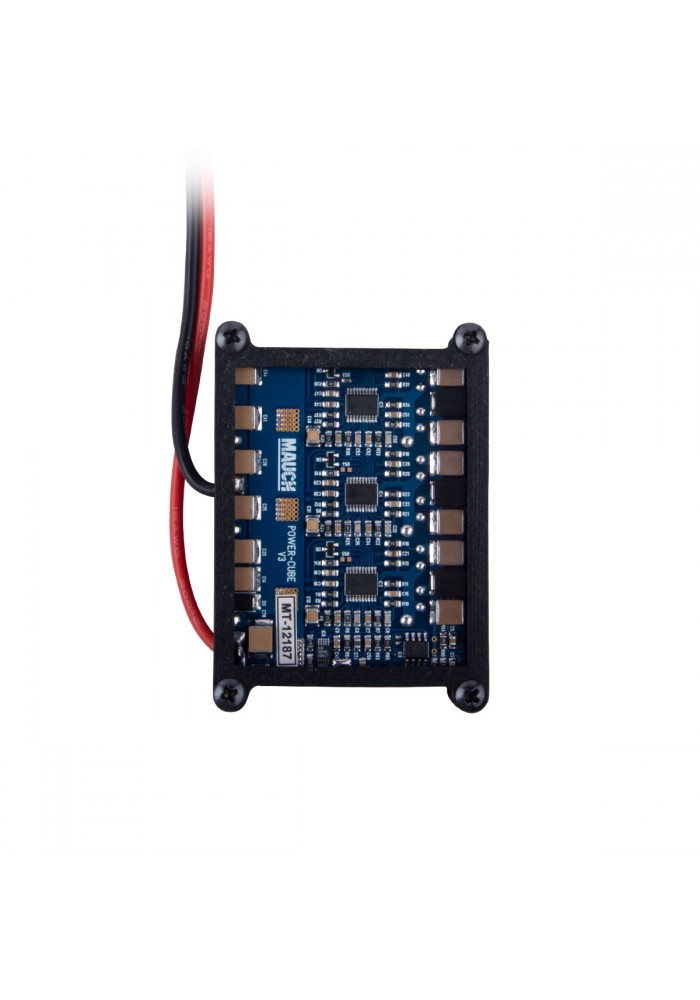

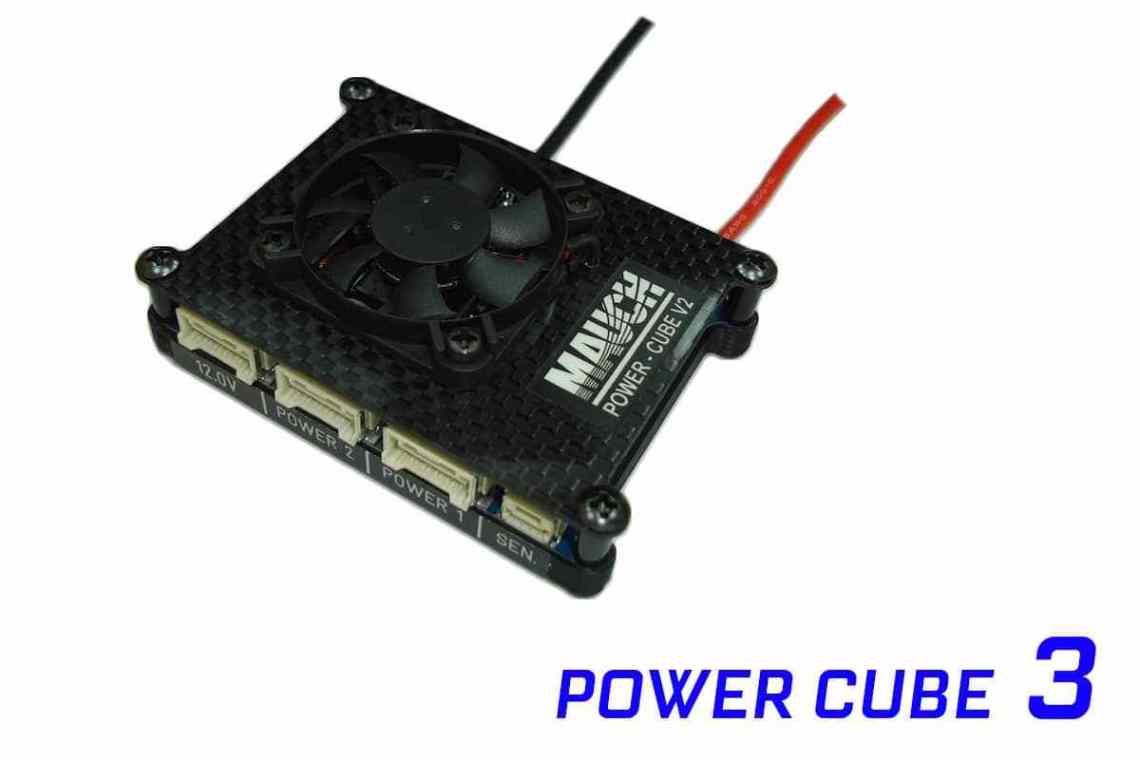

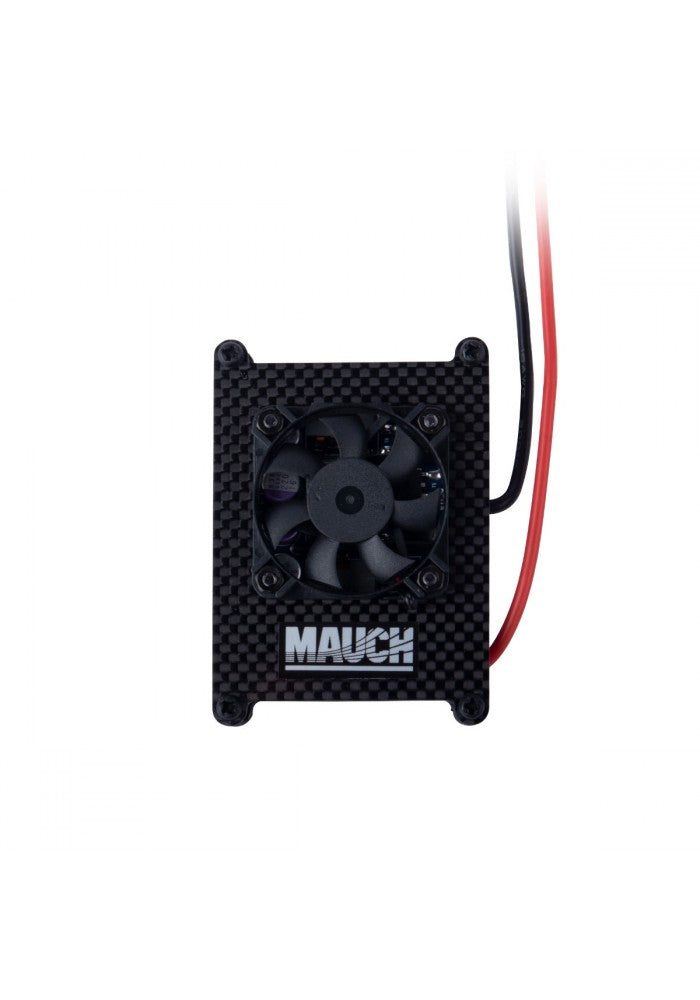

Power-Cube 3 "V3" with 3 outputs 2x 5.3V / 10A + 1x 12.0V / 10A
REM: The output voltage can be customized. Please mention in the required field, if you need a different output voltage on output 2 or 3 -> Output 1 can't be changed and must remain 5.3V.
REM: Delivery without 059: Power-Switch. Please order it separately if required.

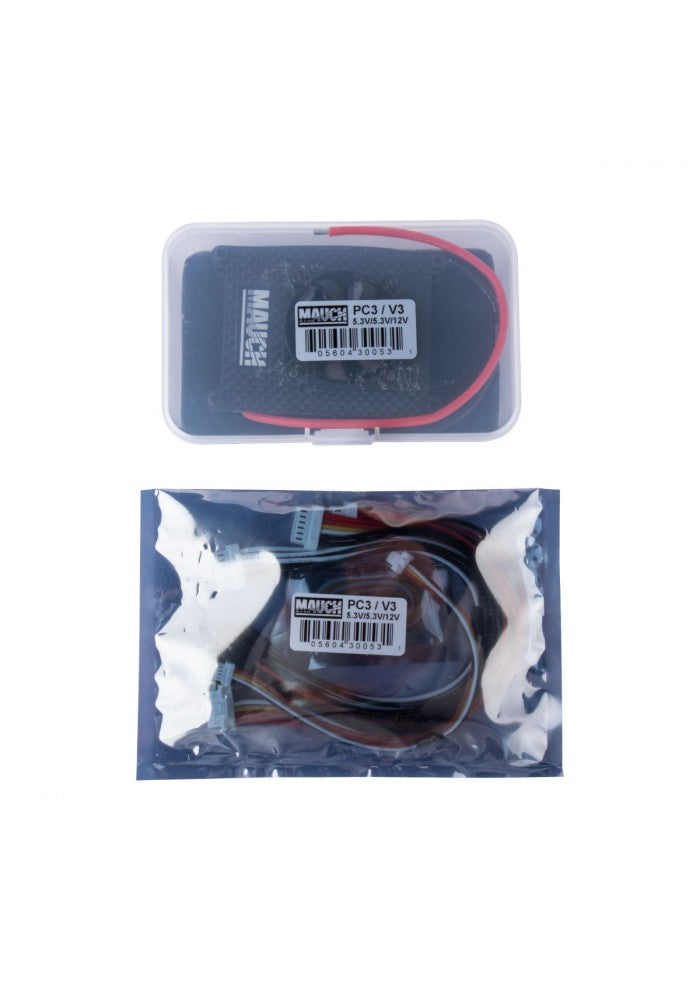

Scope of delivery:
1x Power-Cube 3 with CFK enclosure and fan.
1x (040) PL sensor cable / L = 150mm
1x (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm
1x (061) Power-Cube / Pixhawk 2.1 Backup / 2x Clik-Mate-6p + 1x JR / L = 200mm
1x (063) Power-Cube / 12.0V output cable / 1x C-M-6p + 3x JR / L = 200mm
