Mauch 022: PL 4-14S HYB-BEC / 2x 5.3V


Price:
Sale price$ 99.69
Stock:
In stock (24 units), ready to ship

Description

SKU: MAUCH-022

Manufacturer: Mauch Electronics



User Manual: DOWNLOAD

Input 4-14S LiPo / max. 60V.

Output 2x 5.30V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.

Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output connector with Molex Clik-Mate 4p.

Blue power "ON' LED.

59mm x 48mm x 13mm / 41g with enclosure(without cables)

Delivery in PP box:

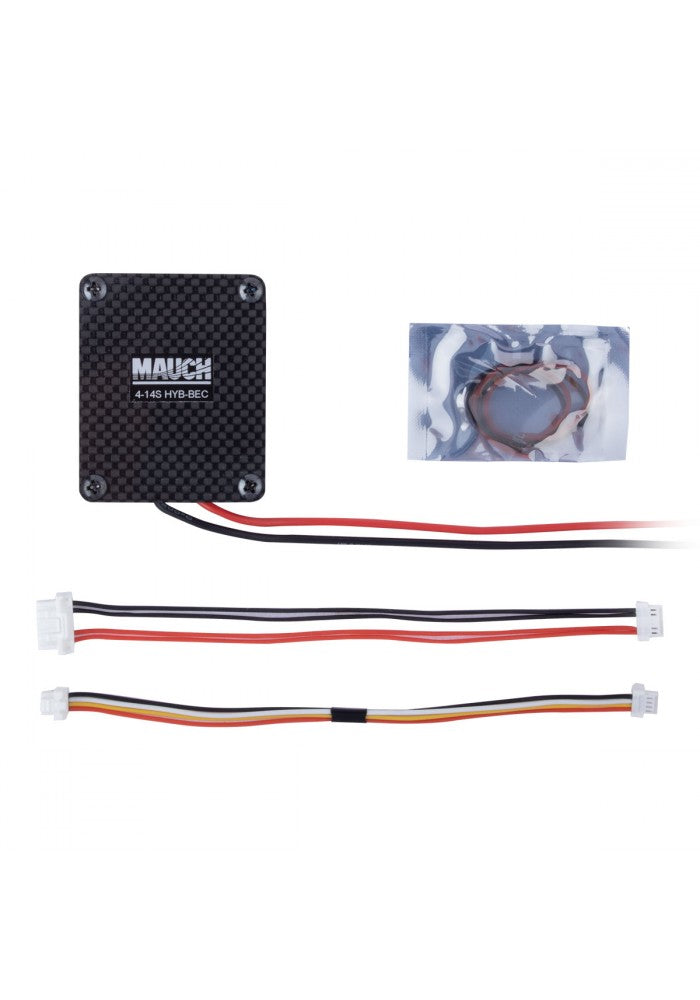

Scope of delivery:

1x 021: PL 4-14S HYB-BEC / 1x 5.3V / 3A

1x 040: PL - Series sensor cable / L=150mm

1x  050: Backup cable for Pixhawk 2.1 / L=150mm

1x Enclosure

REM: The BEC is delivered without an flight controller cable, so please select the correct cable to match your FC:

041: DF13-6p -> Pixhawk 1 / APM... etc.

042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1

043: JST-GH-6p -> Pixhawk 3... etc
