Description
SKU: MAUCH-017
Manufacturer: Mauch Electronics
User Manual: DOWNLOAD

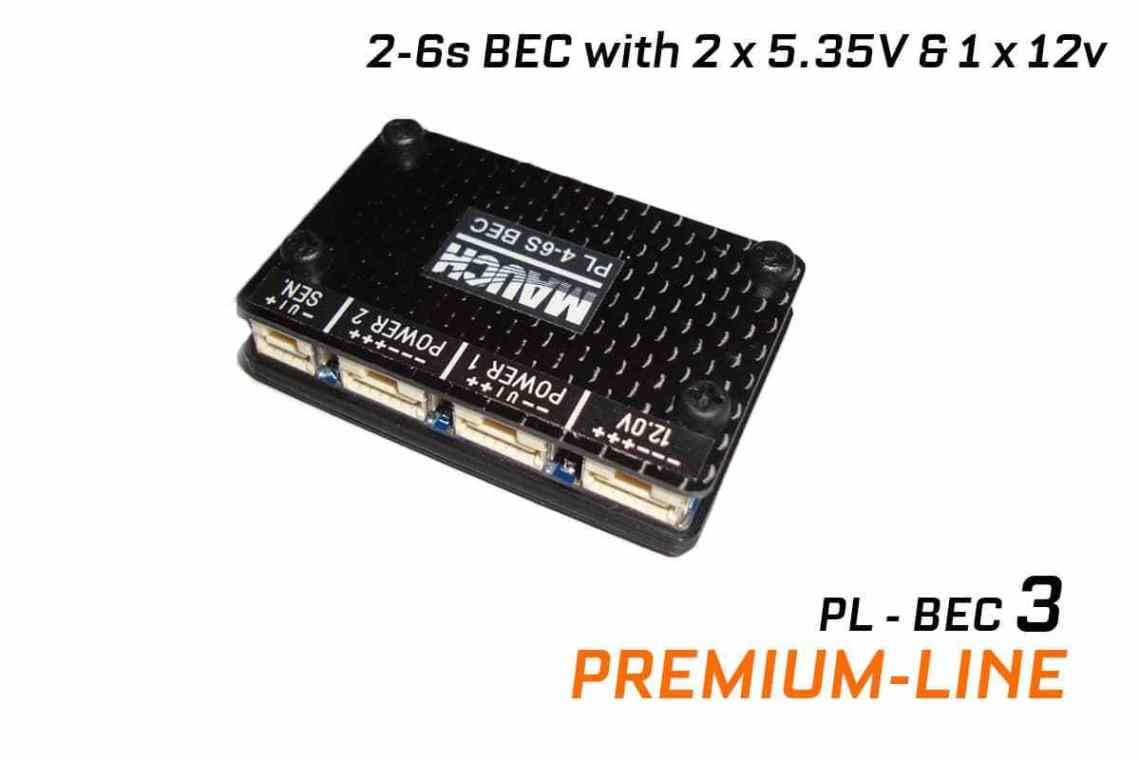

Input 4-6S LiPo / max. 28V.
Output 2x 5.35V / 3A + 1x 12.0V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.
Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2 and output connector with Molex Clik-Mate 4p.
Input wrong polarity protection, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.
Blue power "ON' LED. (3x)

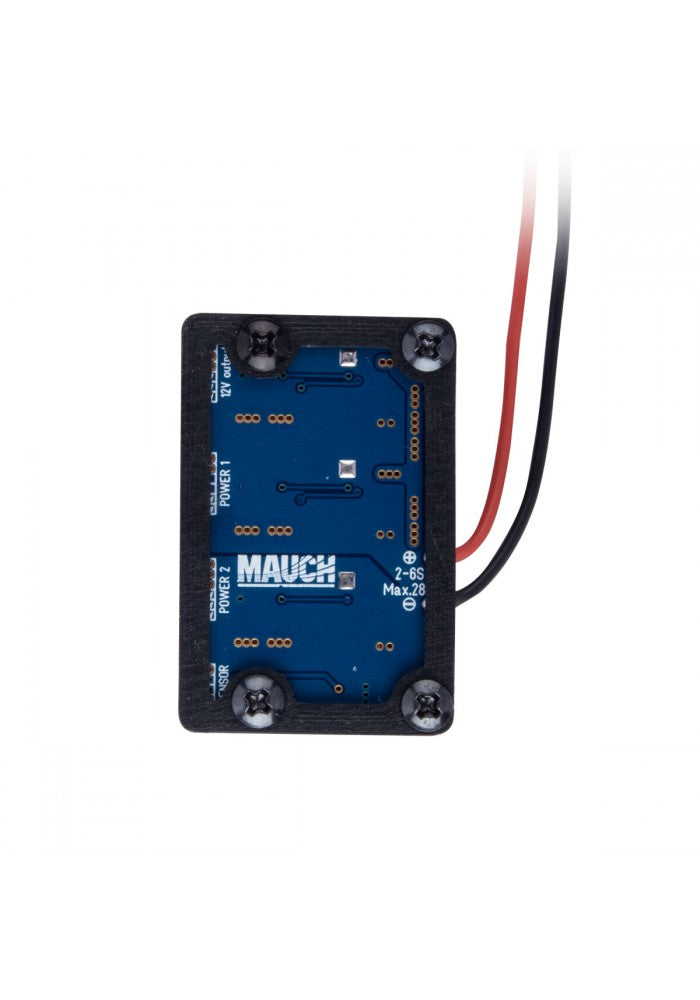

32mm x 50mm x 7mm / 19g without CFK enclosure

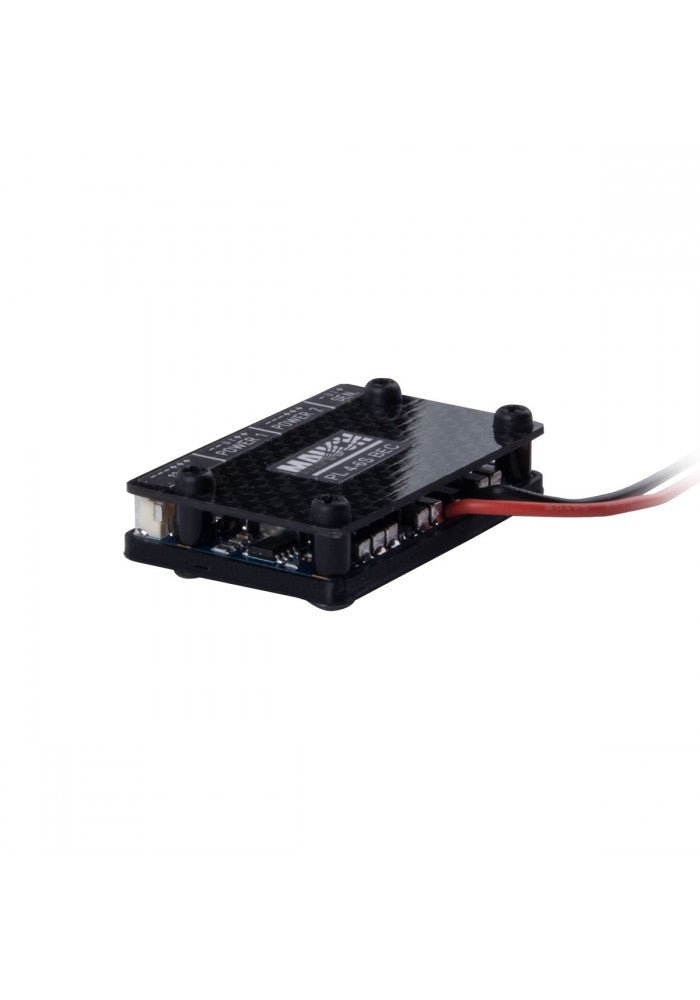

34mm x 52mm x 10mm / 24g with CFK enclosure

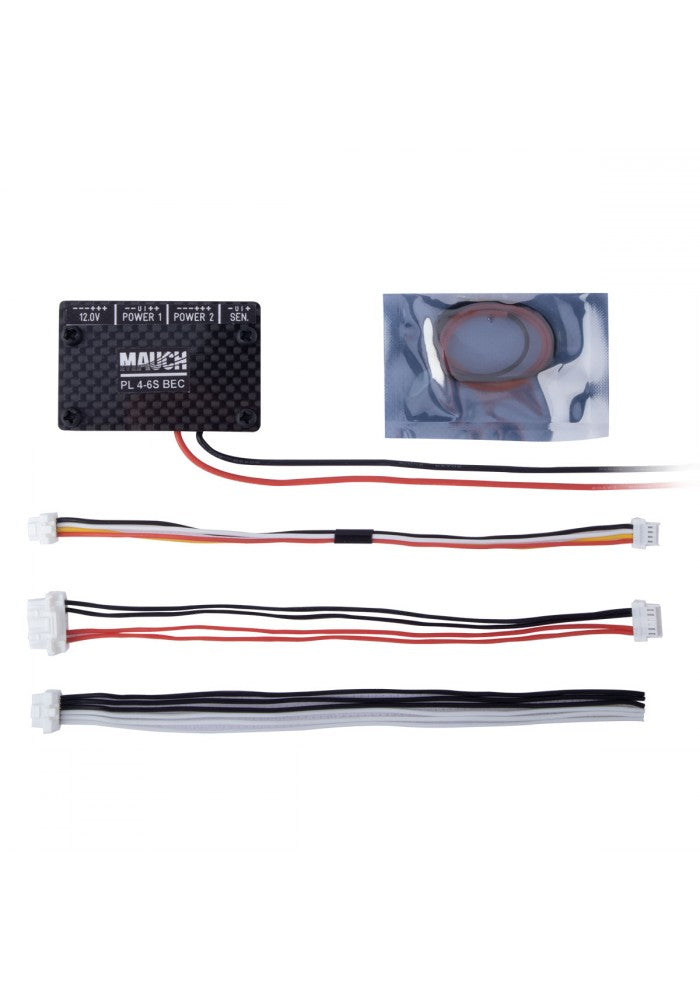

Scope of delivery:
1x PL-4-6S BEC 3x
1x CFK enclosure
1x Sensor cable (040) Molex Clik-Mate 4p / L = 150mm
1x Backup cable (050) for Pixhawk 2.1 / Molex Clik-Mate 2.0-6p / L = 150mm
1x 12.0V output cable one site Molex Clik-Mate 1.25mm-4p, the other site open. / L = 150mm
REM: The BEC is delivered without an flight controller cable, so please select the correct cable to match your FC:
041: DF13-6p -> Pixhawk 1 / APM... etc.
042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1
043: JST-GH-6p -> Pixhawk 3... etc
