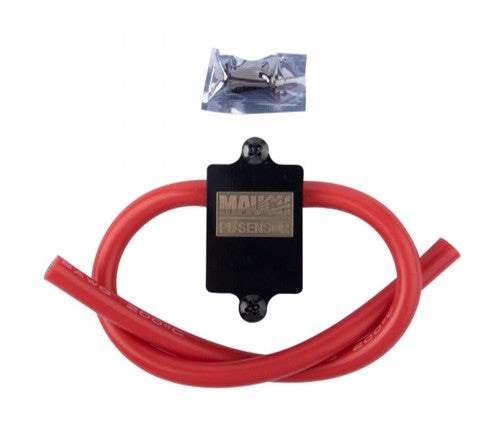

Mauch 004: PL-200/8 Sensor Board


Price:
Sale price$ 50.28
Stock:
In stock (38 units), ready to ship

Description

SKU: MAUCH-004

Manufacturer: Mauch Electronics



User ManualDOWNLOAD

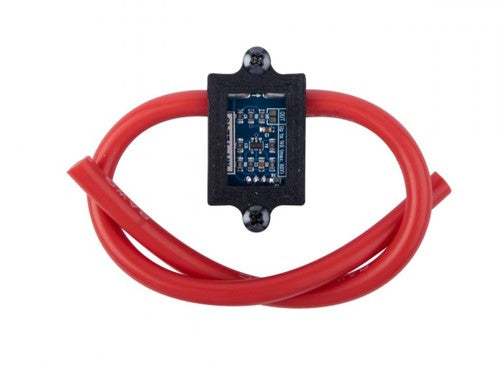

200A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U.

Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.

Connected to the sensor are 2x15cm AWG8 wire (red) as a standard.

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)

Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 45g (with 2x 15cm 8AWG)

With CFK enclosure = 43.5 x 23.0 x 15mm / 50g (with 2x 15cm 8AWG)

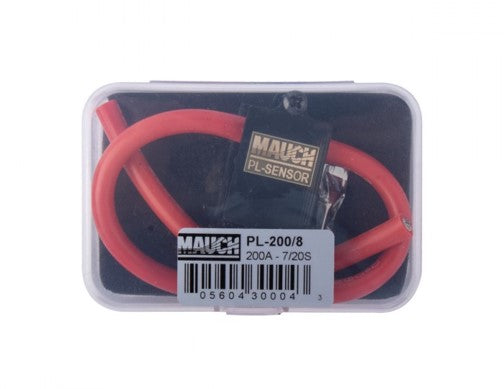

Delivery in PP box: 55 x 55 x 20mm / 60g

Delivery without sensor cable (comes with the BEC's), with CFK enclosure

REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.
