MarkOne w/ Wifi

  • $ 175.00

Click here to be notified when this product is back in stock.


Updated to MarkOne V2.0 (link)

RELIABLE TARGET TRACKING IN ANY LIGHTING CONDITION

  > Compatible with IR-LOCK Sensor
  > Detection Range: 15+ meters
  > Update Rate: 50Hz
  > No calibration required
  > Reliable detection in bright sunlight and complete darkness
  > Over-the-internet control via Wifi
  > *Case (not included) recommended for optimal outdoor performance in sunlight

The MarkOne Beacon technology enables robust and reliable target detection in virtually all operating conditions, including highly reflective environments, such as over water, vehicles, etc. See the demo videos below, and check the documentation for more details on integrating IR-LOCK into your robotics project.

MarkOne Documentation

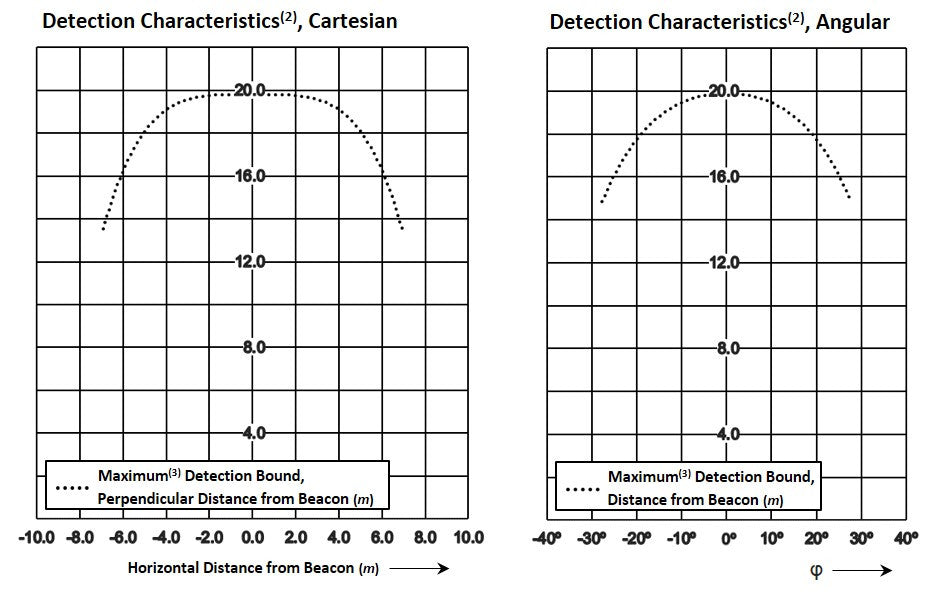

Detection Characteristics (pdf)

Compatible Sensor: IR-LOCK Sensor - Pixhawk Kit

Demo Videos (Youtube, Vimeo)

Specifications:
Detection Range: 15+ meters (Detection Characteristics PDF)
Beam Angle (w/ Case): ~65 degrees
PCB Dimensions: 101x50x8mm
Dimensions File: MarkOneW.dwg
Voltage Input: 10.2-13V (suitable for 3 cell lipo)
Power Consumption: 0.30A @ 12V
Power Connector: 2 Pin JST PH (S2B-PH-SM4-TB(LF)(SN))

Package Includes:

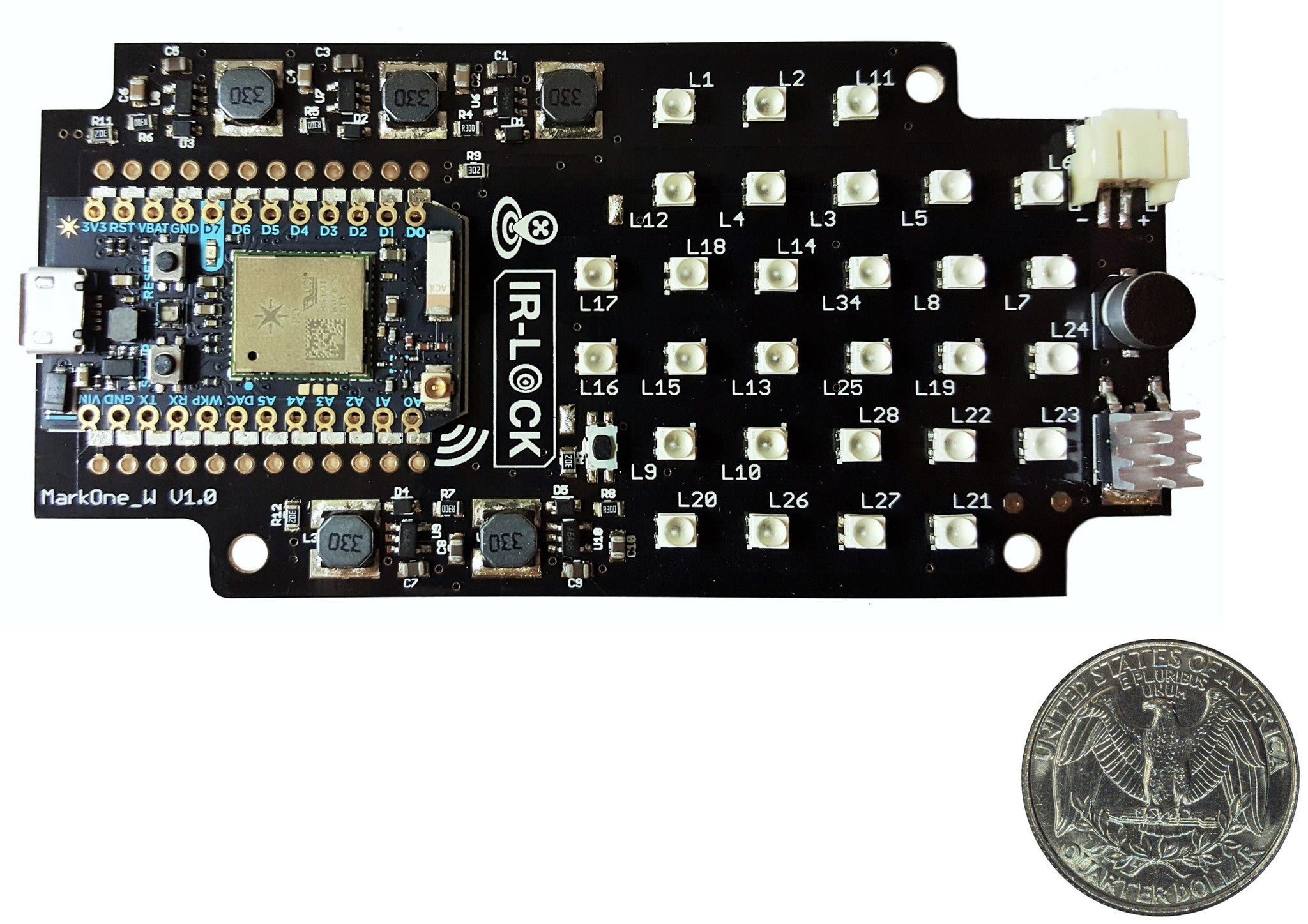

1x MarkOne w/ Wifi Beacon

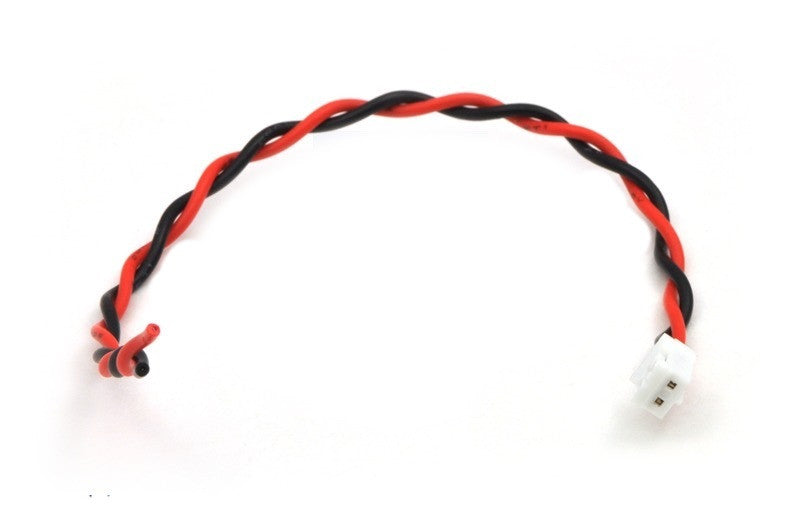

1x Female JST PH Cable (14cm)

Additional features include Wifi connectivity, enabling remote control of MarkOne over the internet. IR-LOCK precision landing features are compatible with the popular UAV development tools: APM:Copter flight control code, and Pixhawk hardware. Sensor readings are now logged for convenient post-flight analysis and plotting in Mission Planner.

Volume Pricing:
 1pcs  ................ $175
10pcs ................ $155
(Case not included)

For larger volumes, contact us.

We can help you integrate the patent pending MarkOne Beacon technology into your robotics project. For integration consulting or licensing terms, contact us at info@irlock.com.
