Herelink Antenna Upgrade Kit


Price:
Sale price$ 35.00
Stock:
In stock (73 units), ready to ship

Description

Manufacturer: Airbot Systems

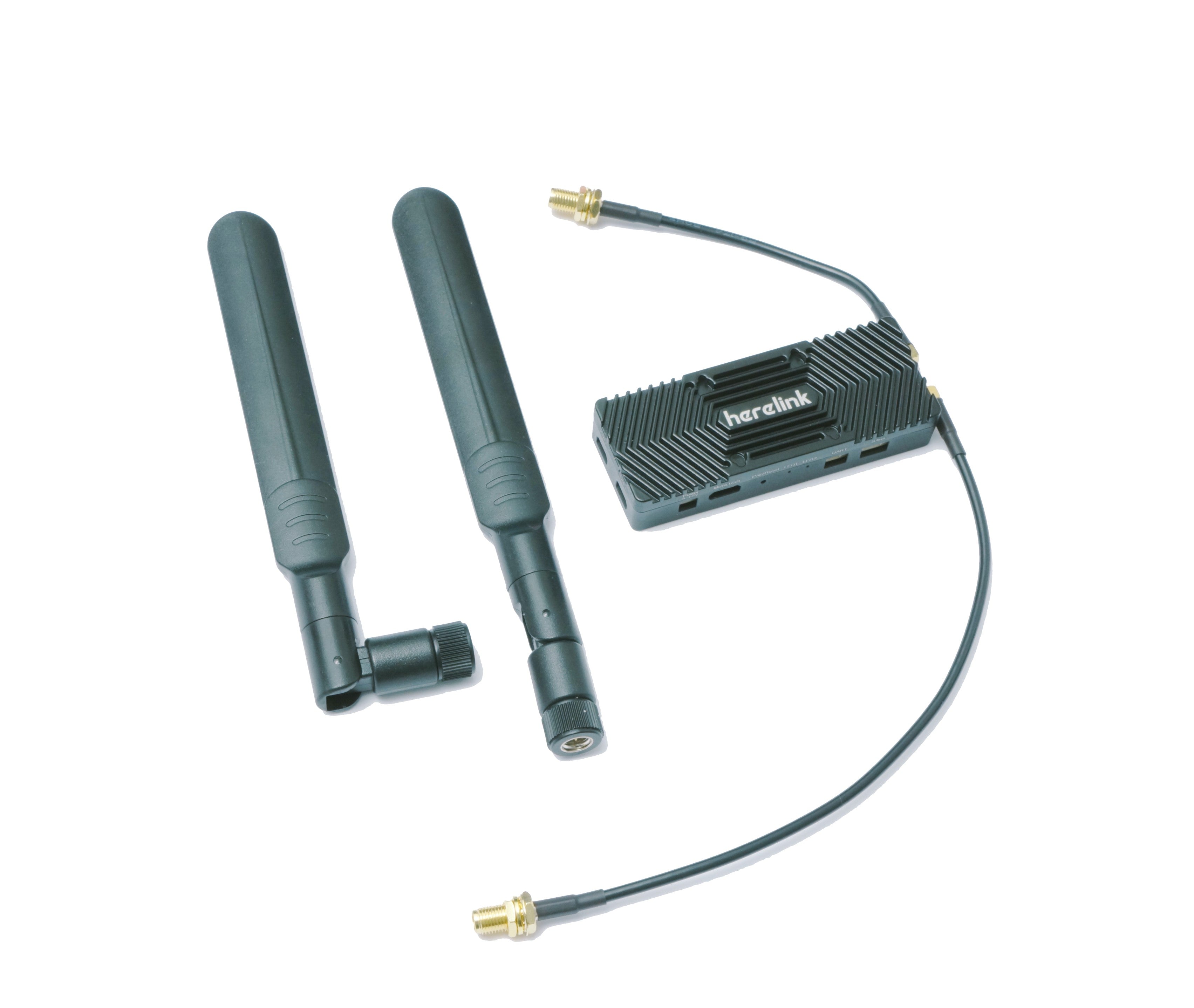

This antenna upgrade kit allows the upgrade of the Herelink Air Unit antennas. These 2.4GHz antennas have similar performance but are more discreet and more convenient to install. *Air Unit not included.

    The antenna upgrade kit allows you to replace the original antennas. Two adapter cables are provided and allow panel mounting of the antennas (vertically or horizontally).

    The antennas are foldable at 90deg and their SMA connection allows quick and easy disassembly. Their performance is identical to the original antennas.

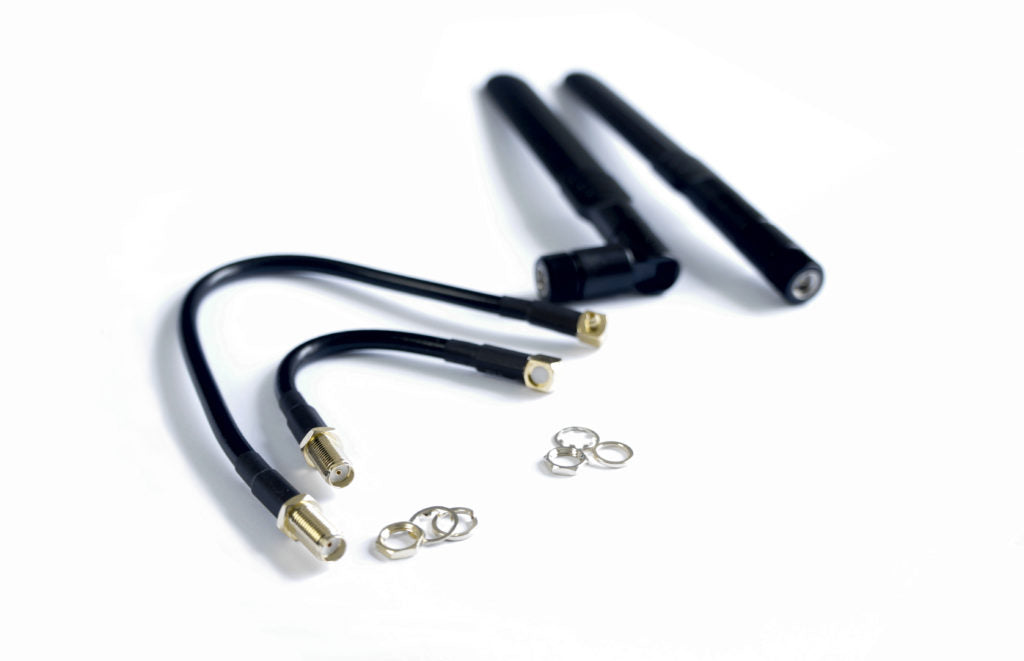

    CONTENTS OF THE KIT:

    • 2.4ghz antenna (x2)
    • 10cm adapter (x1)
    • 20cm adapter (x2)
    • Fixing nuts and washers

    TECHNICAL SPECIFICITIES:

    • Frequency: 2.4ghz
    • Connector: SMA
    • Length: 160mm; Width: 20mm (at the widest)
    • Gain: 5dBi max
    • Impedance: 50 Ohms
    • Type: Omnidirectional
    • Polarization: vertical
    • VSWR: <1.5
    • Kit weight: 51g



    Resources and Downloads:

    See manufacturer website

    3D Files/CAD
