Description
MPN: HX4-06206
Previous MPN: HX4-06111
Manufacturer: CubePilot

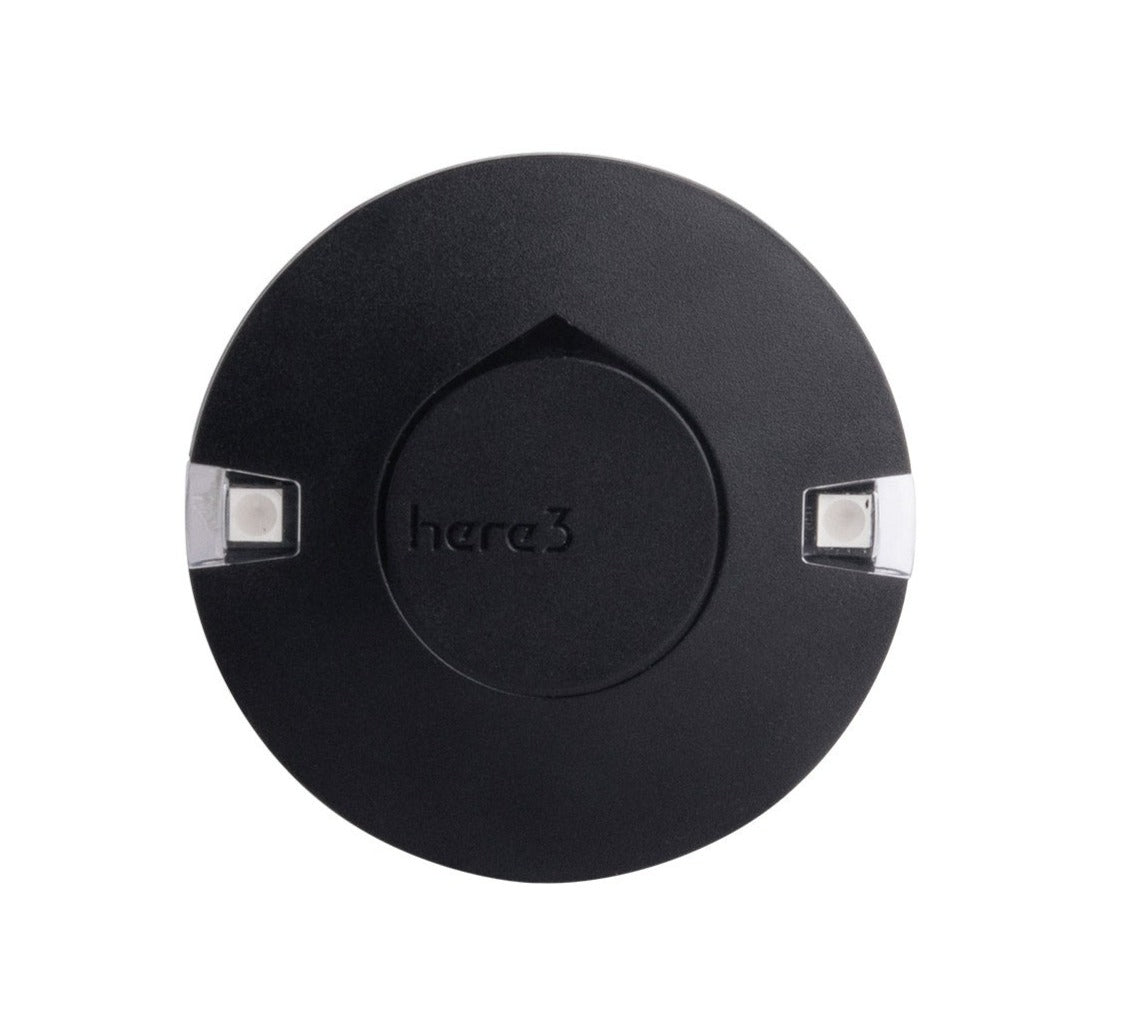

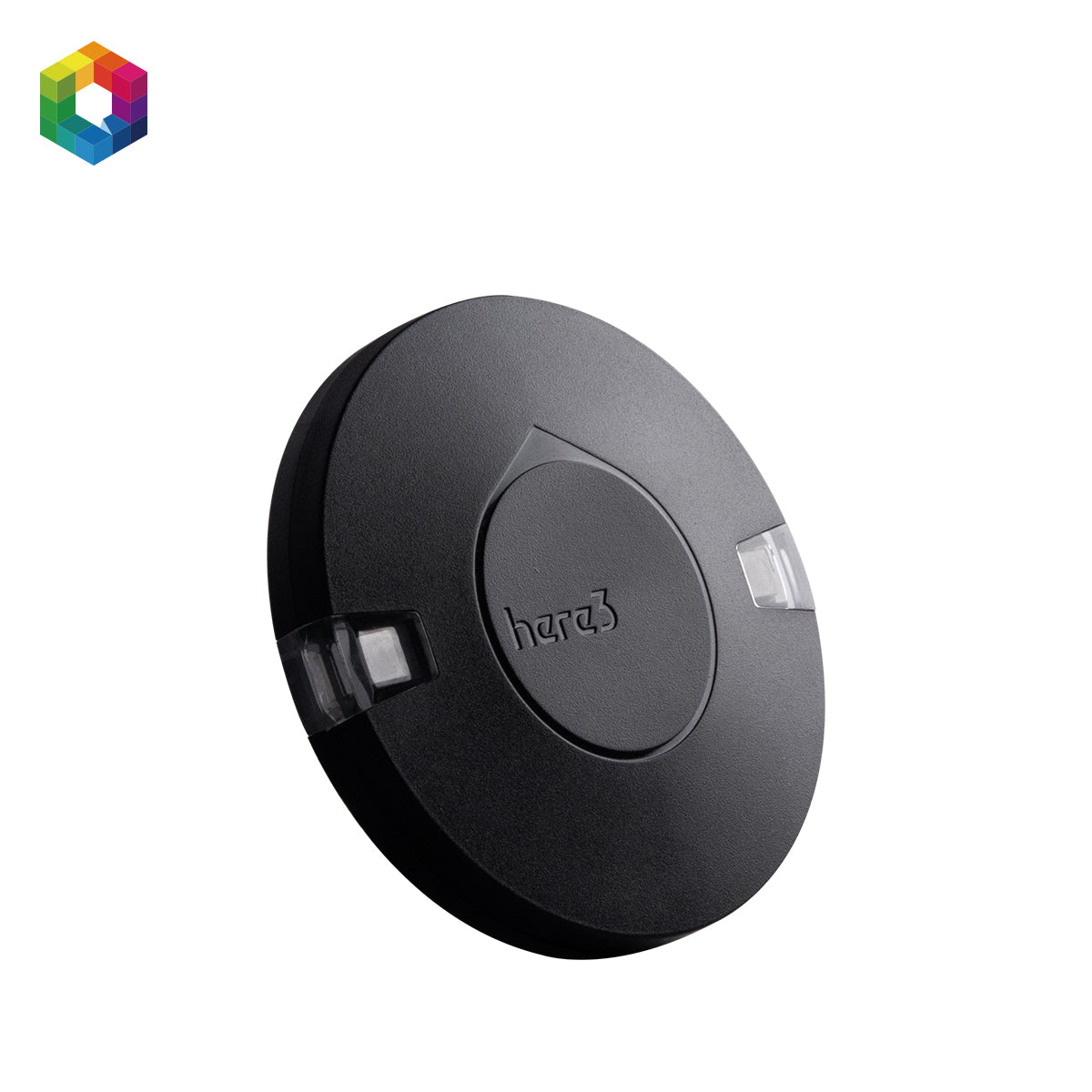

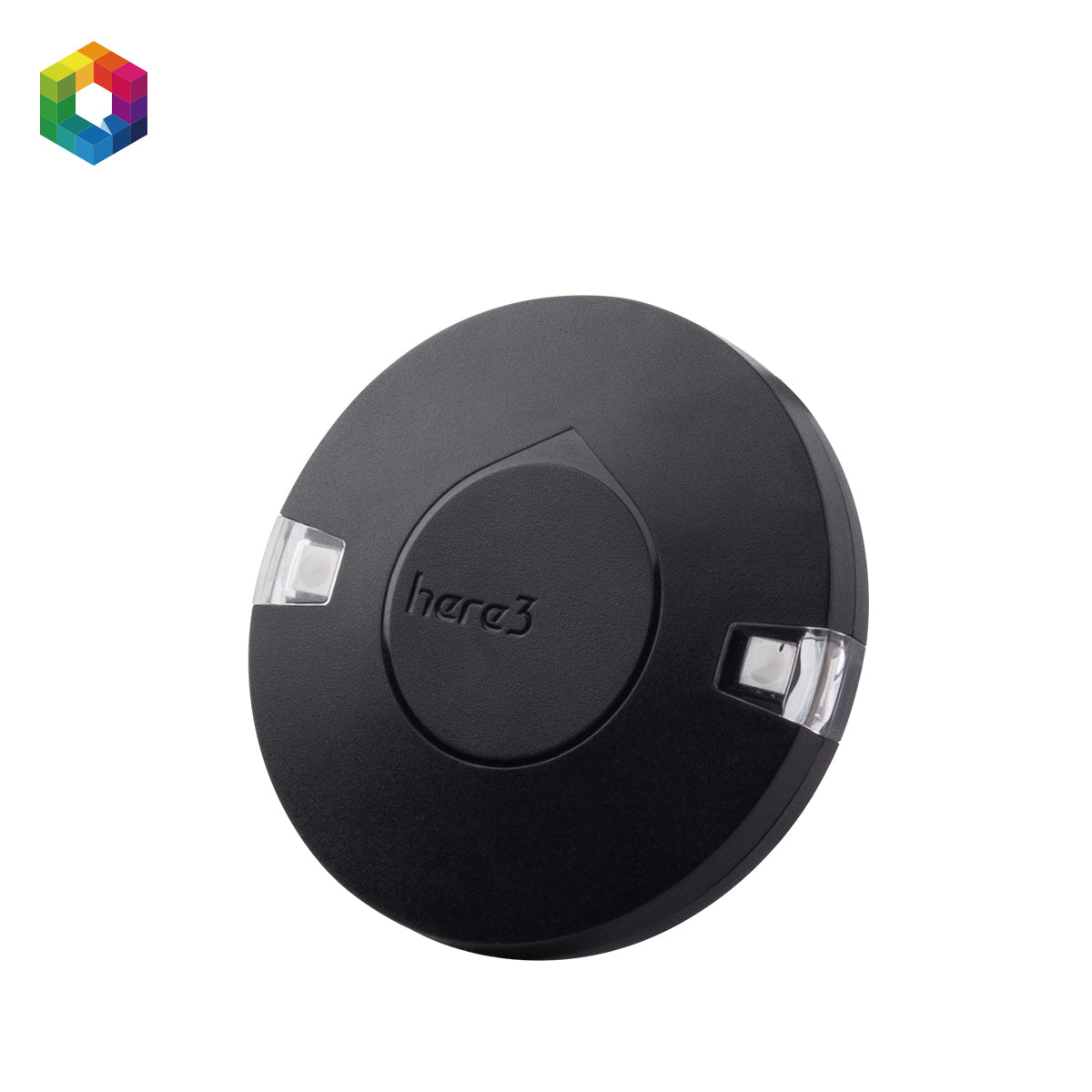

Here3 GPS is a cost-efficient GNSS system that supports RTK mode with positioning accuracy down to centimeter-level in an ideal environment. See our store for the Here+ Base. Improved dust and water resistance over the original Here+ (not guaranteed to be water-proof). Here3 is equipped with the STM32F302 processor. Featuring a high data rate, upgradeability, noise immunity, and real-time features benefited from the CAN protocol. The Here3 has built-in sensors including a compass, gyroscope, accelerometer, and status LED.
|
Model
|
Here 3
|
Here3+
|
|
Receiver Type
|
u-blox high precision GNSS modules (M8P-2)
|
u-blox high precision GNSS modules (M8P-2)
|
|
Satellite Constellation
|
GPS L1C/A, GLONASS L1OF, BeiDou B1I
|
GPS L1C/A, GLONASS L1OF, BeiDou B1I
|
|
Positioning accuracy
|
3D FIX: 2.5 m / RTK: 0.025 m
|
3D FIX: 2.5 m / RTK: 0.025 m
|
|
Processor
|
STM32F302
|
STM32H757
|
|
IMU sensor
|
ICM20948
|
ICM42688,RM3100
|
|
Navigation Update Rate
|
8 hz
|
8 hz
|
|
Communication Protocol
|
DroneCAN 1Mbit/s
|
DroneCAN 8Mbit/s
|
|
Operating Temperature
|
-40℃ to 85℃
|
-40℃ to 85℃
|
|
Dimension
|
68mmx68mmx16mm
|
68mmx68mmx16mm
|
|
Weight
|
48.8g
|
51.8g
|
