Description
MPN: 20G998-000
Manufacturer: Gremsy

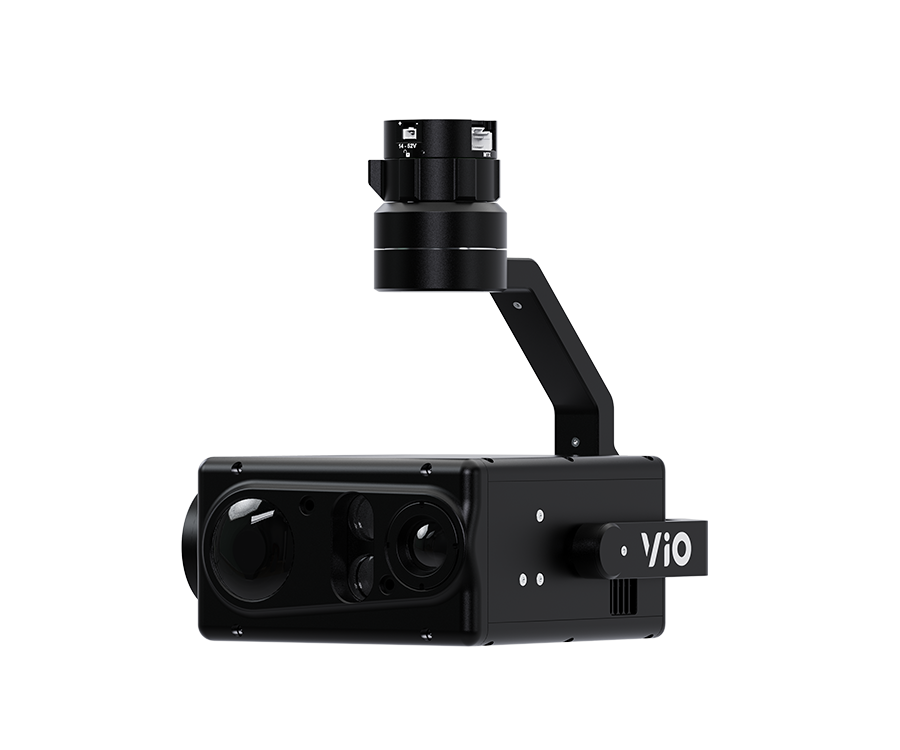

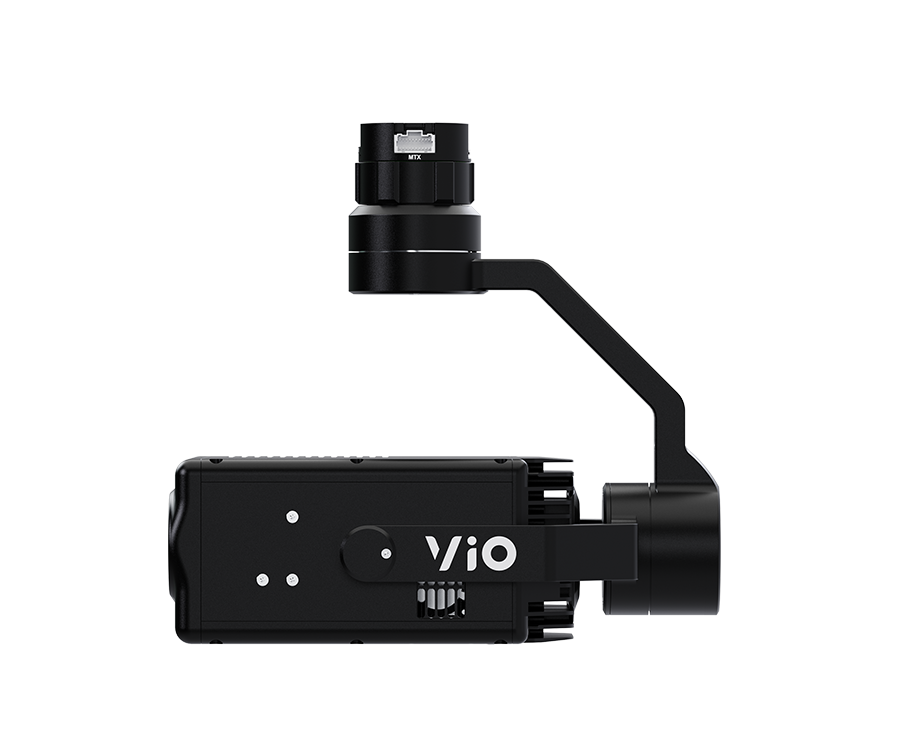

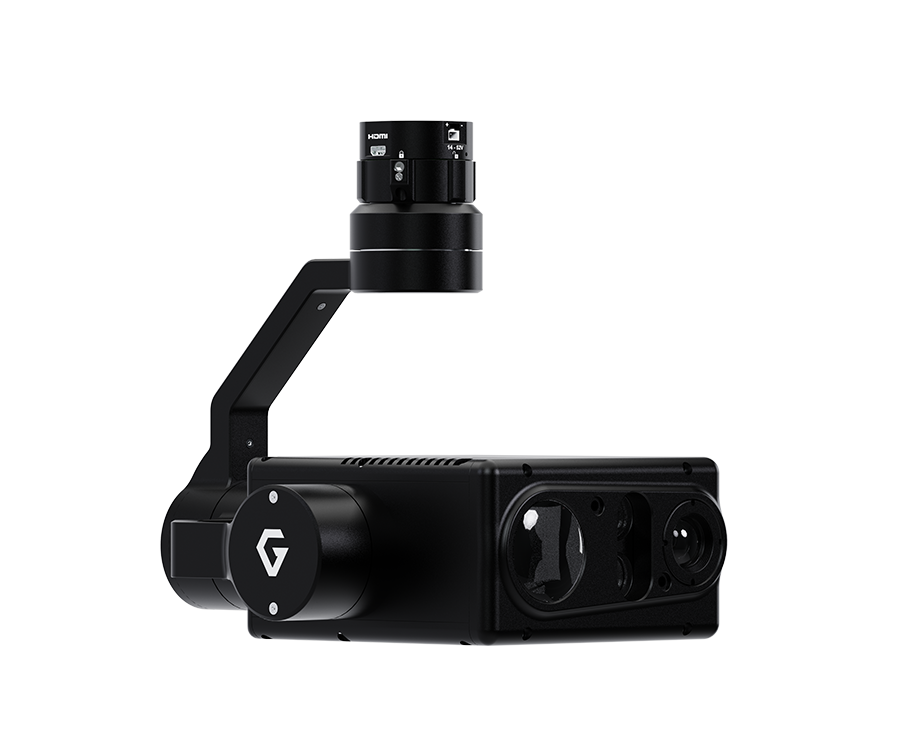

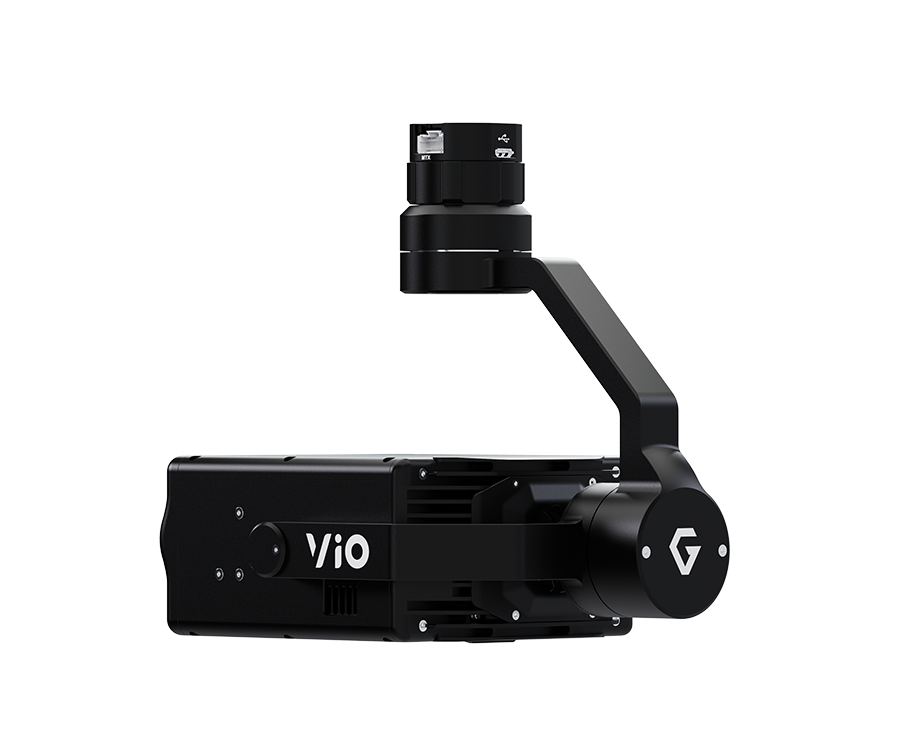

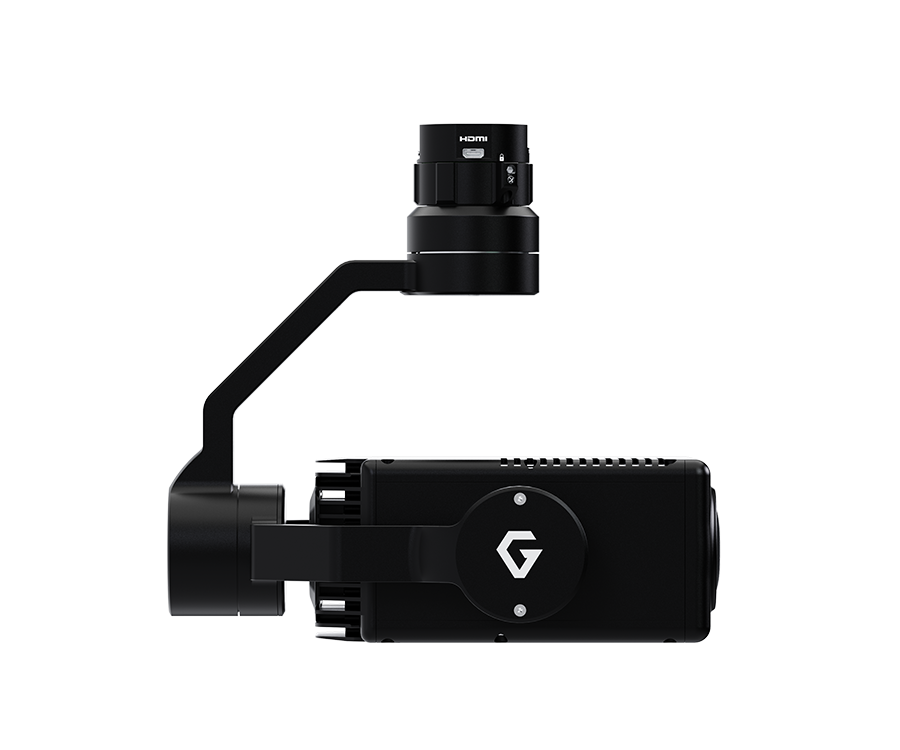

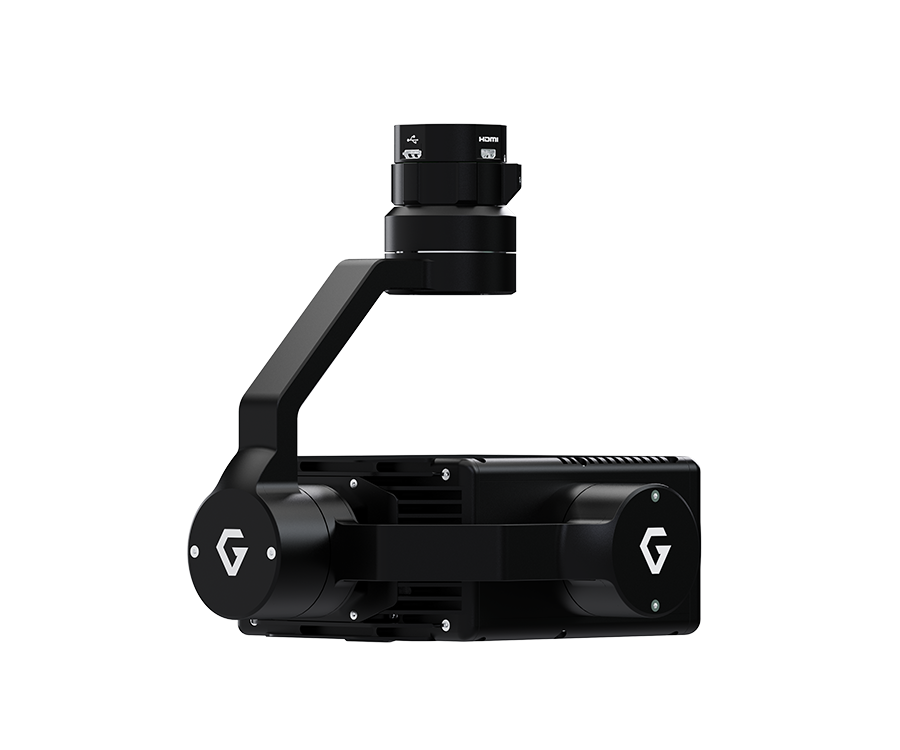

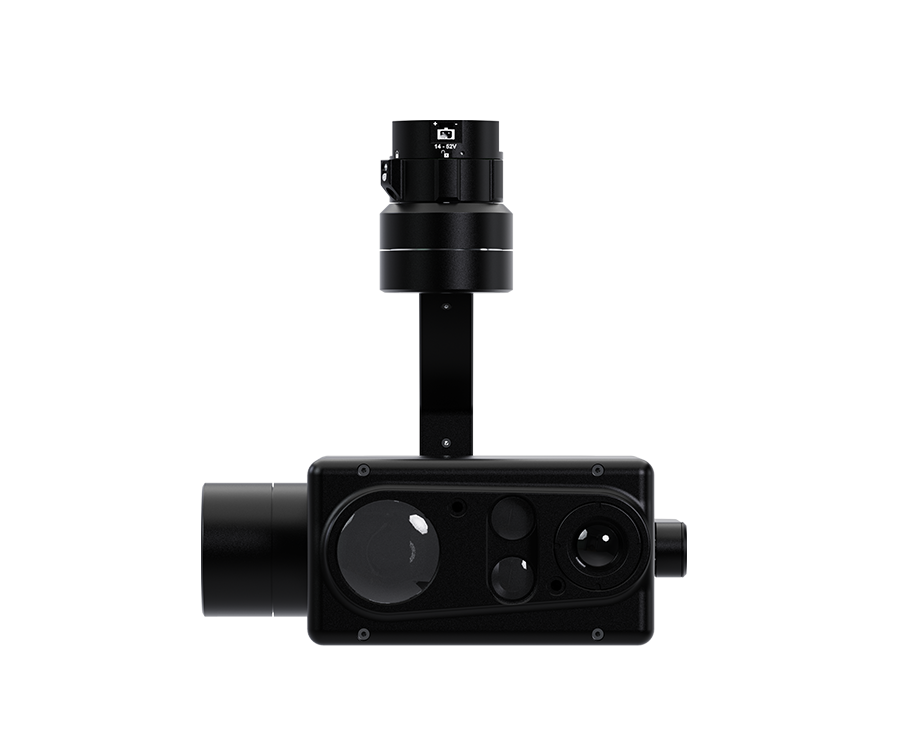

Vio G1 is an advanced lightweight EO/IR payload, featuring a 4K zoom sensor, a 640x512 radiometric thermal camera, and an integrated 2400m laser rangefinder, suitable for various industrial applications.
*Please note that Vio G1 differs in thermal sensor from Vio F1 in the series.
*For purchasing Vio F1, please get in touch with Gremsy US, our assembler and distributor in the US via this website www.gremsy.us.
Specifications:
| Product Name | Vio G1 |
| Payload Weight | 854g (1.88 lbs) |
| Payload Dimensions (DxWxH) | 173mm x 148mm x 159mm |
| Supported Drone Platforms | Pixhawk/CubePilot/Skynode |
| EO camera | Powered by Sony Block 4K Camera |
| IR camera | Vio G1: Powered by Thermal Core 640 R |
| Laser Rangefinder Range |
0 - 3000 (1Hz) 0 - 1250 (10Hz) |
| Payload Control Method |
UART/Ethernet SBUS (updating with expansion board) |
| Supported Controllers |
Ground Station/Remote with + QGroundControl app + Gremsy Payload Assistant App |
Packing List:
| Vio Payload | x1 |
| Vio Damping | x1 |
| Vio/Zio/Mio Quick Release | x1 |
| USB Type A to USB Type C | x1 |
| Micro USB cable | x1 |
| Vio CTRL Cable | x1 |
| Power Cable | x2 |
| Micro SD Card SDXC I, 128GB | x1 |
| M2 x 4 - ISO 4762 | x4 |
| M3 x 6 - ISO 4762 | x4 |
| M3 x 6 - DIN 7991 | x4 |
| Allen Key 1.5mm | x1 |
| Allen Key 2.0mm | x1 |
| Allen Key 2.5mm | x1 |
| Thermal Lens Focus Tool | x1 |
