Supported Camera
- Sony ILX-LR1
Description
MPN: 20G497-000
Manufacturer: Gremsy
Specifications:

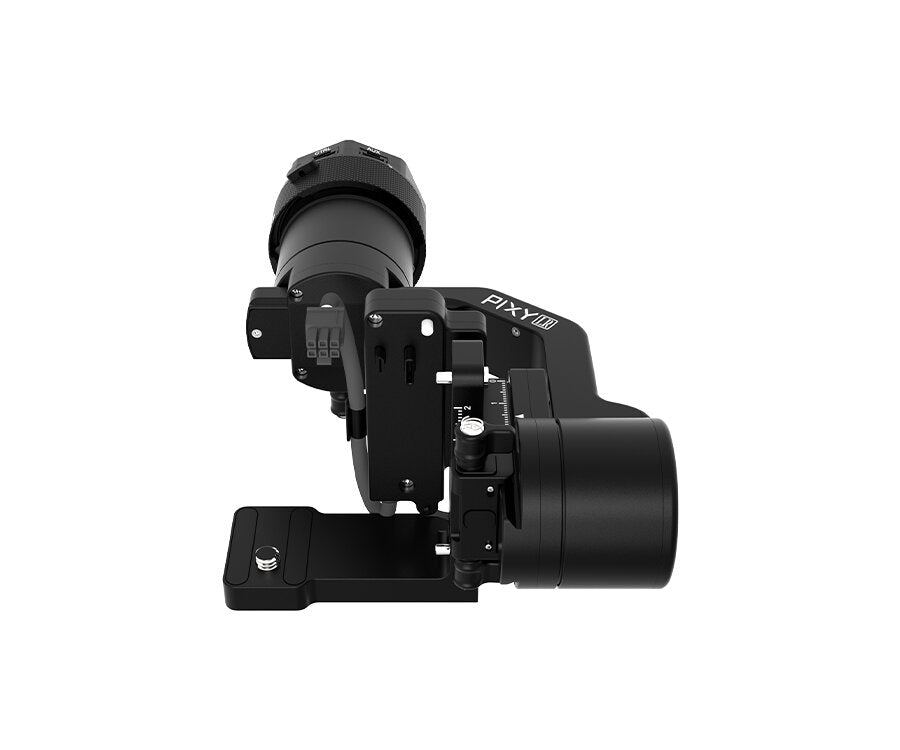

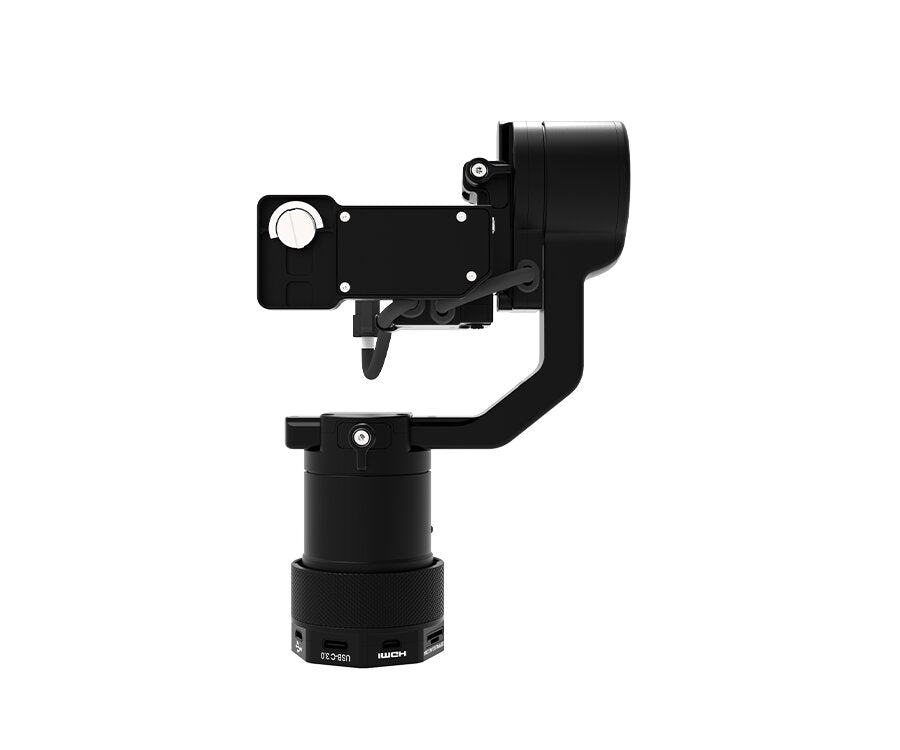

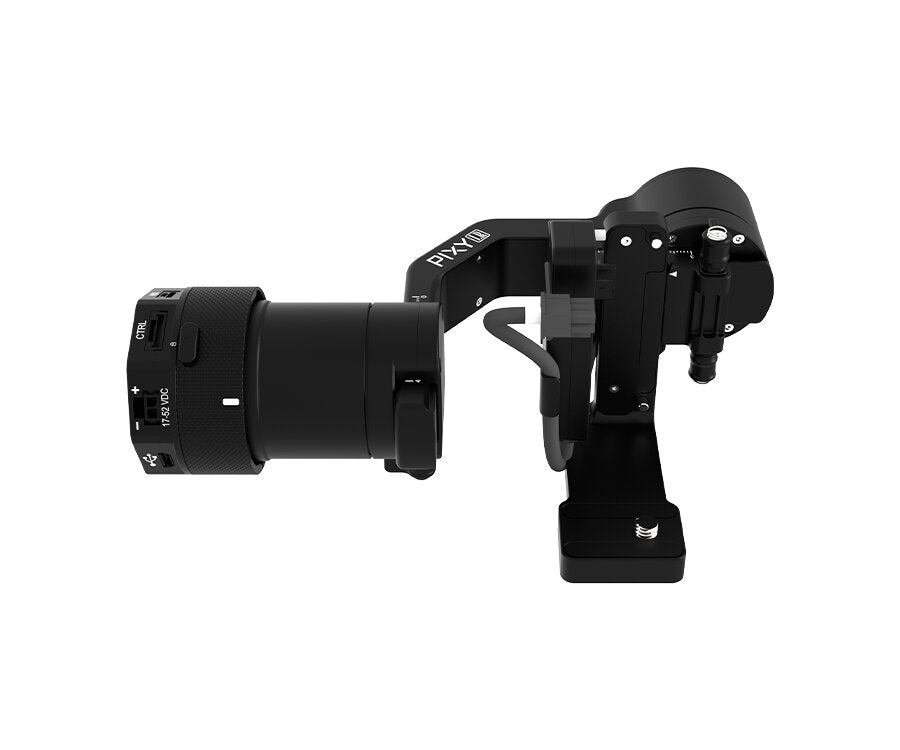

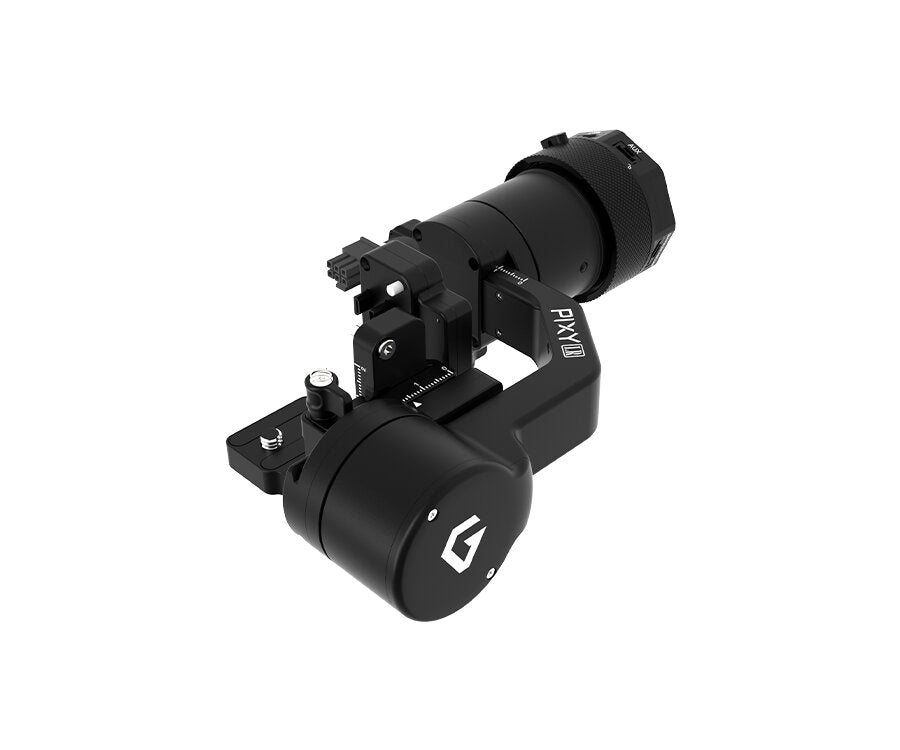

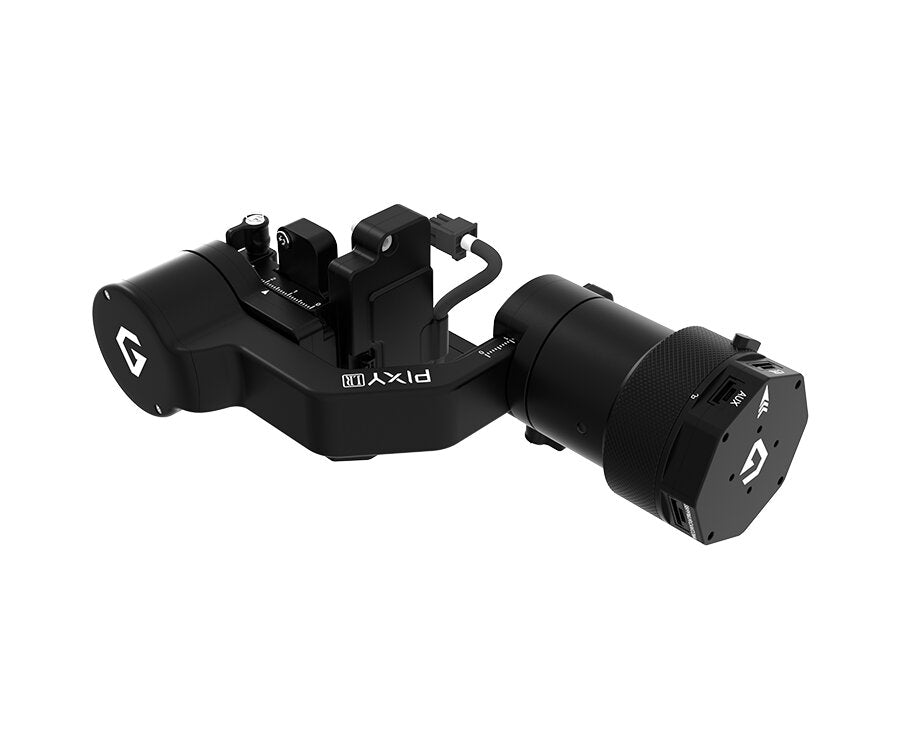

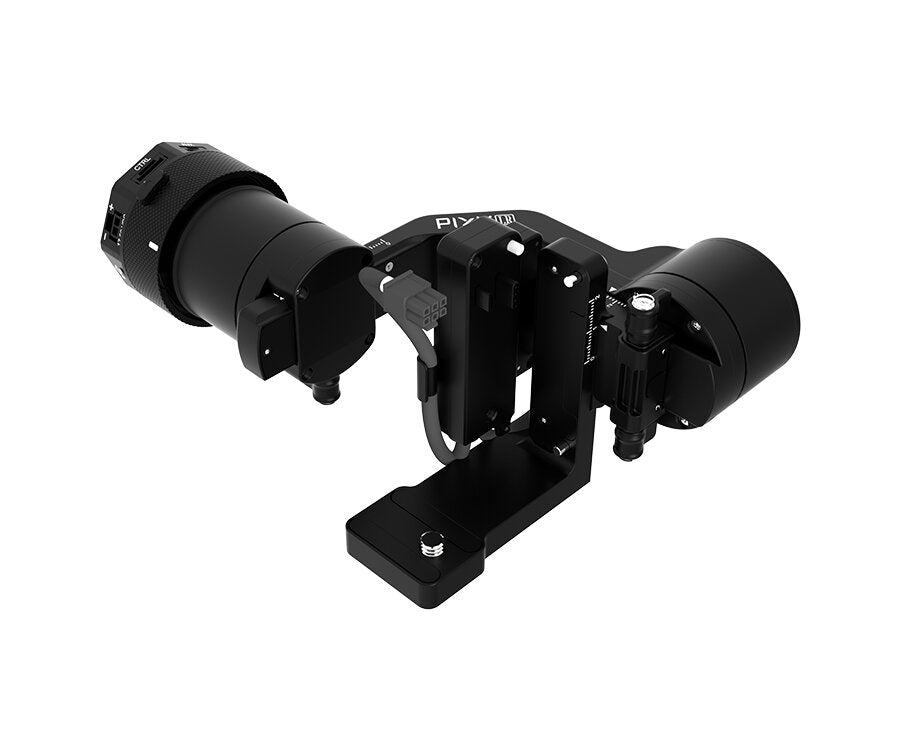

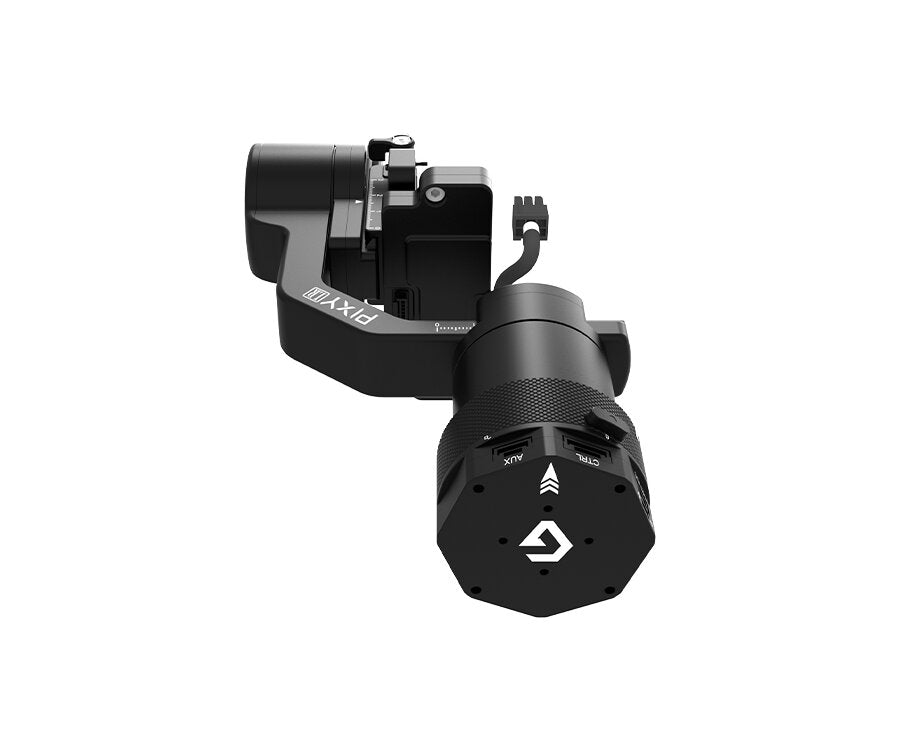

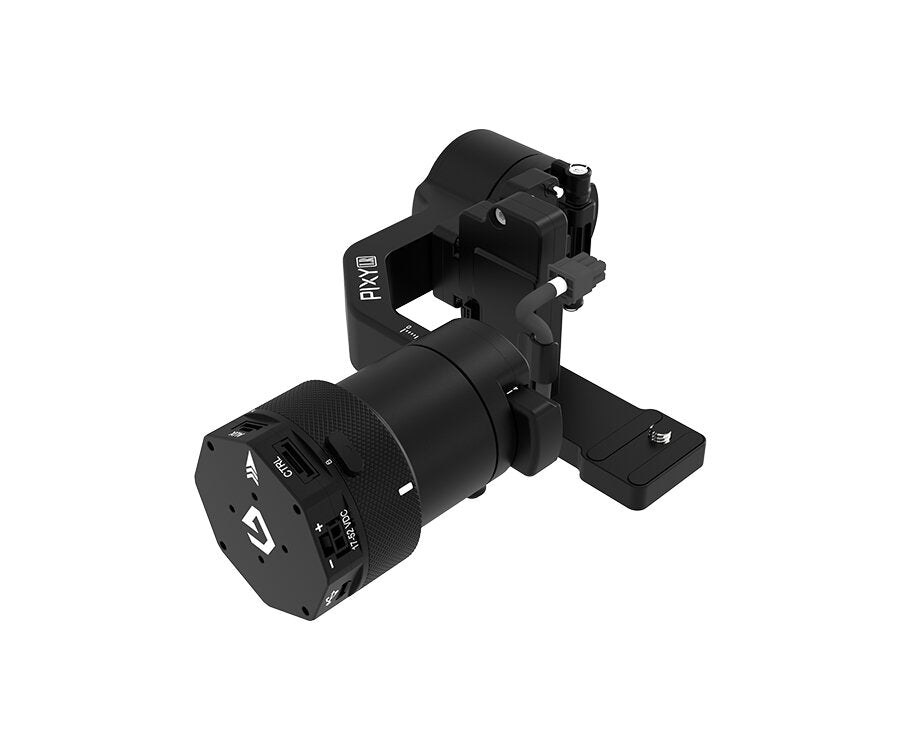

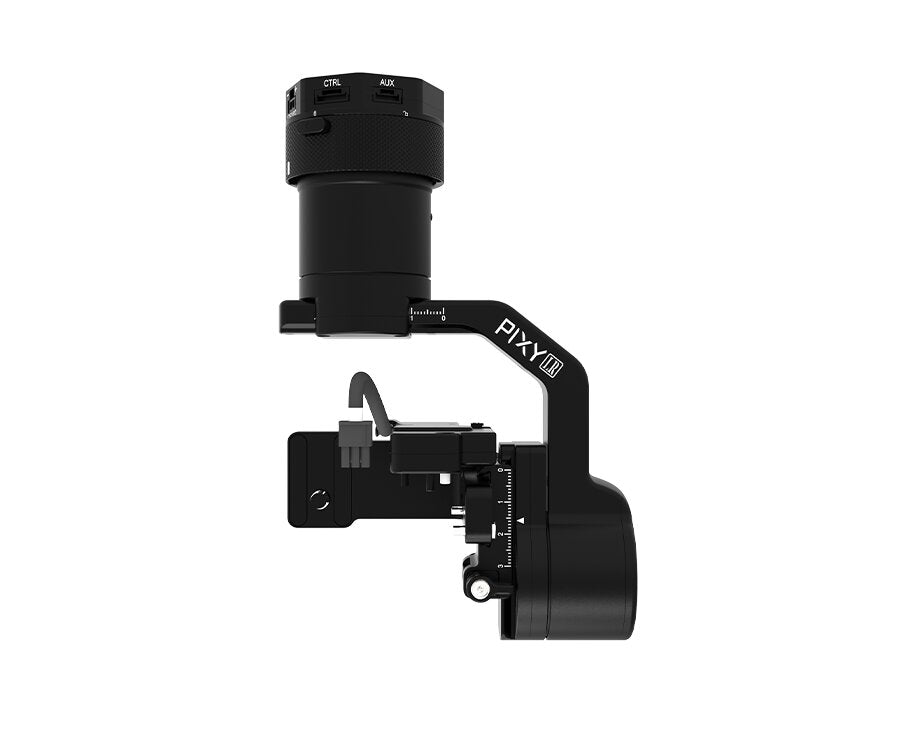

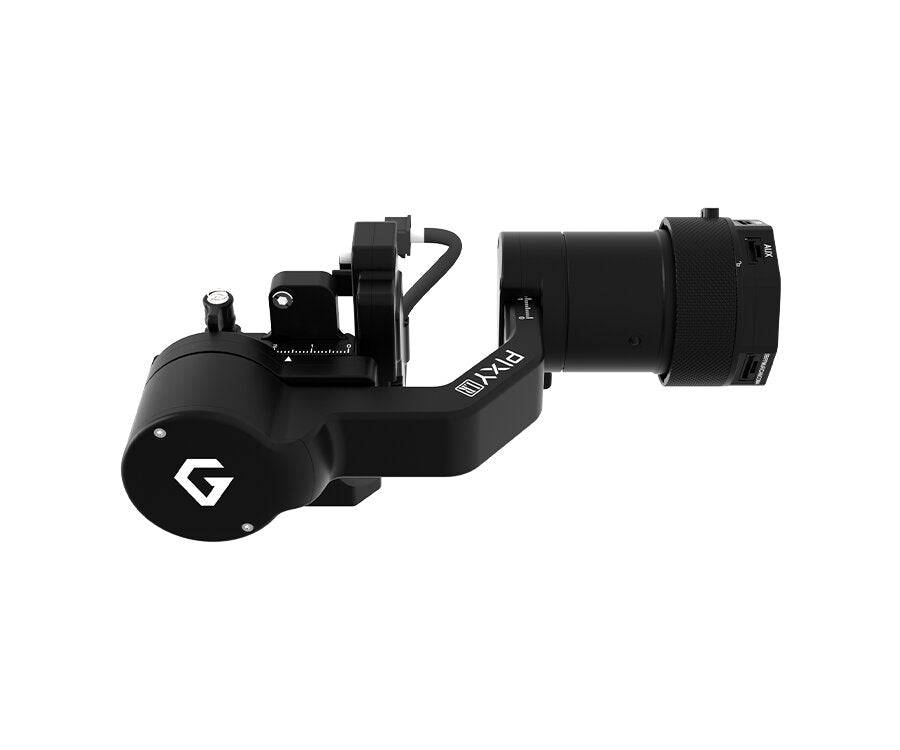

| Product Name | TWO AXIS PIXY LR |
| System Type | 2-Axis Camera Stabilizer |
| Construction | All Aluminum |
| Weight | 333g |
| Supported camera | Sony ILX-LR1 |
| Supported Platforms | Pixhawk, CubePilot, Skynode, M600/td> |
| Input Power | 17 - 52VDC |
| Connection | Micro USB, USB-C (3.0), CAN, UART, SBus, Micro HDMI |
| Gimbal Mode | Lock Mode, Follow Mode, Mapping Mode |
| Tilt Range | ±120° |
| Roll Range | ± 40° |
Packing List:
| 2-axis Gimbal | x1 |
| QR rubber cover | x1 |
| Hyper Quick Release 3.0 | x1 |
| RC - SBUS Cable | x1 |
| RC - JR Cable | x1 |
| RC - Pixhawk COM4 Cable | x1 |
| CTRL - Pixhawk COM2 Cable | x1 |
| Power Supply Cable | x1 |
| Micro USB Cable | x1 |
| AUX - Quick Release Cable | x1 |
| AUX - Camera Connection Hub Cable | x1 |
| M3 x 8 Scew ISO 4762 | x6 |
| M2.5 x 5 Scew ISO 4762 | x6 |
| Camera Screw | x1 |
| Allen key 2.5 (mm) | x1 |
| Allen key 2 (mm) | x1 |
Camera Compatibility:
-
Supported Lens
- Lens 16-35mm - SELP1635G
- Lens 24mm - SEL24F28G
- Lens 28mm - SEL28F20
- Lens 35mm - SEL35F28Z, SEL35F18F
- Lens 40mm - SEL40F25G
- Lens 50mm - SEL50F25G
- Lens 55mm - SEL55F18Z
- Lens 85mm - SEL85F18 (photography only, no motor calibration)
Supported Drones/Flight Controllers- Hardware platforms: Pixhawk, CubePilot, Skynode, M600
- Autopilot platfrom: Ardupilot, PX4
Built-In Functions:
- Operation Modes
- ON/OFF
- Lock mode
- Follow mode / Mapping mode
- New generation IMU Sensor
- Gremsy Specialized Gimbal Drive Motors with Encoders (Encoder 14 bits)
- Sony USB-C 3.0 connection built-in
- Gimbal Mavlink Protocol supported
Mechanical & Electrical Characteristics:
- Static current: 6.3W
- Dynamic current: 9.2W
- Locked motor current: 46W
-
Operating Temperature: 32° F ~ 122° F (0° C ~ 50° C)
-
Gimbal Weight: 333g
-
Gimbal Dimension (DxWxH): 140 x 145 x 76 (mm)
Peripheral:
- Damping Type: Pixy LR 2 Axis Damping
-
Gimbal Mount: Front; Bottom
-
Quick Release: Hyper Quick Release V3.0
-
AUX Signals: 4 signals
-
Input Power: 17 - 52VDC
-
Connections: Micro USB, USB-C (3.0), CAN, UART, SBus, Micro HDMI
Working Performance:
- Maximum Controlled Rotation Speed: Tilt axis: 180°/s; Roll axis: 180°/s
-
Angular Vibration Range: ± 0.02°
-
Mechanical Endpoint Range: Tilt axis control: ±130°; Roll axis control: +50°～-274°
-
Controlled Rotation Range: Tilt axis control: ±120°; Roll axis control: ±40°
Control:
- Camera Data Transmission: Sony Camera USB - USB-C 3.0
- Gimbal Control: UART (Com, micro USB), Can (LB2), SBus, PPM
- SDK Supported Platform: gSDK, Gremsy Payload SDK, MAVSDK
