Description
MPN: 20G004
Manufacturer: Gremsy

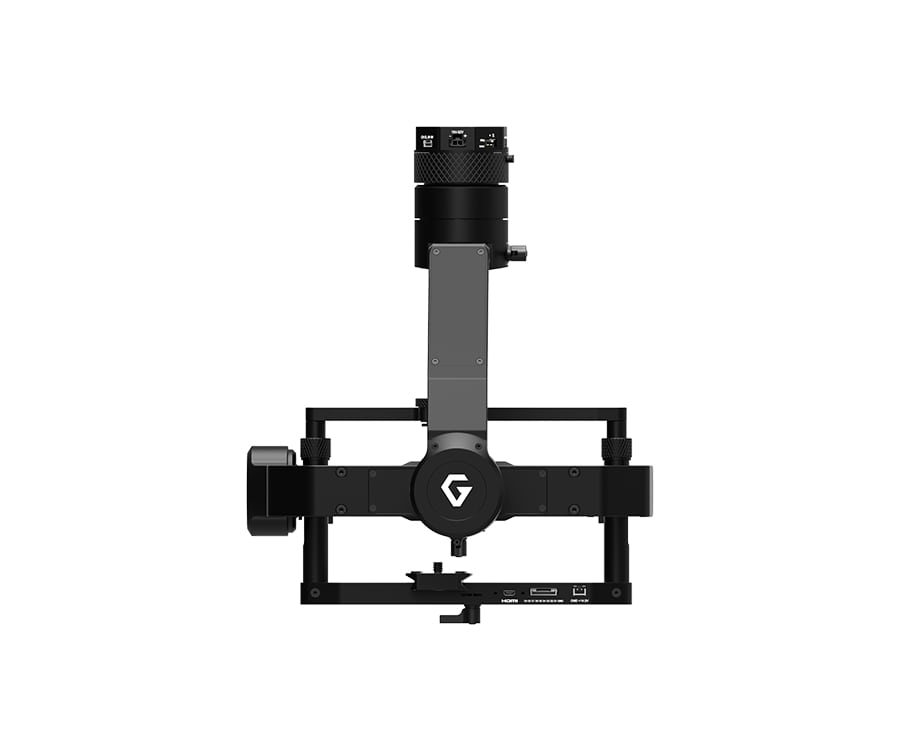

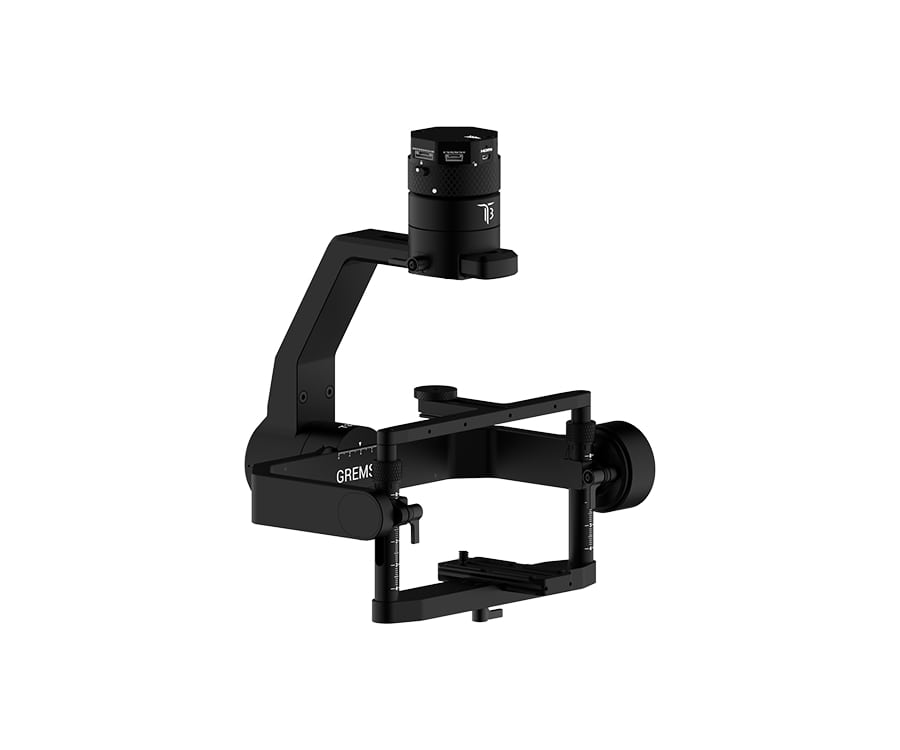

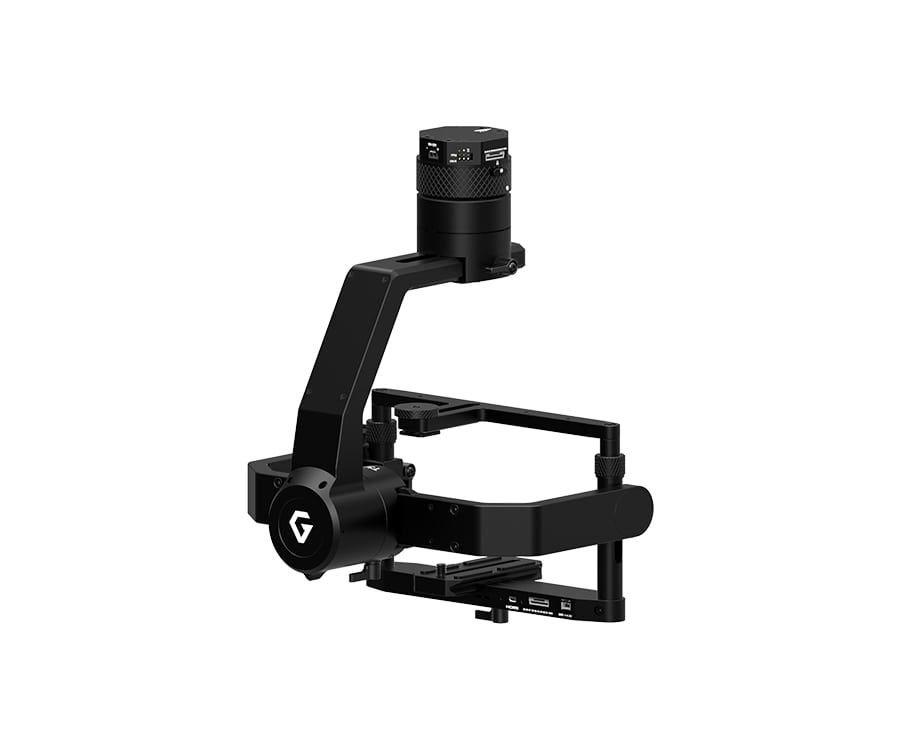

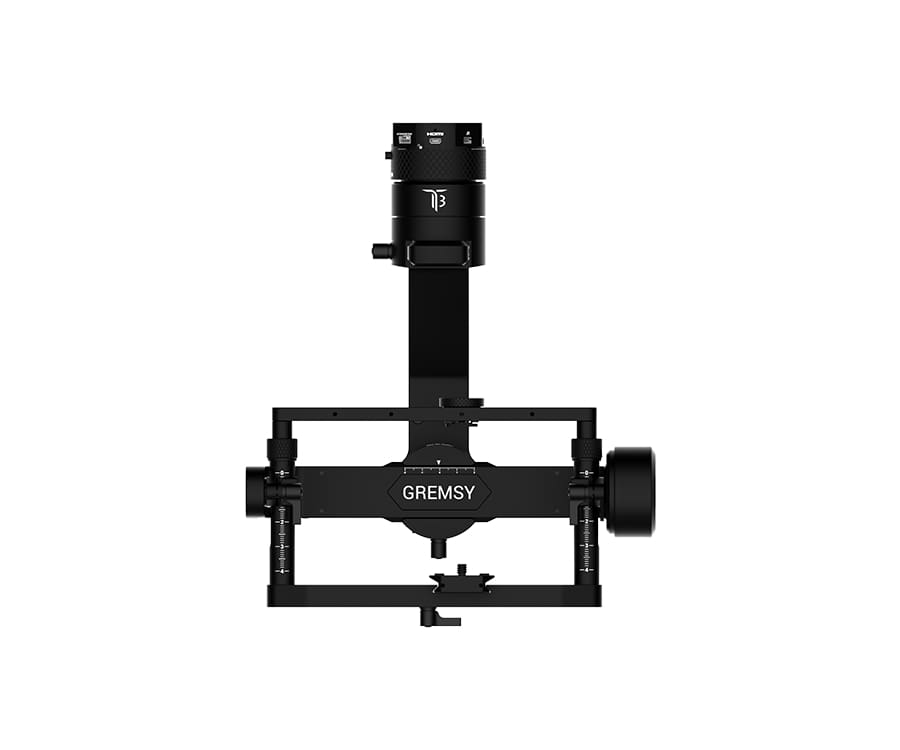

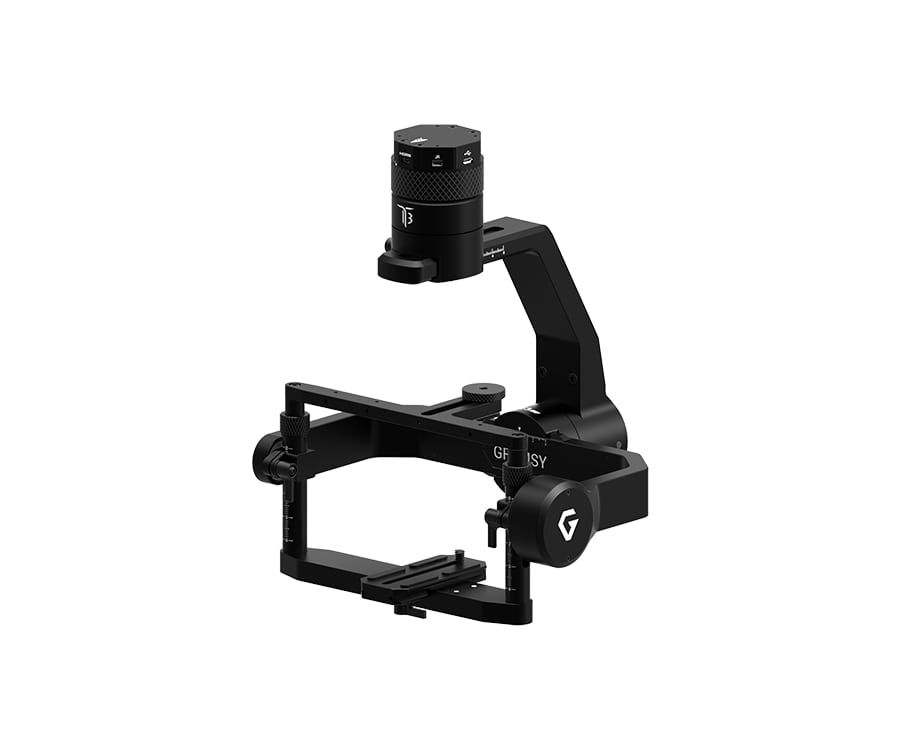

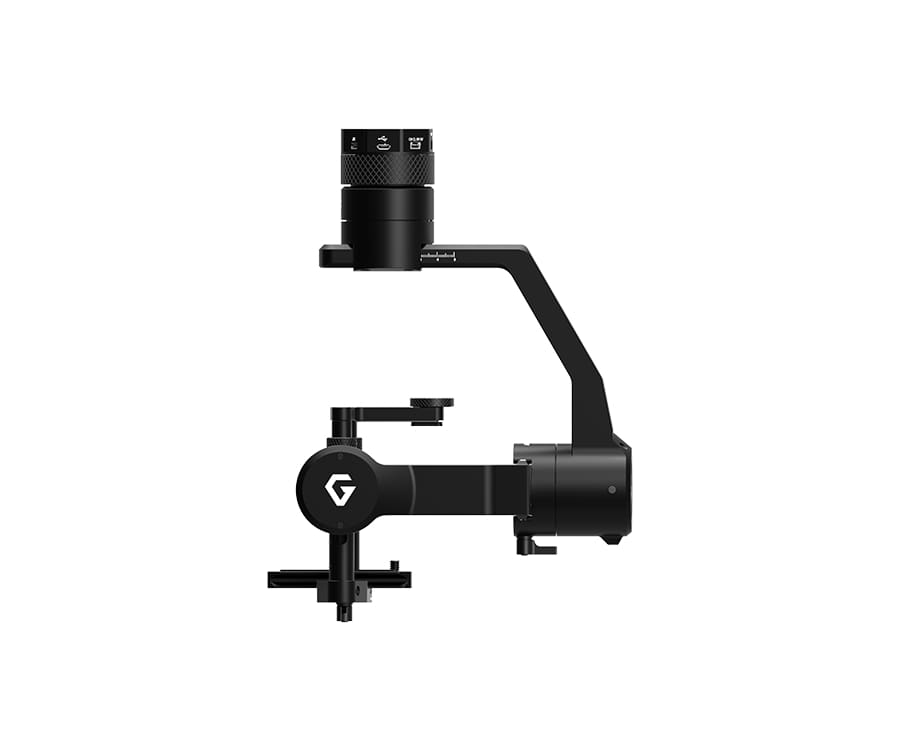

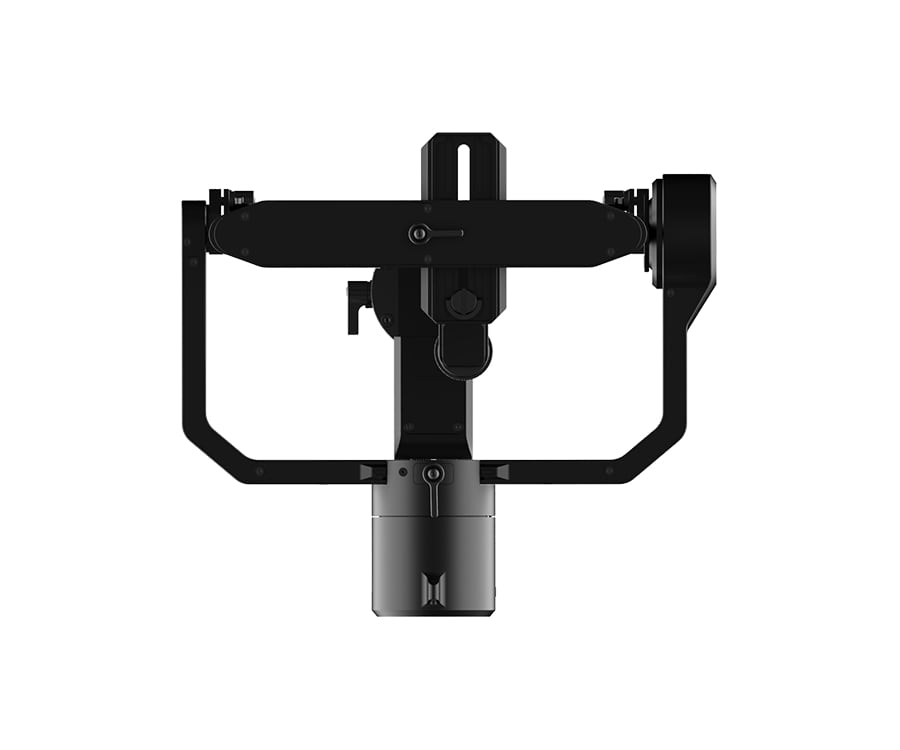

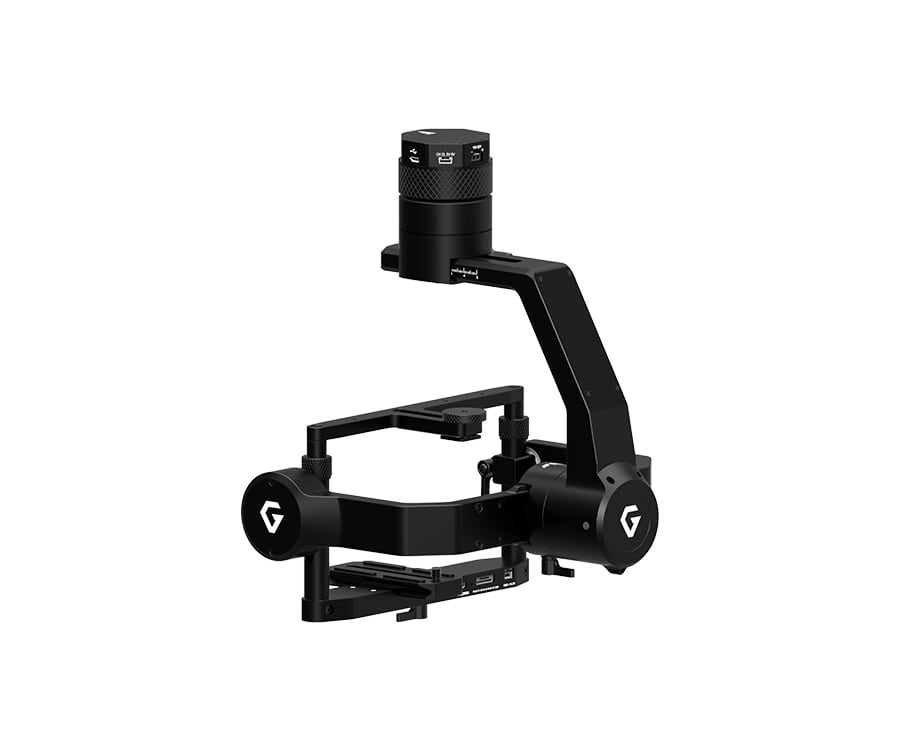

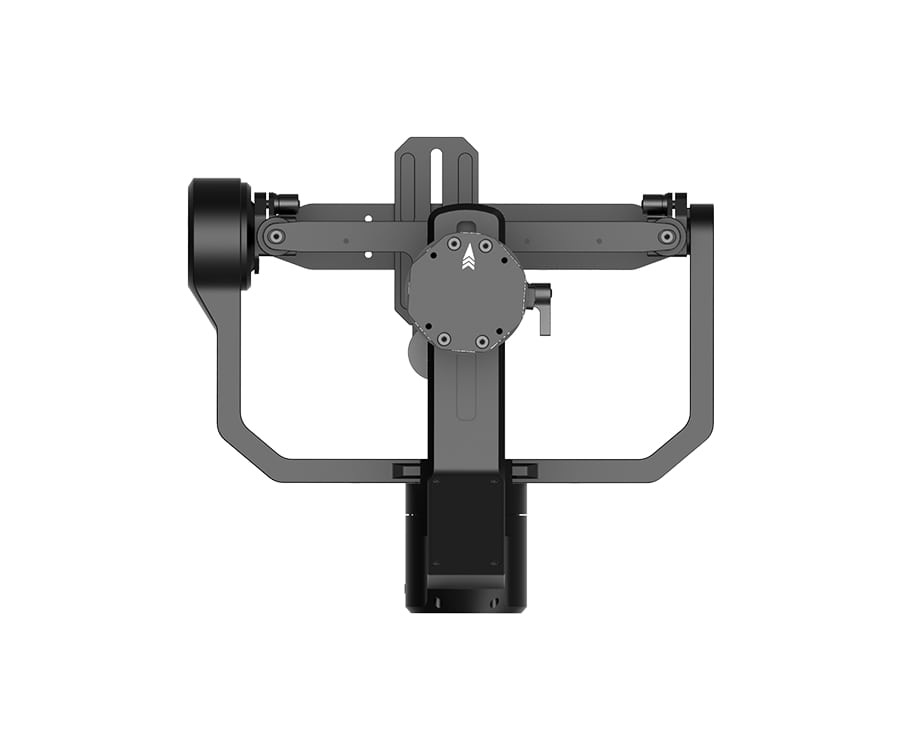

Gremsy T3 (version 3) is the most advanced 3-axis camera stabilizer ready to fly with many cameras in both cinematography & industrial applications. Featuring onboard HDMI and AUX ports, the T3 ensures a simple and clean setup as well as increased portability for your system. Not only providing built-in Bluetooth functionality for optimal comfort during your setup control, but we also make your plug & play installation easier within 2 seconds.
Specifications:
| Product Name | Gremsy T3V3 |
| System Type | 3-Axis Camera Stabilizer |
| Weight | 2.65 lbs (1200 g) |
| Camera Cage (Standard) (L x W x H) | 100 x 152 x 120mm |
| Construction | Alluminum + Plastic |
| Input Voltage | 15-52V |
| Connection | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Bluetooth |
| Payload | 3.7 lbs (1700 g) |
| OS Platform Supported | Windows XP or above; Mac OS X 10.9 or above |
| Single Operator | Lock Mode, Follow Mode, Mapping Mode, Inverted Mode |
| Dual Operator | SBUS / Spektrum / PPM/ Lightbridge 2 |
| Pan Range | Pan axis control: ±345° |
| Tilt Range | Tilt axis control:±120° |
| Roll Range | Roll axis control: ± 45° |
Packing List:
| Gremsy T3-V3 Gimbal | x1 |
| HDMI Hyper Quick Release | x1 |
| Hotshoe Screw | x1 |
| Hotshoe Plate | x1 |
| Hotshoe Screw Extension | x1 |
| Camera Slide & Screw | x1 |
| Quick Release Rubber cover | x1 |
| Sbus Cable | x1 |
| Cable For Pixhawk (Com 2,Com 4) | x2 |
| Power Supply Cable | x1 |
| Power Tilt Cable | x1 |
| Auxiliary Cable | x2 |
| Micro USB Cable | x1 |
| M3 x 8 Screw | x5 |
| Allen Key 1,5 (mm) | x2 |
| Allen Key 2 (mm) | x1 |
| Allen Key 2.5 (mm) | x1 |
