Description
MPN: 20G501-000
Manufacturer: Gremsy

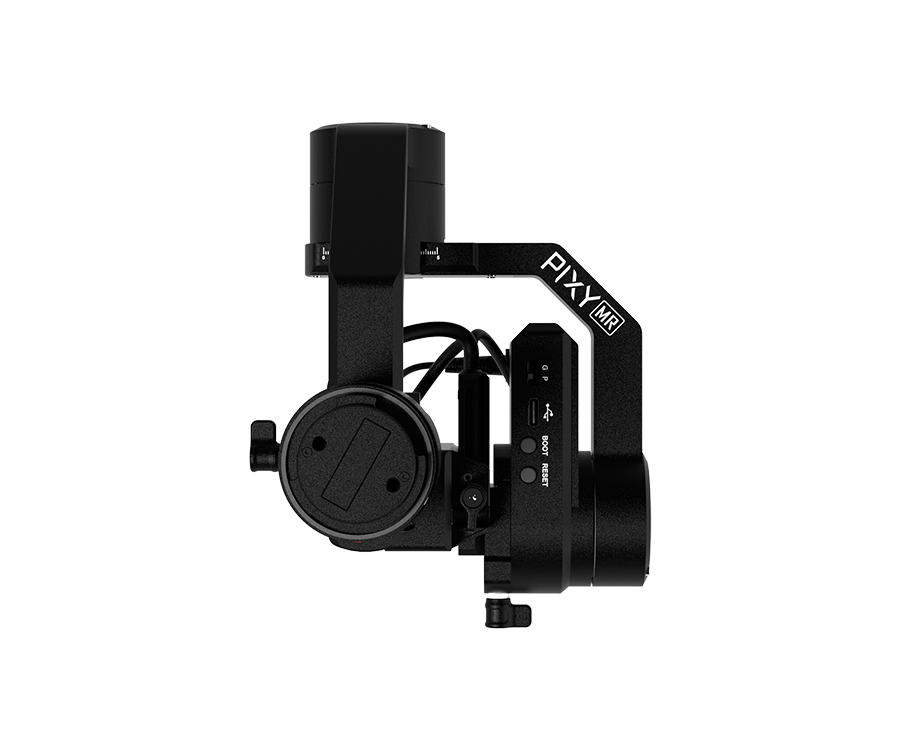

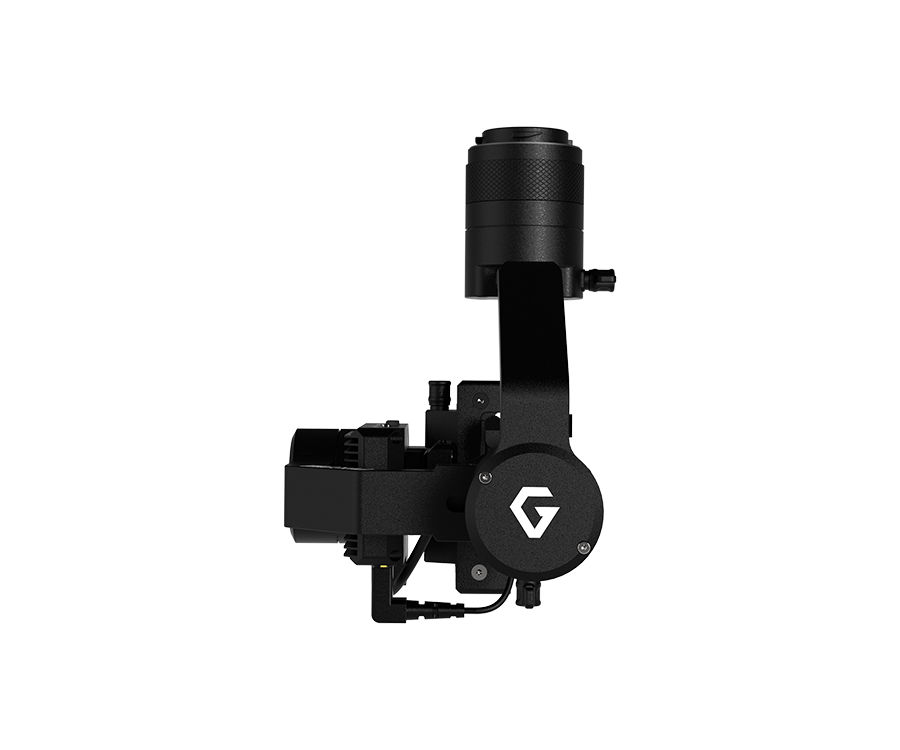

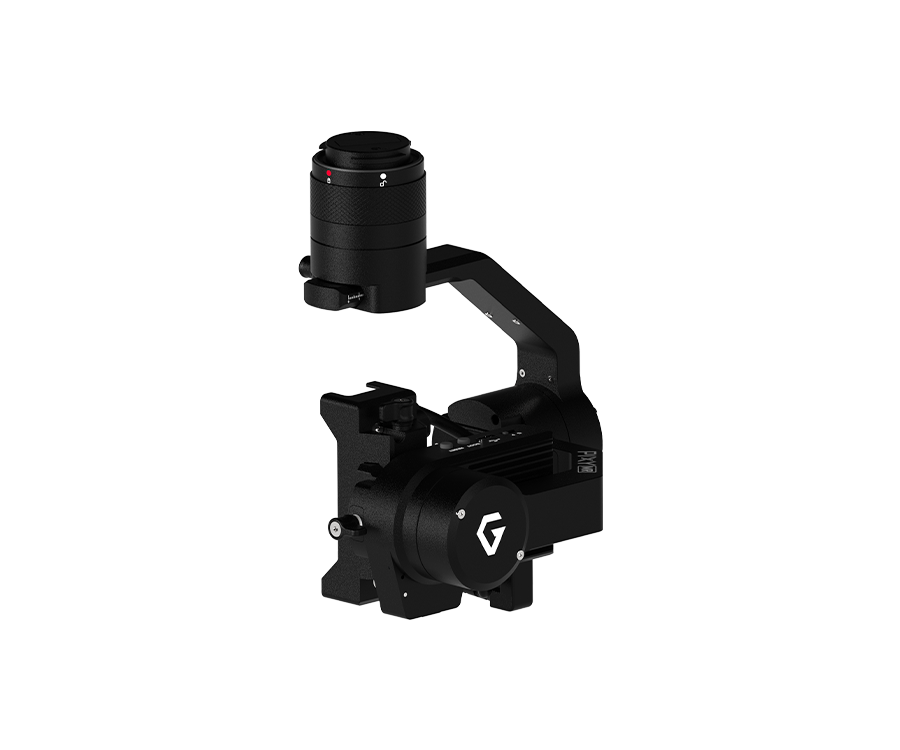

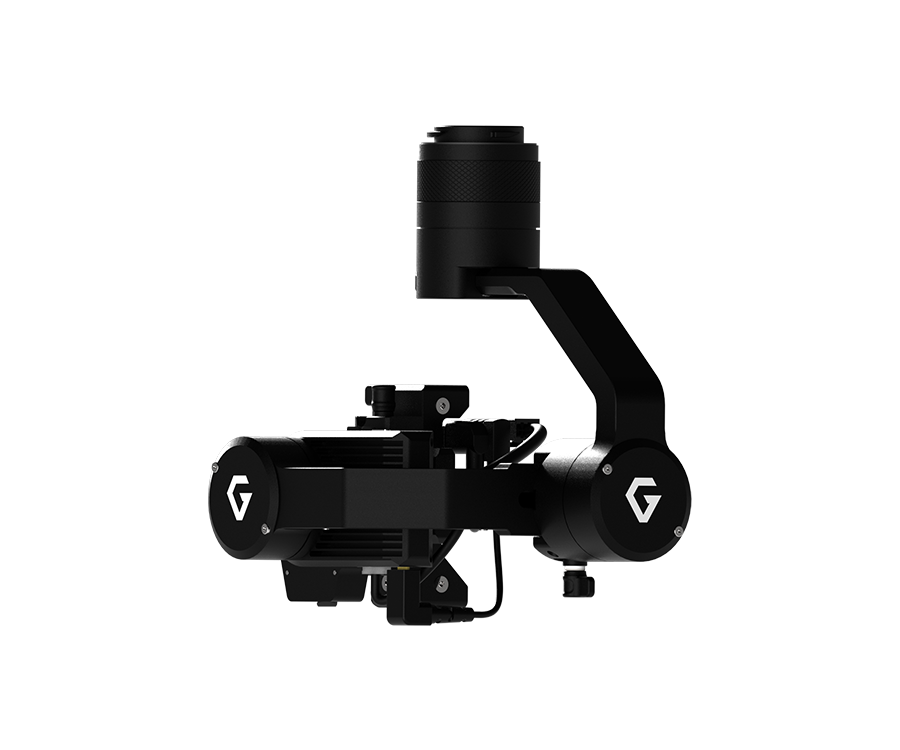

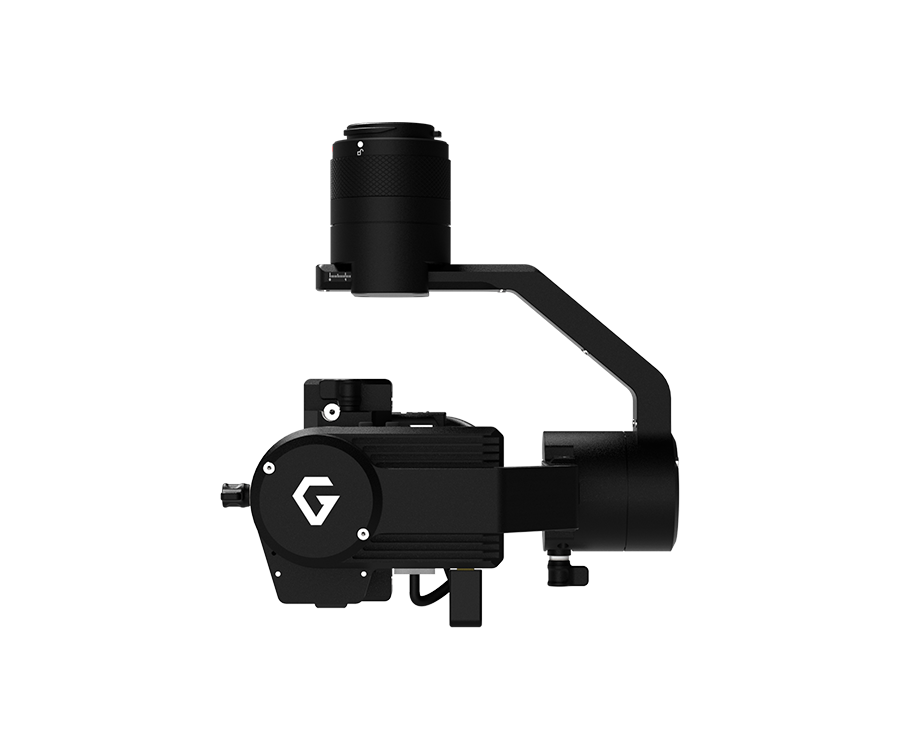

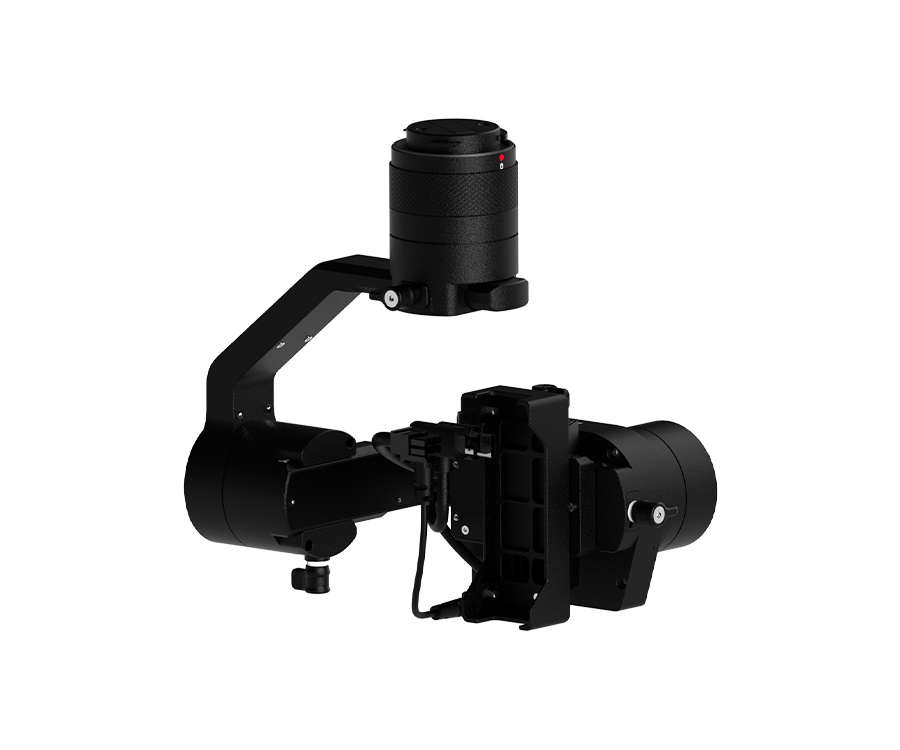

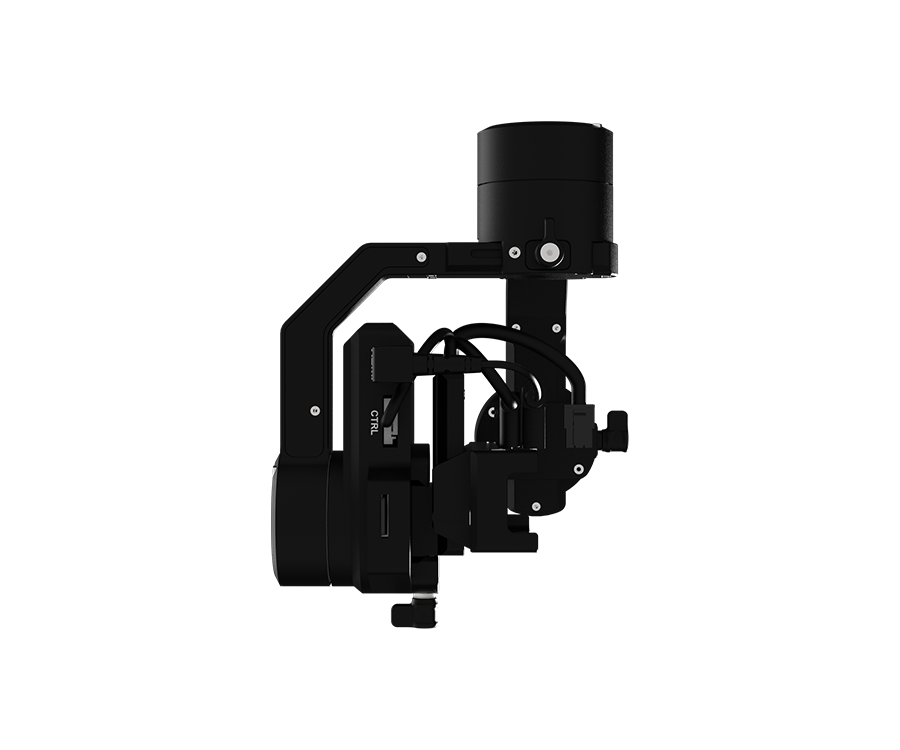

Pixy MR is perfectly built for Sony ILX - LR1, and compatible with M300/M350 drone platforms, offering quick and straightforward integration via DJI Skyport. Pixy MR is optimized in size, weight yet powerful (SWaP), recommended by UAV experts in multiple applications.
Specifications:
| Product Name | Pixy MR |
| System Type | 3-Axis Camera Stabilizer |
| Supported Drone Type | DJI M300/M350 RTK |
| Dimension (DxWxH) | 157mm x 108mm x 167mm |
| Weight | 520g/1.15lbs |
| Construction | Aluminum |
| Quick Release Type | Skyport V2.0 |
| Operation Power | 13.7V under skyport |
| Connection | DJI Skyport V2 USB 2.0 UART |
| Gimbal Mode | Lock (Free mode) Follow Mapping (Nadir) |
| Pan Range | ± 160° |
| Roll Range | ± 25° |
| Tilt Range | +135° to -45° |
Packing List:
| Pixy MR | 20G501-000 | x1 |
| Skyport Cap | 25-0008Z-9-008 | x1 |
| Right Angle Micro HDMI To Angle Micro HDMI Cable | 10T-04-010-0 | x1 |
| USB-C Cable | EWC4USBC95 | x1 |
| M3x6 Hexagon screw - DIN 7991 | 261-7991-1-023 | x1 |
| Allen Key 2.0mm | 25-0010Z-2-003 | x1 |
