MPN: 20M001
Manufacturer: Gremsy

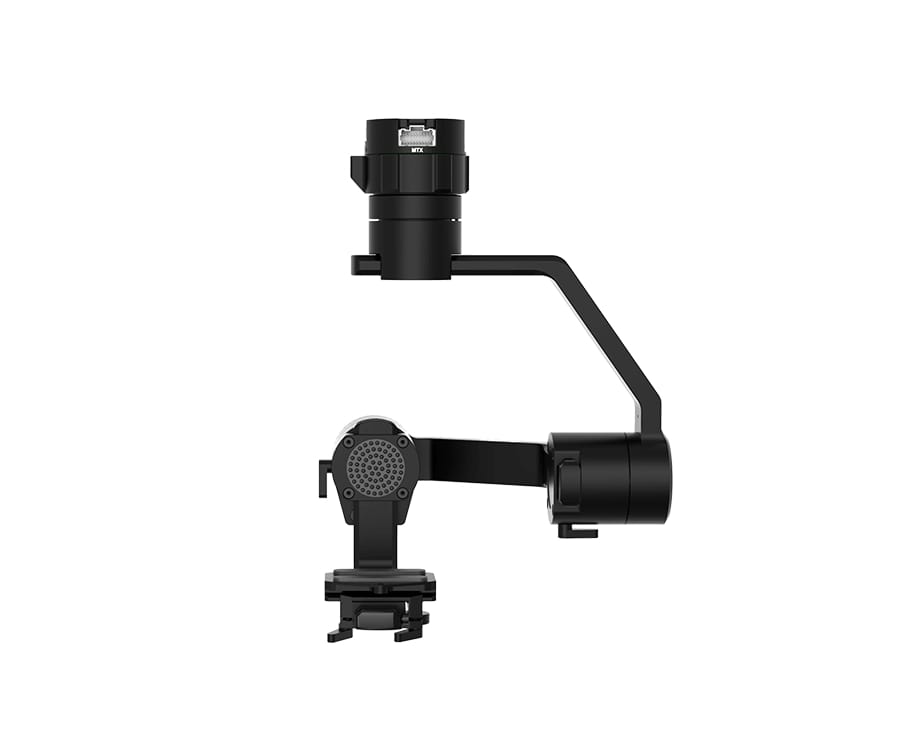

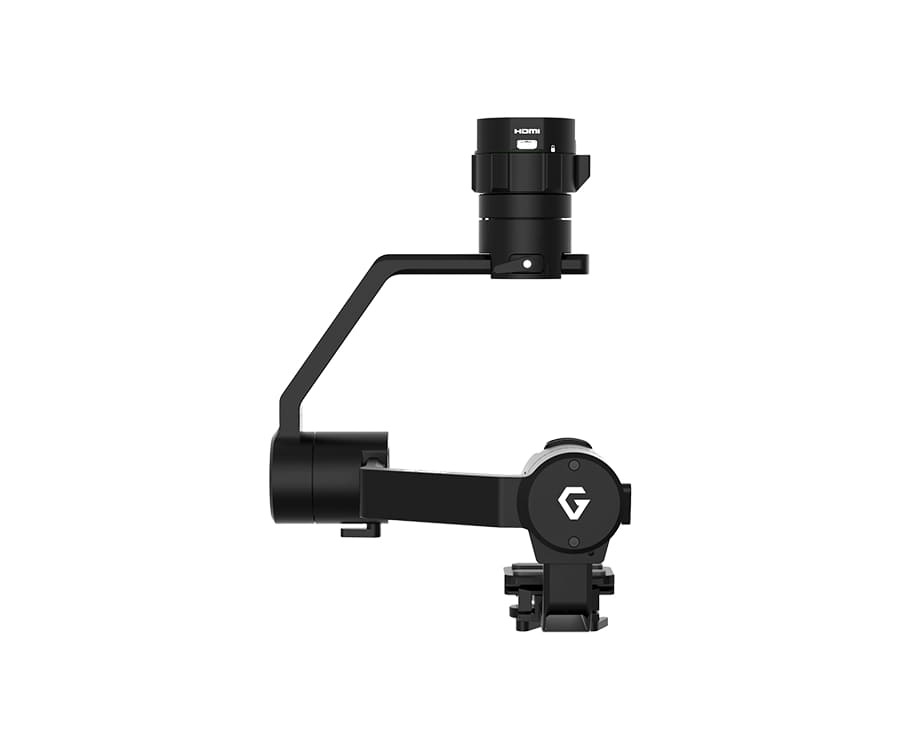

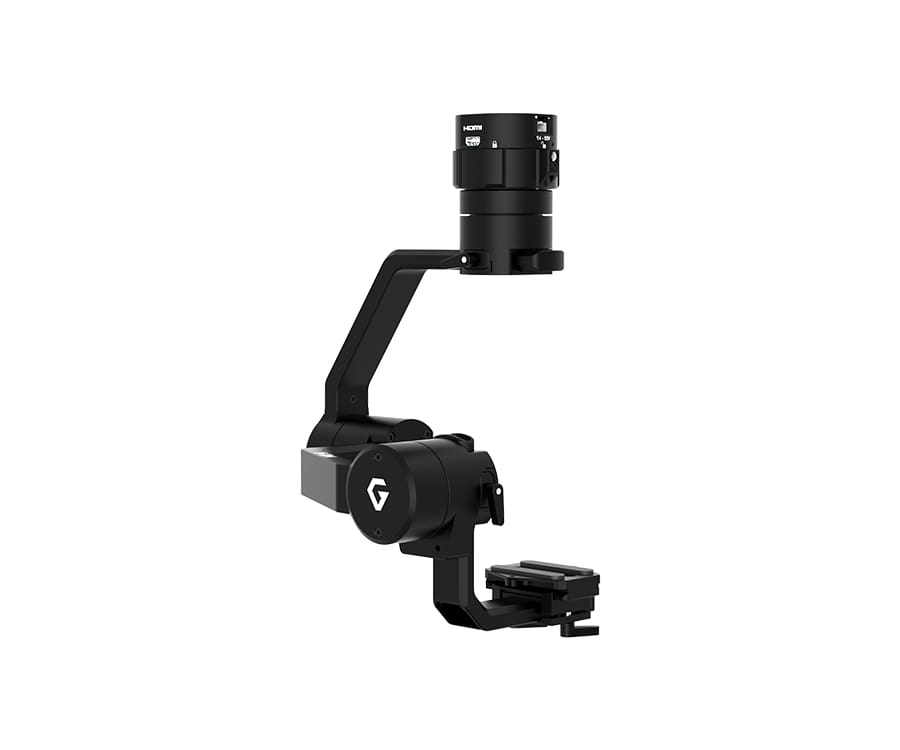

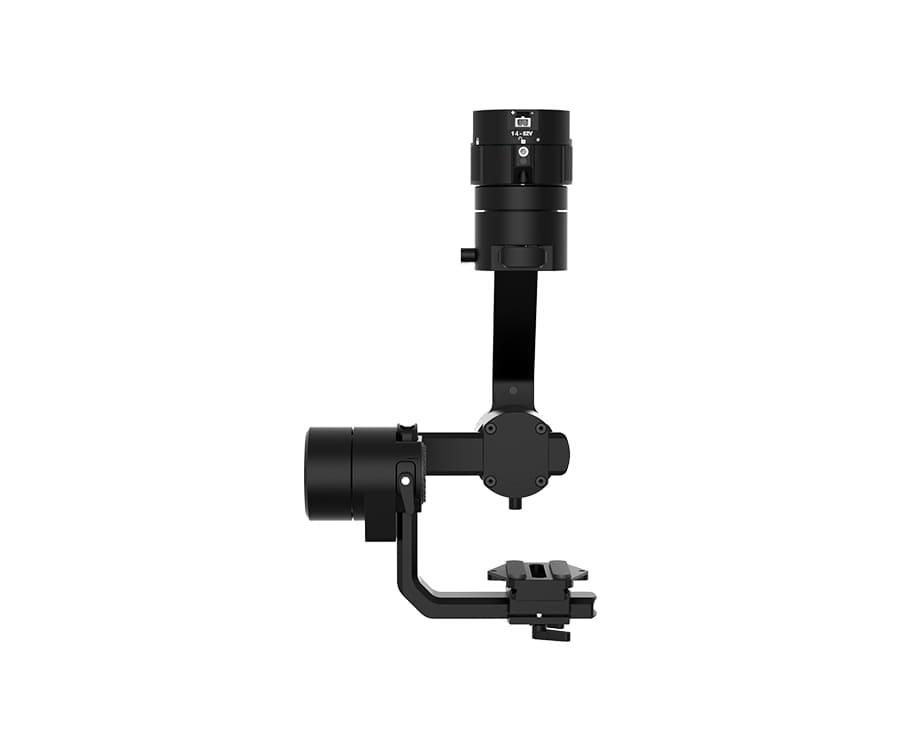

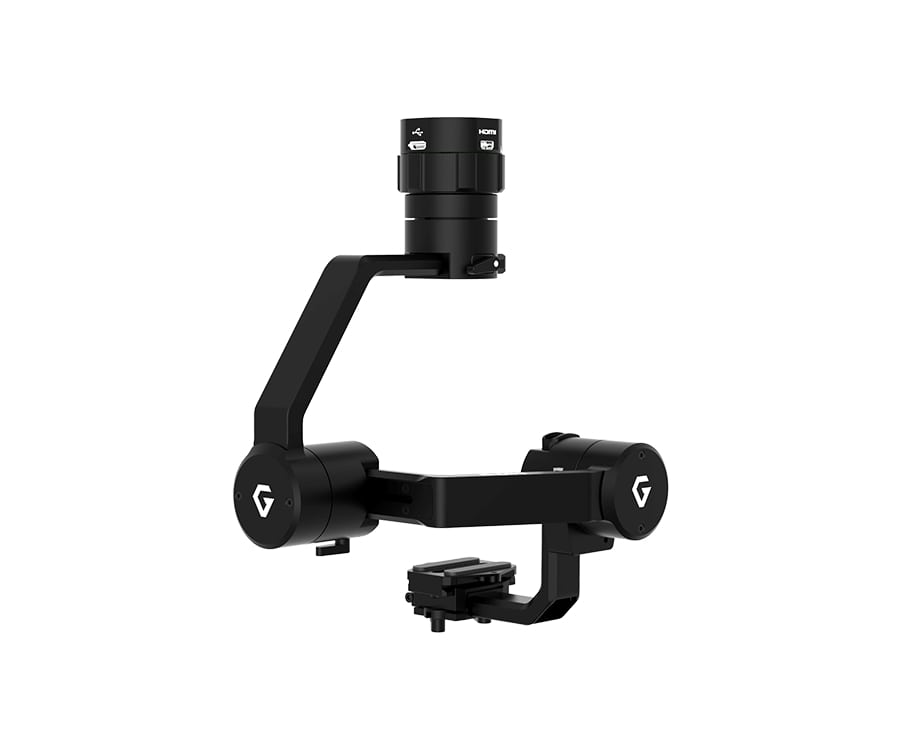

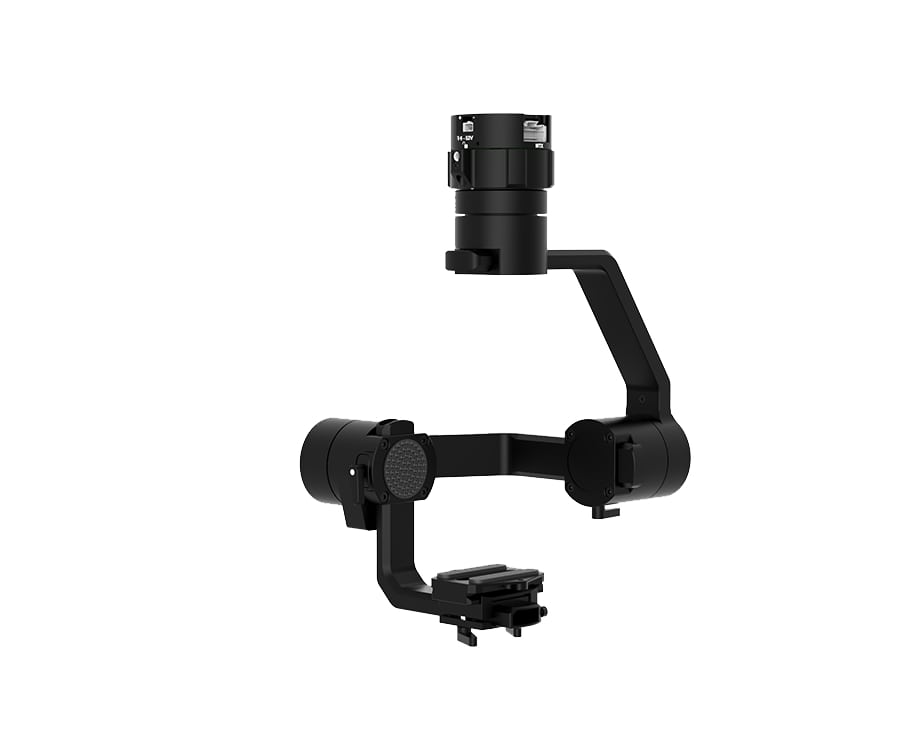

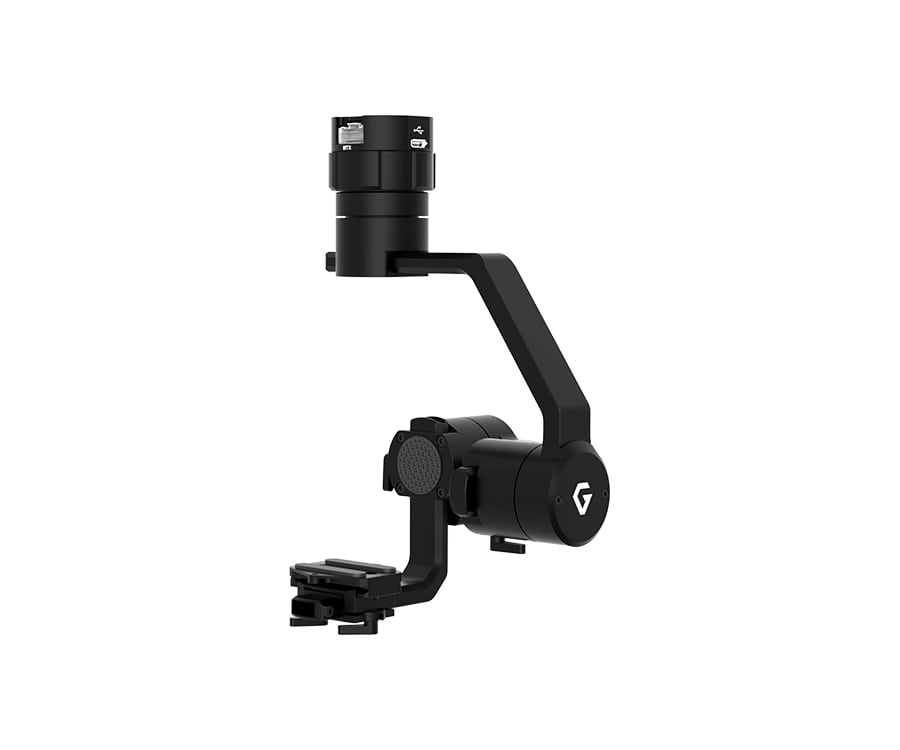

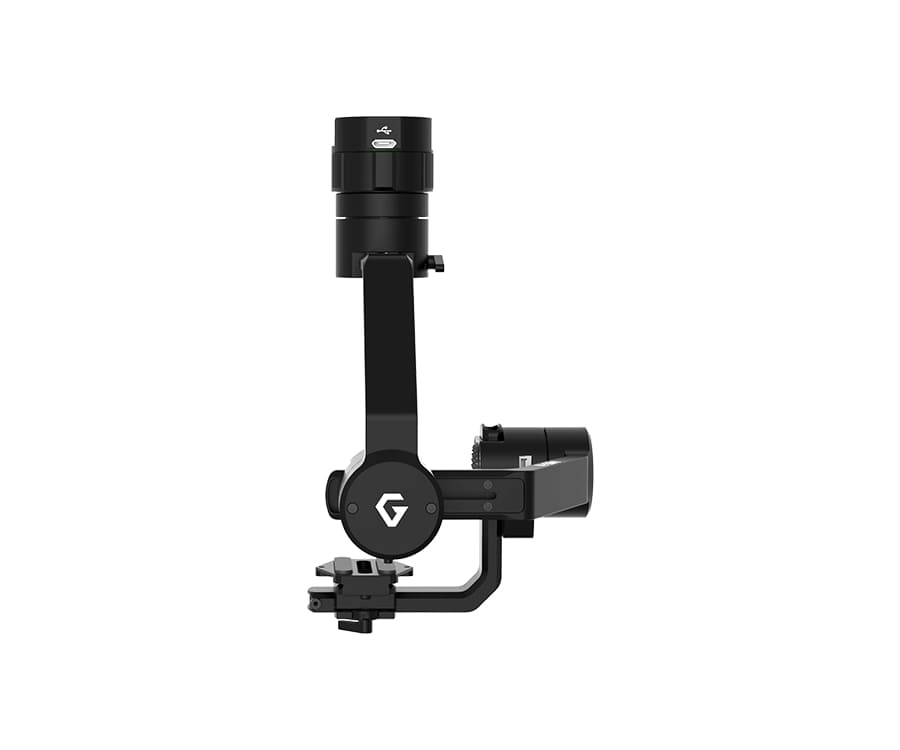

Mio gimbal is the next-generation of 3-axis compact camera stabilizer that delivers robust performance for industrial uses.
Featuring a compact and lightweight design, Mio is intended to integrate into professional aerial systems for industrial and commercial uses.
| Product Name | Mio |
| System Type | 3-Axis Camera Stabilizer |
| Weight | 0.55 lb / 250g |
| Camera Cage (Standard) (Dx W x H) | 43 x 85 x 70mm |
| Construction | All Aluminum |
| Input Voltage | 14-52V |
| Connection | USB 2.0, CAN, UART, S-bus, PPM, Bluetooth |
| Payload | 0.88 lbs/ 400g |
| OS Platform Supported | Windows XP or above; Mac OS X 10.9 or above |
| Single Operator | Lock Mode, Follow Mode, Mapping Mode, Inverted Mode, Front Mode |
| Dual Operator | SBUS / PPM |
| Pan Range | Pan axis control: ±325° |
| Tilt Range | Tilt axis control:± 120° |
| Roll Range | Roll axis control: ± 40° |
| Mio Gimbal | x1 |
| Mio Quick Release | x1 |
| Mio USB Cable | x1 |
| Power Cable | x2 |
| AUX Cable (QR) | x1 |
| AUX Cable (Tilt) | x1 |
| MTX Hub | x1 |
| MTX Cable | x1 |
| Bluetooth Module | x1 |
| Pixhawk Cable | x1 |
| Sbus/PPM Cable | x1 |
| Camera Screw | x2 |
| Camera Plate Standard | x1 |
| Bolt Hexagonb Socket M2x6 | x6 |
| Allen Key 1.5mm | x1 |
1. Operation Modes
-Motor ON/OFF
-Lock mode
-Follow mode / Mapping mode
- Inverted mode/ Front mode
2. Temperature Sensor
3. Gremsy Specialized Gimbal Drive Motors with Encoders
4. Micro USB Connection
5. Gremsy Advanced 32-Bit high performance ARM microprocessor
6. S-Bus/PPM Receiver Supported
Static current: 400mA (@12V)
Dynamic current: 800mA (@12V)
Locked motor current: Max 3.5A (@12V)
Operating Temperature: 5° F ~ 120° F (-15° C ~ 50° C)
Camera Tray Dimensions:
- Maximum depth from the center of gravity on camera base plate: 43mm
- Maximum height measured from top of camera base plate: 70mm
- Maximum width: 85mm
Input Power: 14-52V
Operating Power: 12V
Connections: USB 2.0, CAN, UART, S-bus, PPM, Bluetooth 4.0
PC Assistant Software Requirements: Windows 10 or above; Mac OS X 12.0 or above
Mobile Assistant Software Requirements: iOS 14.0 or above; Android 10.0 or above
Maximum Payload: 0.88 lbs (400g)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed:
-Pan axis: 100°/s
-Tilt axis: 100°/s
-Roll axis: 100°/s
Mechanical Endpoint Range:
-Pan axis control: ±338°
-Tilt axis control: -200° to +135°
-Roll axis control: -265° to +75°
