Description
MPN: 062020000100
Manufacturer: Gremsy
Pre-Order

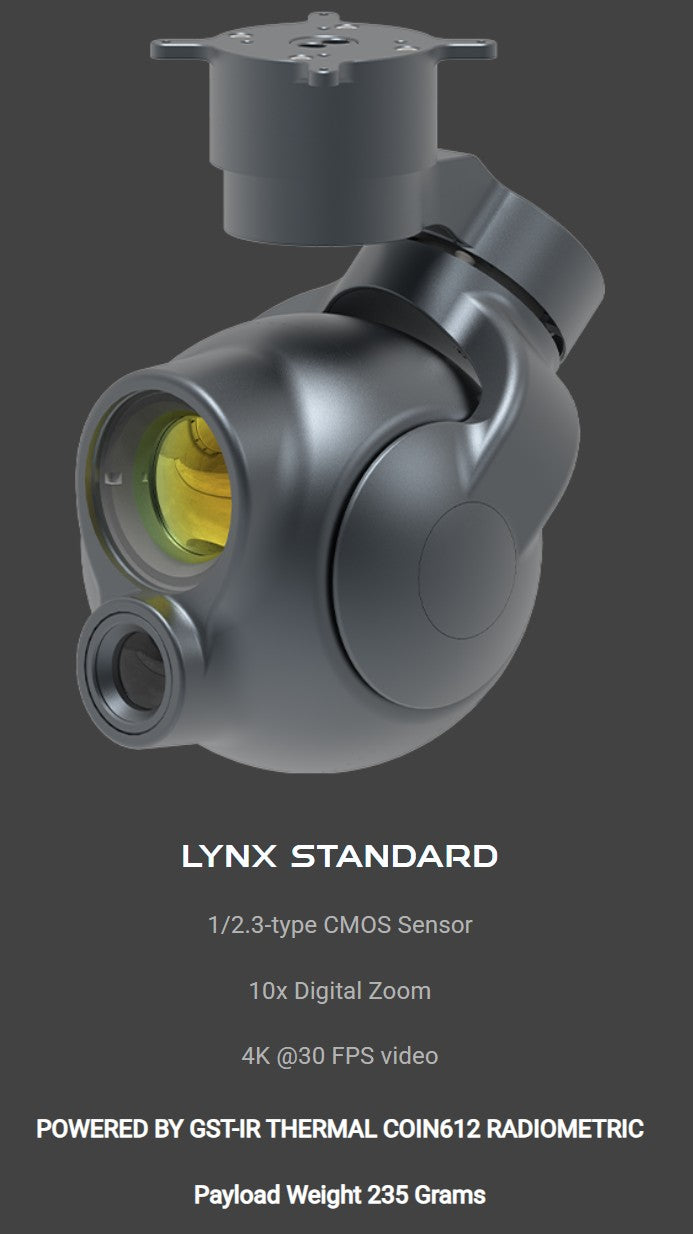

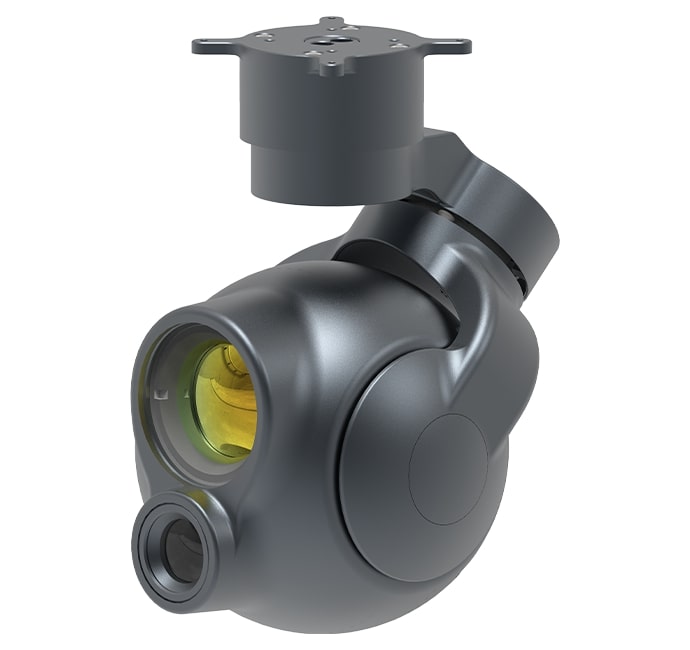

LYNX – Ultra-Compact ISR Payload with EO Zoom and IR Imaging

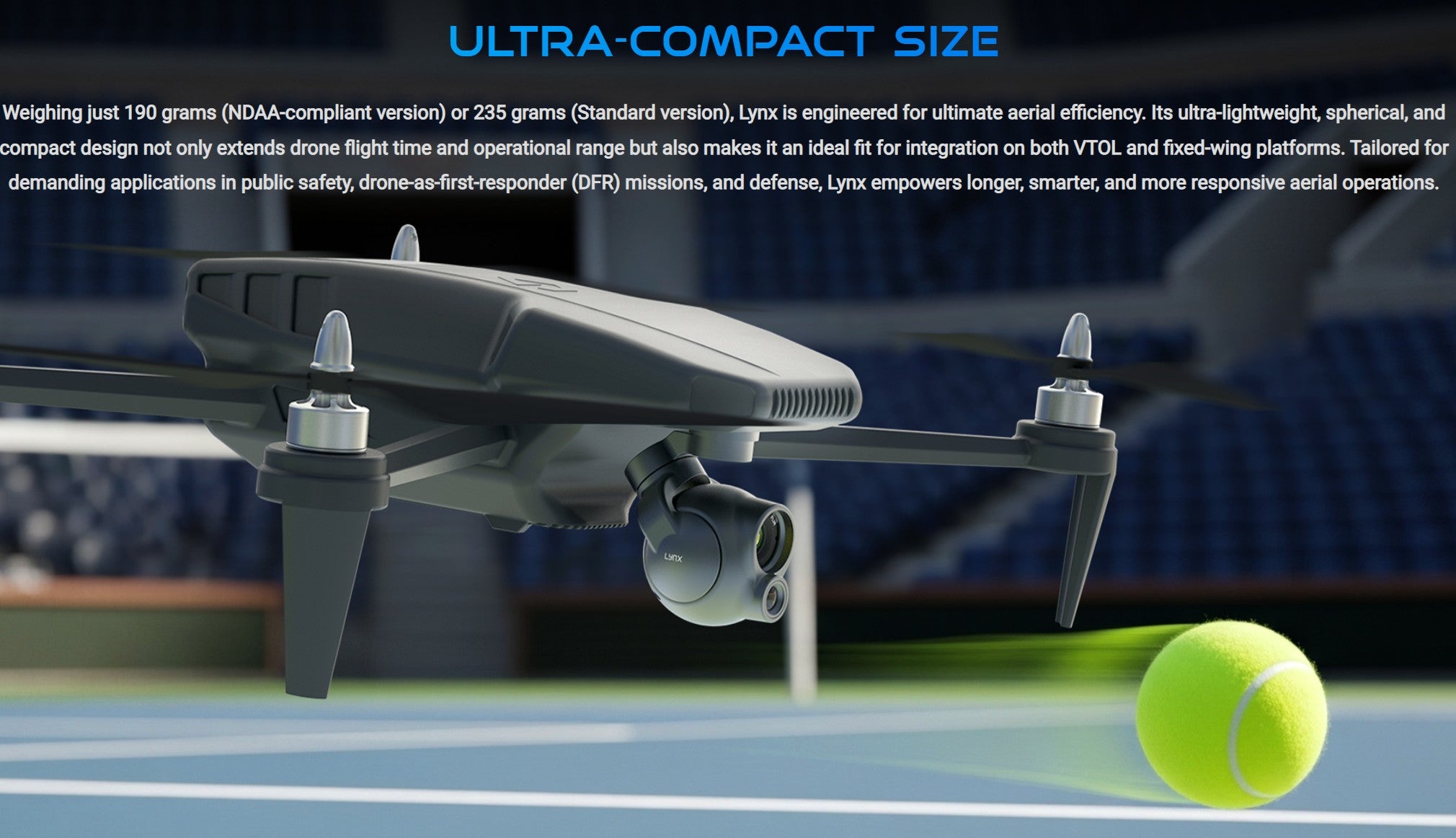

Gremsy introduces LYNX, its most compact and lightweight ISR payload to date, weighing just 190 grams. Engineered for small UAV platforms, LYNX features a distinctive spherical design that enhances aerodynamics and flight stability. Despite its minimal form factor, it integrates a high-resolution EO camera with up to 10xdigital zoom alongside an infrared (IR) thermal sensor—delivering powerful dual-spectrum imaging for mission-critical aerial surveillance and reconnaissance operations.
Includes:
Lynx Gimbal x1

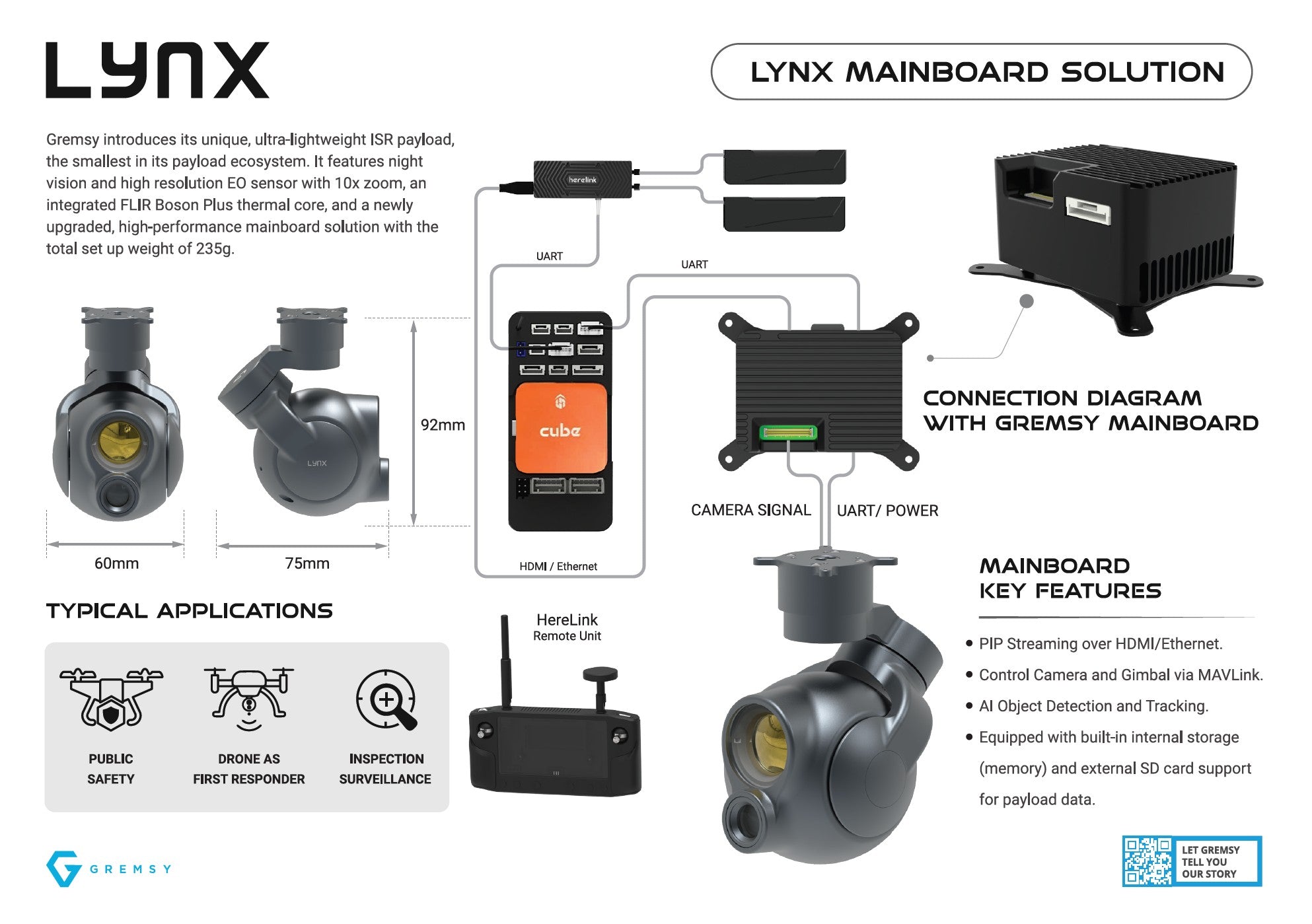

Lynx Mainboard x1
Lynx Damping x1

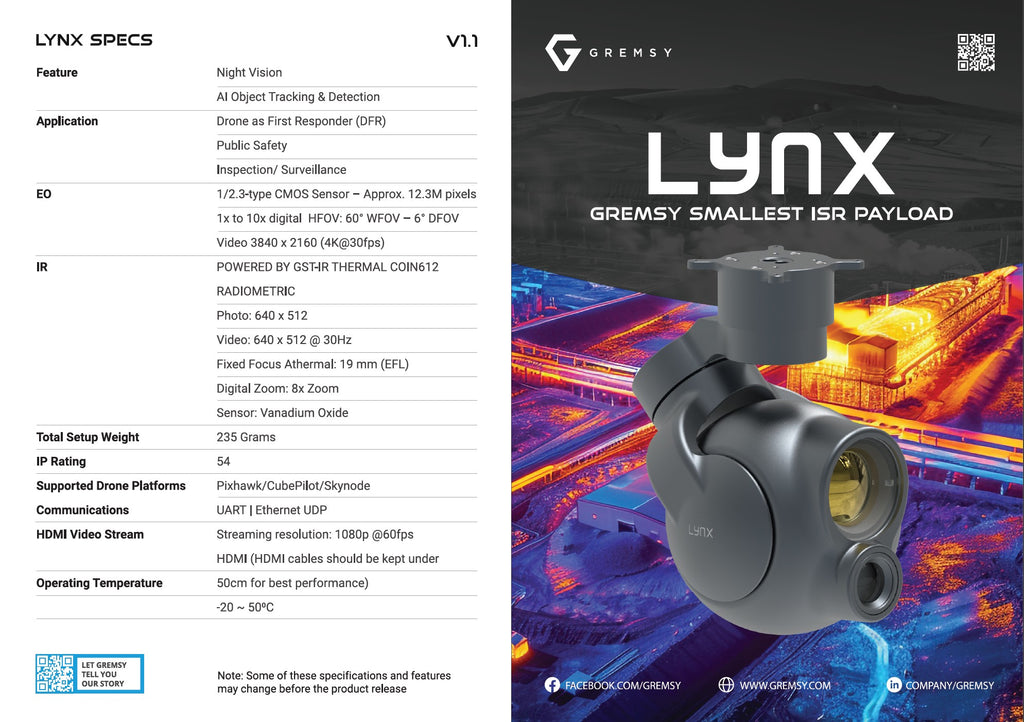

| Specs | LYNX | LYNX NDAA |
|---|---|---|
| Payload Weight (Full System) | 320 – 365 g | 320 – 365 g |
| Payload Only Weight | 235 g | 190 g |
| Dimensions (D × W × H) | 80 × 60 × 96 mm | 80 × 60 × 96 mm |
| Damping System | 3-Ball Rubber | 3-Ball Rubber |
| Ingress Protection | IP55 (Pending Confirmation) | IP55 (Pending Confirmation) |
| Optimal Flight Speed | 60 km/h | 60 km/h |
| Input Voltage (Mainboard) | 15 – 52 V DC | 15 – 52 V DC |
| Payload Power Input | 12 V DC @ 5 A | 12 V DC @ 5 A |
| Operating Current | • Static 15 W (12 V @ 1.25 A)• Dynamic 18 W (12 V @ 1.5 A)• Locked Motor (Peak) 40 W (12 V @ 3.3 A) | • Static 13 W (12 V @ 1.1 A)• Dynamic 15 W (12 V @ 1.25 A)• Locked Motor (Peak) 40 W (12 V @ 3.3 A) |
| Operating Temperature | −20 °C ~ 50 °C | −20 °C ~ 50 °C |
| Storage Temperature | −20 °C ~ 60 °C | −20 °C ~ 60 °C |
| Supported Drone Platforms | Pixhawk / CubePilot / Skynode | Pixhawk / CubePilot / Skynode |
| Autopilot Platforms | ArduPilot / PX4 | ArduPilot / PX4 |
| Controllers & Ground Stations | QGroundControl / Gremsy Payload Assistant App | QGroundControl / Gremsy Payload Assistant App |
| SDK Support | Gremsy Payload SDK | Gremsy Payload SDK |
EO Camera:
| Specs | Details |
|---|---|
| Sensor | 1/2.3" CMOS – 12.3 MP |
| Resolution | 4056 × 3040 |
| Pixel Size | 1.55 µm × 1.55 µm |
| Field of View (HFOV / VFOV / DFOV) | 60.4° / 32° / 72.4° |
| Aperture | f/2.8 |
| Focal Length (EFL) | 5.4 mm |
| Zoom | 1× to 10× Digital |
| HDR | DOL-HDR @ 30 fps |
| Distortion | < 3% |

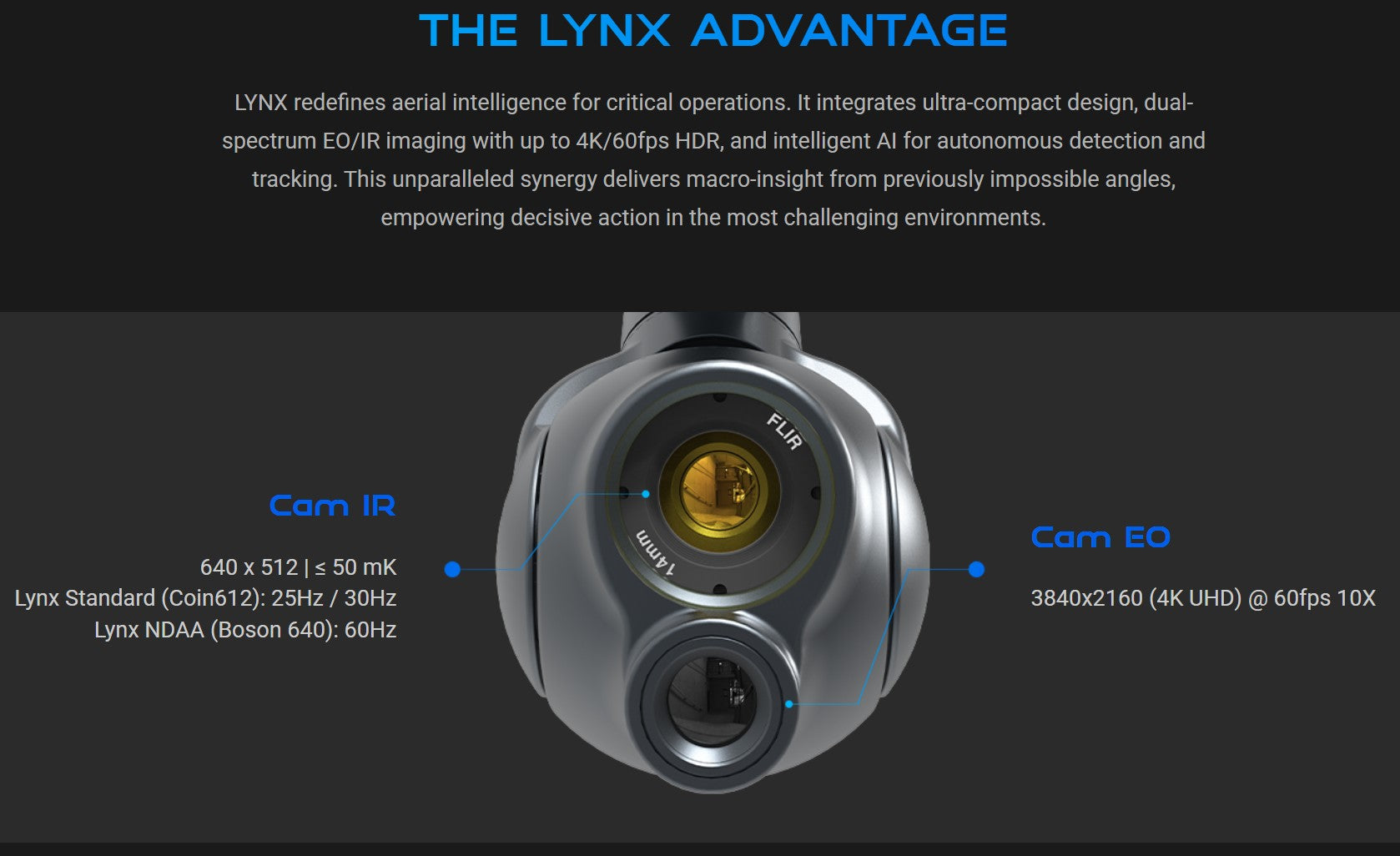

IR Camera:
| Specs | LYNX (Coin612) | LYNX NDAA (Boson 640) |
|---|---|---|
| Sensor Type | VOx Microbolometer (FLIR) | VOx Microbolometer (FLIR) |
| Array Format | 640 × 512 | 640 × 512 |
| Frame Rate | 25 / 30 Hz | 60 Hz |
| Pixel Size | 12 µm | 12 µm |
| Spectral Range | 8 – 14 µm | 8 – 14 µm |
| Scene Temperature Range | 150°C (High Gain), 500°C (Low) | 150°C (High Gain), 500°C (Low) |
| Lens | 19 mm EFL (Fixed Athermal) | 14 mm EFL (Fixed Focus) |
| HFOV | ~ 32° | 32° |
| Digital Zoom | 1× – 8× | 1× – 8× |
| Thermal Sensitivity (NETD) | ≤ 50 mK | ≤ 50 mK |
Gimbal:
| Parameter | Details |
|---|---|
| Mount Type | Bottom Mount |
| Gimbal Modes | Off / Lock / Follow / Mapping |
| Angular Vibration Range | ±0.01° |
| Max Speed (Pan / Tilt / Roll) | 100°/s |
| Mechanical Range | Pan ±170°, Roll ±50°, Tilt −140° to +50° |
| Controllable Range | Pan ±165°, Roll ±30°, Tilt −130° to +40° |
Features:
-
Object Tracking (EO only): 12–15 fps Basic Tracking
-
AI Object Detection (EO only): 5 fps, Default Human/Car, Upgradeable
-
Camera View Modes: EO / IR / EO-IR / IR-EO
-
HDMI Video Output: 1080p @ 60 fps (cable < 50 cm recommended)
-
Ethernet Access: HTTP Server support
-
EagleEye Scene Overview: Supported (EO + IR)
-
Geotagging: GPS coordinates + Gimbal orientation + Zoom level
-
Ethernet Video Streaming: 720p–1080p RTSP (100–200 ms latency @ 720p H.265)
-
Video Recording: EO 4K @ 60 fps • IR 640×512 @ 30/60 fps • PiP 1080p @ 60 fps
-
Image Capture: EO 4K JPEG • IR 640×512 (JPEG/CSV/TIFF) • PiP 1080p JPEG
-
Storage: MicroSD (up to 128 GB) + Internal Flash (64 GB)
-
Web App Configuration: Yes
-
Radiometric Overlay: Runtime IR Video
-
3rd-Party App Integration: Not Supported
-
Individual Thermal Stream & Raw Data: Up to 5 Hz
