Gremsy LYNX NDAA ISR Payload – EO + IR Thermal Gimbal for UAV

Gremsy
Price:
$ 9,098.00
Stock:
Sold out

Description

MPN: 022020002600

Manufacturer: Gremsy US

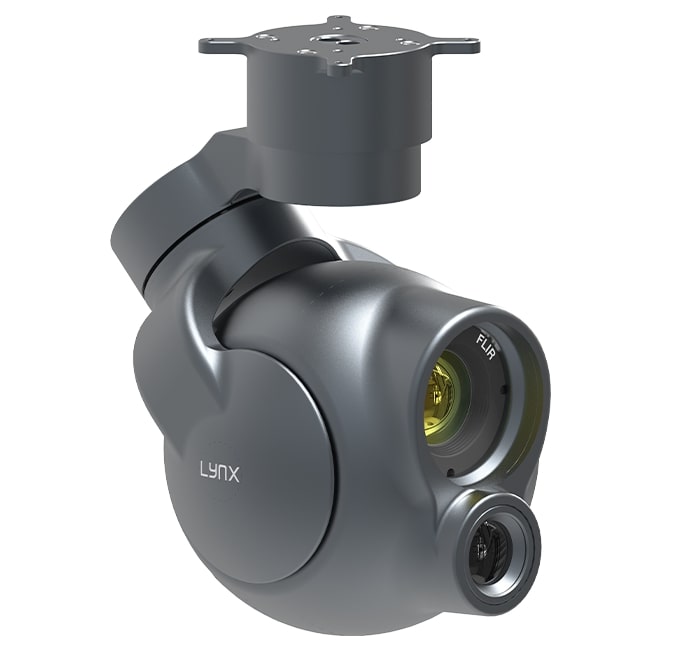

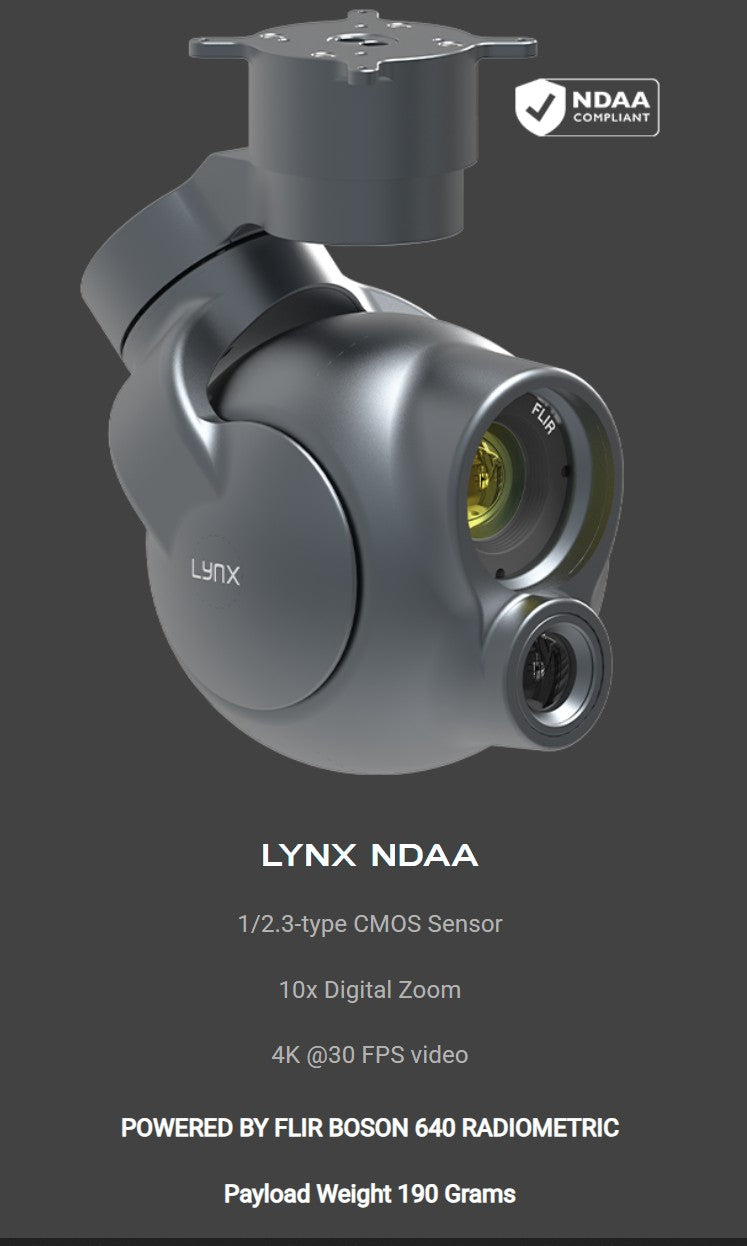

The Gremsy LYNX NDAA (MPN: 022020002600) is an ultra-compact ISR payload engineered for small UAV platforms requiring professional dual-spectrum imaging. Weighing just 190 grams (payload only), LYNX integrates a high-resolution EO zoom camera with a FLIR Boson 640 thermal sensor, delivering advanced surveillance capability in a lightweight aerodynamic spherical design.

Built and assembled in the United States by Gremsy US, the LYNX NDAA variant meets NDAA compliance requirements for government and security-focused operations. The system is optimized for Pixhawk, CubePilot, and Skynode platforms running ArduPilot or PX4.

Despite its compact footprint, LYNX delivers powerful mission capability including object tracking, AI detection (EO), geotagging with gimbal orientation, HDMI output, RTSP streaming, and onboard 4K recording.

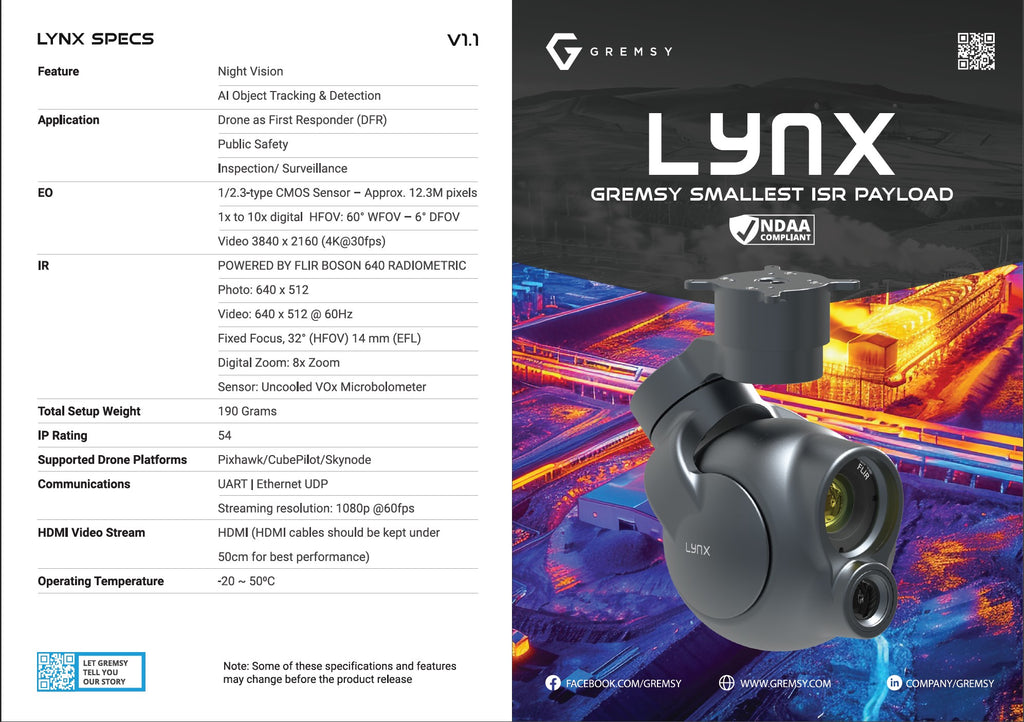

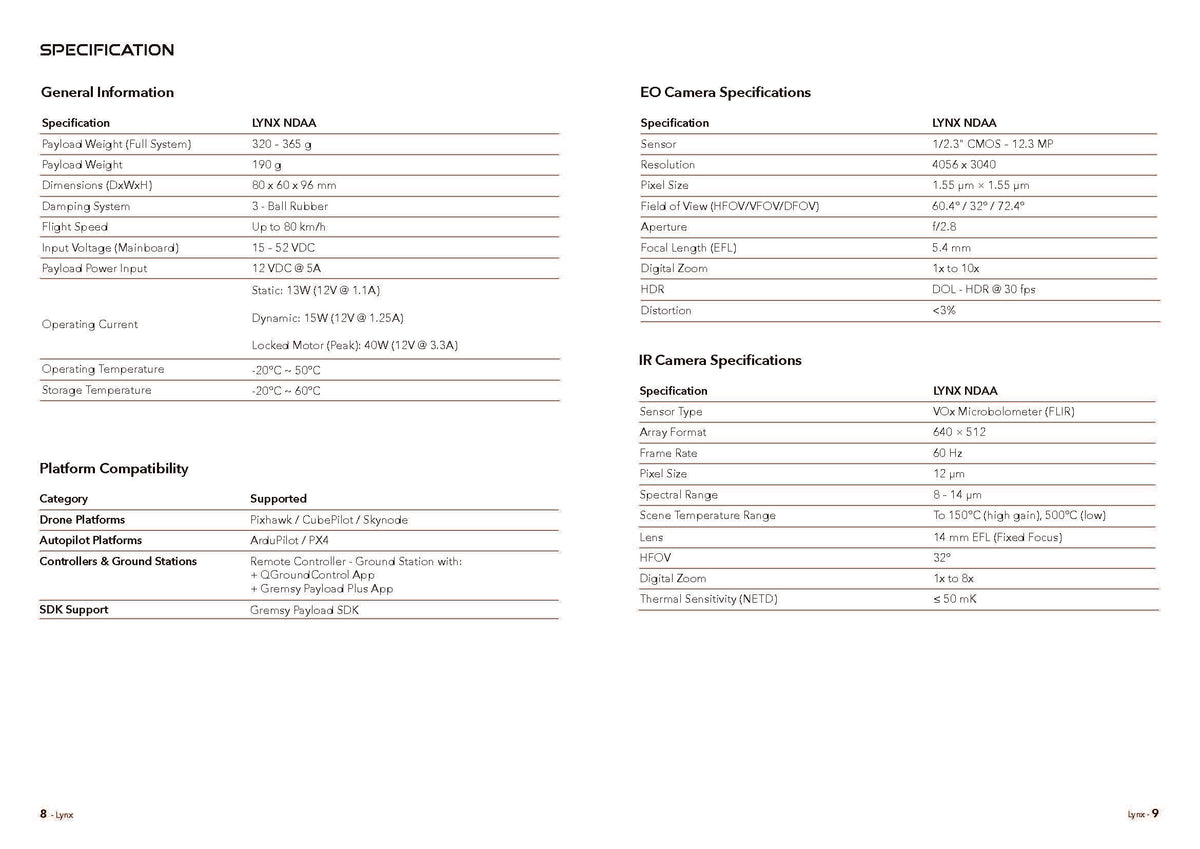

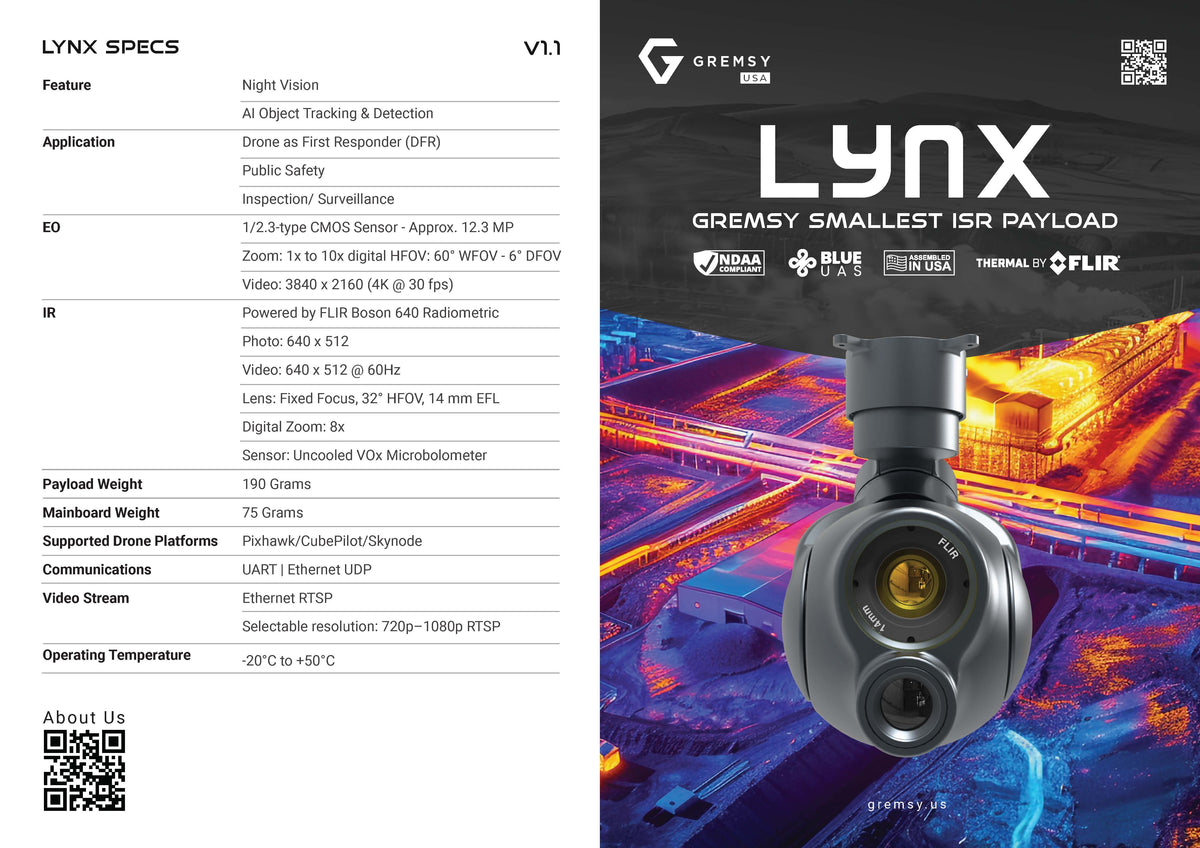

System Specifications

Specs LYNX LYNX NDAA
Payload Weight (Full System) 320 – 365 g 320 – 365 g
Payload Only Weight 235 g 190 g
Dimensions (D × W × H) 80 × 60 × 96 mm 80 × 60 × 96 mm
Damping System 3-Ball Rubber 3-Ball Rubber
Ingress Protection IP55 (Pending Confirmation) IP55 (Pending Confirmation)
Optimal Flight Speed 60 km/h 60 km/h
Input Voltage (Mainboard) 15 – 52 V DC 15 – 52 V DC
Payload Power Input 12 V DC @ 5 A 12 V DC @ 5 A
Operating Current • Static 15 W (12 V @ 1.25 A)• Dynamic 18 W (12 V @ 1.5 A)• Locked Motor (Peak) 40 W (12 V @ 3.3 A) • Static 13 W (12 V @ 1.1 A)• Dynamic 15 W (12 V @ 1.25 A)• Locked Motor (Peak) 40 W (12 V @ 3.3 A)
Operating Temperature −20 °C ~ 50 °C −20 °C ~ 50 °C
Storage Temperature −20 °C ~ 60 °C −20 °C ~ 60 °C
Supported Drone Platforms Pixhawk / CubePilot / Skynode Pixhawk / CubePilot / Skynode
Autopilot Platforms ArduPilot / PX4 ArduPilot / PX4
Controllers & Ground Stations QGroundControl / Gremsy Payload Assistant App QGroundControl / Gremsy Payload Assistant App
SDK Support Gremsy Payload SDK Gremsy Payload SDK



EO Camera Specifications

Specs Details
Sensor 1/2.3" CMOS – 12.3 MP
Resolution 4056 × 3040
Pixel Size 1.55 µm × 1.55 µm
Field of View (HFOV / VFOV / DFOV) 60.4° / 32° / 72.4°
Aperture f/2.8
Focal Length (EFL) 5.4 mm
Zoom 1× to 10× Digital
HDR DOL-HDR @ 30 fps
Distortion < 3%



IR Thermal Camera (Boson 640 – NDAA)

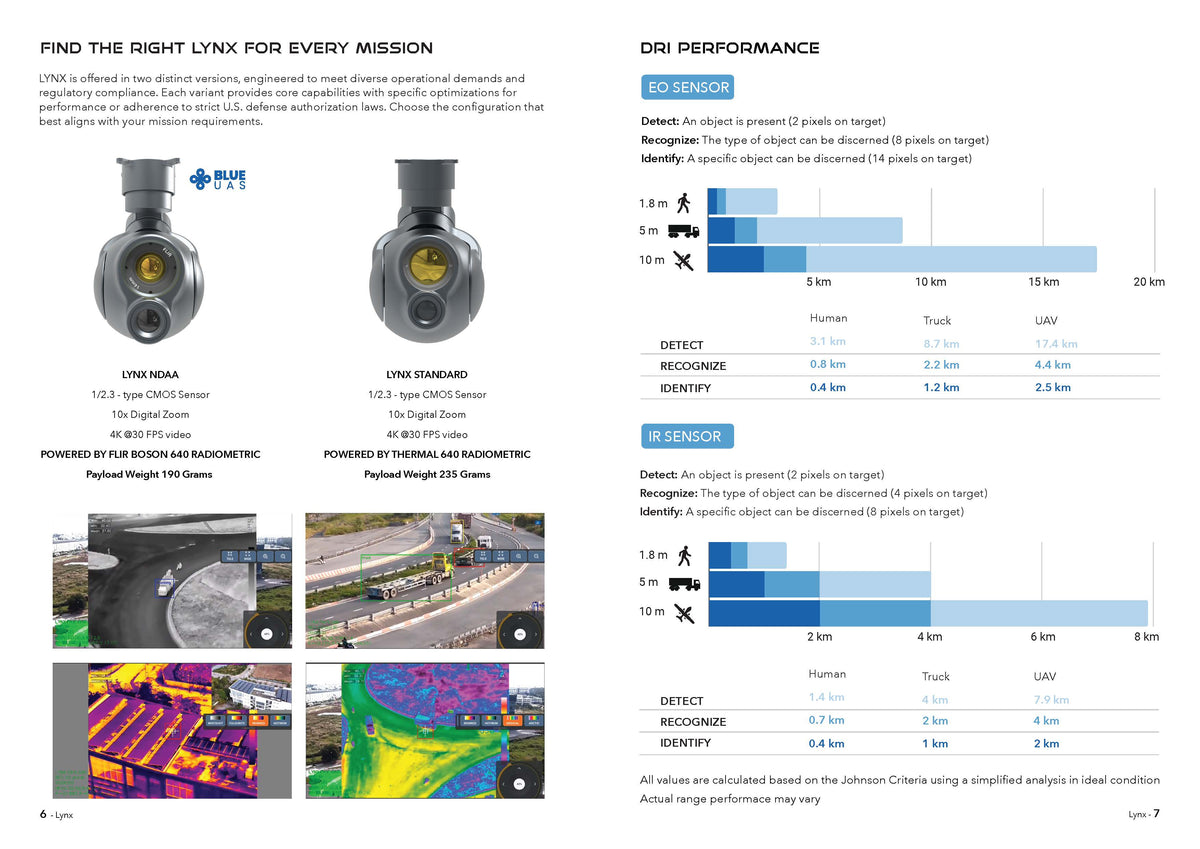

Specs LYNX (Coin612) LYNX NDAA (Boson 640)
Sensor Type VOx Microbolometer (FLIR) VOx Microbolometer (FLIR)
Array Format 640 × 512 640 × 512
Frame Rate 25 / 30 Hz 60 Hz
Pixel Size 12 µm 12 µm
Spectral Range 8 – 14 µm 8 – 14 µm
Scene Temperature Range 150°C (High Gain), 500°C (Low) 150°C (High Gain), 500°C (Low)
Lens 19 mm EFL (Fixed Athermal) 14 mm EFL (Fixed Focus)
HFOV ~ 32° 32°
Digital Zoom 1× – 8× 1× – 8×
Thermal Sensitivity (NETD) ≤ 50 mK ≤ 50 mK



Gimbal Performance

Parameter Details
Mount Type Bottom Mount
Gimbal Modes Off / Lock / Follow / Mapping
Angular Vibration Range ±0.01°
Max Speed (Pan / Tilt / Roll) 100°/s
Mechanical Range Pan ±170°, Roll ±50°, Tilt −140° to +50°
Controllable Range Pan ±165°, Roll ±30°, Tilt −130° to +40°

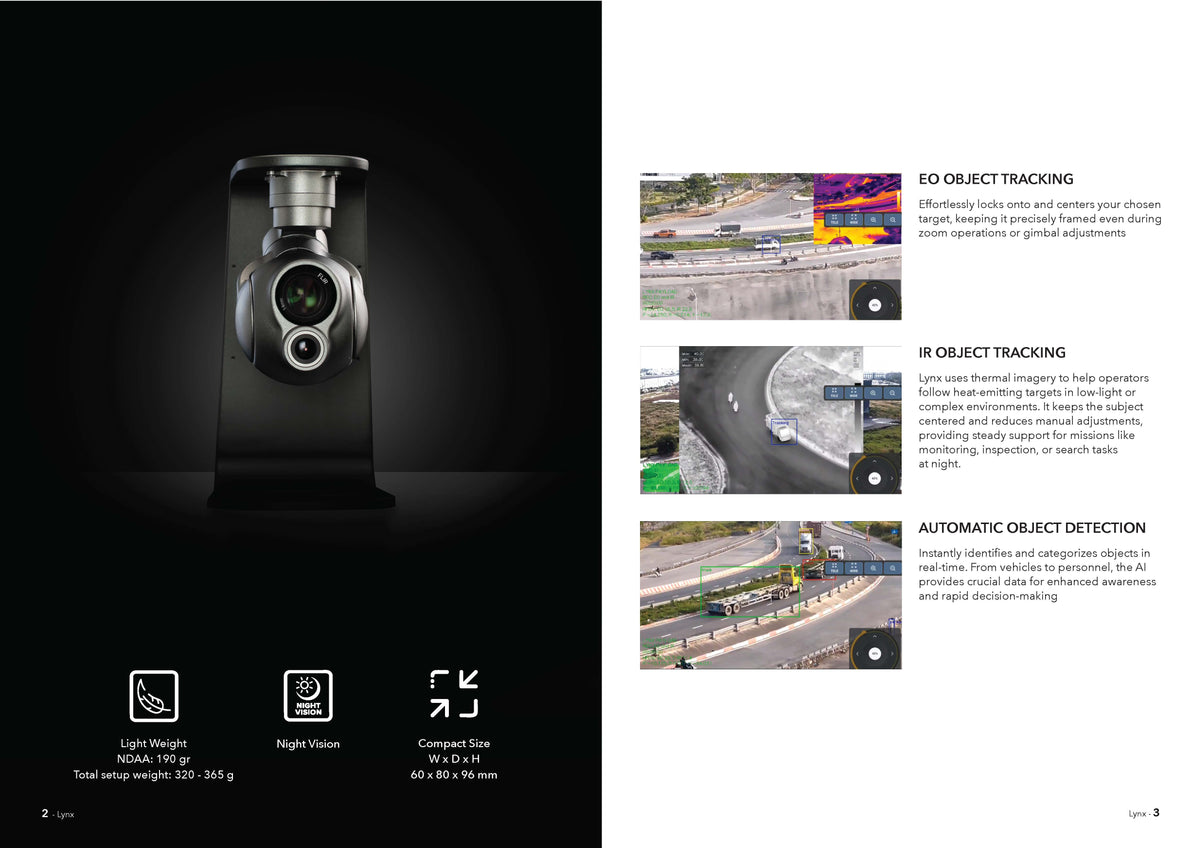

Advanced Capabilities

  • Object Tracking (EO only): 12–15 fps Basic Tracking

  • AI Object Detection (EO only): 5 fps, Default Human/Car, Upgradeable

  • Camera View Modes: EO / IR / EO-IR / IR-EO

  • HDMI Video Output: 1080p @ 60 fps (cable < 50 cm recommended)

  • Ethernet Access: HTTP Server support

  • EagleEye Scene Overview: Supported (EO + IR)

  • Geotagging: GPS coordinates + Gimbal orientation + Zoom level

  • Ethernet Video Streaming: 720p–1080p RTSP (100–200 ms latency @ 720p H.265)

  • Video Recording: EO 4K @ 60 fps • IR 640×512 @ 30/60 fps • PiP 1080p @ 60 fps

  • Image Capture: EO 4K JPEG • IR 640×512 (JPEG/CSV/TIFF) • PiP 1080p JPEG

  • Storage: MicroSD (up to 128 GB) + Internal Flash (64 GB)

  • Web App Configuration: Yes

  • Radiometric Overlay: Runtime IR Video

  • 3rd-Party App Integration: Not Supported

  • Individual Thermal Stream & Raw Data: Up to 5 Hz

Included

  • 1 × LYNX NDAA Gimbal

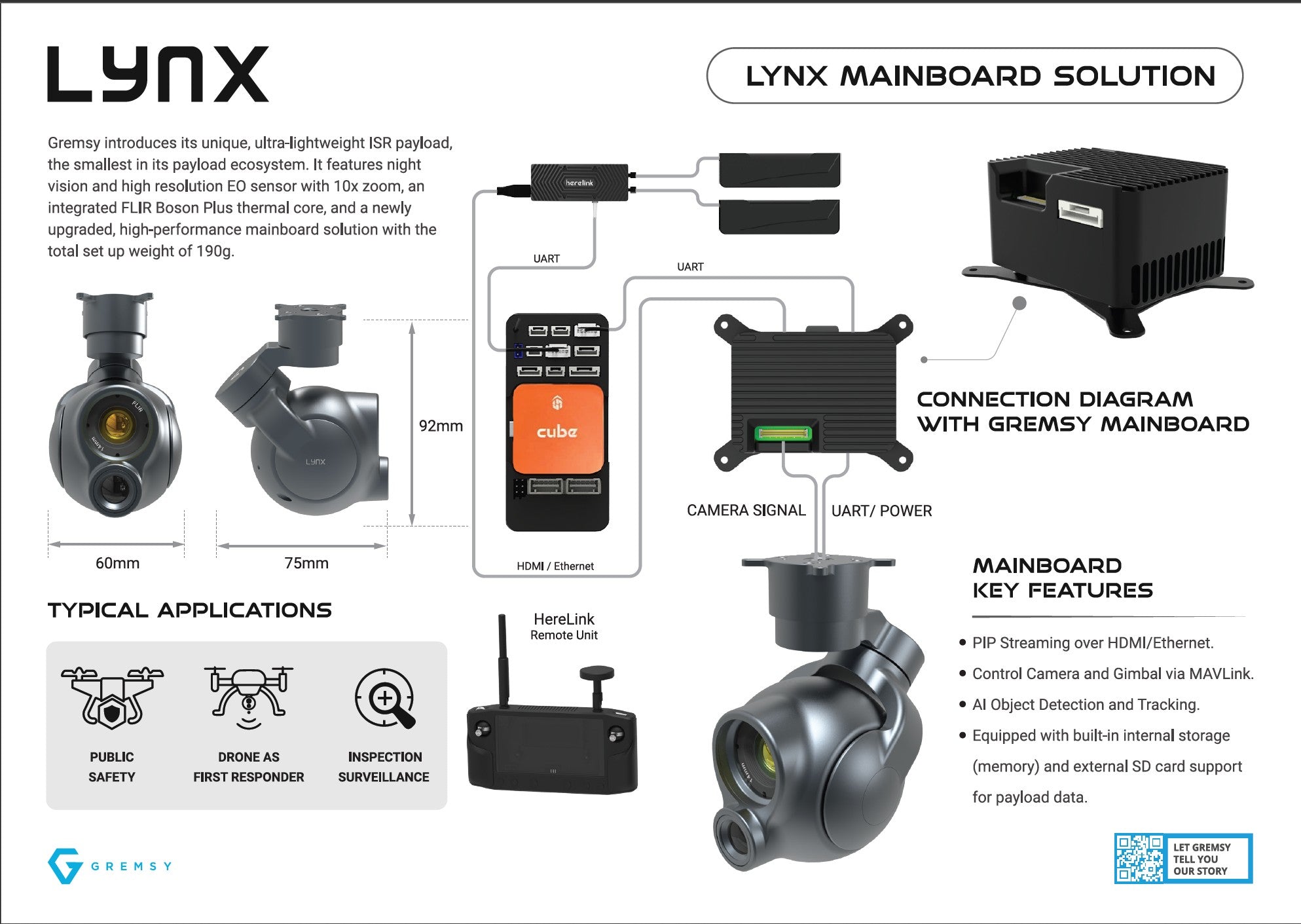

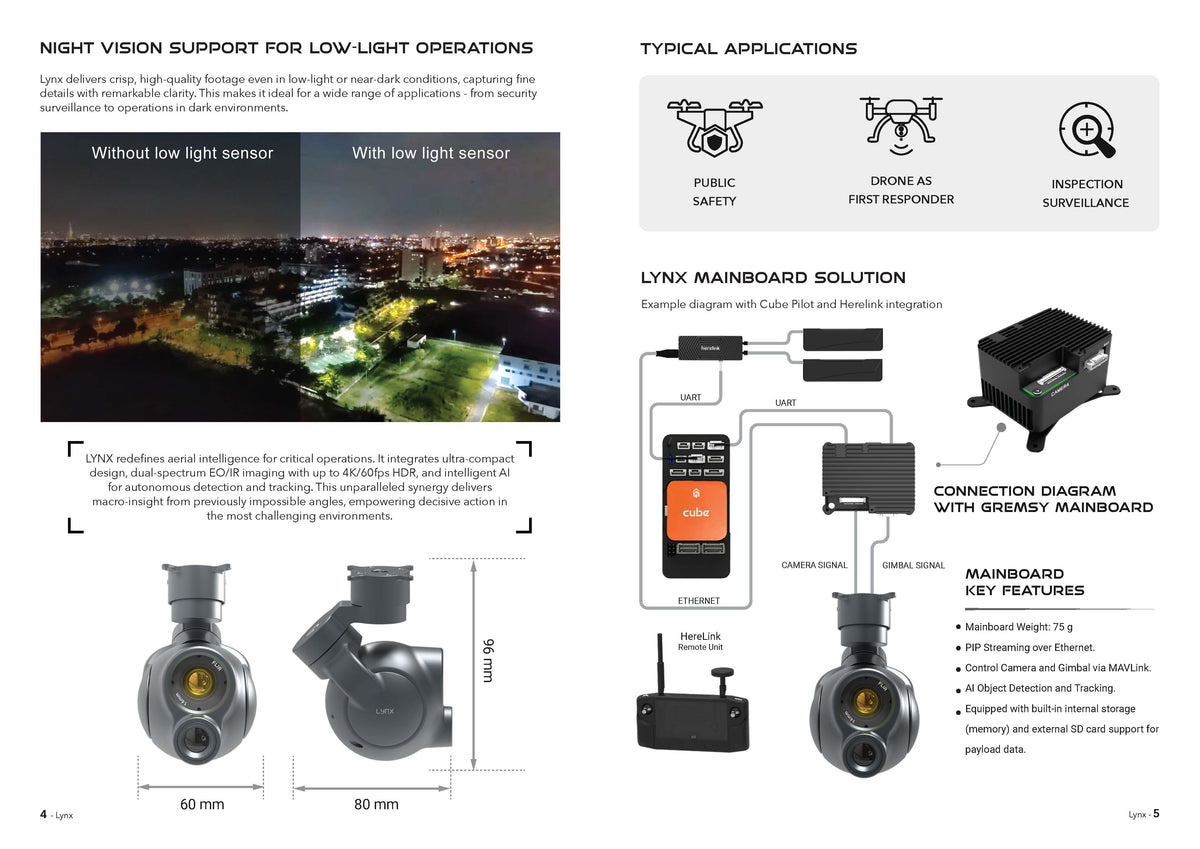

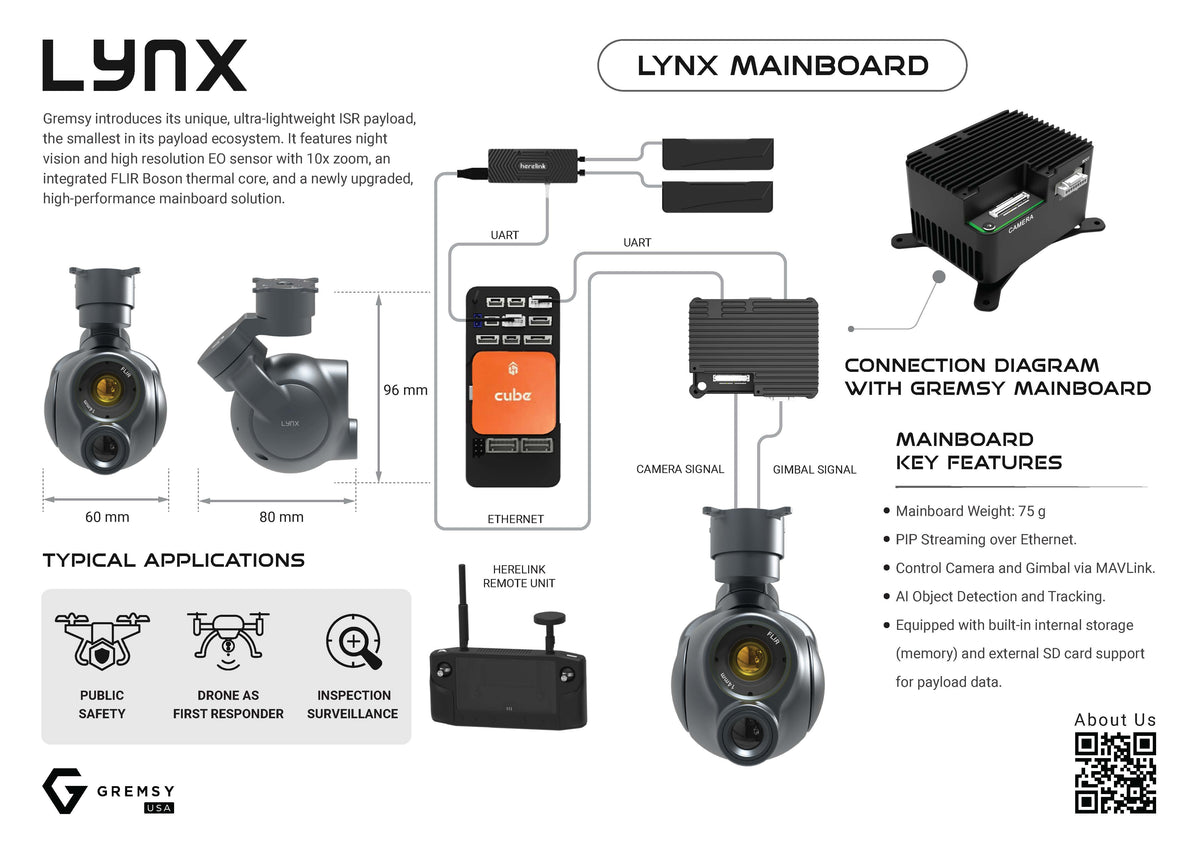

  • 1 × LYNX Mainboard

  • 1 × LYNX Damping System
