Description
MPN: 20A001
Manufacturer: Gremsy

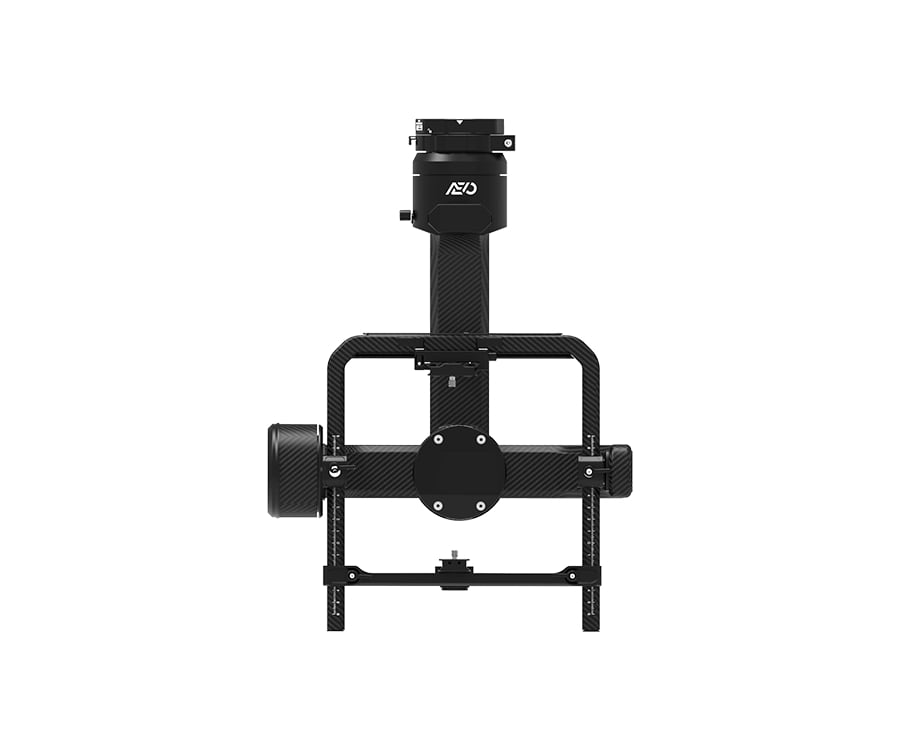

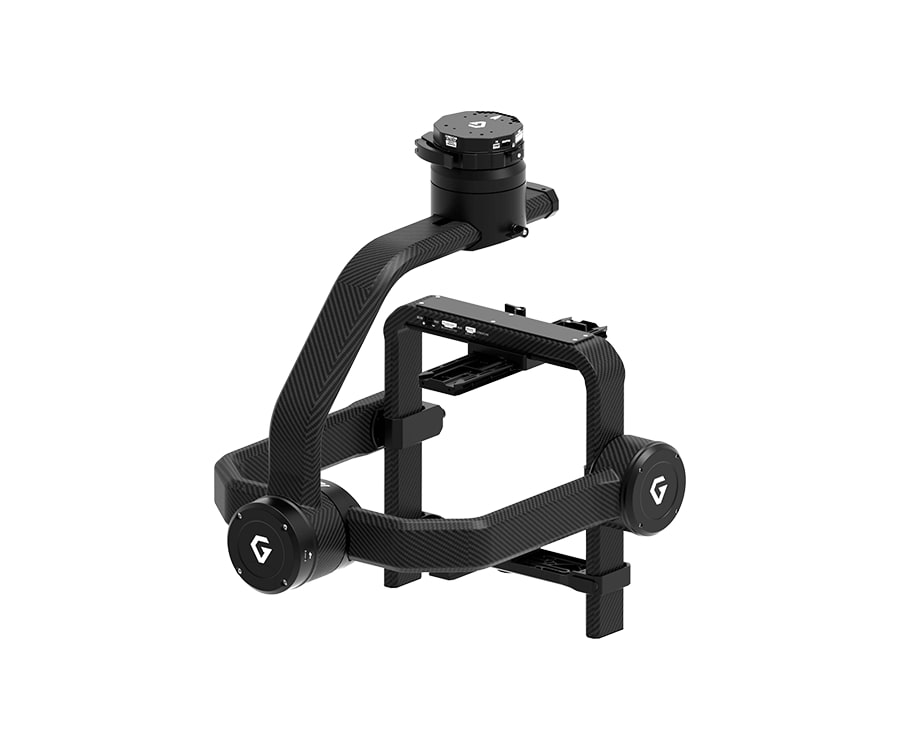

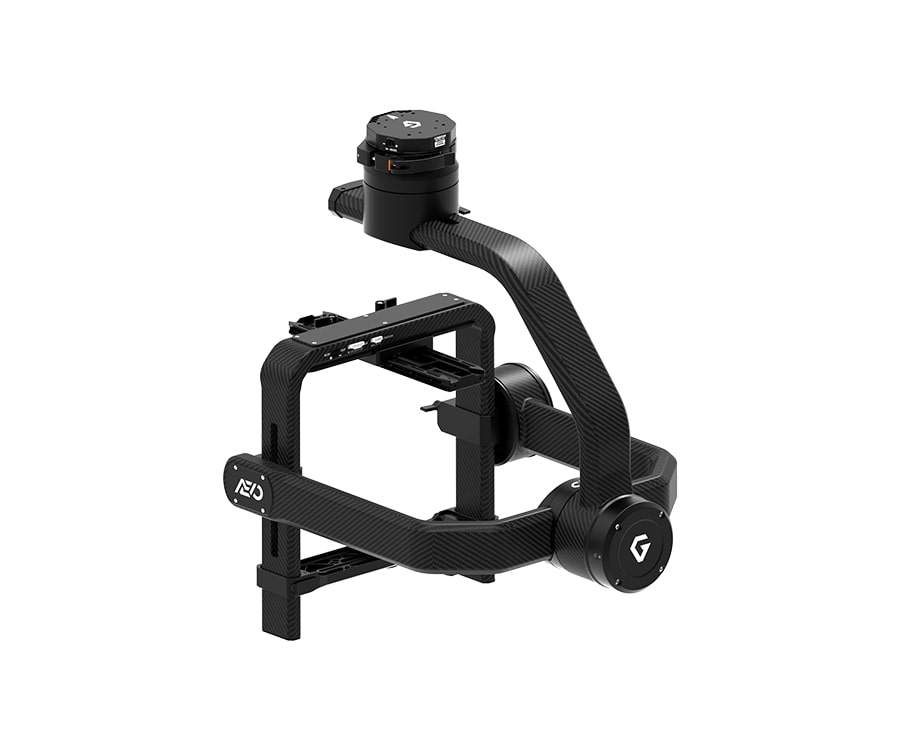

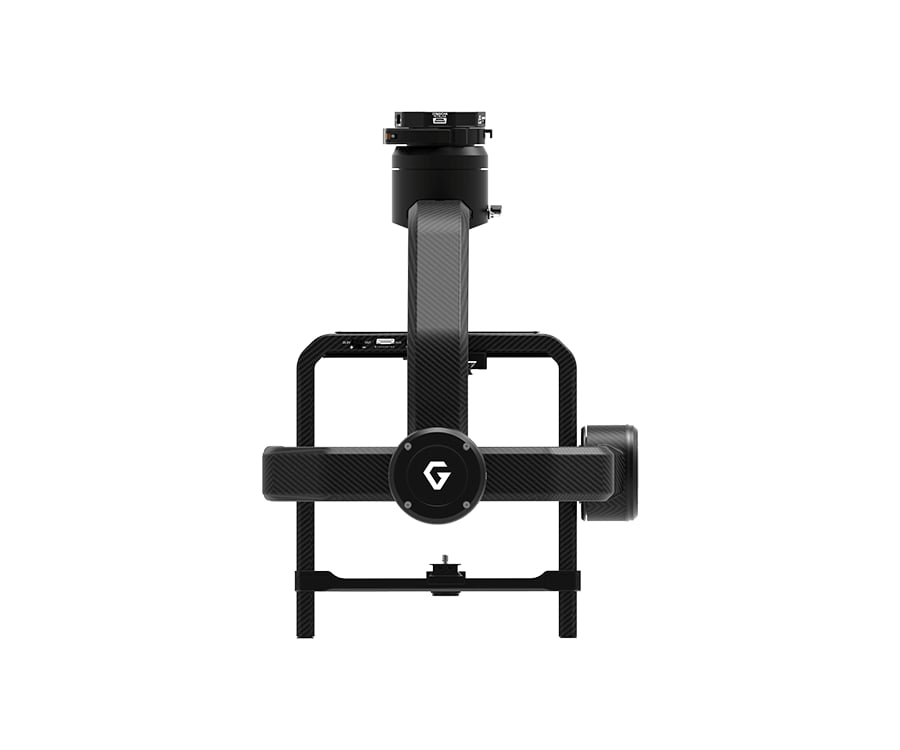

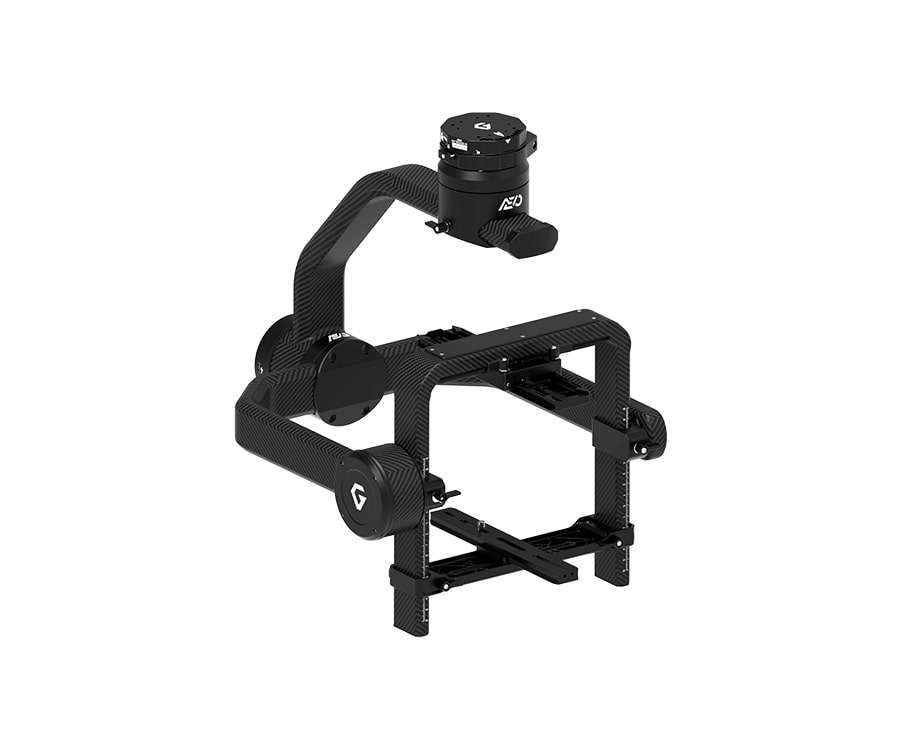

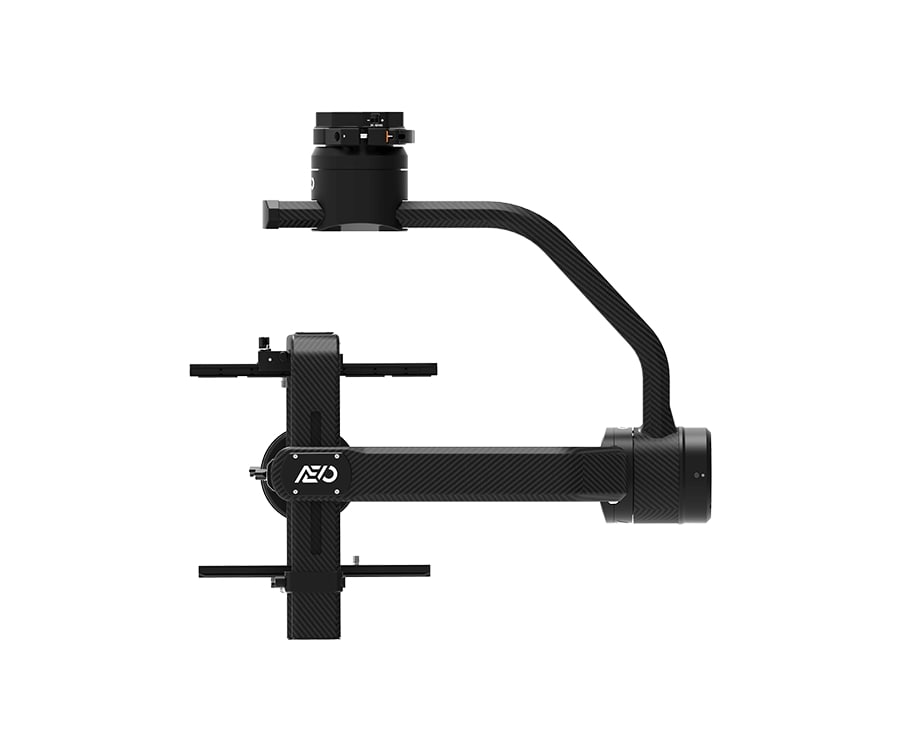

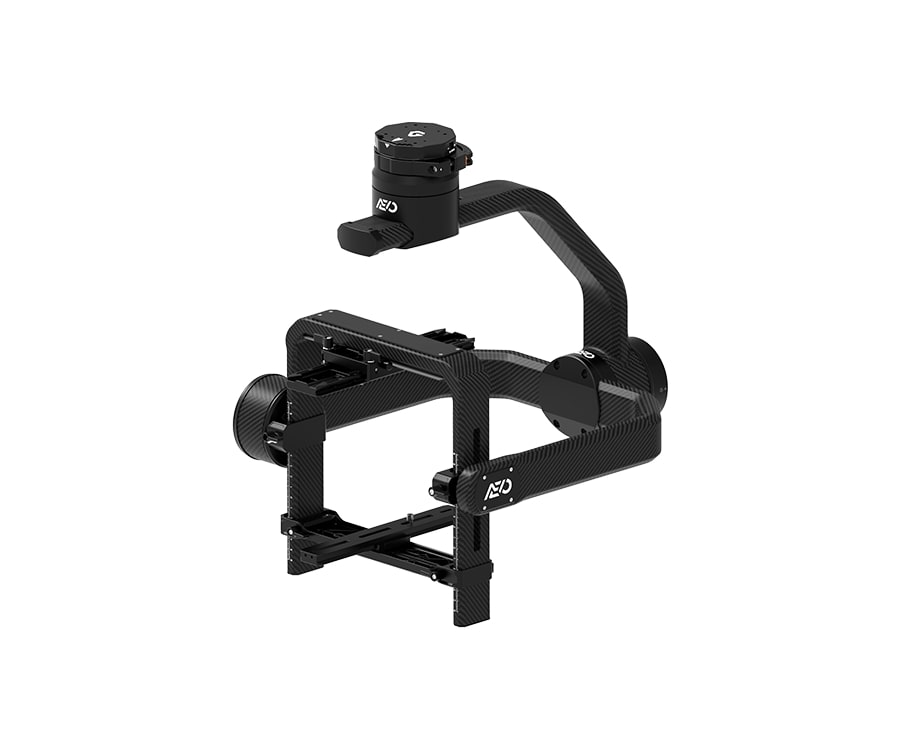

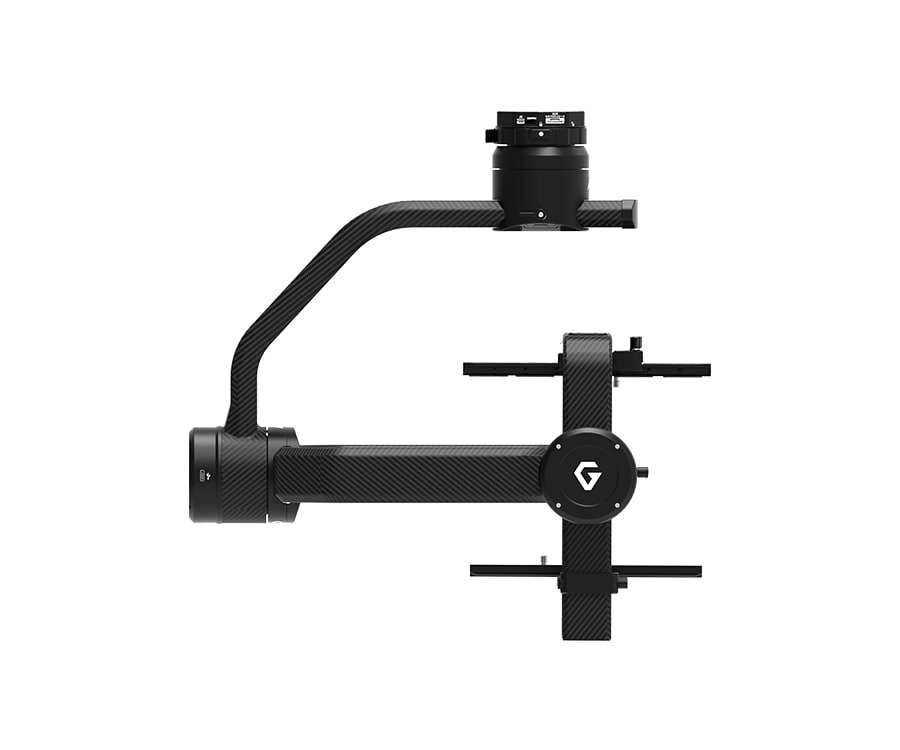

Aevo is the next generation of heavy-lifting gimbal boasting a sturdy carbon frame construction, high encoder resolution, and high-torque brushless motors to handle massive sensors for industrial uses.
Specifications:
| Product Name: | AEVO |
| System Type: | 3-Axis Camera Stabilizer |
| Weight: | 5.8 lbs (2.63kg) |
| Construction: | Carbon & Aluminum |
| Input Voltage: | 24-52VDC |
| Connection: | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Bluetooth 4.0 |
| OS Platform Supported: | Windows 10 or above; macOS 12.0 or above |
| Single Operator: | On/OFF, Lock Mode, Follow Mode, Mapping Mode |
| Pan Range: | No limit |
| Tilt Range: | ±120° |
| Roll Range: | ± 45° |
Packing List:
| AEVO Gimbal | x1 |
| AEVO Quick Release | x1 |
| USB-C Cable | x1 |
| PWT Cable | x1 |
| Auxiliary Cable | x2 |
| COM2/COM3 Cable | x2 |
| Sbus Cable | x1 |
| Power Supply Cable | x1 |
| DJI A3 Cable | x1 |
| Allen key 3mm | x1 |
| Allen key 2.5mm | x1 |
| Allen key 2mm | x1 |
| Allen key 1.5mm | x1 |
| M4 x 10 | x6 |
