Description
MPN: FSVCAM02a
Manufacturer: Fat Shark
NDAA Compliant | Blue UAS

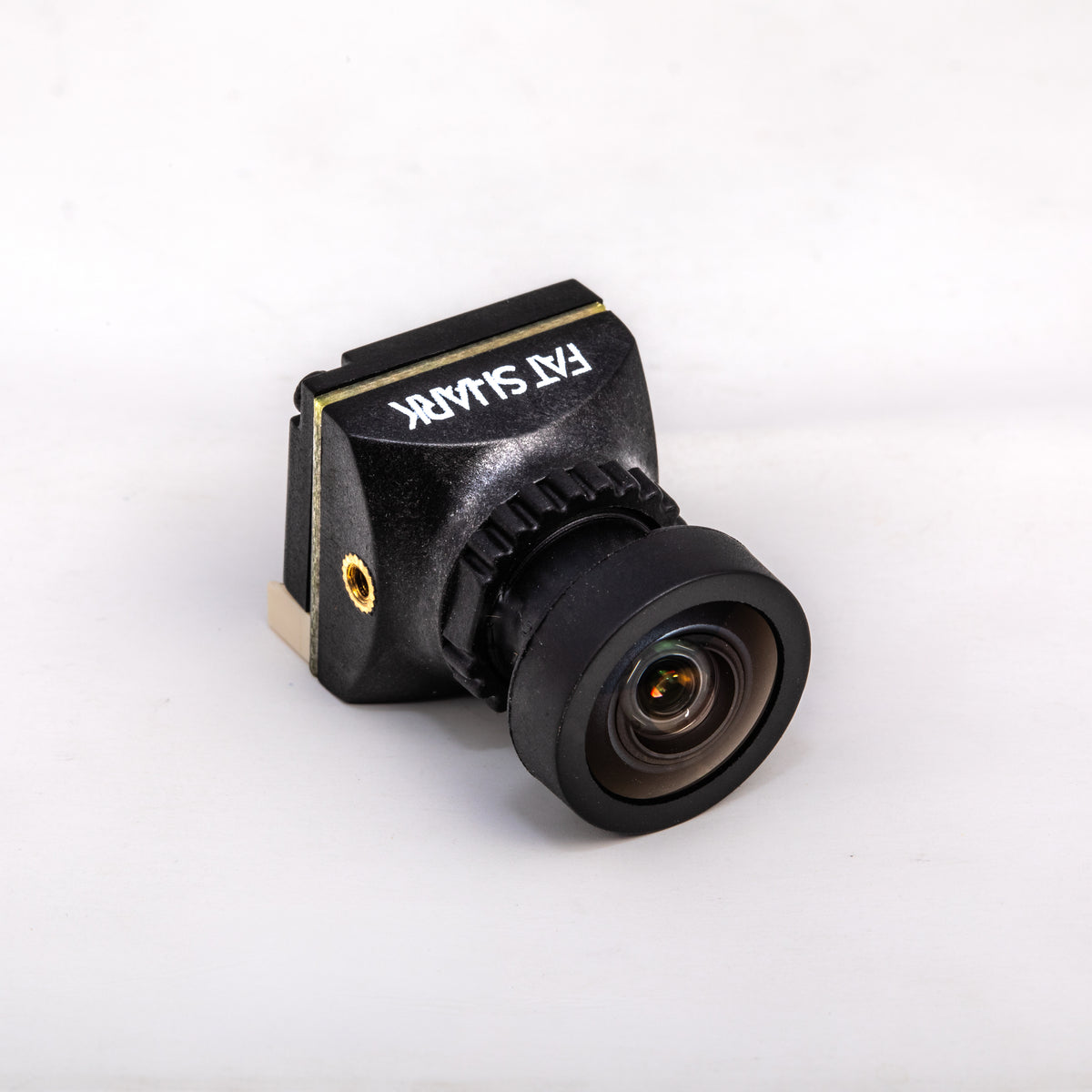

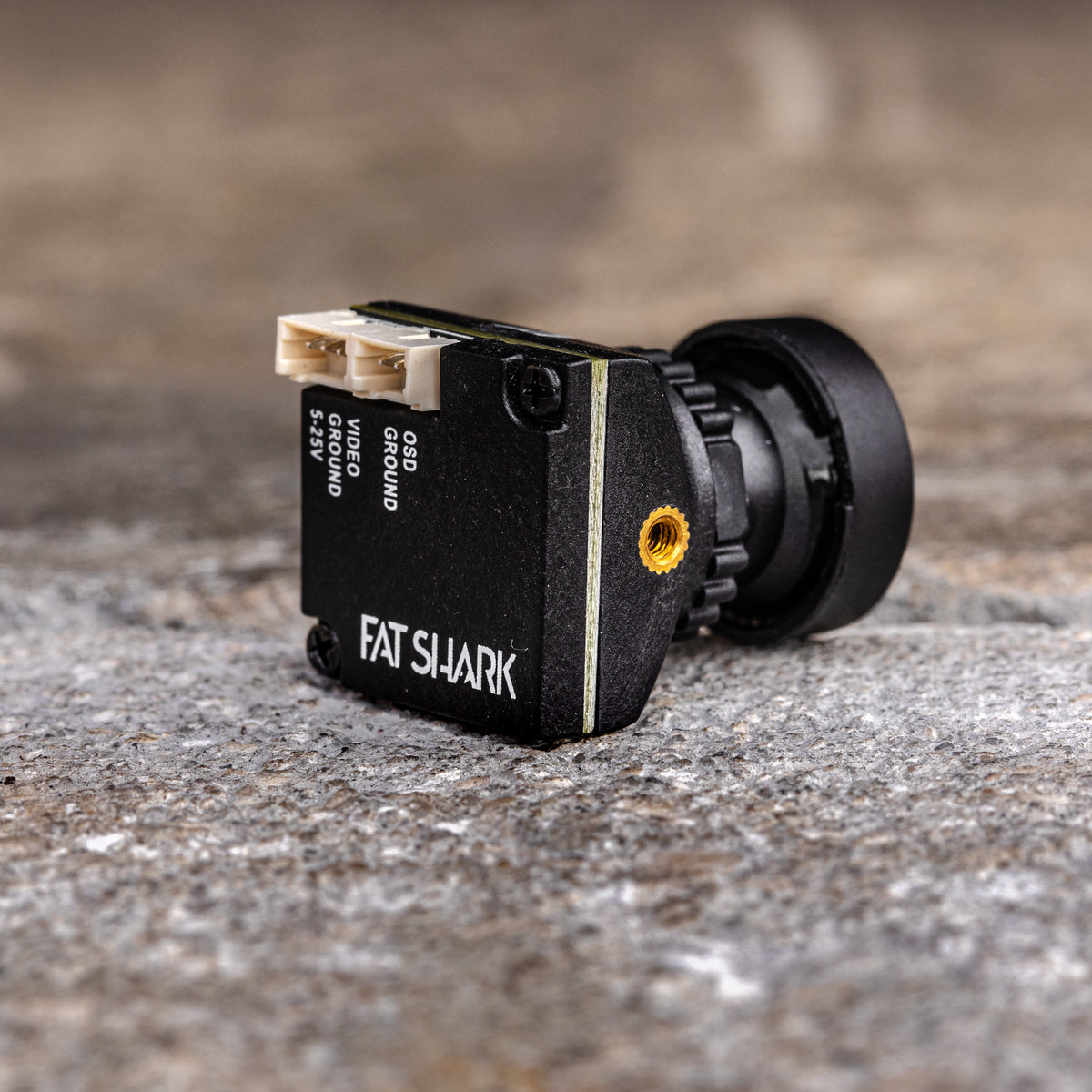

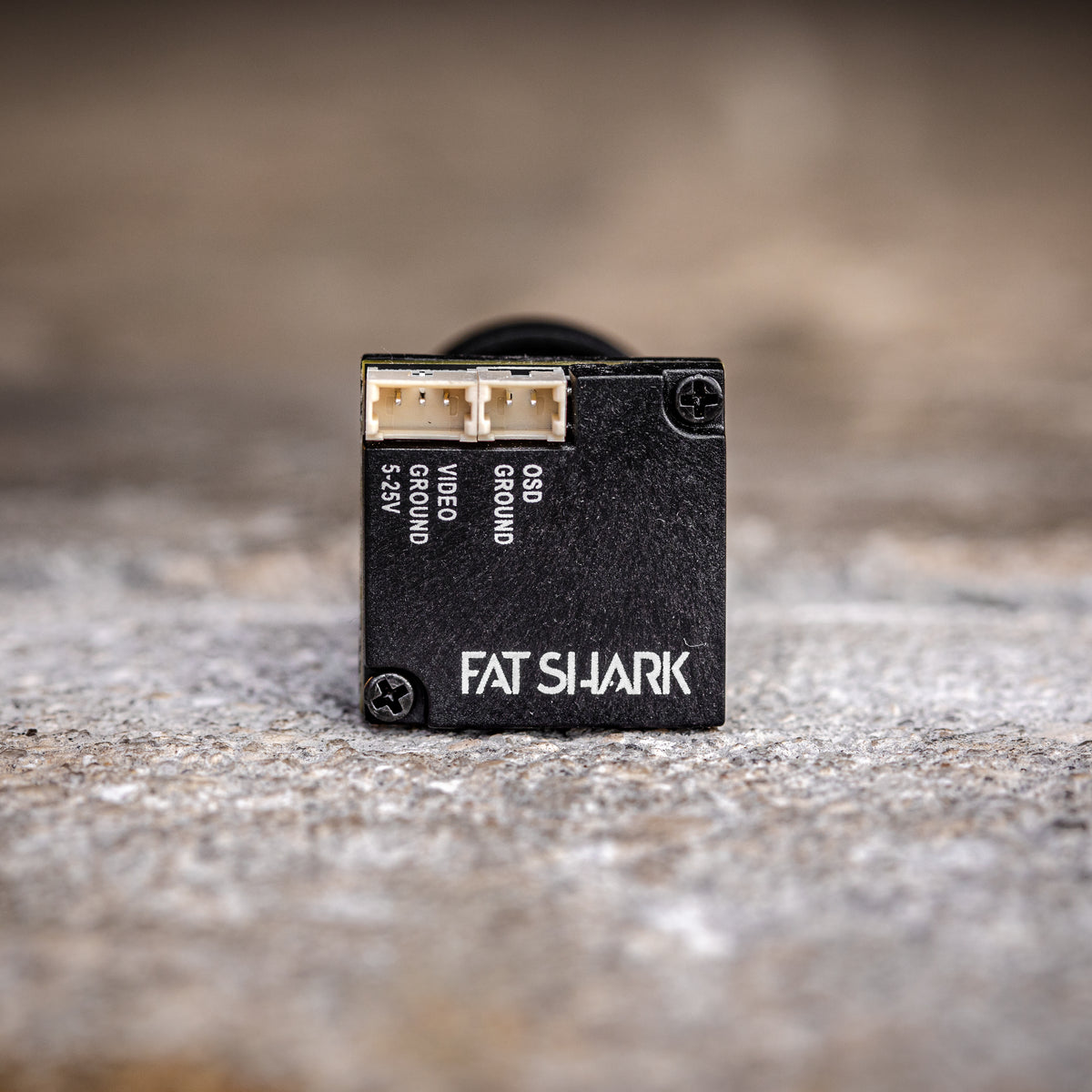

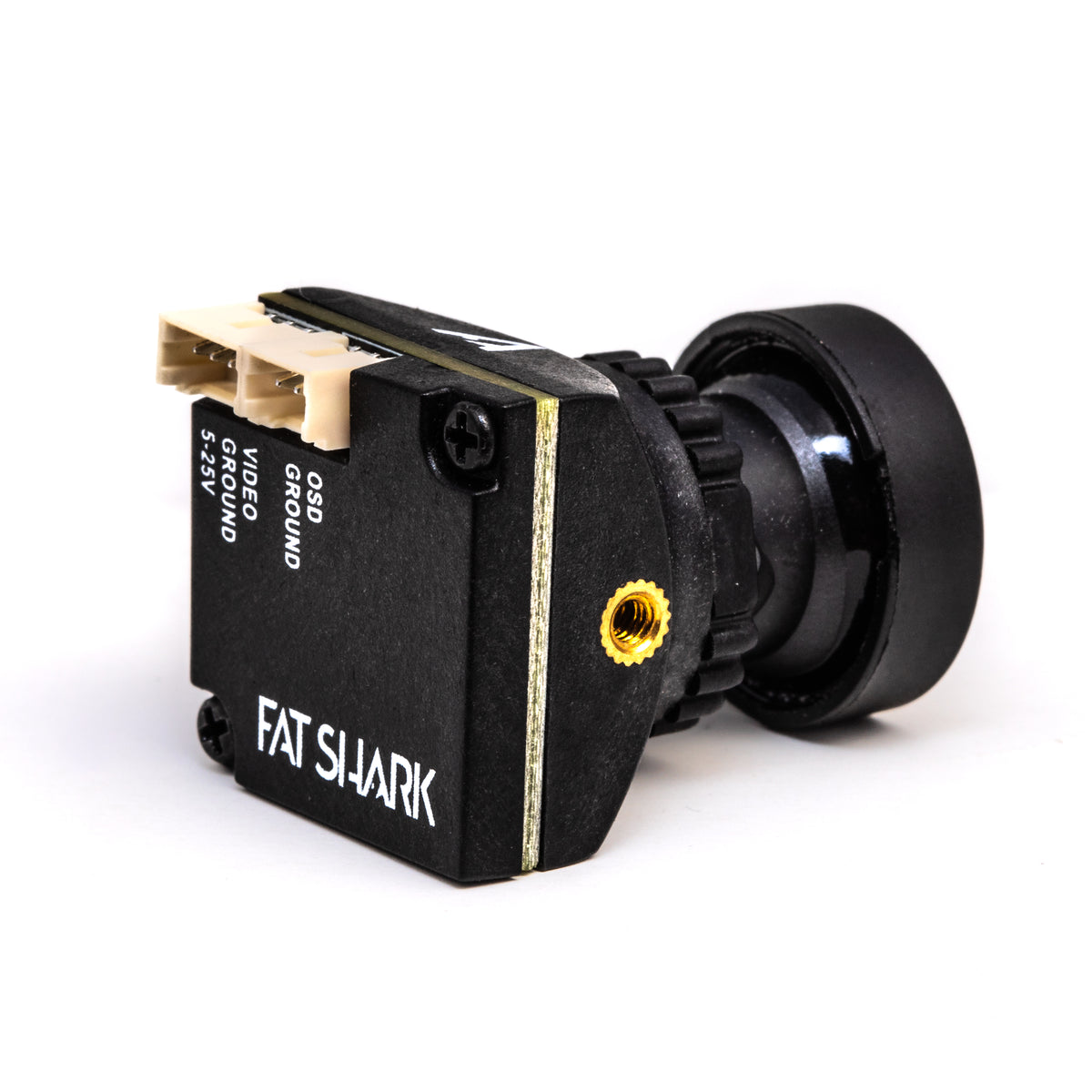

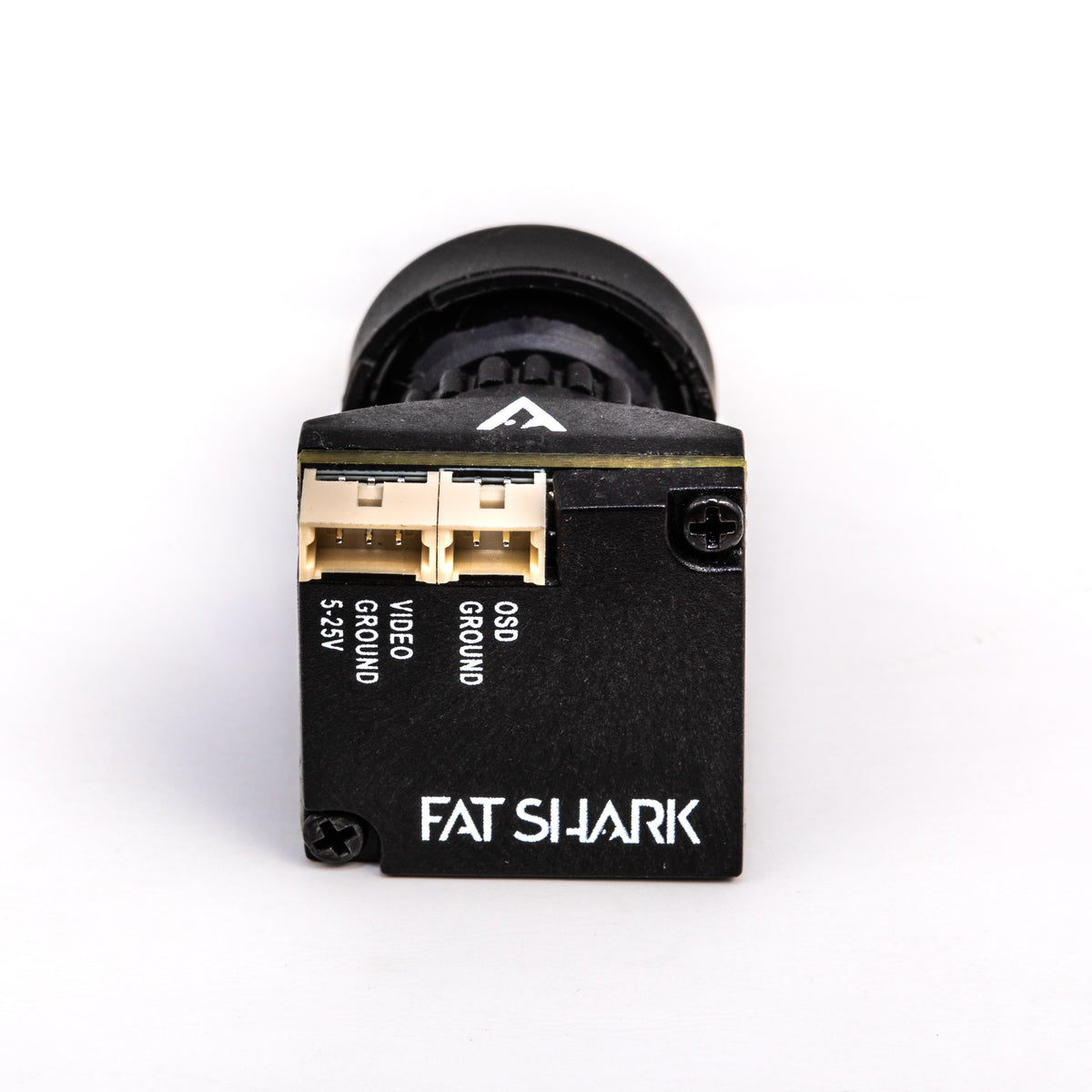

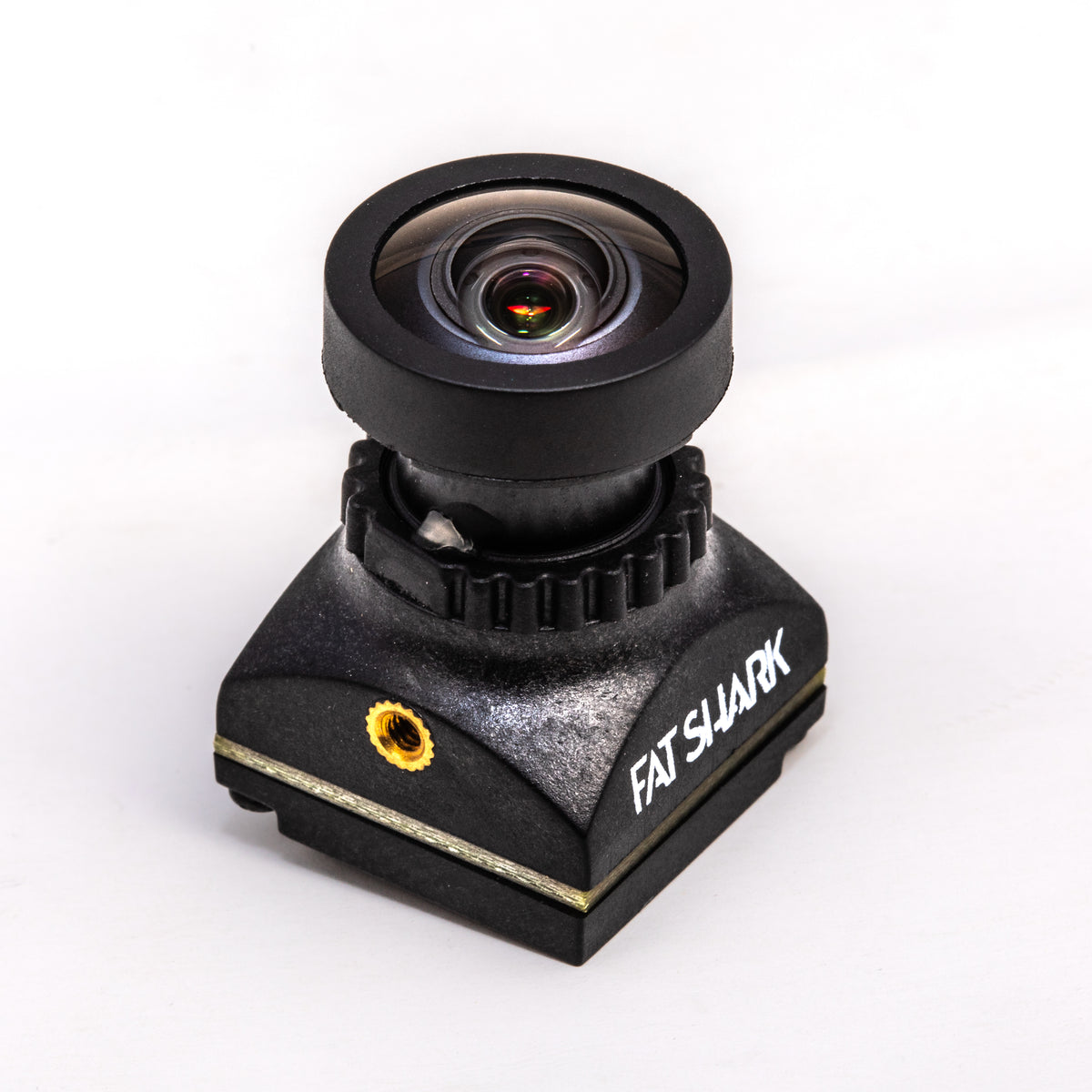

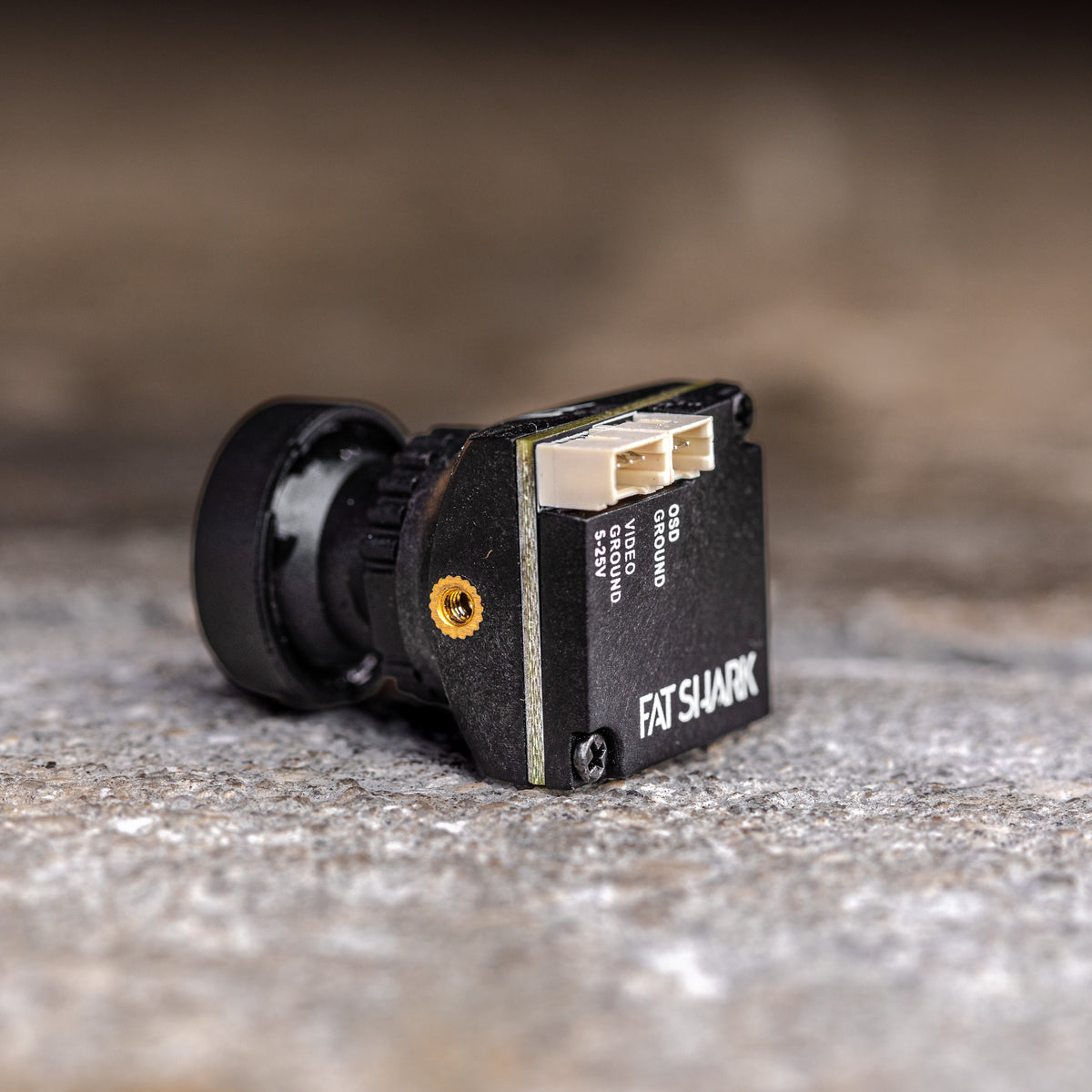

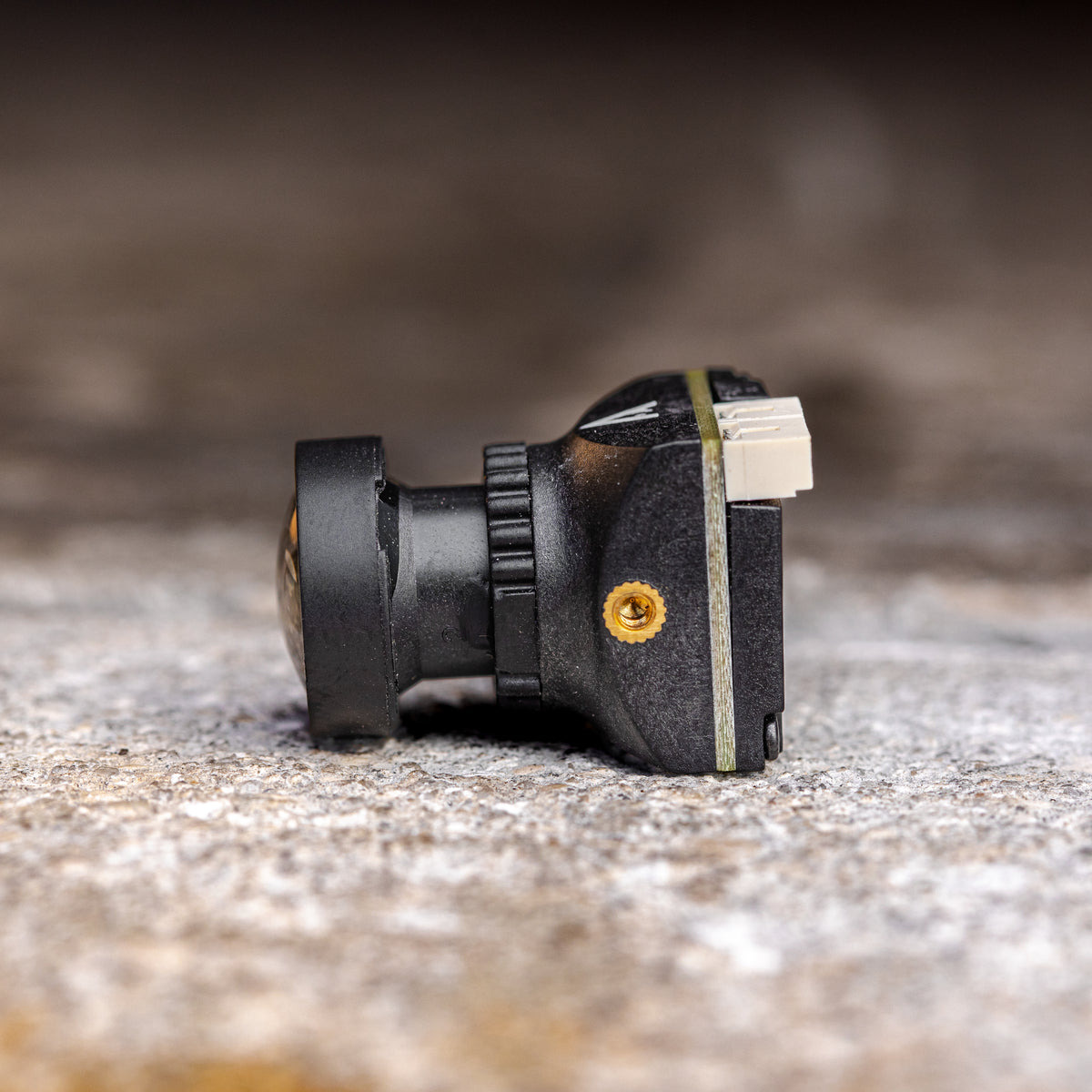

The Fat Shark Aura Camera V2 is a compact analog FPV camera designed for pilots who demand high-quality visuals and reliable performance. Built for both professional UAV applications and FPV racing, the Aura combines a Sony STARVIS 2 CMOS sensor, 1200TVL resolution, Wide Dynamic Range, and excellent low-light sensitivity in an exceptionally compact 8.8g camera module.

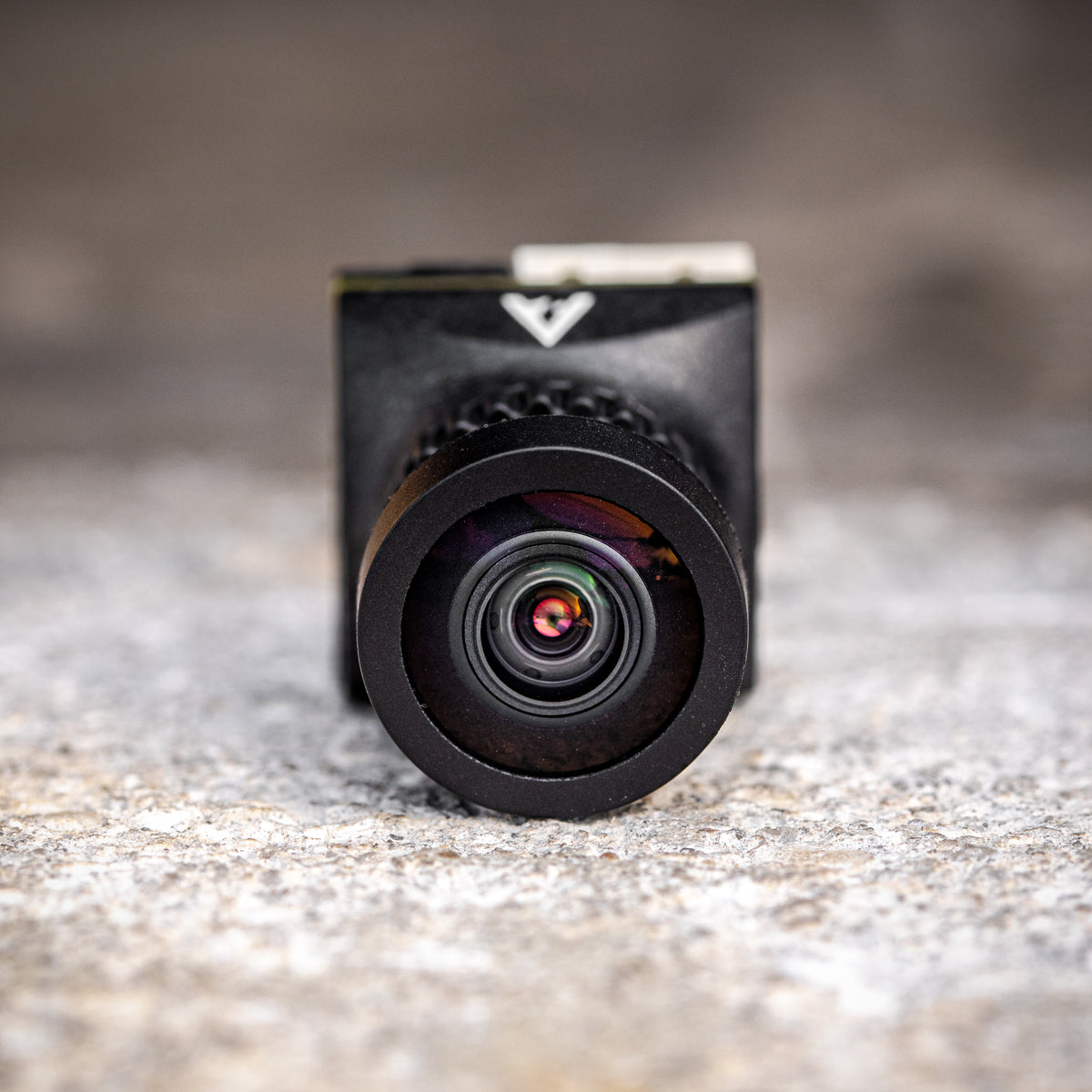

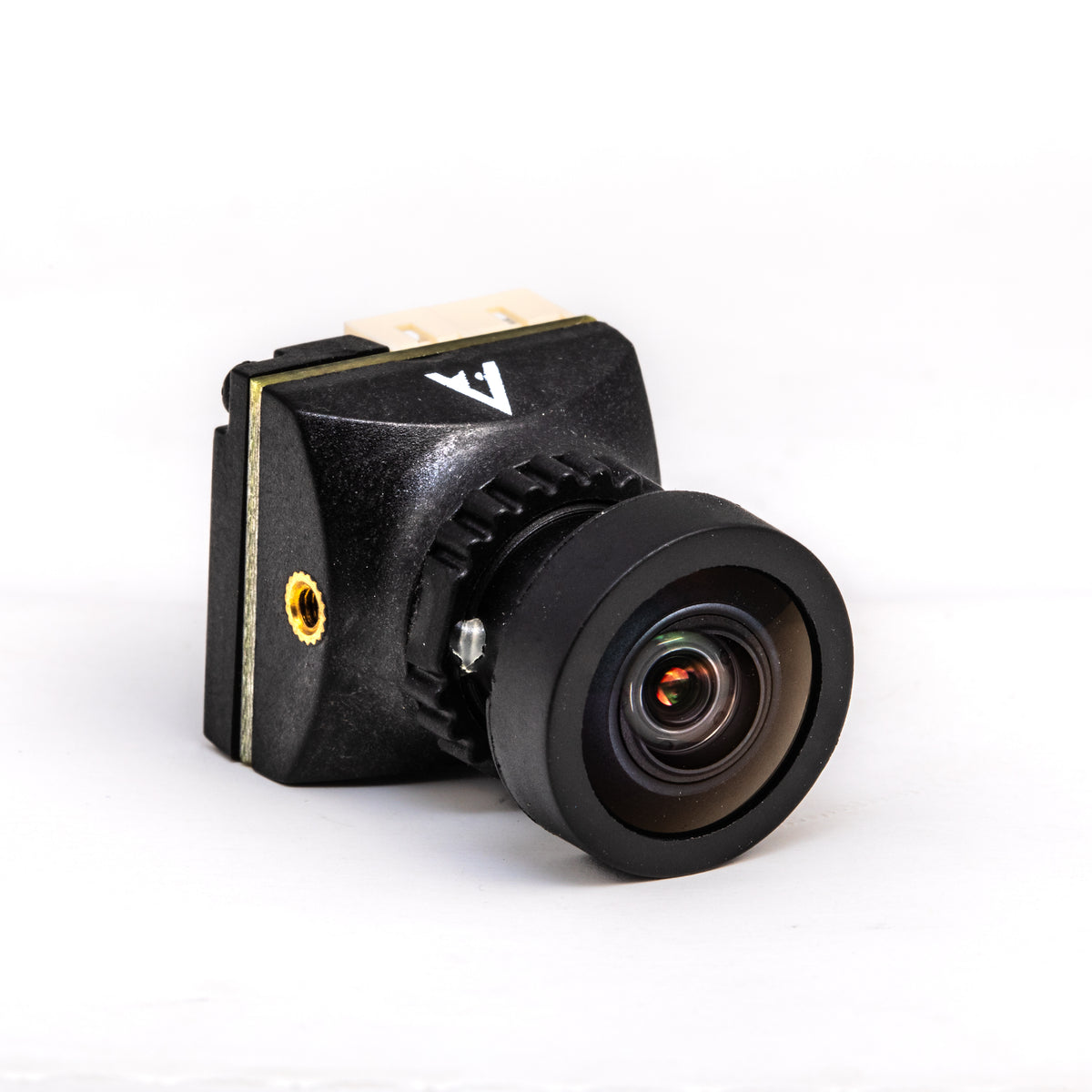

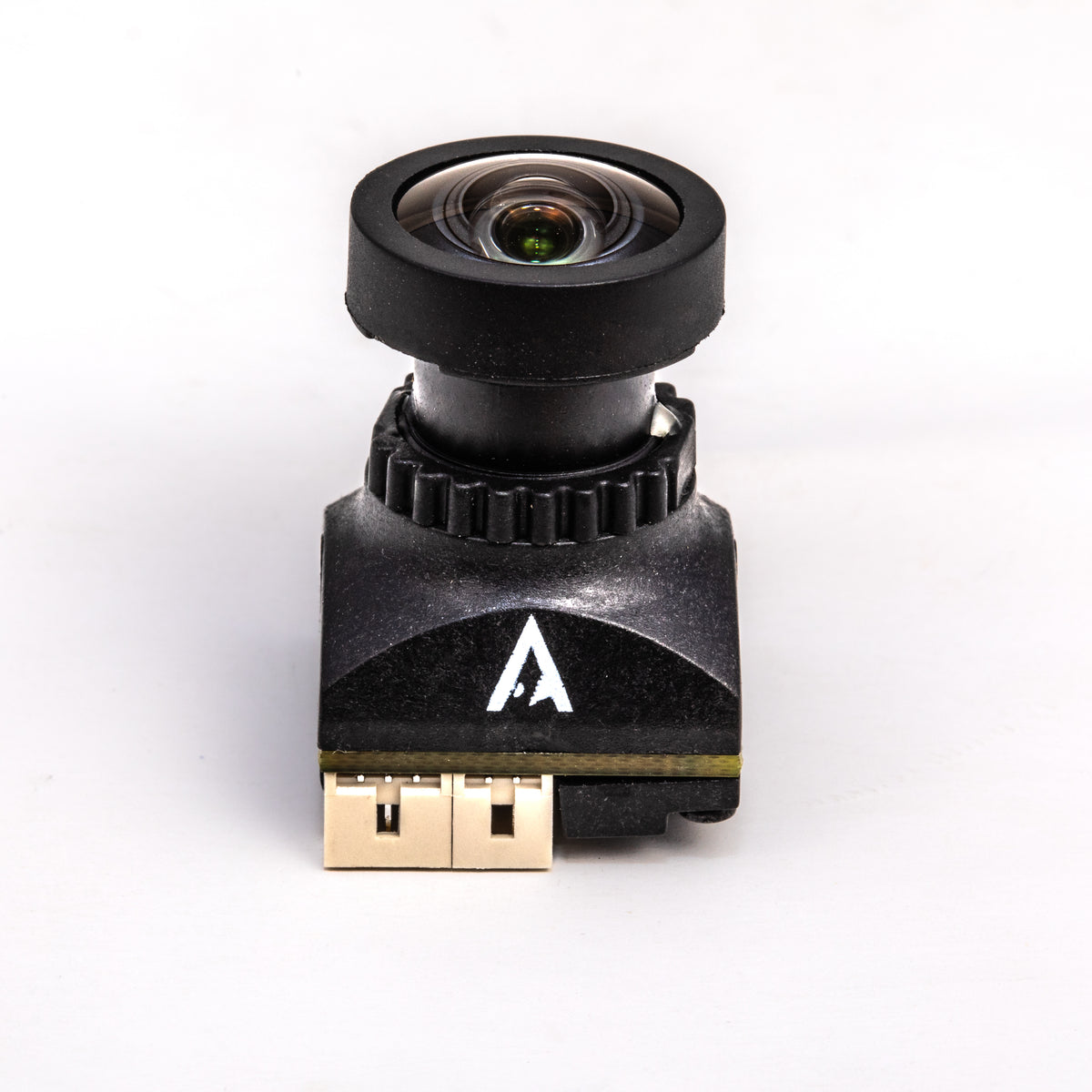

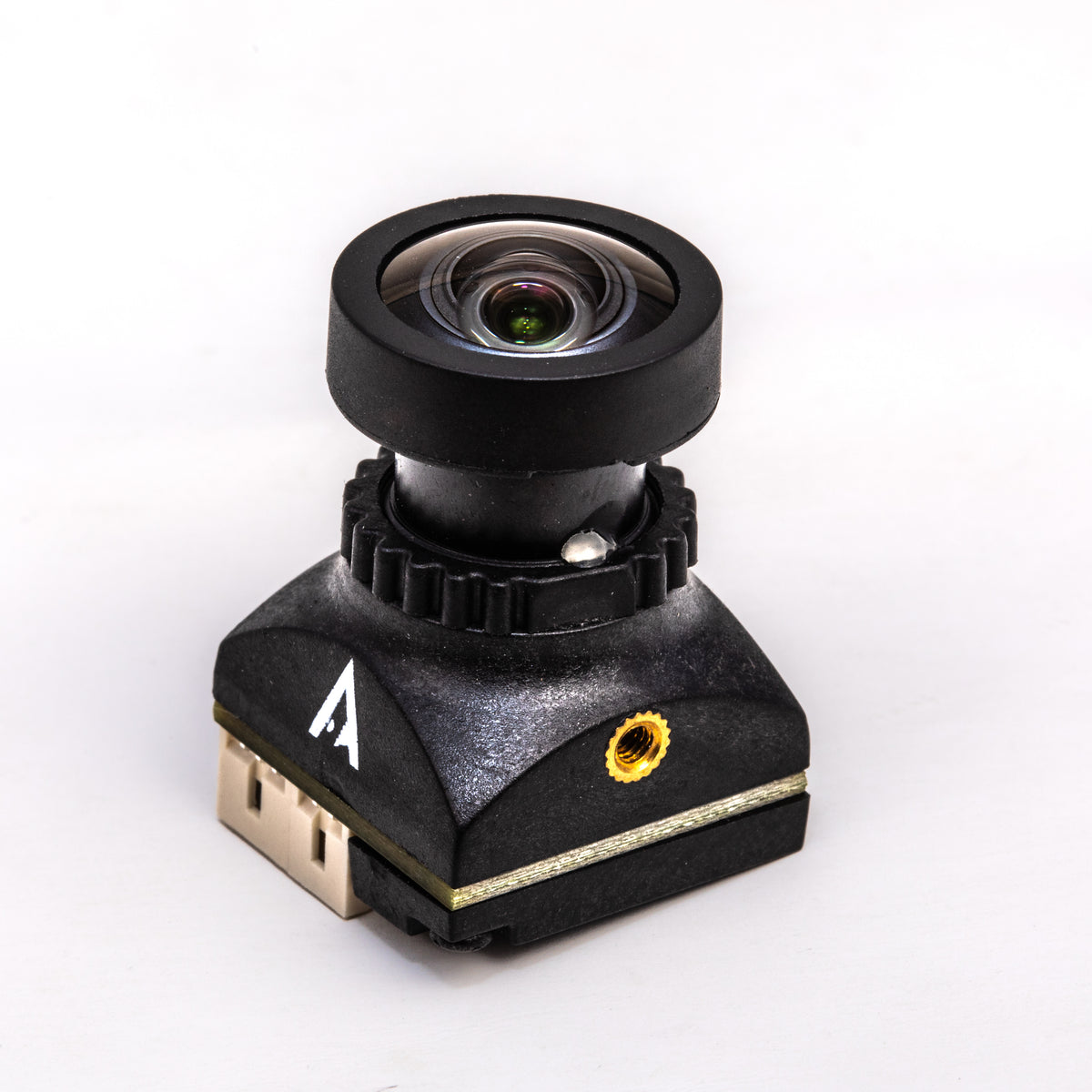

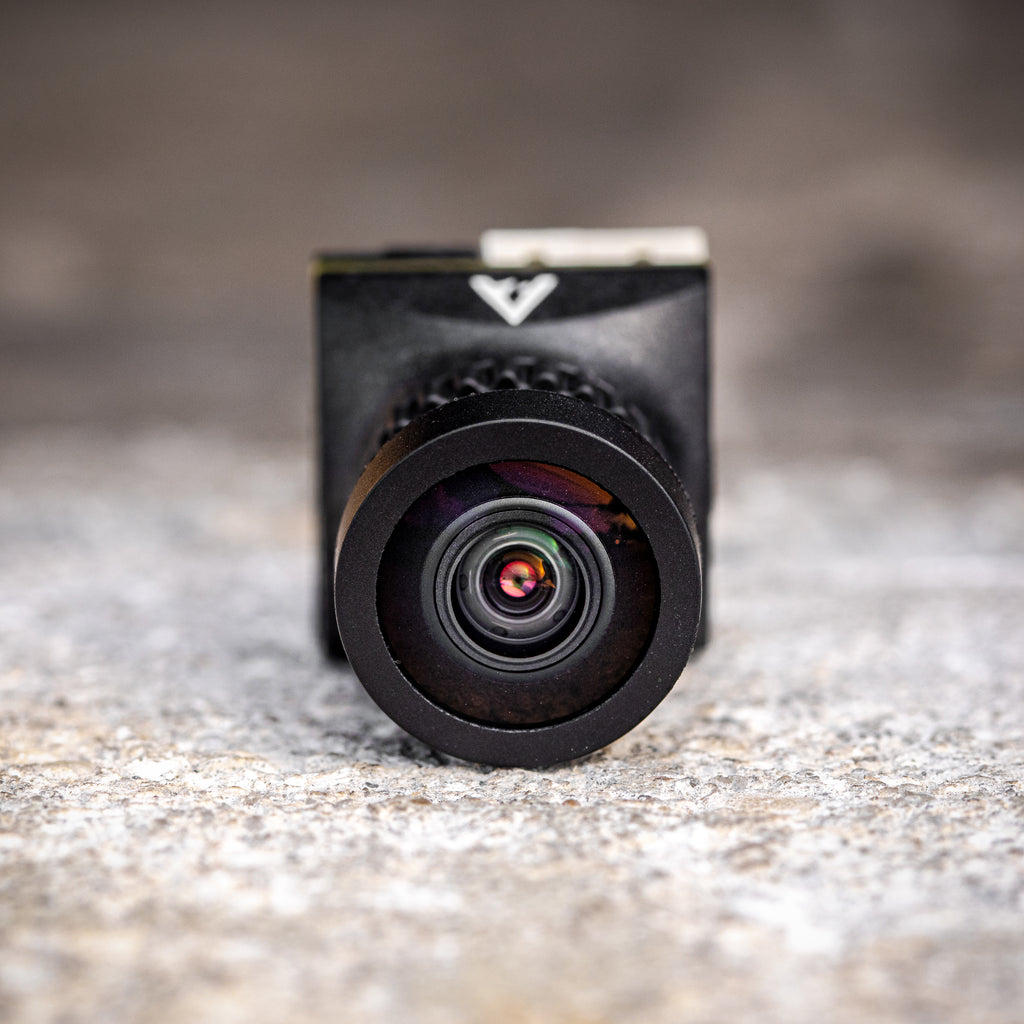

The Aura V2 features a 2.1mm M12 lens with a wide 150° diagonal field of view, providing excellent situational awareness during flight. Switchable 16:9 and 4:3 aspect ratios allow the camera to integrate with different FPV display configurations, while its broad 5–25V input range provides flexibility across a variety of UAV power systems.

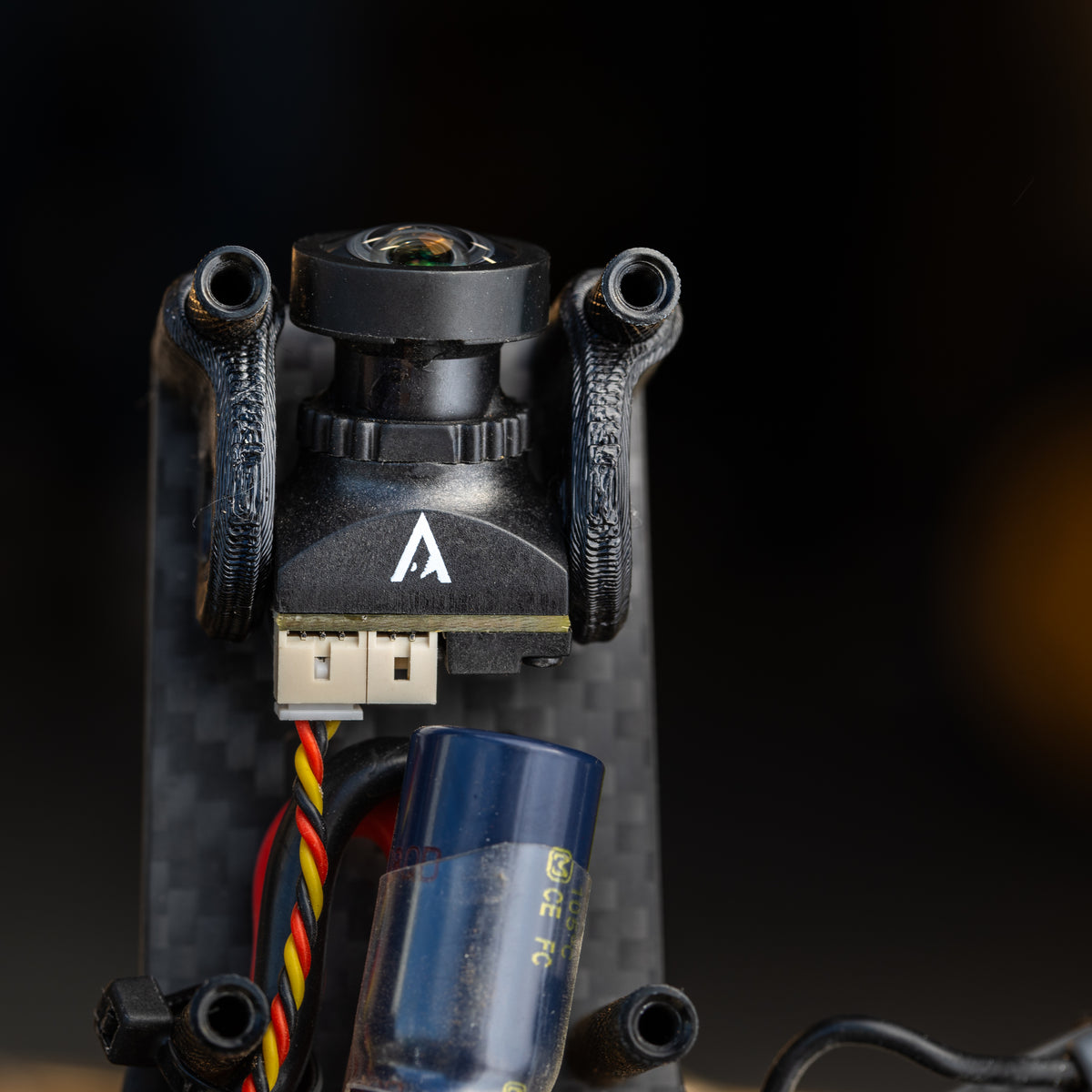

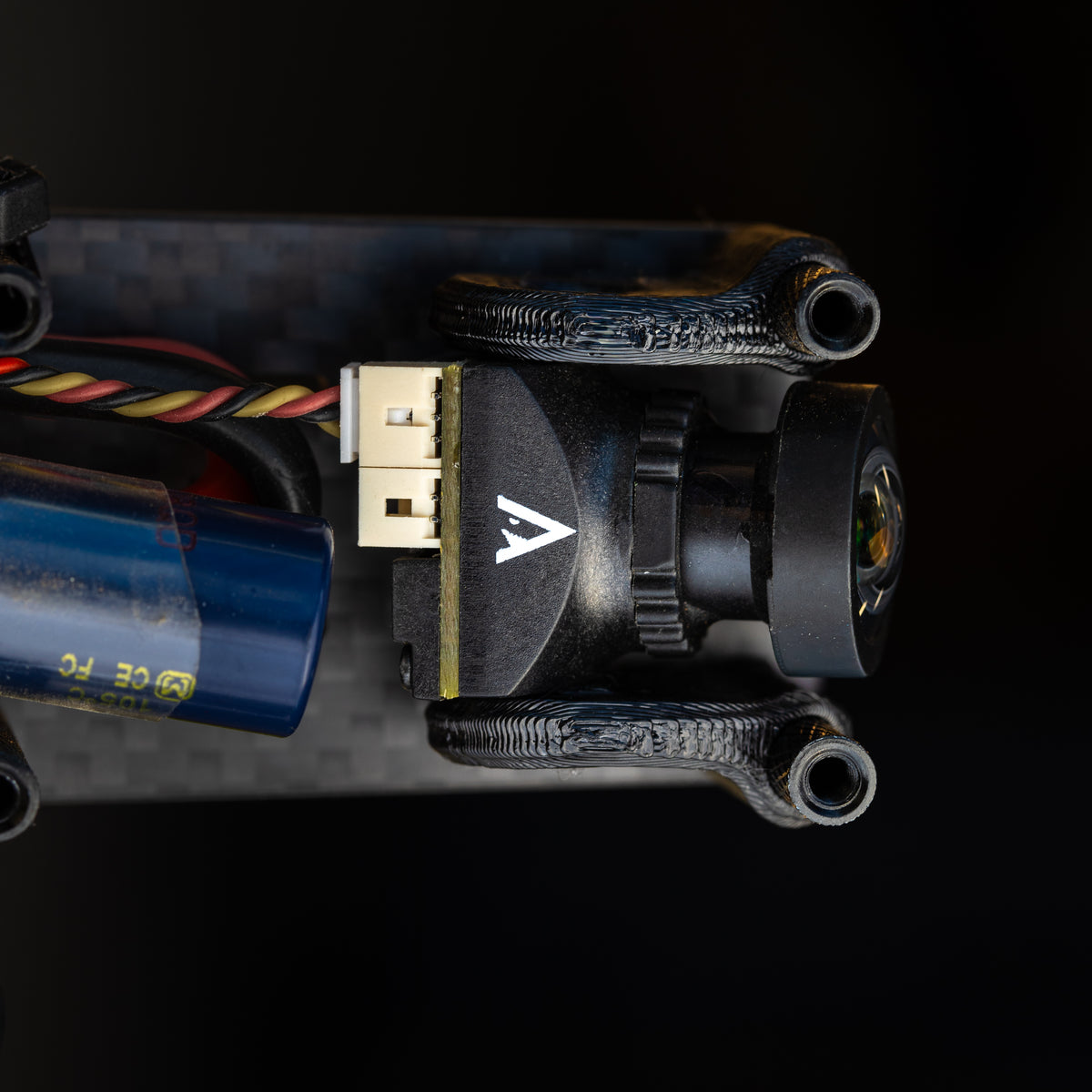

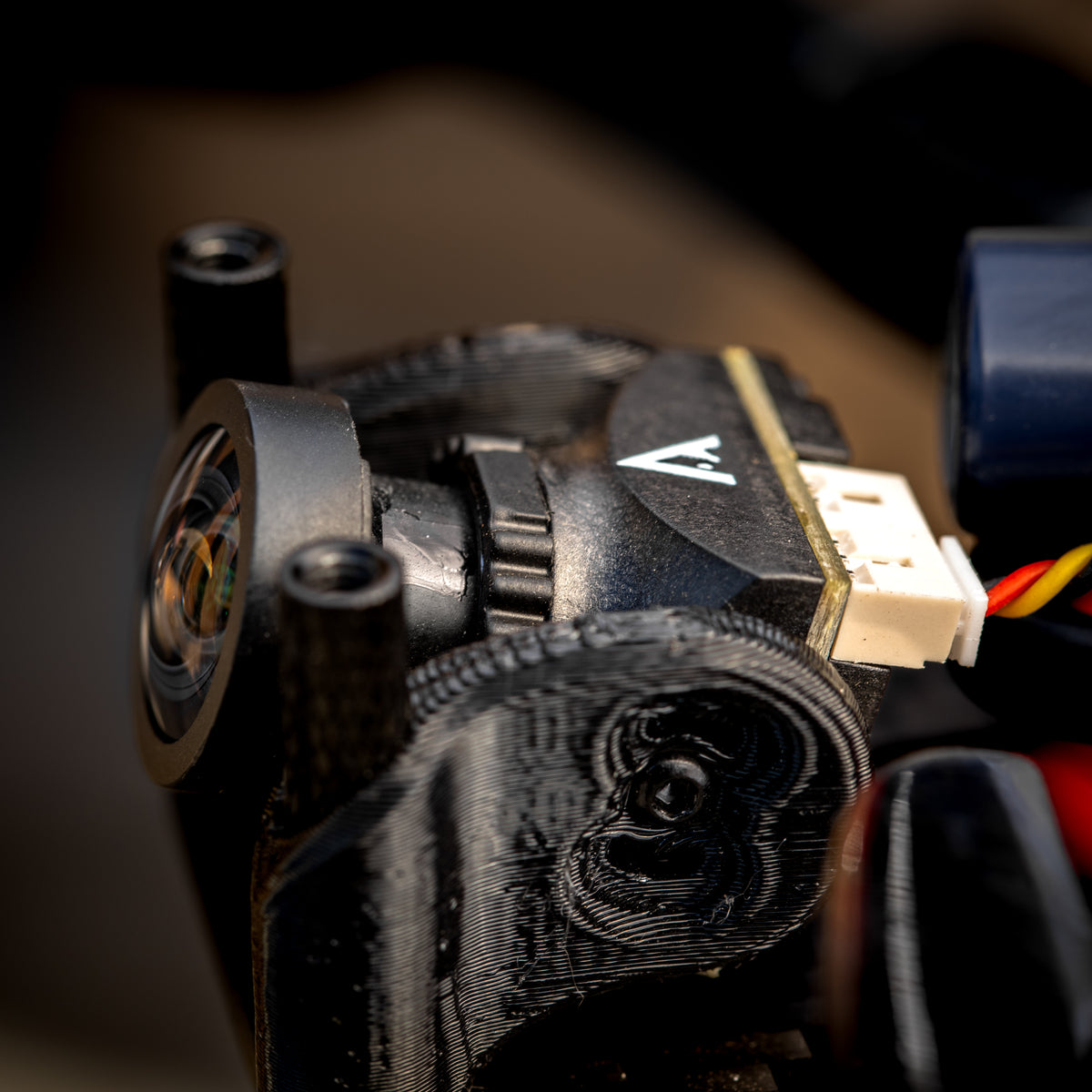

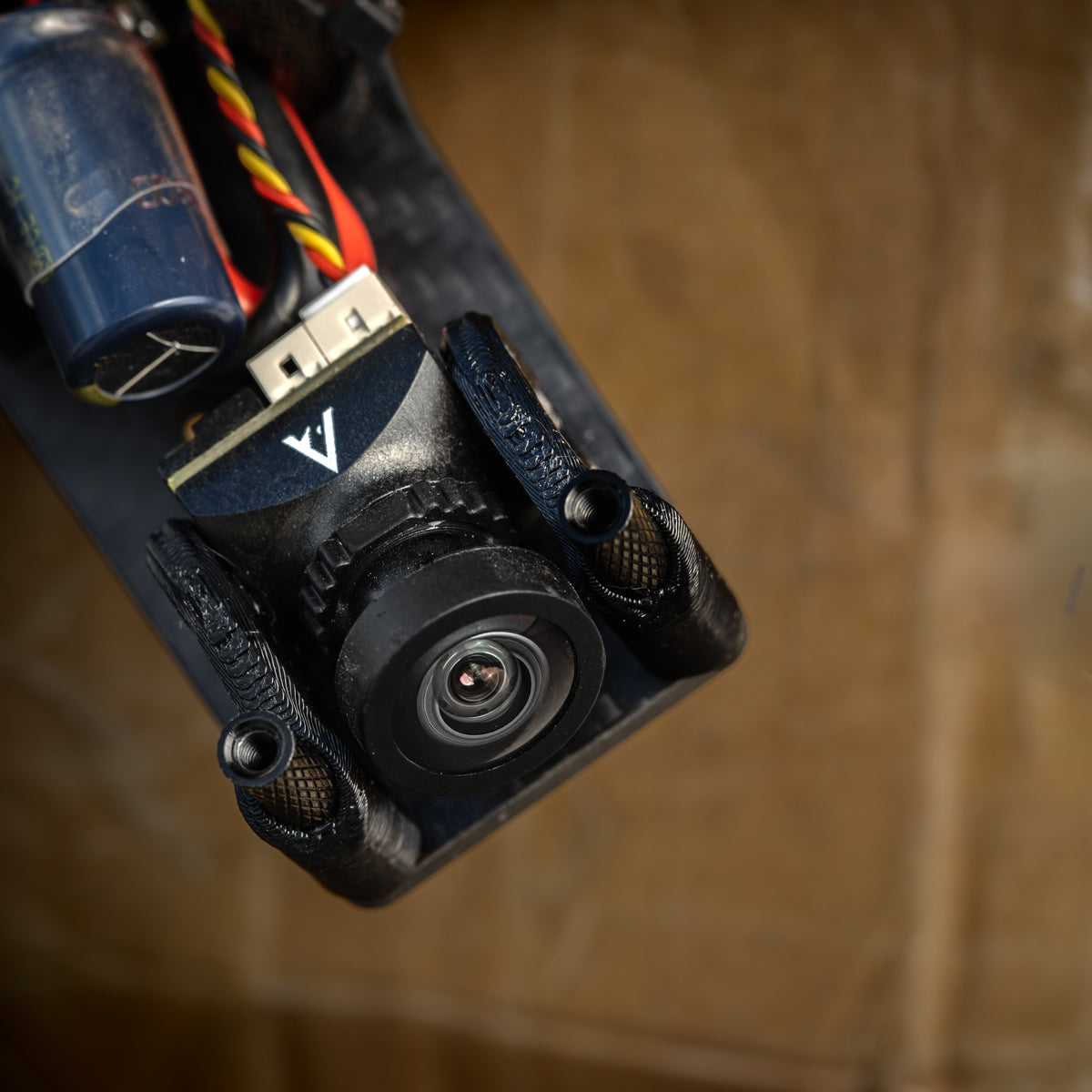

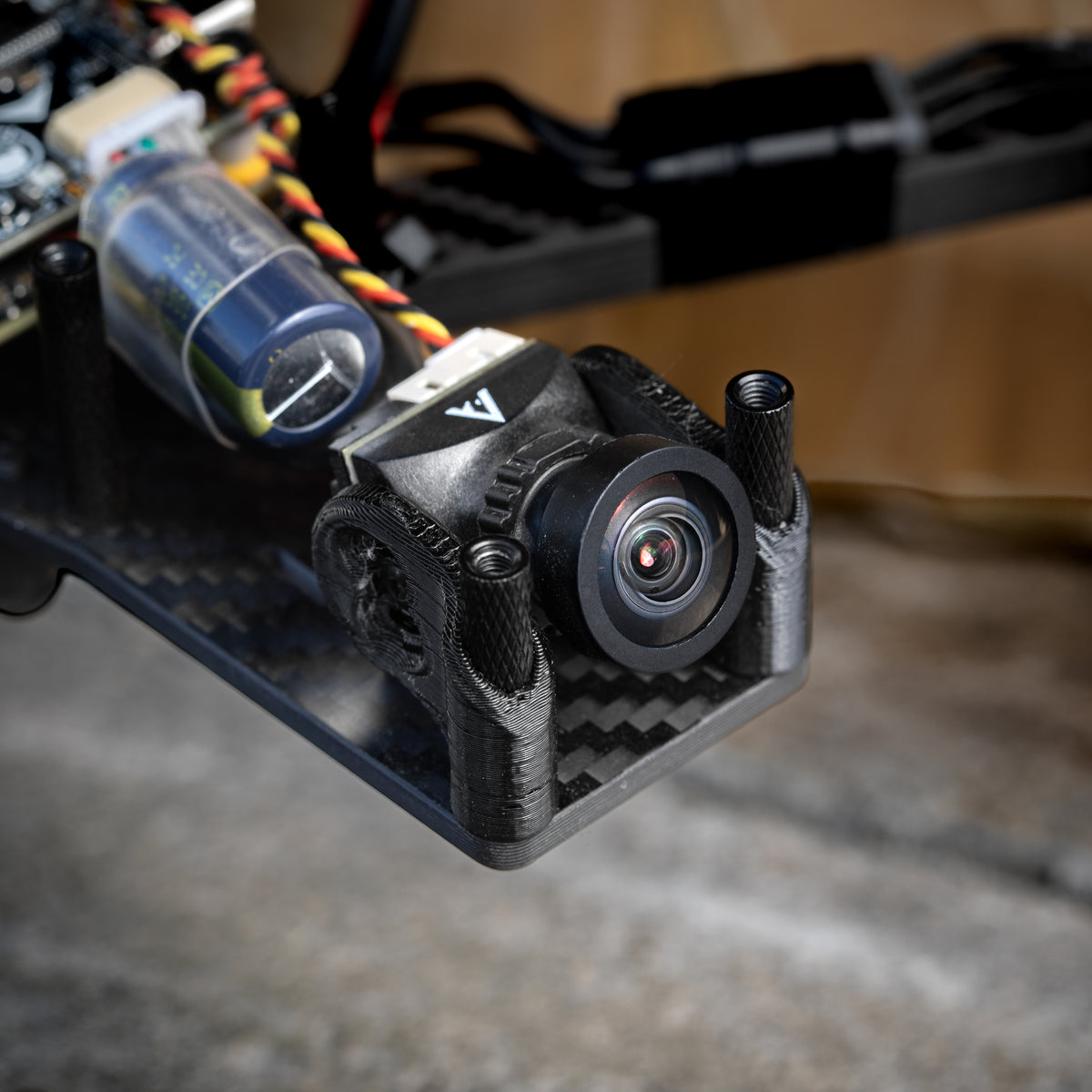

Designed for demanding FPV environments, the Aura Camera V2 combines high-quality analog video, ultra-low-light sensitivity, Wide Dynamic Range, and a lightweight 19 × 19 × 28mm form factor suitable for racing, freestyle, and professional drone platforms.
Key Features
| Feature | Details |
|---|---|
| Analog FPV Performance | High-quality 1200TVL analog video |
| Sensor | Sony STARVIS 2 CMOS |
| Low-Light Performance | Great low-light and ultra-low-light sensitivity |
| Dynamic Range | Wide Dynamic Range (WDR) |
| Field of View | 150° diagonal |
| Applications | Designed for racing, freestyle, and professional UAV applications |
| Voltage Input | Versatile 5–25V input |
| Compliance | NDAA Compliant / Blue UAS |
Technical Specifications
| Parameter | Specification |
|---|---|
| Resolution | 1200 TVL |
| Lens | M12 2.1mm |
| Field of View | 150° diagonal |
| Aspect Ratio | 16:9 / 4:3 Switchable |
| Sensor | SONY STARVIS 2 CMOS |

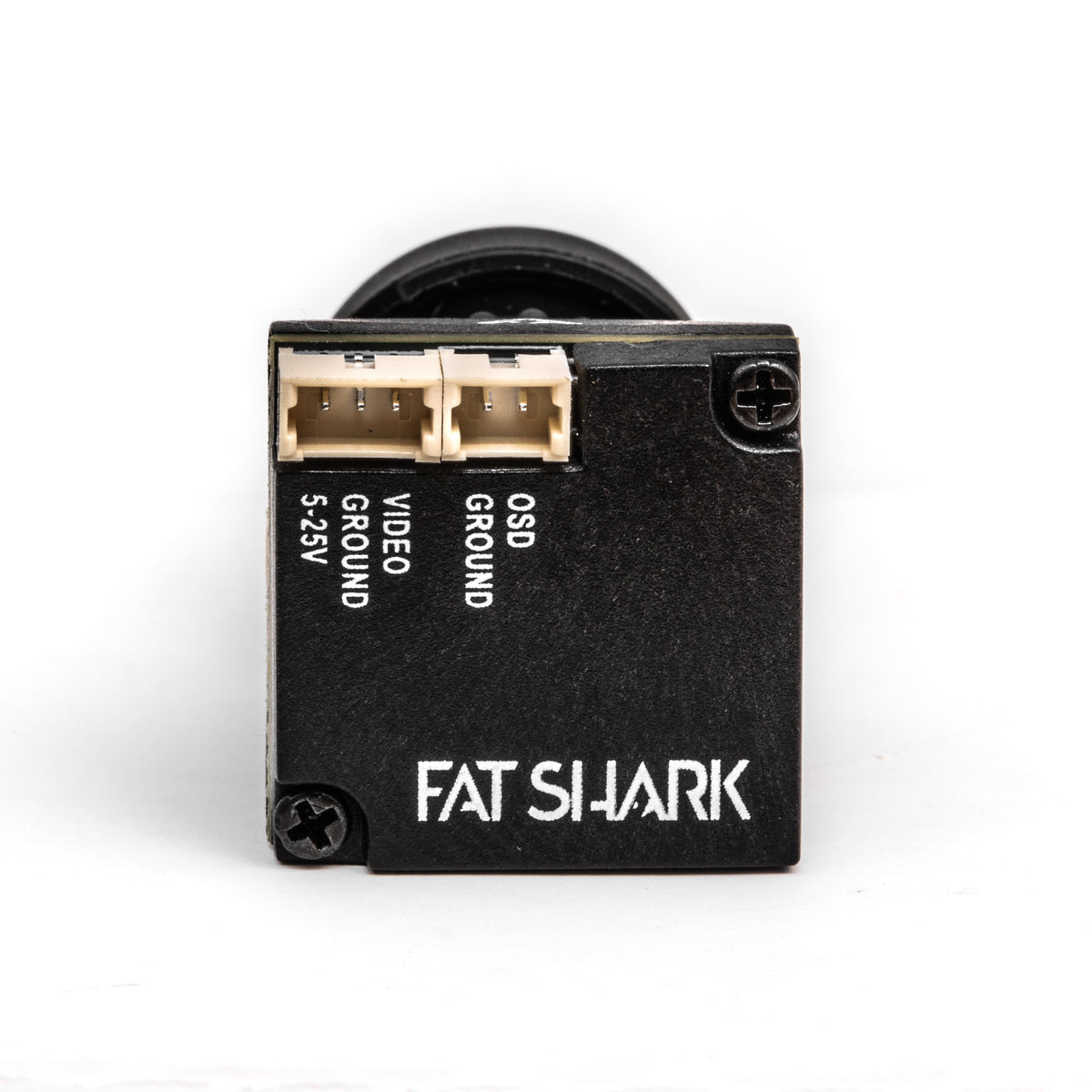

| Input Voltage | 5–25V |
| Dimensions | 19 × 19 × 28mm |
| Power + Video Cable Length | 160mm |
| OSD Cable Length | 120mm |
| Weight | 8.8g |
Package Includes
| Item | Quantity |
|---|---|
| Aura Analog FPV Camera | 1 |
| OSD Menu Board | 1 |
| 2-Pin Cable (120mm) | 1 |
| 3-Pin Cable (160mm) | 1 |
