Description
MPN: CP-06318
Manufacturer: CubePilot
Beta version of product. For development purposes only.

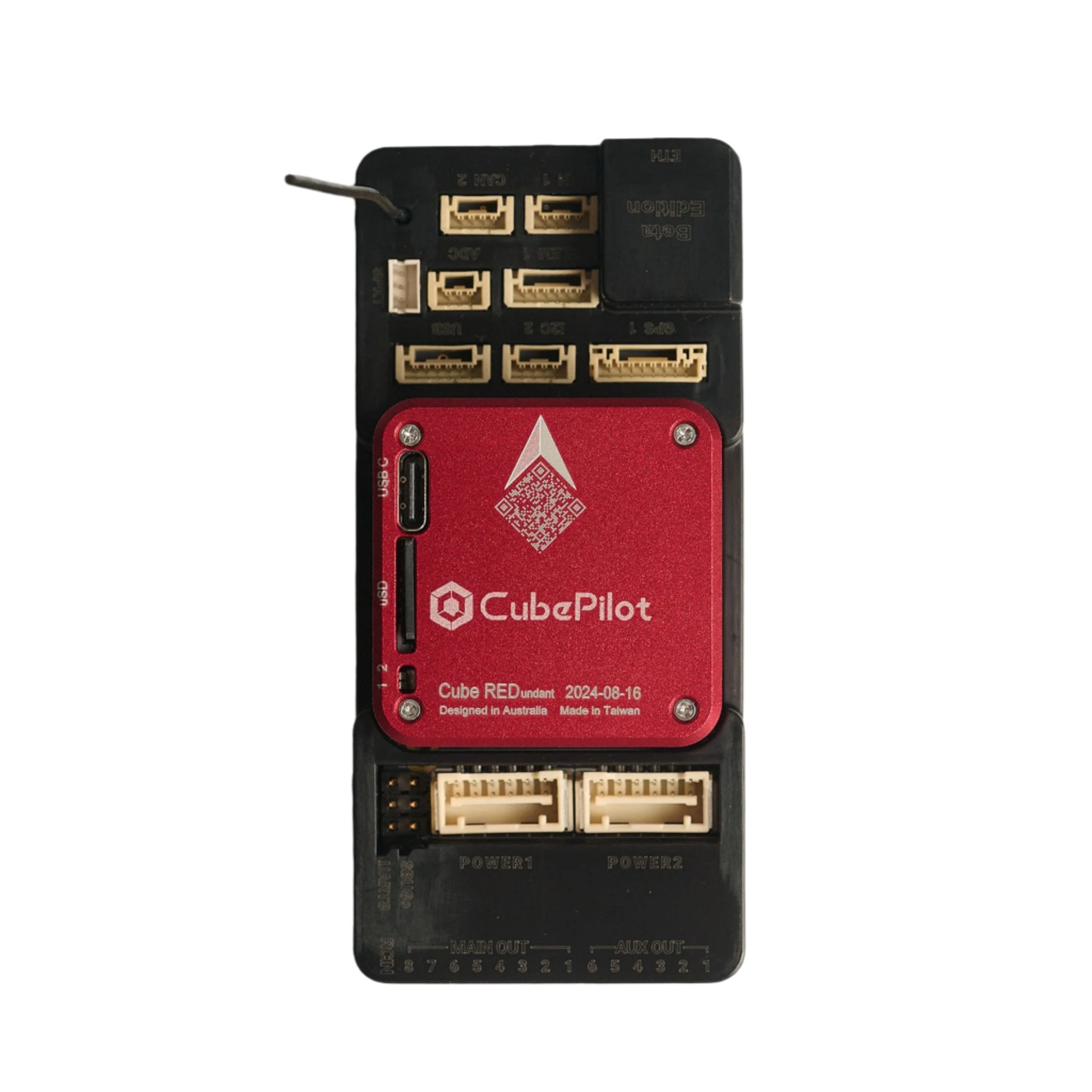

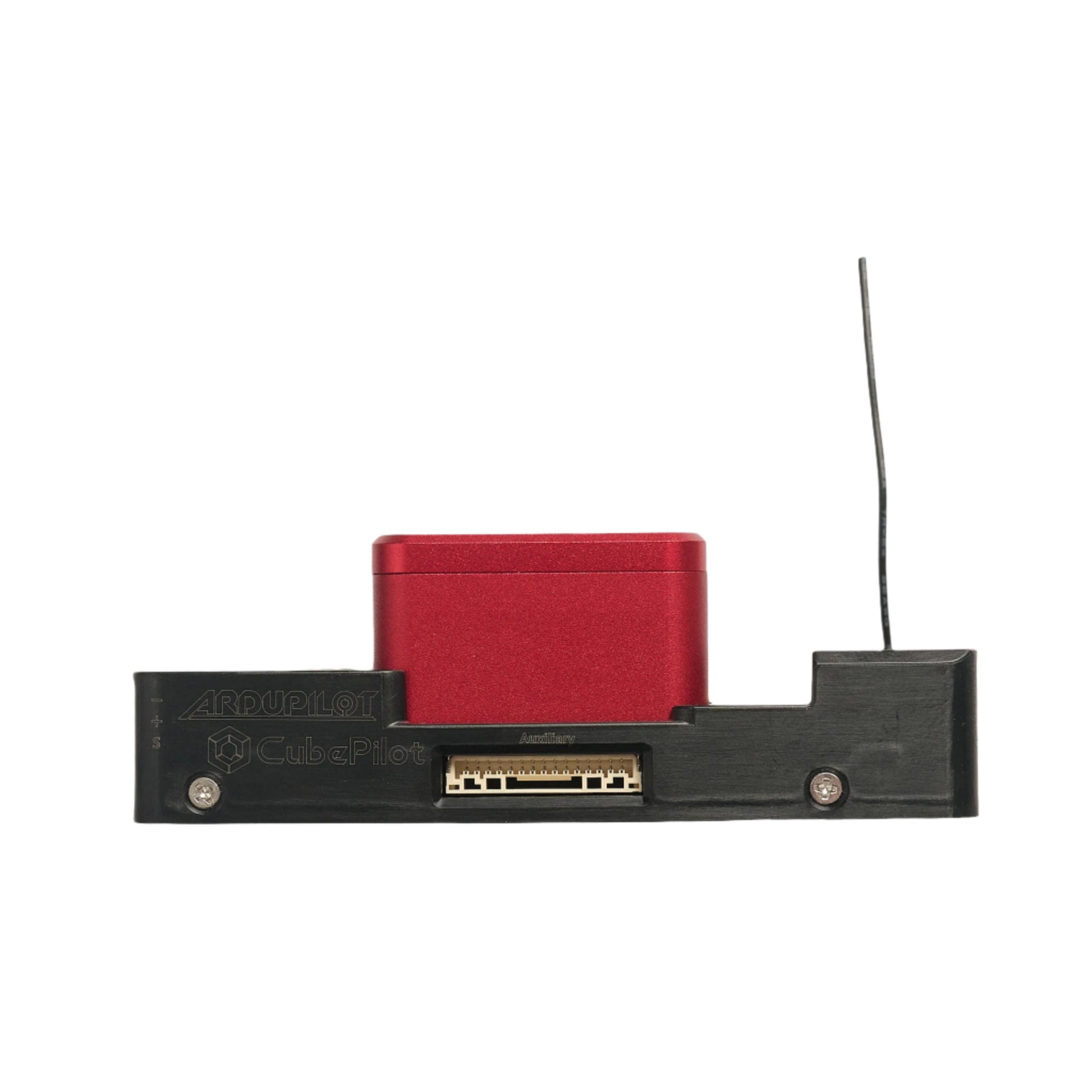

The Cube Red Pro Standard Set represents one of the most advanced open autopilot systems available for autonomous unmanned vehicles. Built for high-reliability applications, it features a dual H7 processor architecture with redundant sensing, isolated systems, and temperature-controlled performance.
Designed for professional UAV operators and developers, the Cube Red Pro delivers exceptional processing power, expanded connectivity, and advanced system redundancy for mission-critical applications. Fully compatible with ArduPilot and PX4, it supports multirotor, fixed-wing, and VTOL platforms.
Note: The Cube Red Pro is currently in a design update phase. Units purchased will not include future upgrade revisions.
System Specifications
| Parameter | Specification |
|---|---|
| Processor | Dual STM32H757 (H7) |
| IMUs | 4 (Primary H7) + 1 (Secondary H7) |
| Barometers | 3 |
| CAN Buses | 3 |
| CAN FD | Supported |
| Ethernet | Supported |
| USB | USB-C Debug Interface |
| DSI Output | Yes |
| Static Air Port | Isolated |
| Autopilot Support | ArduPilot / PX4 |
Key Features
- Dual H7 processors for high-performance compute and redundancy
- Advanced sensor architecture with multiple IMUs and barometers

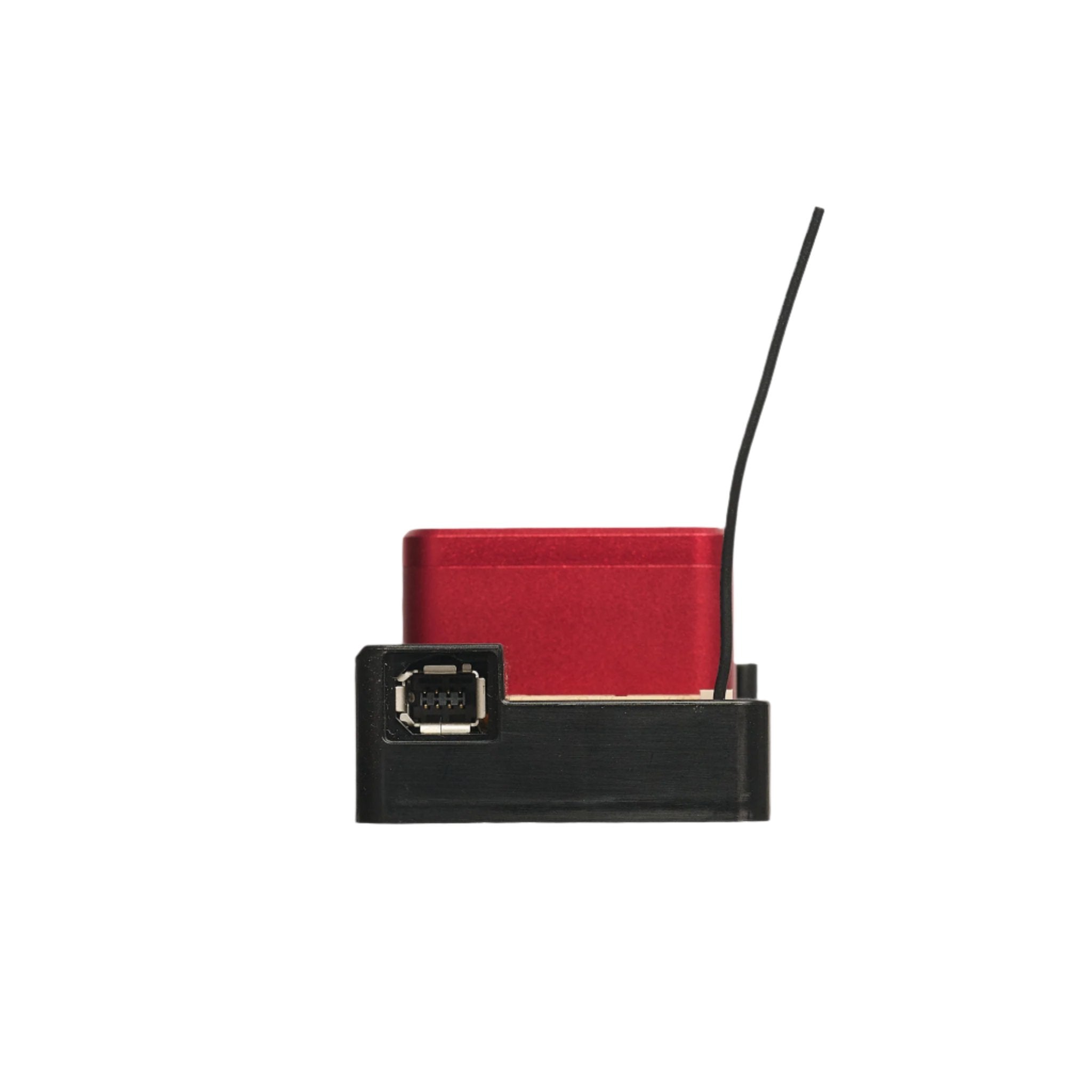

- Ethernet interface for high-speed data and networking
- CAN FD support for next-generation peripherals

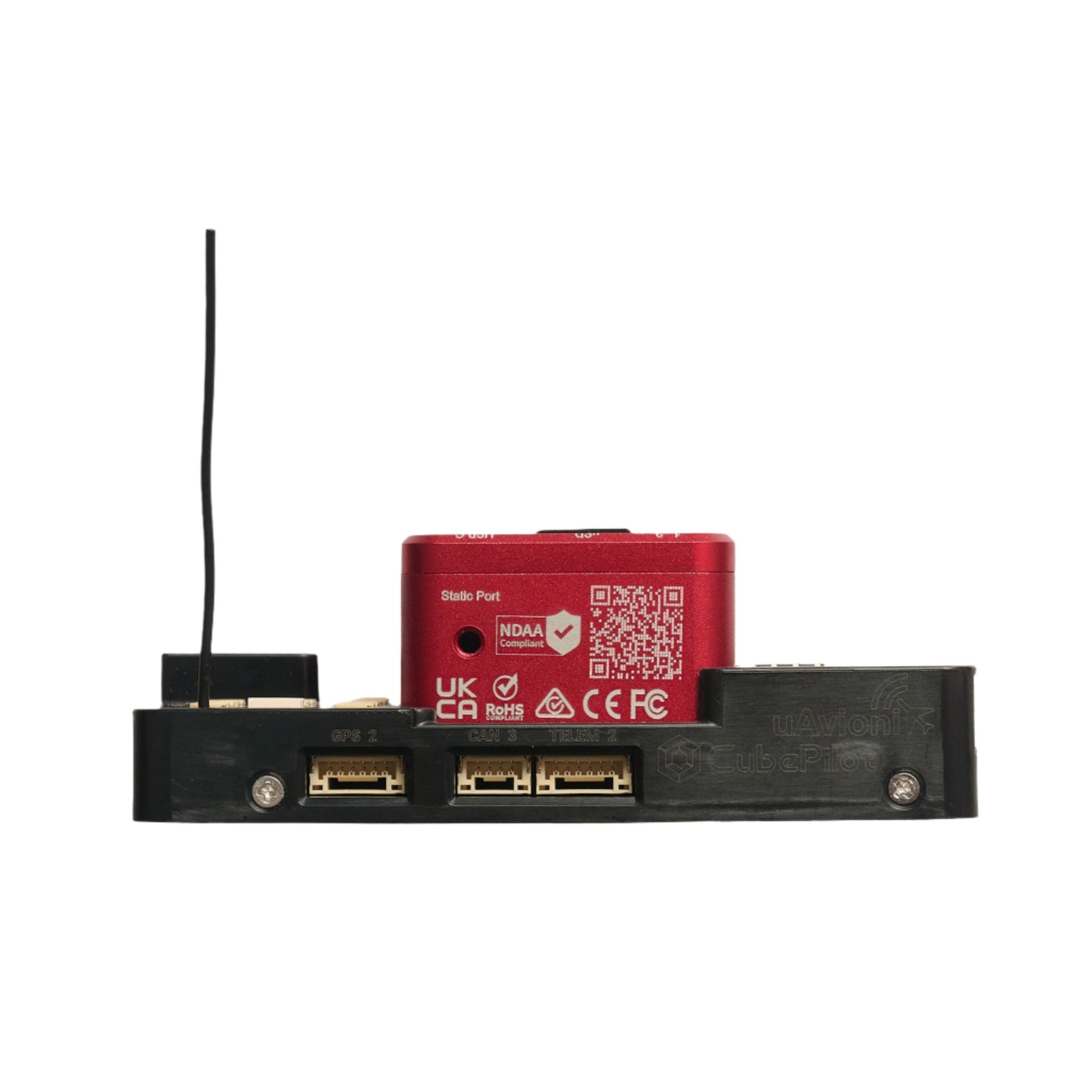

- Isolated static air system for improved altitude accuracy
- Replaceable enclosed housing with advanced airflow design
- Additional damping foams with varying hardness for tuning
- Designed for professional and mission-critical UAV systems
Compliance
- NDAA 2024 compliant
- All chips and components sourced and assembled in Allied nations
- Manufactured in Taiwan

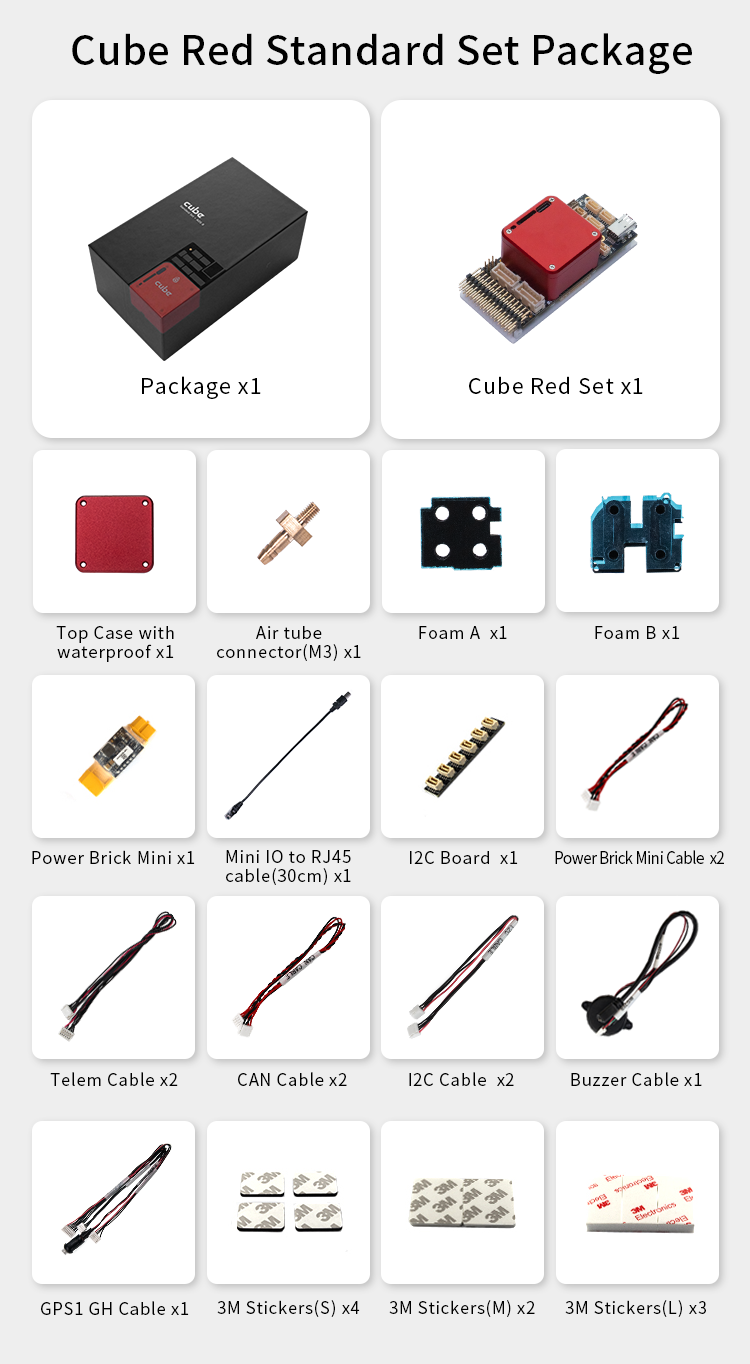

What’s Included
| Item | Quantity |
|---|---|
| Cube Red Standard Set | 1 |
| ADS-B Carrier Board (Red Cube) | 1 |
| Standard Cable Set V2.1 | 1 |
| I2C Board | 1 |
| Power Brick Mini | 1 |
| Waterproof Top Case | 1 |
| Air Tube Connector (M3) | 1 |
| Foam A | 1 |
| Foam B | 1 |
| Mini IO to RJ45 Cable (30cm) | 1 |
| 3M Stickers (Small) | 4 |
| 3M Stickers (Medium) | 2 |
| 3M Stickers (Large) | 3 |
Documentation
Cube Red Official Documentation:
https://docs.cubepilot.org/user-guides/autopilot/cube-red
