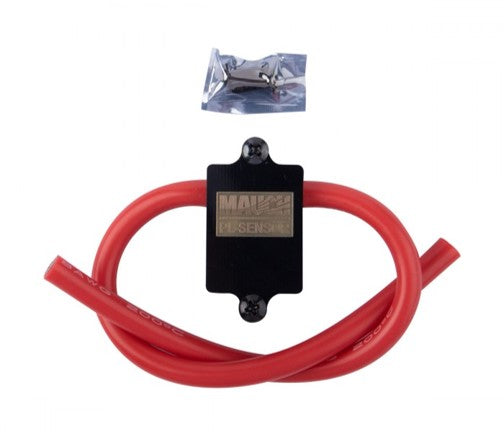

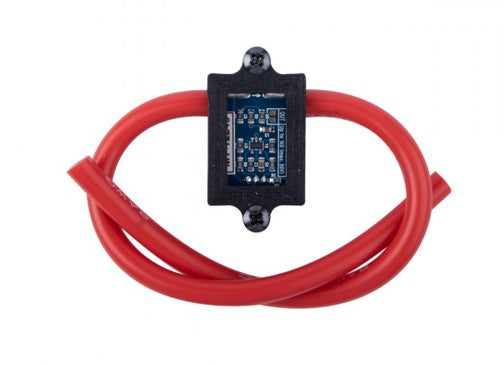

Mauch 005 - PL-250 Sensor Board with CFK enclosure – 8AWG


Click here to be notified when this product is back in stock.


SKU: MAUCH-005

Manufacturer: Mauch Electronics

Product Specs: MAUCH-005



250A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U.

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.



Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.

Connected to the sensor are 2x15cm AWG8 wire (red) as a standard.

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)

Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 39g (with 2x 15cm 8AWG)

With CFK enclosure = 43.5 x 23.0 x 15mm / 44g (with 2x 15cm 8AWG)

Delivery in PP box: 88 x 60 x 20mm / 59g

Delivery without sensor cable (comes with the BEC's), with CFK enclosure

REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.
