Description

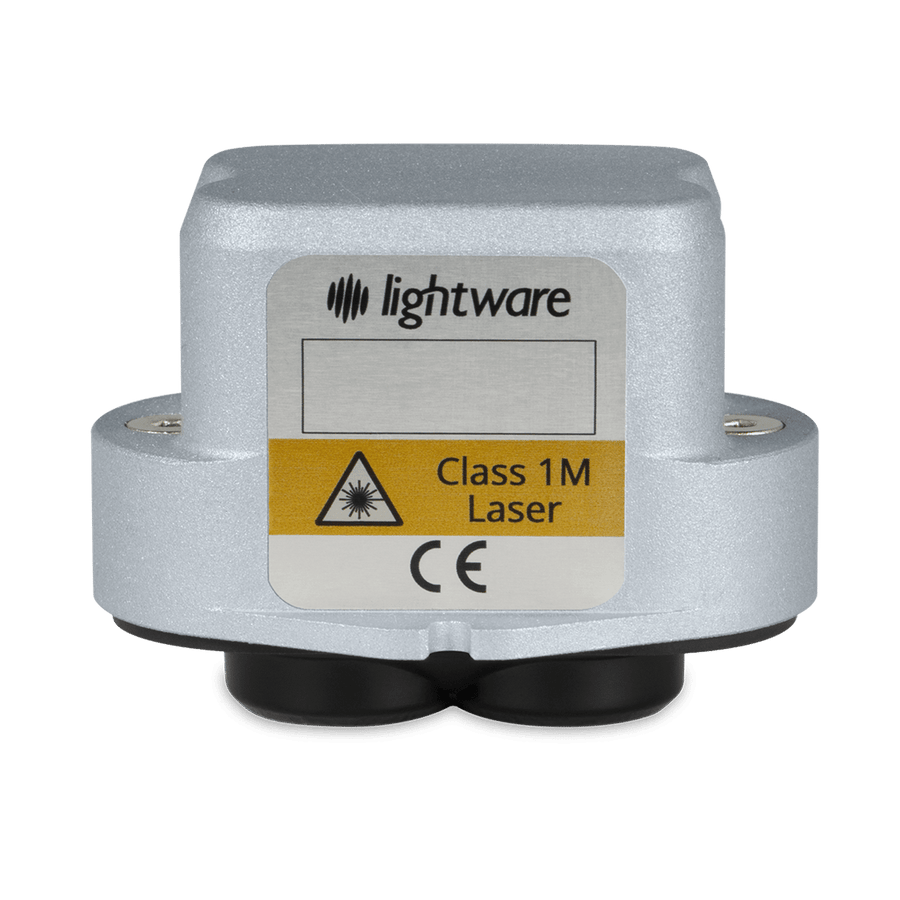

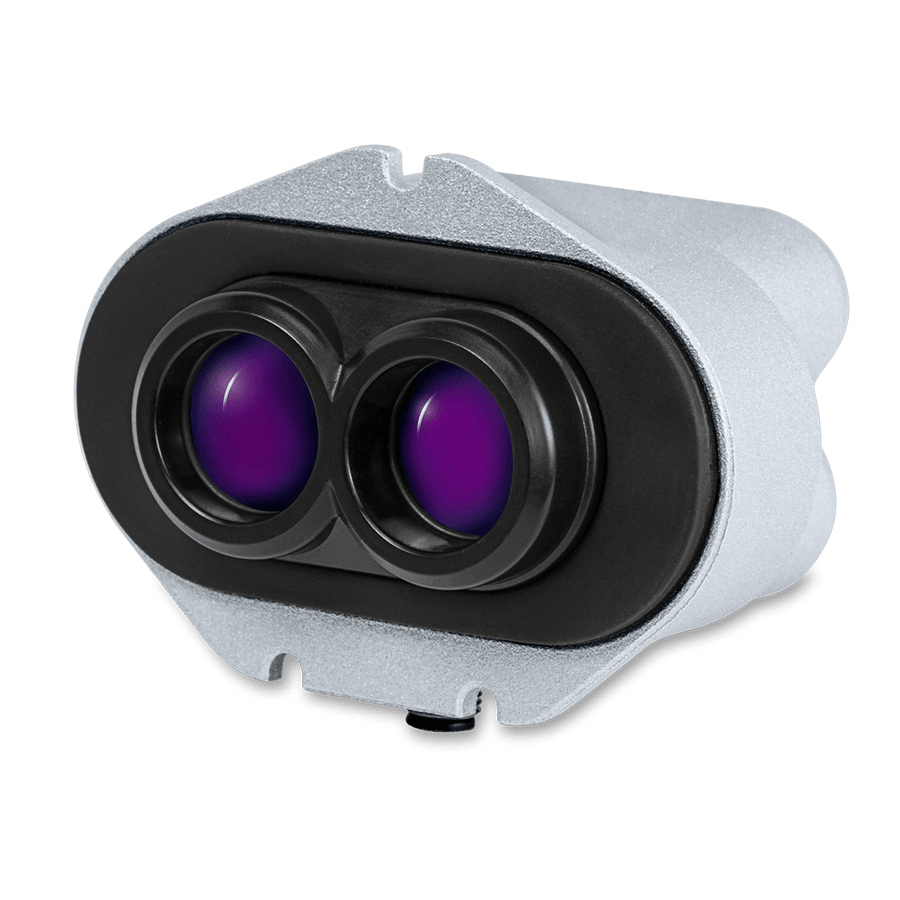

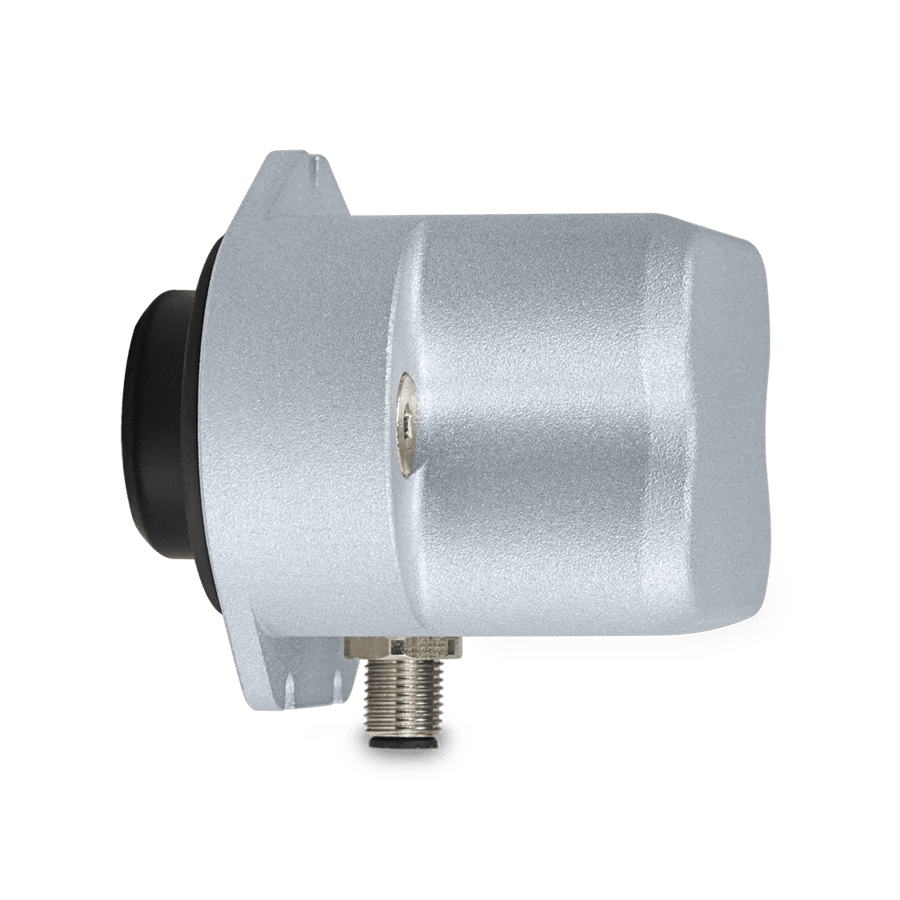

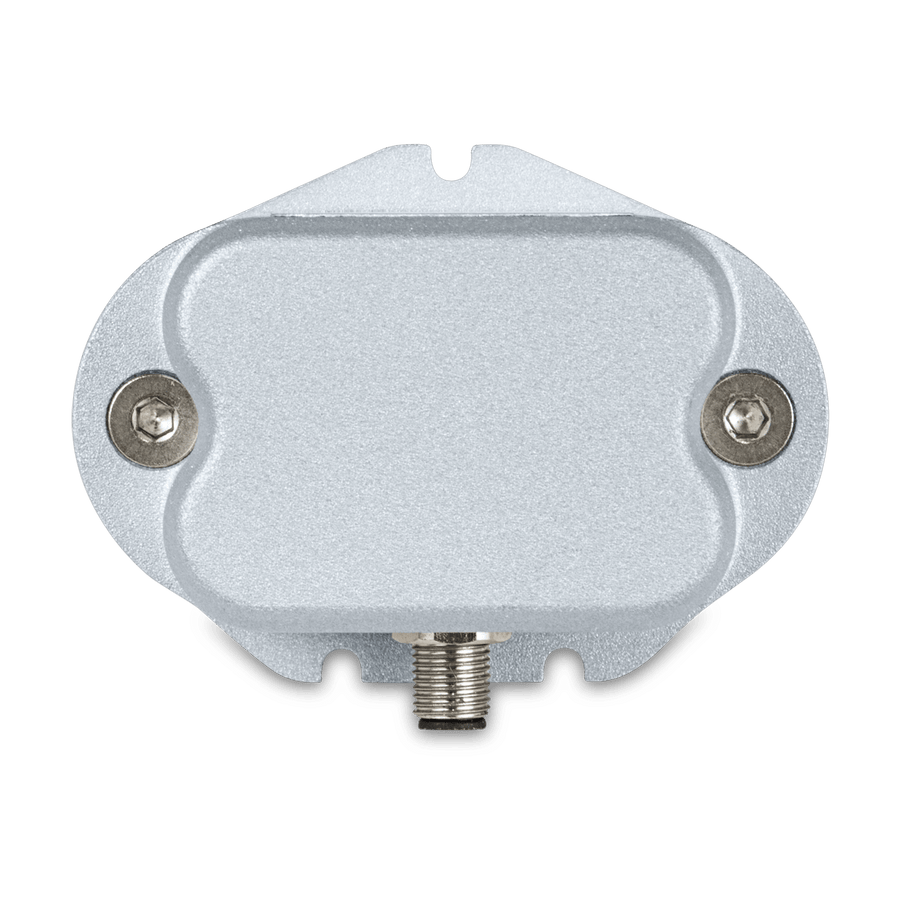

The LW24/C microLiDAR™ is our most rugged sensor in a machined aluminium IP67 housing. This family of sensors gives you the flexibility to connect using Serial, I2C or RS-232.
*Included in the box: LW24/C LiDAR sensor, communication & power cable (straight), mounting bracket, 5 screws, 5 washers, and 5 nuts.
Applications
- AGL (Altitude above ground level)
- Position hold
- Terrain following
- Detect and avoid
- IoT sensor
- Assisted take-off and landing
Documents
Support software
Accessories and options
- LW24/C communication and power cable - right angle
- LW24/C communication and power cable - straight
- LW24/C 12-month extended limited warranty
Specifications
| Measuring range | 0.2 … 100 m / 0.6 ... 328 ft |
| Update rate | 48 ... 388 readings per second |
| Communication | Serial RS232 |
| Operating temperatures |
-10 ... +50 °C / 14°F ... 122°F |
| IP rating | IP67 |
| Weight | 28.7 g / 1.01 oz |
| Form factor | 35 mm x 47 mm x 37mm / 1.4 in x 1.86 in x 1.5 in |
| Power supply | 4.5 V to 5.5 V |
| Integration | Arduino, Raspberry Pi and LightWare Studio |
