AirPixel Wiring set for Pixy-LR (SIMPLE)


Price:
Sale price$ 89.00
Stock:
In stock

Description

Manufacturer: AirPixel

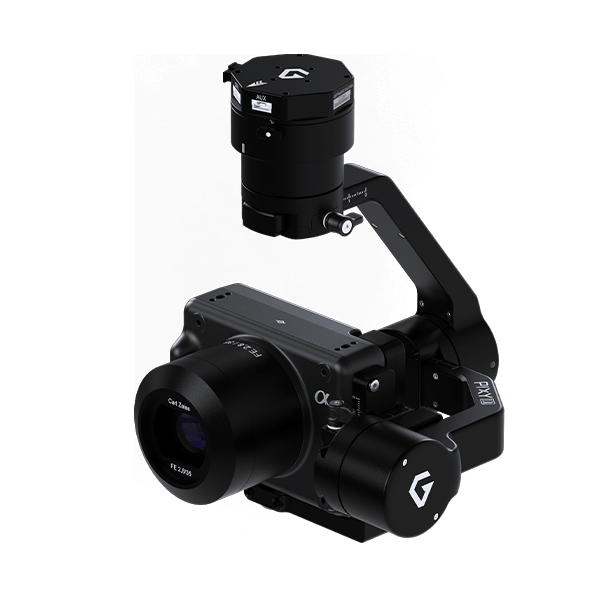

  • This set is for Gremsy Pixy-LR gimbal with Sony LR1 camera.
  • This set is compatible with PixHawk only!

Description:

This cable set brings full MavLink camera control and EXIF geotagging for Sony ILX-LR1 camera installed at Gremsy Pixy-LR gimbal. Set is only applicable only to PixHawk driven drones.

Set contains all cables and connectors for connecting of the ENTIRE with PixHawk flightcontroller via Gremsy COM2/4 ports. Gimbal and ENTIRE are connected via single Telem port. Set includes also Power Adaptor (UBEC) with connection cables for easy powering of the ENTIRE.

This set uses USB-C connection to the camera for geotagging purposes and WiFi control for the camera control (exposure configuration). Triggering, AF and capture detection are done via wired connection GPIO (not wireless).

This set allows you to make a clean geotagging installation without any hanging cables. The ENTIRE is able to read GPS position from the PixHawk and also gimbal angles from Gremsy COM port with this cable set. ENTIRE R3 needs to be placed near Pixy-LR QR with this set.

Compatible with: Gremsy Pixy-LR & Sony ILX-LR1
Compatible only with ENTIRE R3!

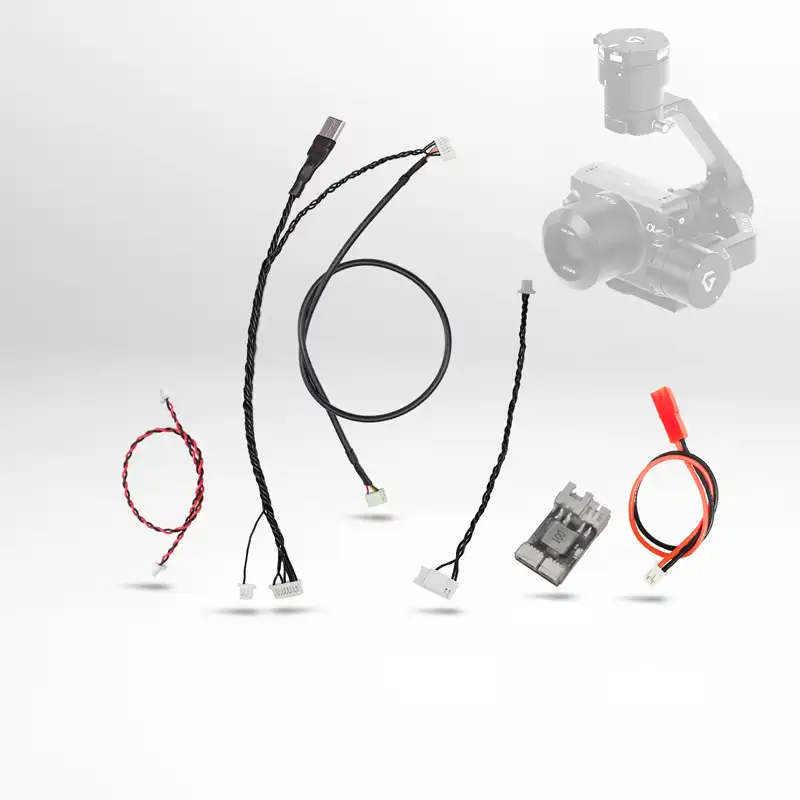

Set contains:
1x ENTIRE PORTMULTI -> GREMSY QR USB-C cable
1x ENTIRE EXT -> GREMSY QR CTRL cable
1x ENTIRE UNIA/B/C -> GREMSY QR COM4 cable

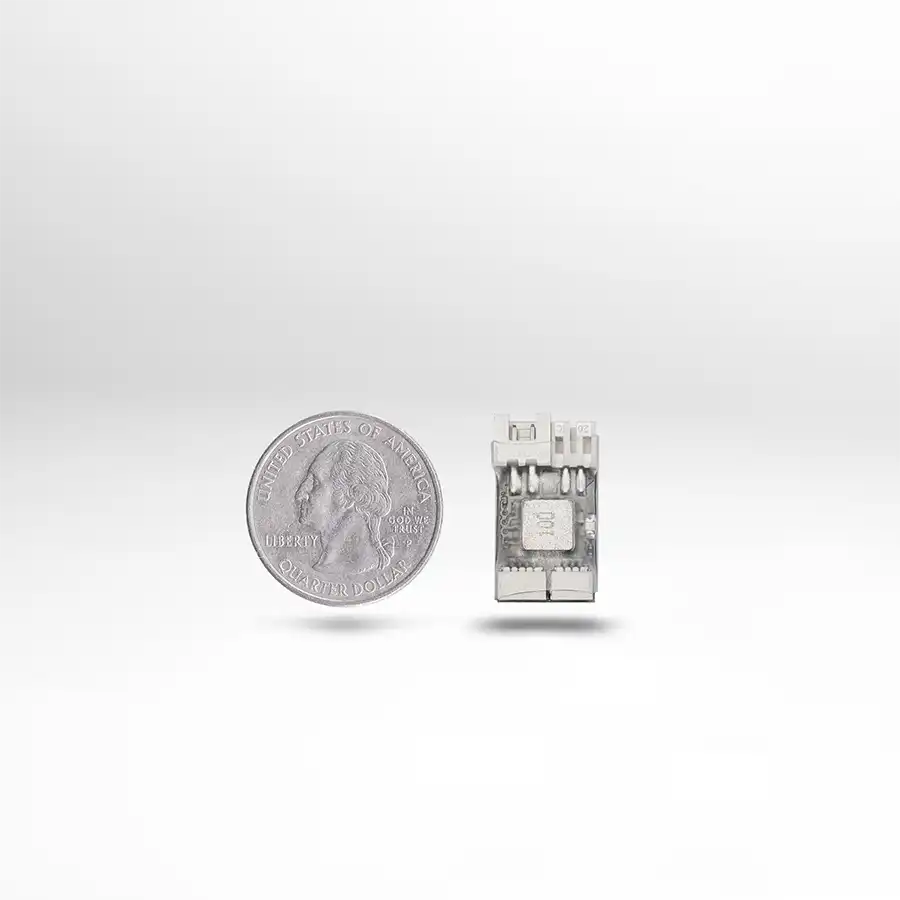

1x uBEC
1x uBEC -> ENTIRE power cable
1x uBEC -> POWER input (JST RCY)
