AirPixel Connection set for ILX-LR1


Price:
Sale price$ 89.00
Stock:
In stock

Description

Manufacturer: AirPixel

  • This set is for direct connection of Sony LR1 camera to the ENTIRE R3.
  • This set is compatible with PixHawk and DJI.
  • This set uses USB for geotagging and WiFi for exposure control.

Description:

This cable set brings full MavLink camera control and precise EXIF geotagging for Sony ILX-LR1 camera installed in fixed mount without gimbal.

Set contains all cable and connectors for connecting of the ENTIRE with PixHawk flightcontroller, camera USB-C port and main connector. Set includes also Power Adaptor (UBEC) with connection cables for easy powering of the ENTIRE and the camera from one connector.

This set uses USB-C connection to the camera for geotagging purposes and WiFi control for the camera control (exposure configuration). Triggering, AF and capture detection are done via wired connection GPIO (not wireless).

The ENTIRE is able to read GPS position and camera attitude (frame attitude) from the PixHawk or DJI flight controller. ENTIRE R3 is expected to be placed next to the camera body.

Compatible with: Sony ILX-LR1
Compatible only with ENTIRE R3!

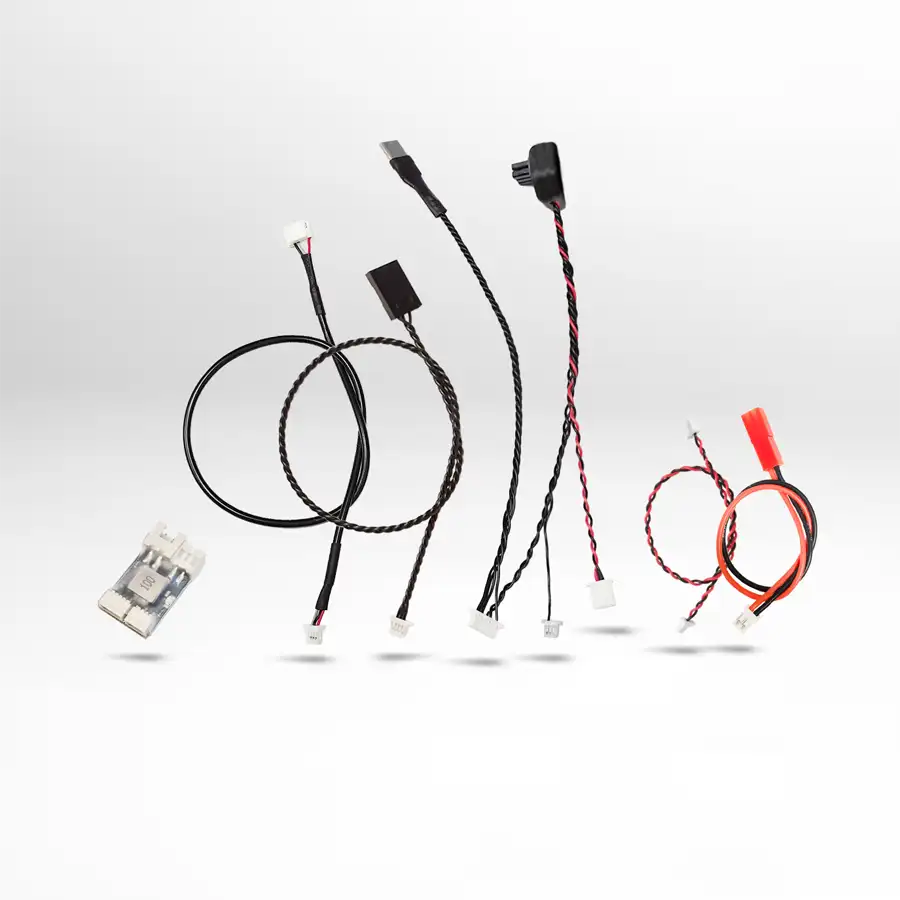

Set contains:
1x ENTIRE PORTMULTI -> CAMERA USB-C cable
1x ENTIRE EXT -> CAMERA MAIN CONNECTOR cable
1x ENTIRE UNIA/B/C -> PIXHAWK cable
1x ENTIRE UNIA/B/C -> DJI API cable
1x CAMERA MAIN CONNECTOR -> JST XH POWER cable

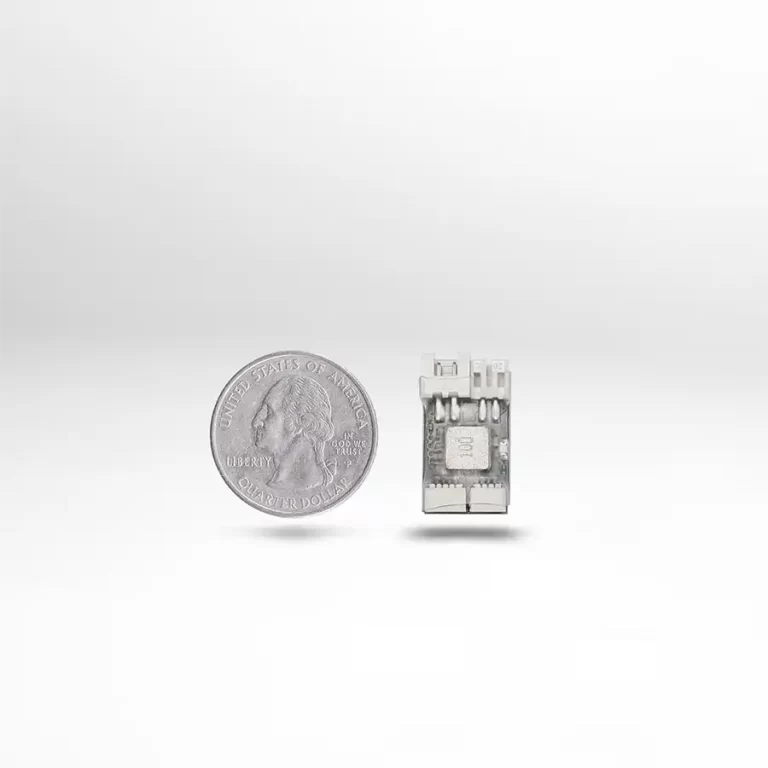

1x uBEC
1x uBEC -> ENTIRE power cable
1x uBEC -> POWER input (JST RCY)
