The Airbot Systems switching power supply is a high-quality electronic component that delivers up to 3A continuously and can withstand momentary spikes of up to 4A. With an input voltage that can support up to 50.4V (12S), it is capable of providing an output voltage of 5V, 5.3V or 12V, selectable by the user according to the needs of the application.
With this switching power supply, you can be sure you'll get reliable and consistent performance, no matter the load. The power supply can be soldered in stack directly on a motherboard (downloadable footprint and 3D model), or wired thanks to the additional PCB that is supplied with the product, thus offering great flexibility for mounting configurations.
Use:
Airbot Systems switching power supply is ideal for electronic projects, scale models, drones, robots, and other electronic devices that require quality power. This power supply can be easily integrated into a variety of mounting configurations, providing great flexibility for development projects.
The module incorporates a voltage divider bridge that can be used to measure the input voltage.

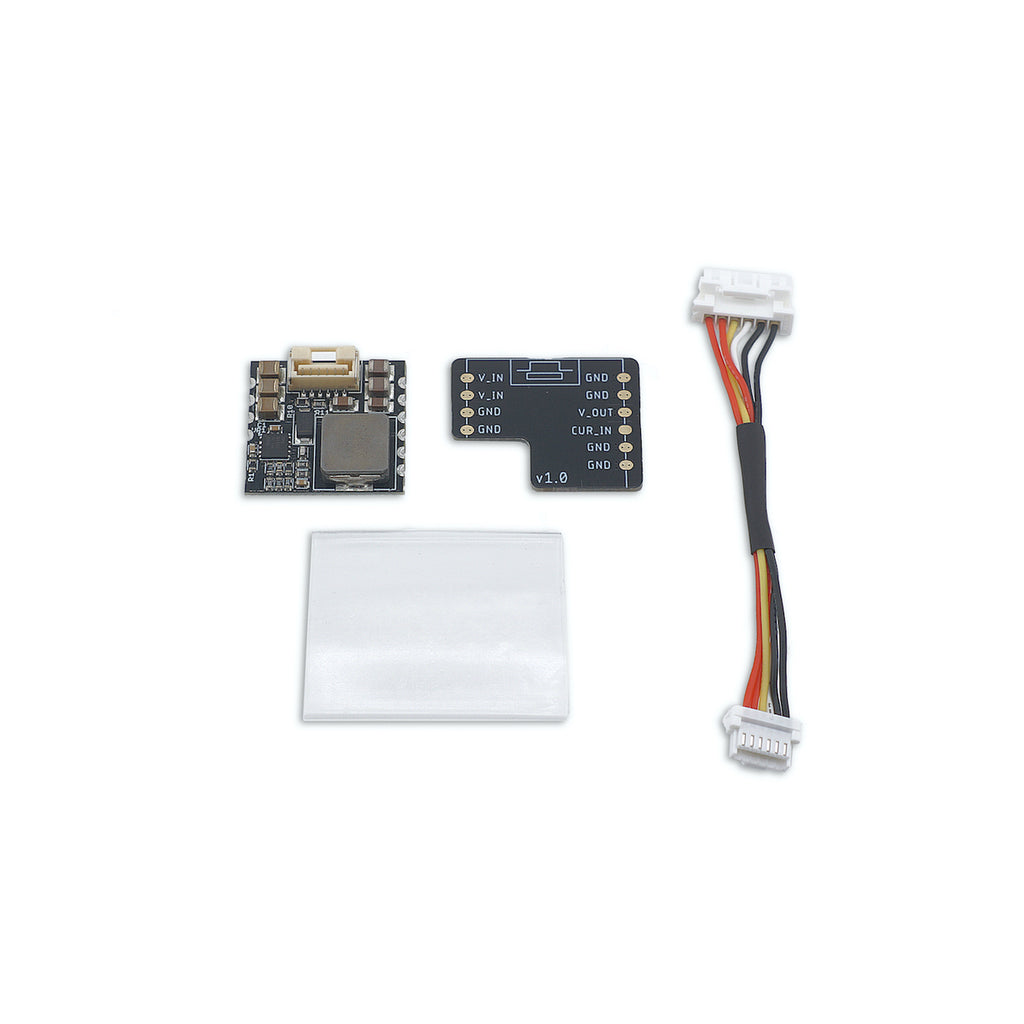

INCLUDES:
1*3-in-1 Power Module
1*PCB for Wire Mount
1* 6cm Cable (Molex ClickMate 6P 1.25mm to Molex ClickMate 6P 2.00mm)
TECHNICAL SPECIFICATIONS:
• Supports up to 50.4V input (12S)
• Provides up to 3A continuous
• User-selectable output voltage: 5V, 5.3V or 12V
• Optional PCB included for stack or wired use

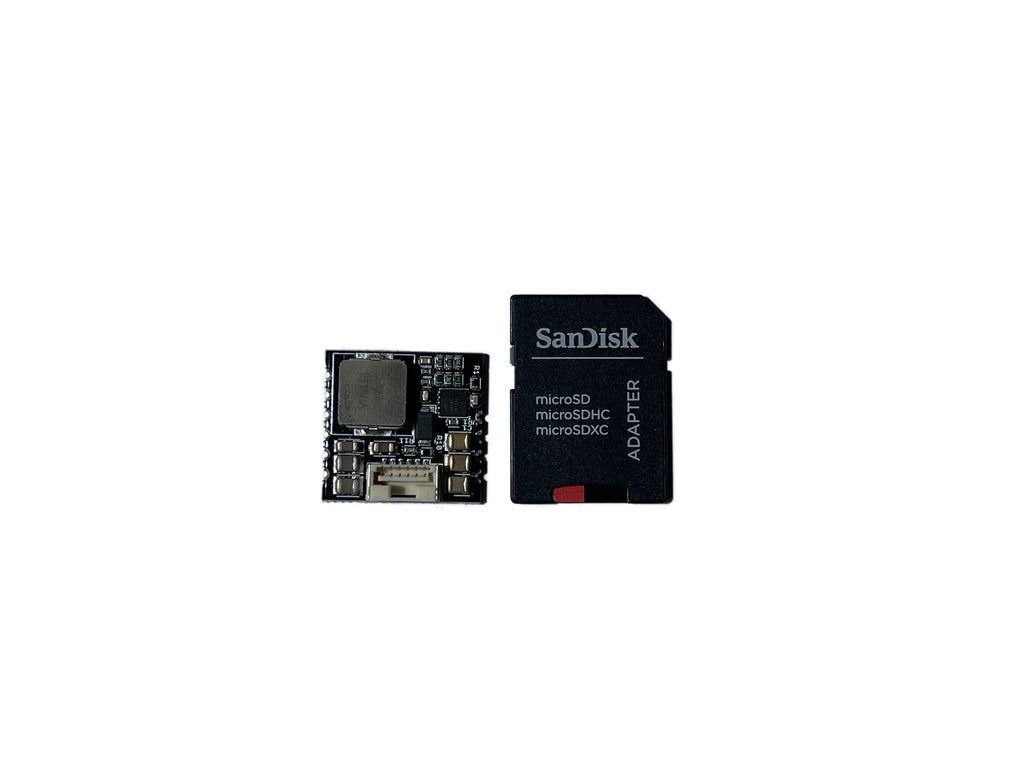

Dimensions:
Power supply only: 24*23*6.15mm (without cable)
Optional PCB power supply: 29*23*6.15mm (without cable)
RESOURCES:
User Manual
