Description
Manufacturer: Airbot Systems
The Airbot Systems Mini Power Brick is a compact power supply module designed to deliver regulated power to UAV flight controllers while providing accurate battery voltage and current monitoring. Engineered for professional unmanned systems, it supports up to 12S input voltage and delivers 3A continuous regulated output (4A peak).
Built with a high-quality switching voltage regulator, the Mini Power Brick is optimized for space-constrained UAV builds and can be installed across a wide range of multirotor, fixed-wing, and VTOL platforms. Its integrated voltage and current sensing allow real-time power monitoring, enabling the flight controller to calculate energy consumption and estimate remaining battery capacity.
This data supports critical failsafe functionality, including low-voltage warnings and automated safety actions, helping ensure safe and reliable operation during flight.

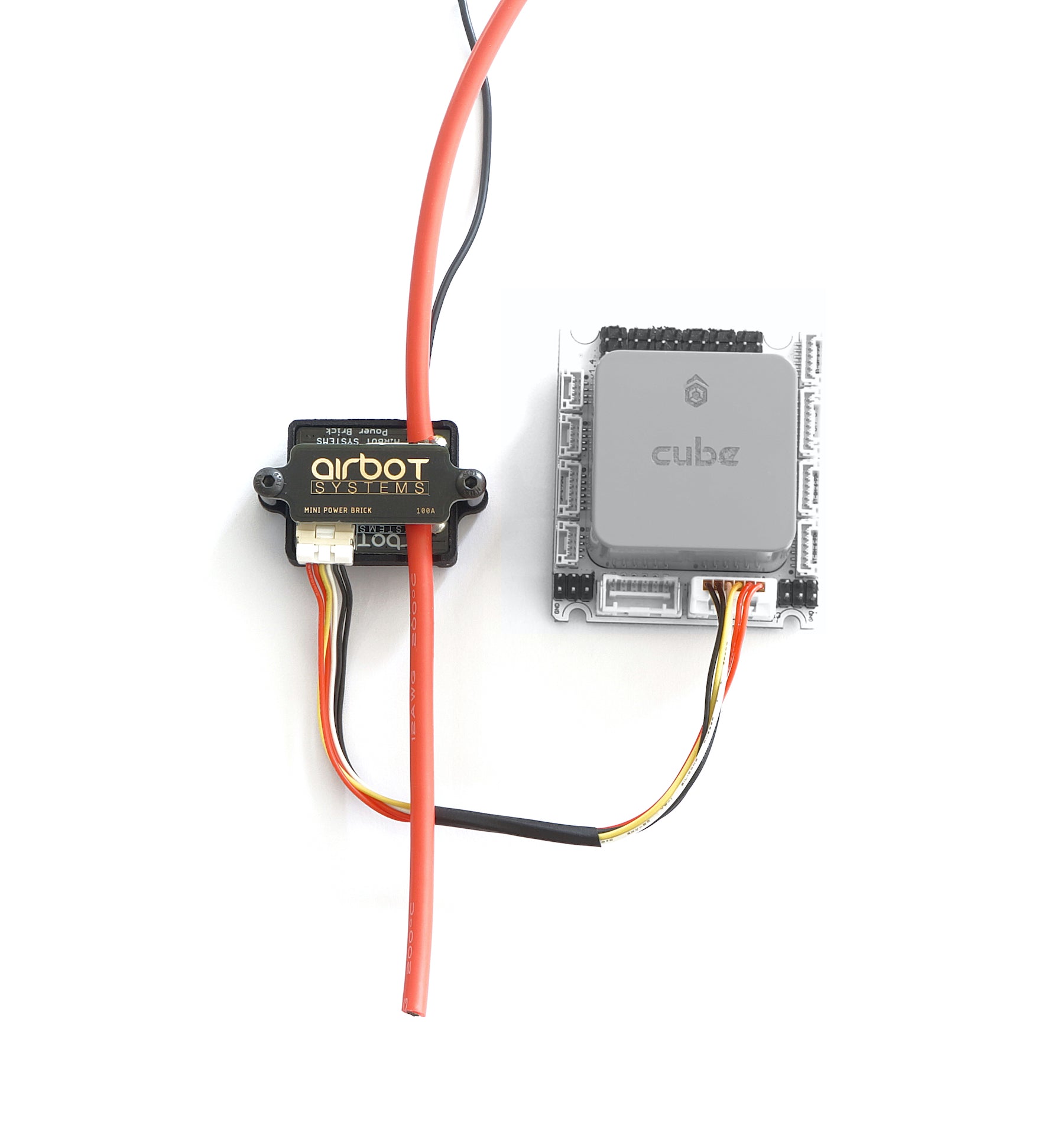

Note: Mini carrier board and Cube autopilot not included.
Key Specifications
-
Input Voltage: Up to 12S
-
Continuous Output: 3A
-
Peak Output: 4A (short duration)
-
Current Sensing: Up to 100A
-
Integrated Voltage & Current Monitoring
-
Dimensions: 44 × 27 × 17.6 mm
-
Mounting: M3 holes, 38mm spacing
-
Weight: 31g
What’s Included
-

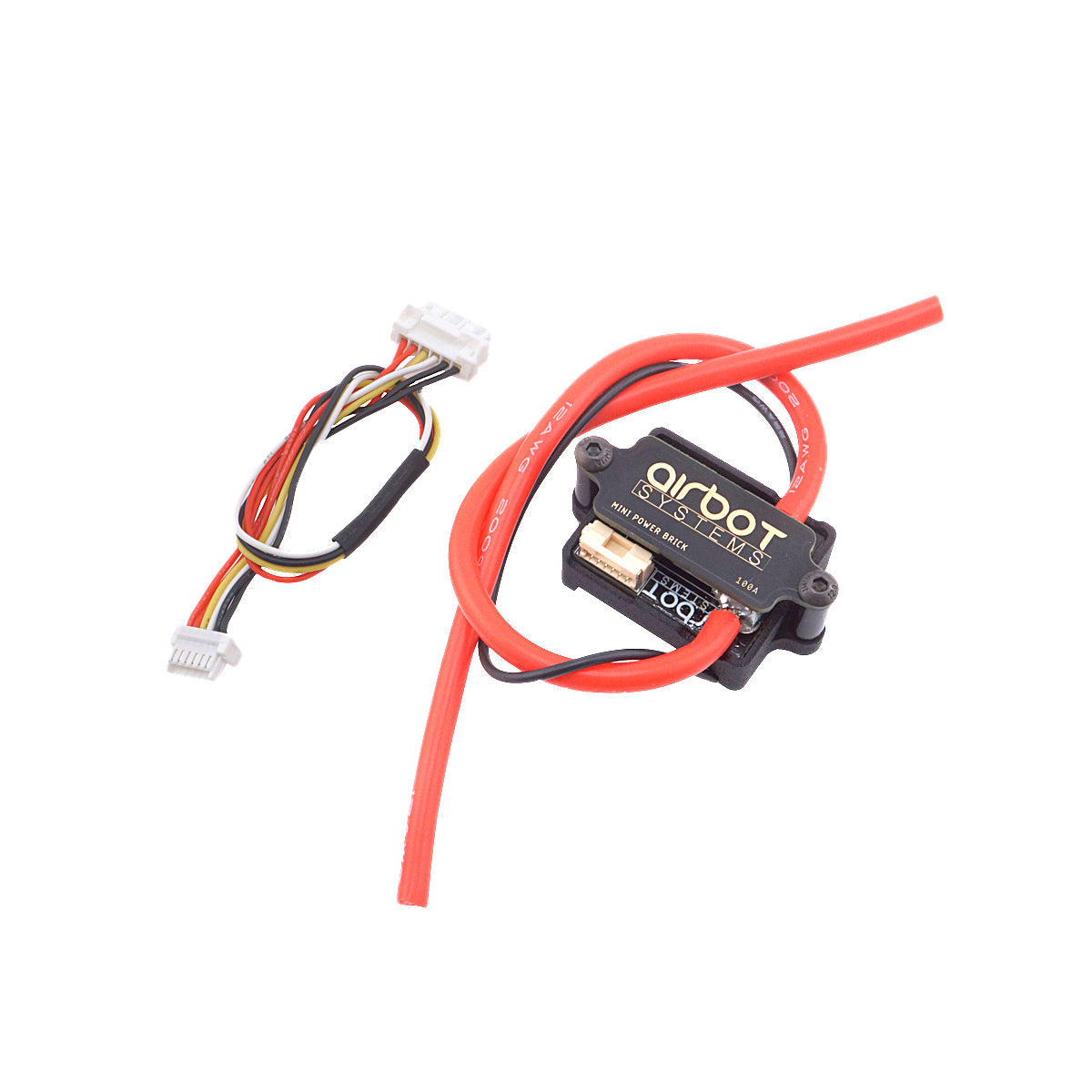

1 × Airbot Mini Power Brick
-
1 × Cable
Resources:
For detailed installation instructions and CAD files, refer to the manufacturer’s official documentation.
