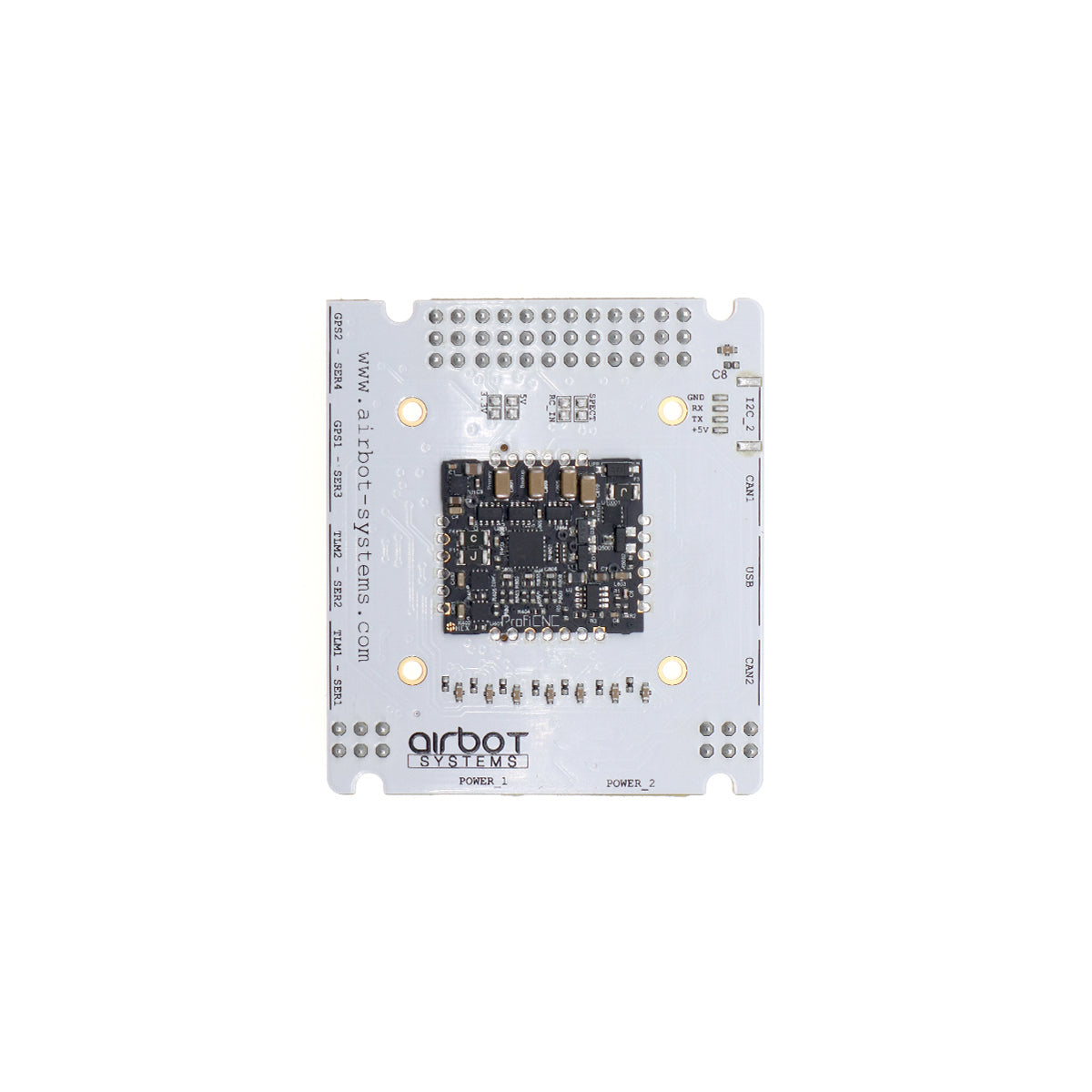

The mini carrier board includes a ‘Power Selection Module’ (PSM worth €60). This module ensures redundancy of the Pixhawk Cube power supplies. If one of the power supplies fails, the PSM switches to the second power supply without power interruption.
Description
Manufacturer: Airbot Systems
The Mini Carrier Board is one of the best ways to integrate a Cube into a drone. It provides maximum connectivity in a small size.
Actual version V1.4
*(Cable set not included – sold separately)

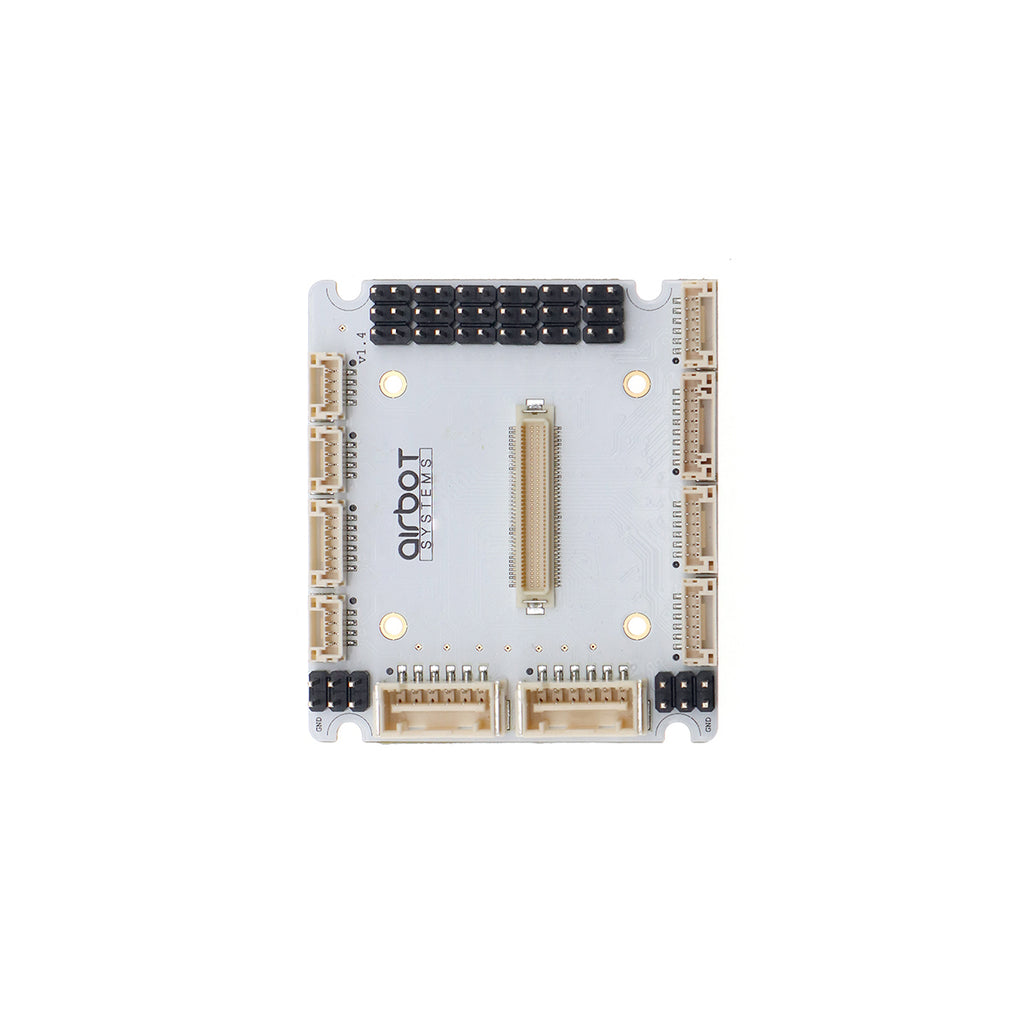

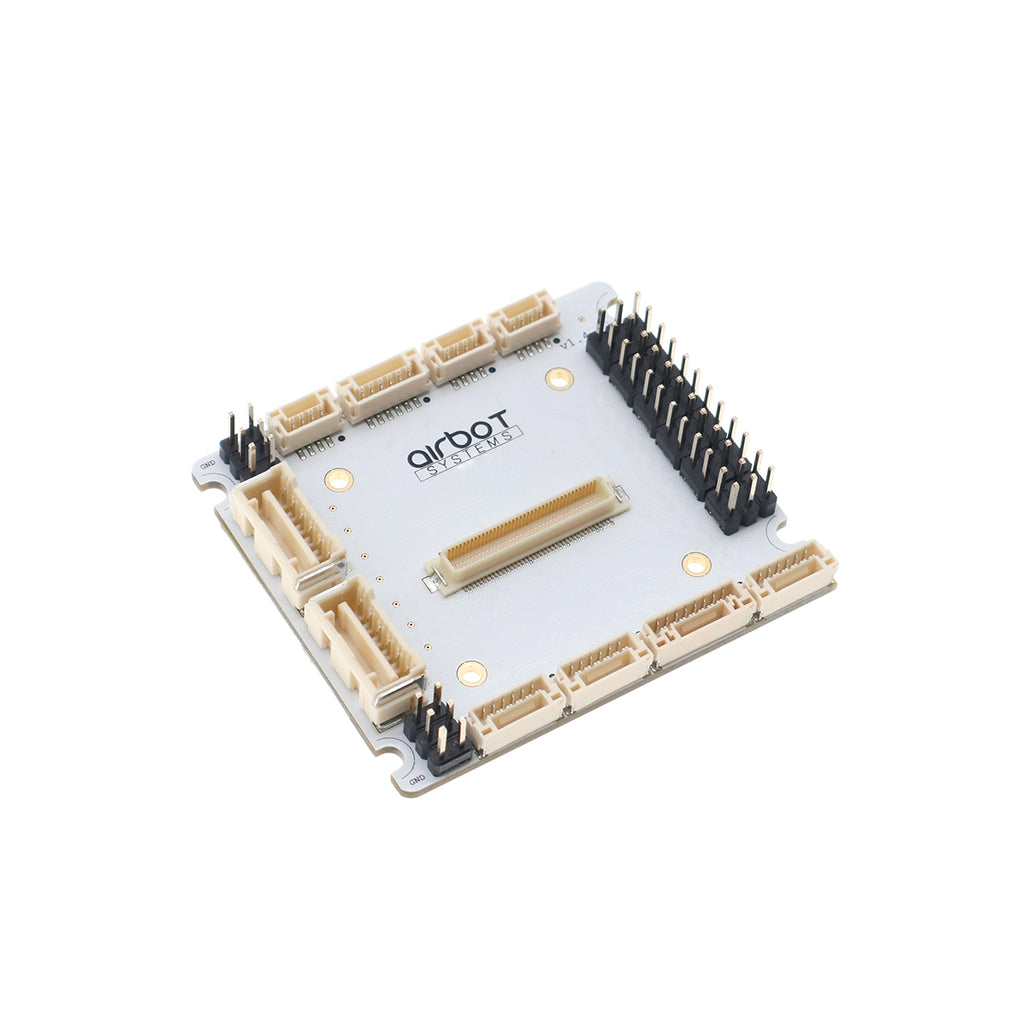

The Airbot Mini carrier board has been specially designed to allow the installation of a Pixhawk Cube on any drone. It offers complete connectivity in a reduced format:
-2 power ports
-RC input (PPM/S. BUS + 5V)
-Spectrum input + 3.3 v
-Serial ports: 1/2/3/4/5
– I2C + CAN
– GPS1 + GPS2
-PWM signal distribution for motors (up to 8)
-ect… (see user manual)
INCLUDES:
1* Mini Carrier Board
4* Nylon spacer M3*4mm
TECHNICAL SPECIFICATIONS:
MINI CARRIER BOARD :
Dimensions : 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)
