Description
Manufacturer: Airbot Systems

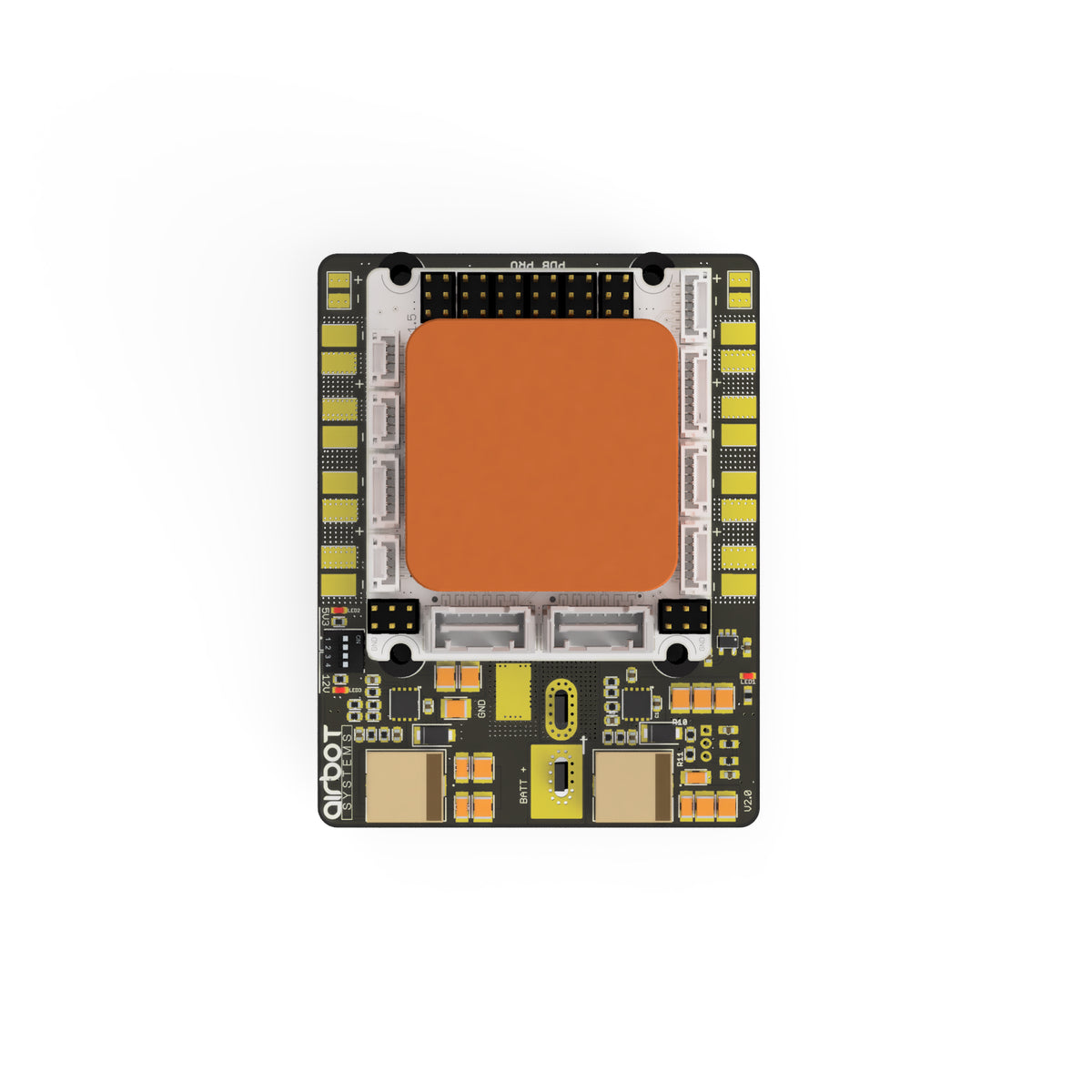

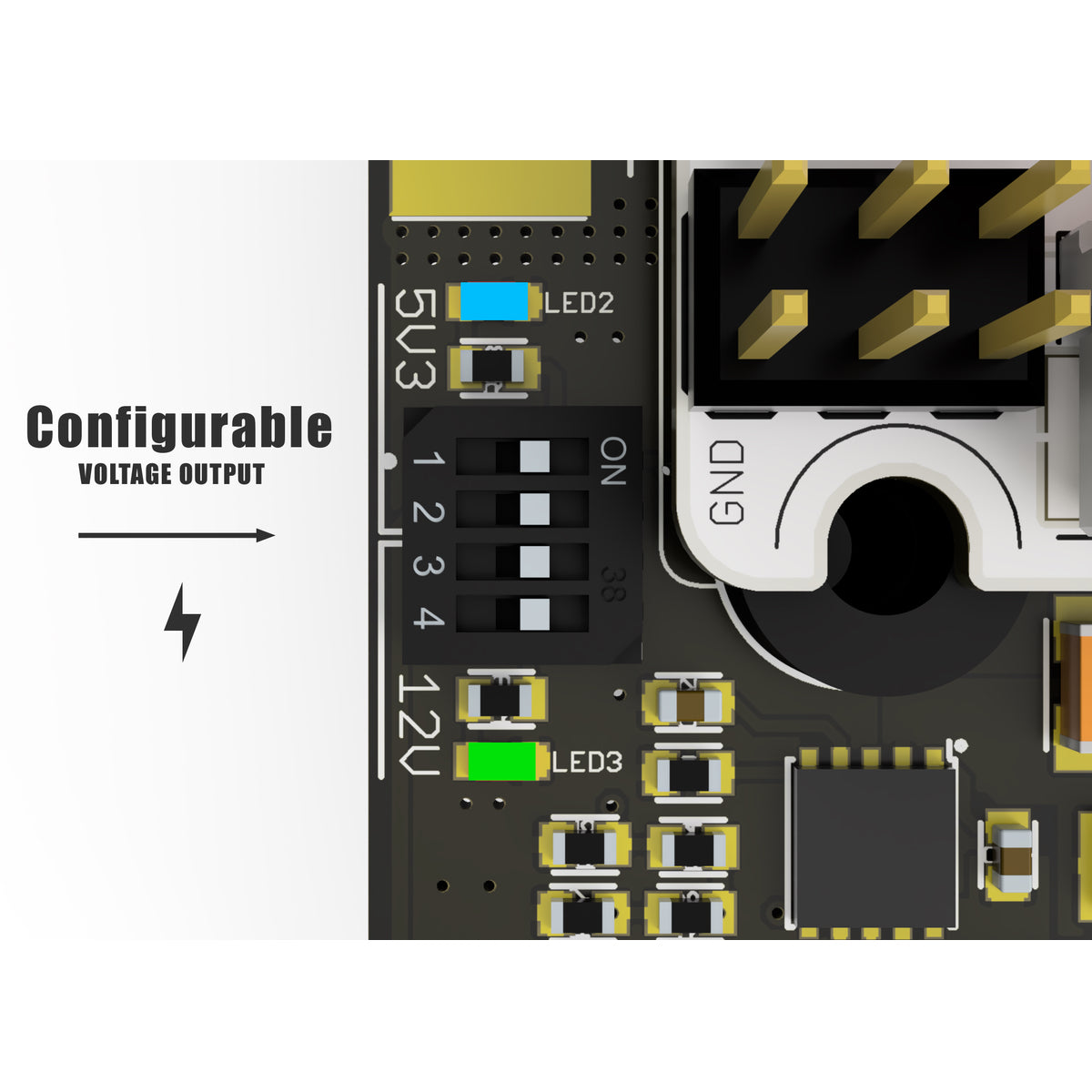

The PRO v2 is the most efficient setup for integrating a Cube into a vehicle. This set ensures maximum connectivity in an extremely small size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the necessary environment for a complete setup, and in an ultra-compact format.

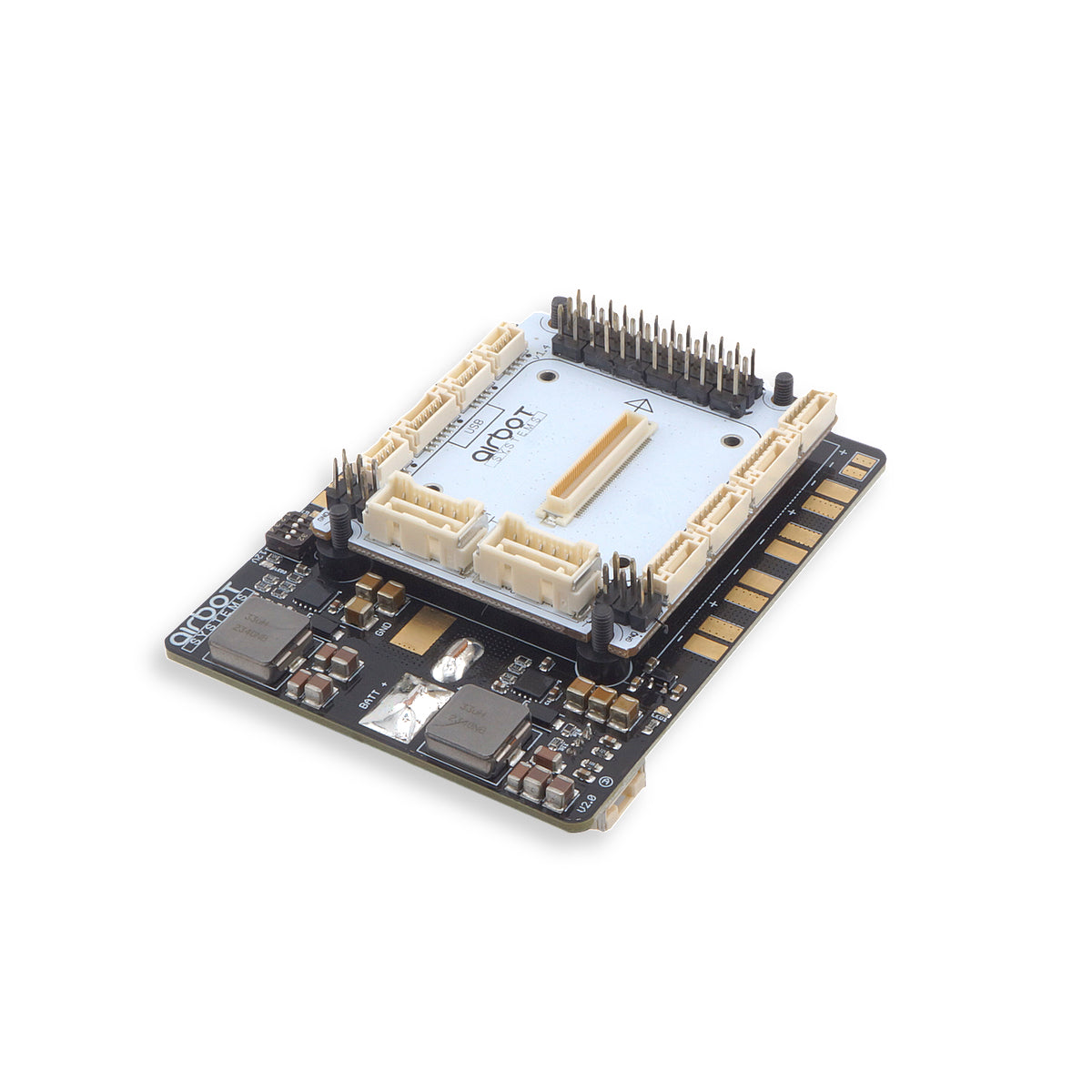

The PRO Mini Carrier Board is the most compact high-end solution. This carrier board ensures the distribution of signals and current.
The PRO version incorporates a power distribution board and includes two 5.3v voltage converters, which provide power redundancy to the auto-pilot, a current probe and a voltage probe. This very compact set incorporates all the necessary elements to accommodate a Cube and allows easy and uncluttered mounting on all types of chassis. It optimizes the assembly and saves significant space.

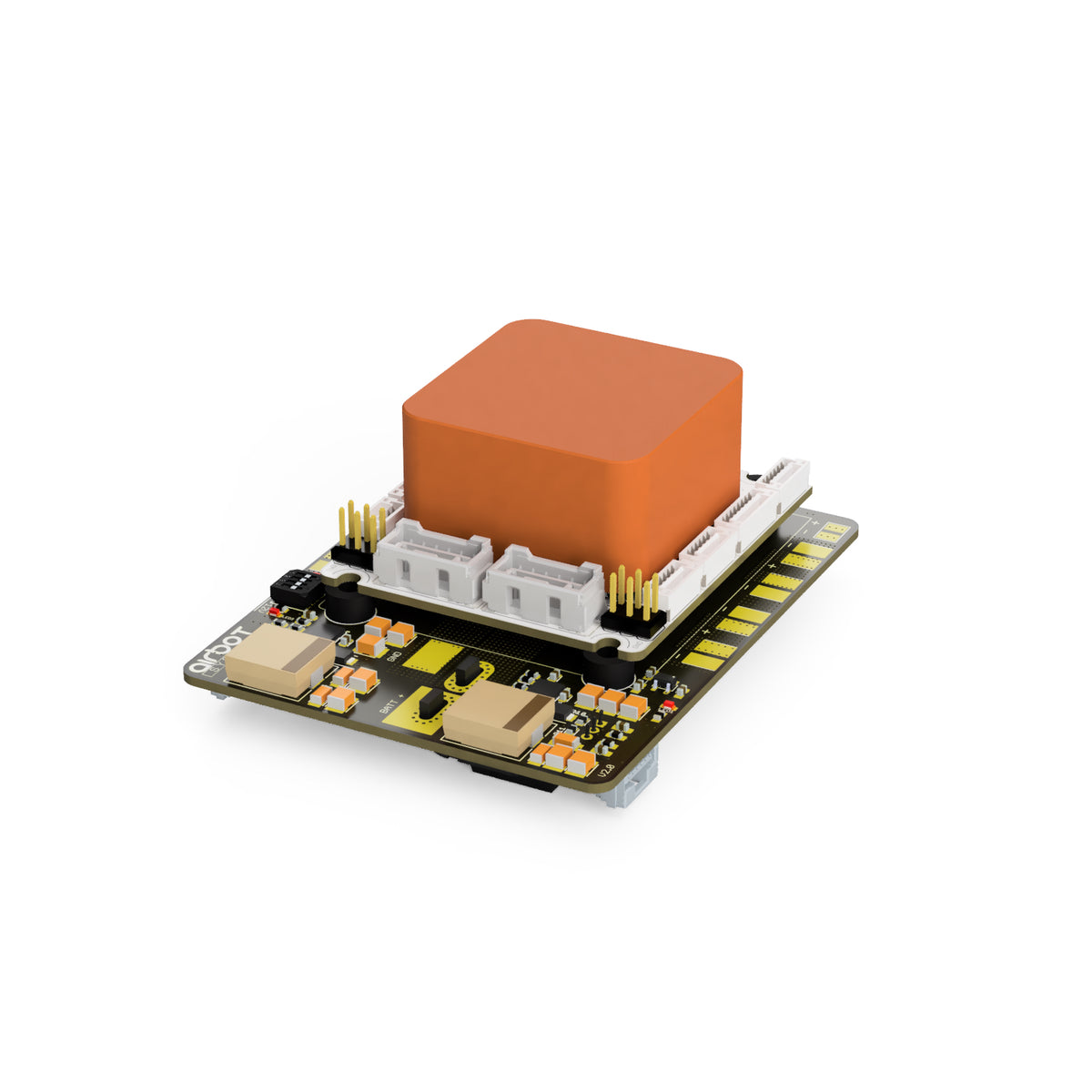

The Airbot Mini Carrier Board PRO has been specially designed to allow the installation of a Cube Autopilot on any drone and guarantees perfect compatibility with the Pixhawk Cube ecosystem.
INCLUDES:
1* Mini Carrier Board
1* Mini PDB Pro v2
4* M3x8mm Spacers
4* M3x4mmSpacers
2* Power Cable for Cube
1* Accessory Power Cable
TECHNICAL SPECIFICATIONS:
Mini carrier board (Version 1.4)
Dimensions: 50.5*57.5mm (1.98*2.26 in)
Height with the Cube: 24.65mm (excluding PSM +2.75mm approx.)
Weight: 19g (0.041lb) (connectors and PSM included)
Mini Power Distribution Board Pro
Dimensions: 65.5*85mm (2.58*3.35 in)
Weight: 44g (0.097lb)
Max current: 200A
Power Supply 1
Output voltage: 5.3V Max
Current output: 3A (4A peak tolerant)
Max voltage input: 50.4V (12S)
Power Supply 2
Output voltage: 5.3V Max
Current output: 3A (4A peak tolerant)
Max voltage input: 50.4V (12S)
Total weight: 68g / 0.150lbs (includes spacers and cables)
