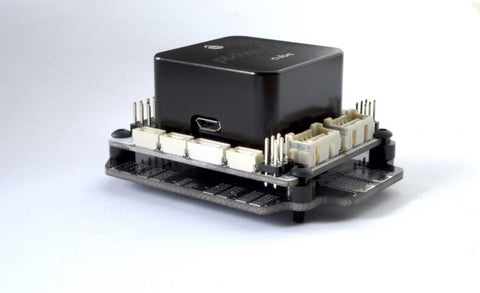

Airbot Mini Carrier Board & PDB Combo - for Pixhawk2.1 Cube

  • $ 75.00

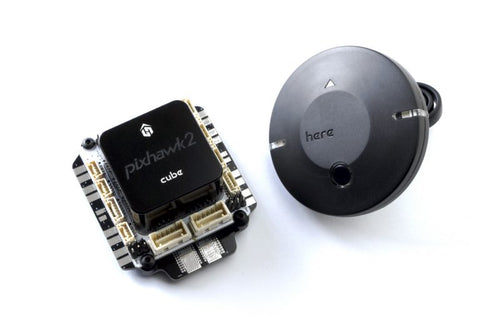

The mini carrier board is one of the best ways to integrate a Pixhawk 2.1 Cube into a drone. It provides maximum connectivity in a small size. Now accompanied by a mini PDB,  this combo is ideal for installing a Cube in any drone, and simplifies the installation of the auto pilot, even in small drones. BETA Version V1.2. (Pixhawk 2.1 Cube and Here GPS not included)

    The mini carrier board includes a 'Power Selection Module'. This module provides redundancy of the power supplies of Pixhawk 2.1 Cube. In the event of a failure of one of the power supplies, the PSM switches to the second power supply without interruption of the current.

    A Mini PDB of up to 180A now accompanies the mini carrier board. This ultra compact setup allows easy and clean mounting on all types of chassis.

    The Airbot Mini carrier board has been specifically designed to allow the installation of a Pixhawk 2.1 Cube on any drone. It offers complete connectivity in a small format:
    - 2 power supply ports
    - RC input (PPM / S.BUS + 5v)
    - Spectrum + 3.3v input
    - Serial ports: 1/2/3/4/5
    - I2C + CAN
    - GPS1 + GPS2
    - Distribution of PWM signals for motors (up to 8)
    - etc ... (see instructions)

    TECHNICAL SPECIFICATIONS :

    Mini carrier board:
    Dimensions: 50.5 * 57.5mm (1.98 * 2.26 inch)
    Height with the Cube: 24.65mm (excluding PSM + 2.75mm approx)
    Weight: 19gr (0.041lb) (connectors and PSM included)

    Mini Power Distribution Board:
    Dimensions: 60.5 * 69mm (2.36 * 2.71 inch)
    Weight: 21gr (0.046lb)



    Resources and Downloads:

    See manufacturer website
