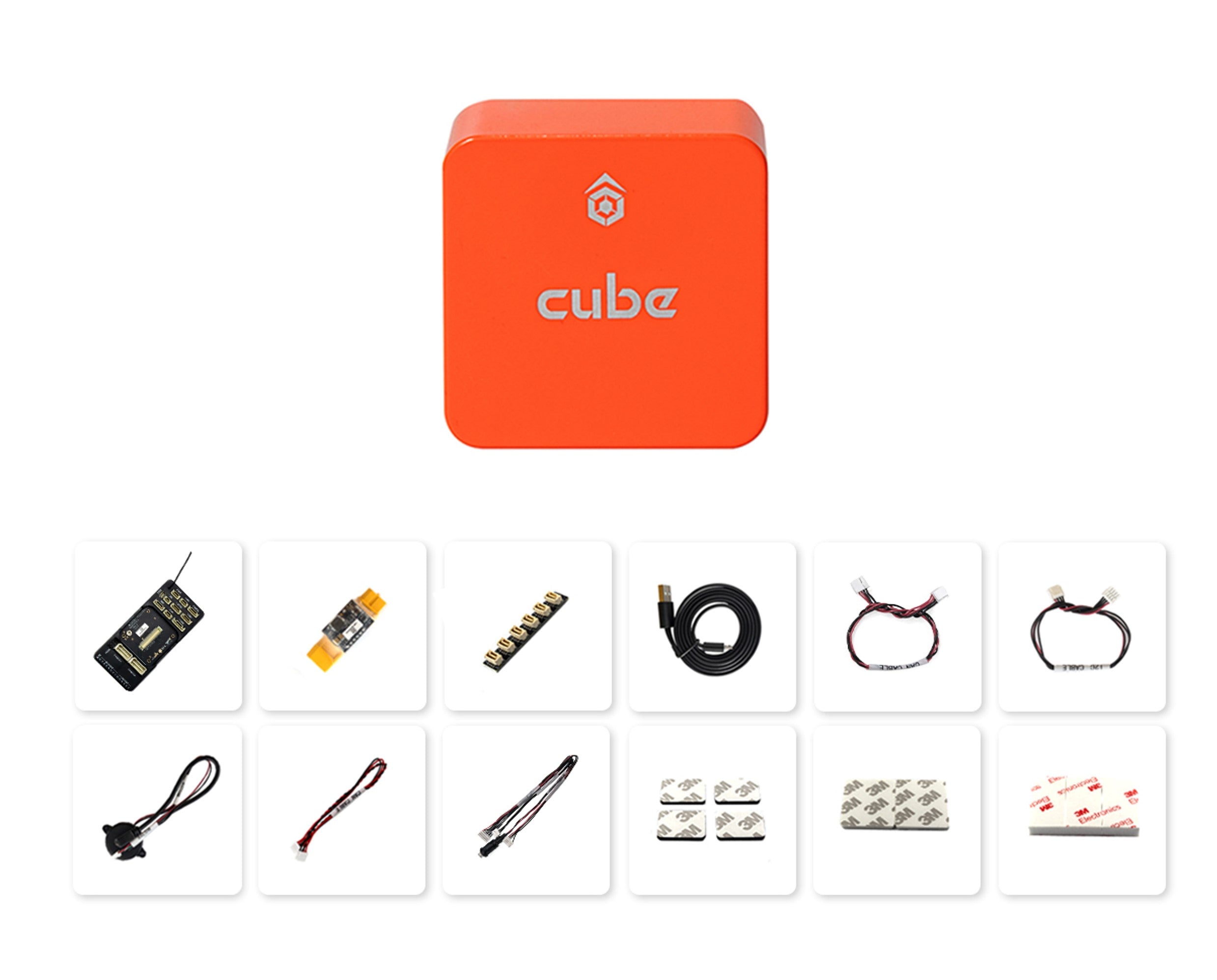

The Cube Orange Combo (ADSB Carrier Board)
Previous MPN: HX4-06159 (different packaging)
We recommend transitioning to the updated Cube Orange+
This Combo Contains:
1x HX4-06160 The Cube Orange
1x HX4-06105 ADSB Carrier Board
1x HX4-06008 Power Brick Mini
1x HX4-06217 The Cube Standard Cable Set
1x HX4-06152 CAN BUS Splitter
1x HX4-06220 3M Sticker Set
1. Faster H7 SOC with 1MB ram.
2. Upgraded triple redundant IMU sensors for extra redundancy.
3. Two sets of IMU are vibration-isolated mechanically, reducing the effect of frame vibration to state estimation.
4. IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.
5. The entire flight management unit(FMU) and inertial management unit(IMU) are housed in a relatively small form factor (a cube).
6. Fully Cubepilot carrier board compatible, all inputs and outputs go through a 80-pin DF17 connector, allowing a plug-in solution for manufacturers of commercial systems.
7. Manufacturers can design their own carrier boards to suit their specific needs now and in the future.
For more details, please check the CubePilot official documents:
