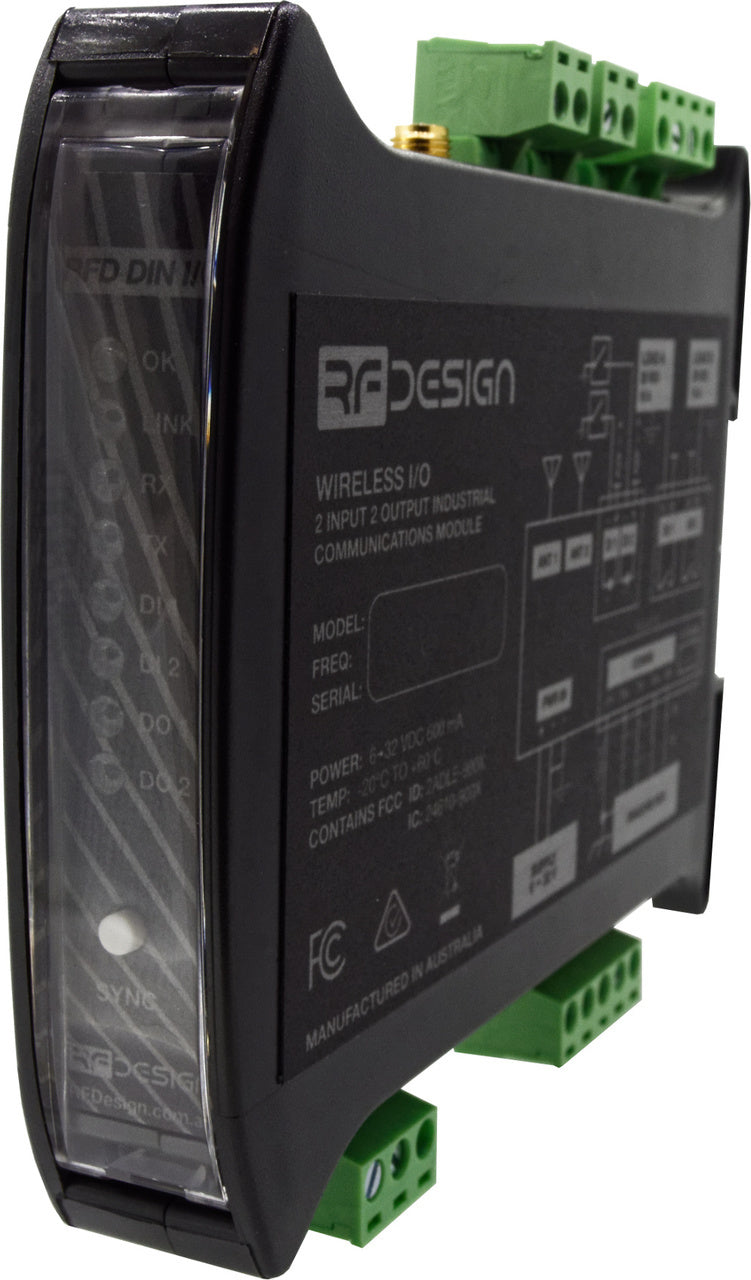

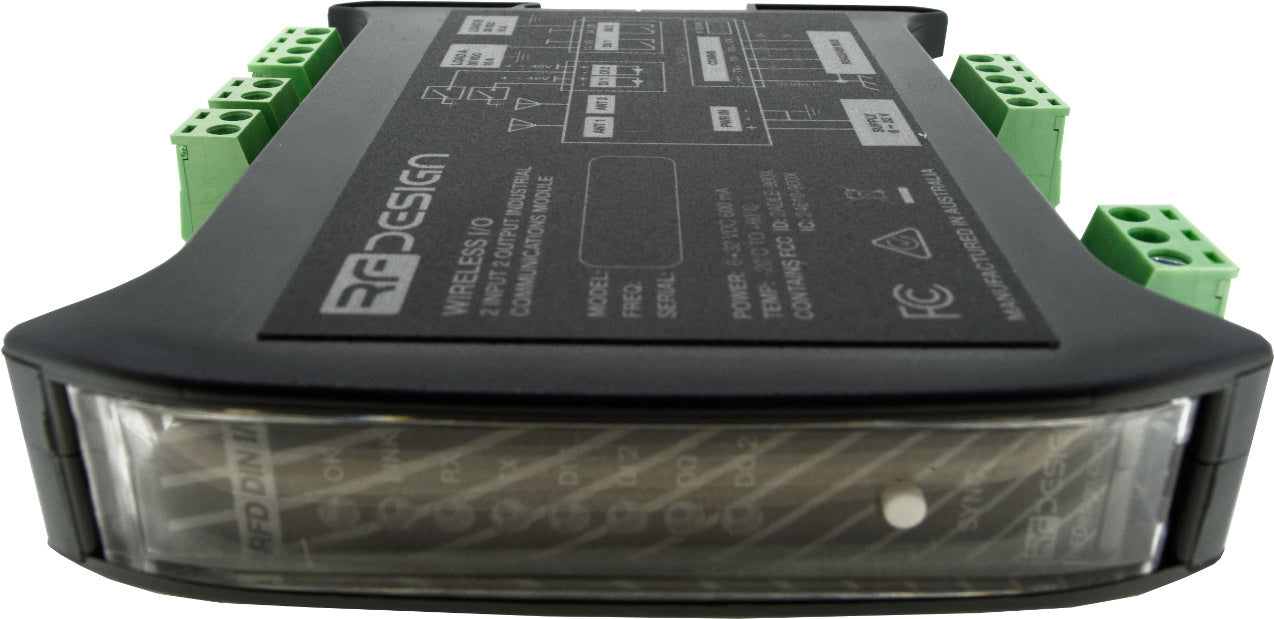

RFD-DIN-IO US Telemetry Interface

Click here to be notified when this product is back in stock.


Manufacturer: RFDesign


Product Description:

This is the RFDesign DIN-IO US Isolated Telemetry IO-Interface

The RFD DIN-IO US provides an easy to use Telemetry Input / Output with 2 Fully Isolated Digital Inputs and 2 Fully Isolated Clean contact output relays.

The device allows bi-directional telemetry and data communications between a pair of devices. Each device interfaces with a completely isolated RS485 / RS422 interface (depending on the user configuration). The isolated RS422 interface makes the RFD DIN Rail IO a great choice for us in noisy and industrial environments.

The DIN-IO US operates in pairs, ordering in pairs are recommended.


Secure, encrypted over the air communications

9-32V DC Input Voltage Wide Range

2 opto-isolated digital inputs

2 clean contact isolated relay outputs

Fully isolated RS485/RS422 serial interface with switchable termination

Simple one-button pairing sequence

Compact DIN rail mounted enclosure

Industrial temperature range (-20C to +60C)

Modbus Capable RS485 Expansion

8 x status LEDS

Slim Profile (101 x 22.5 x120mm)


Remote Control and Monitoring Systems

Wireless RS485/422 bus extension

Industrial Control Systems

Factory Automation

Cable replacement for existing equipment

Building Automation

Wireless Alarms and Security Systems


22.5 x 120 x 101 mm


The RFD DIN-IO US will require antenna and co-axial cable

Components to suit the installation.

The following accessories are available from RFDesign:

- RPSMA to N Bulkhead male "tail"

- RPSMA Extension cables

- 3dBi / 6dBi indoor whip antennas

- 5dBi Collinear outdoor antenna

- 6dBi Omni directional outdoor antenna

RF Features:

Bi-directional Radio link using license free 900MHz Radio Band

Long range

Dual RPSMA antenna ports with diversity support

High performing receiver sensitivity (121dBm)

RF transmit power up to 30dBm

902 -> 928MHz GFSK with frequency hopping spread spectrum
