Description
MPN: HX4-06059
Manufacturer: CubePilot

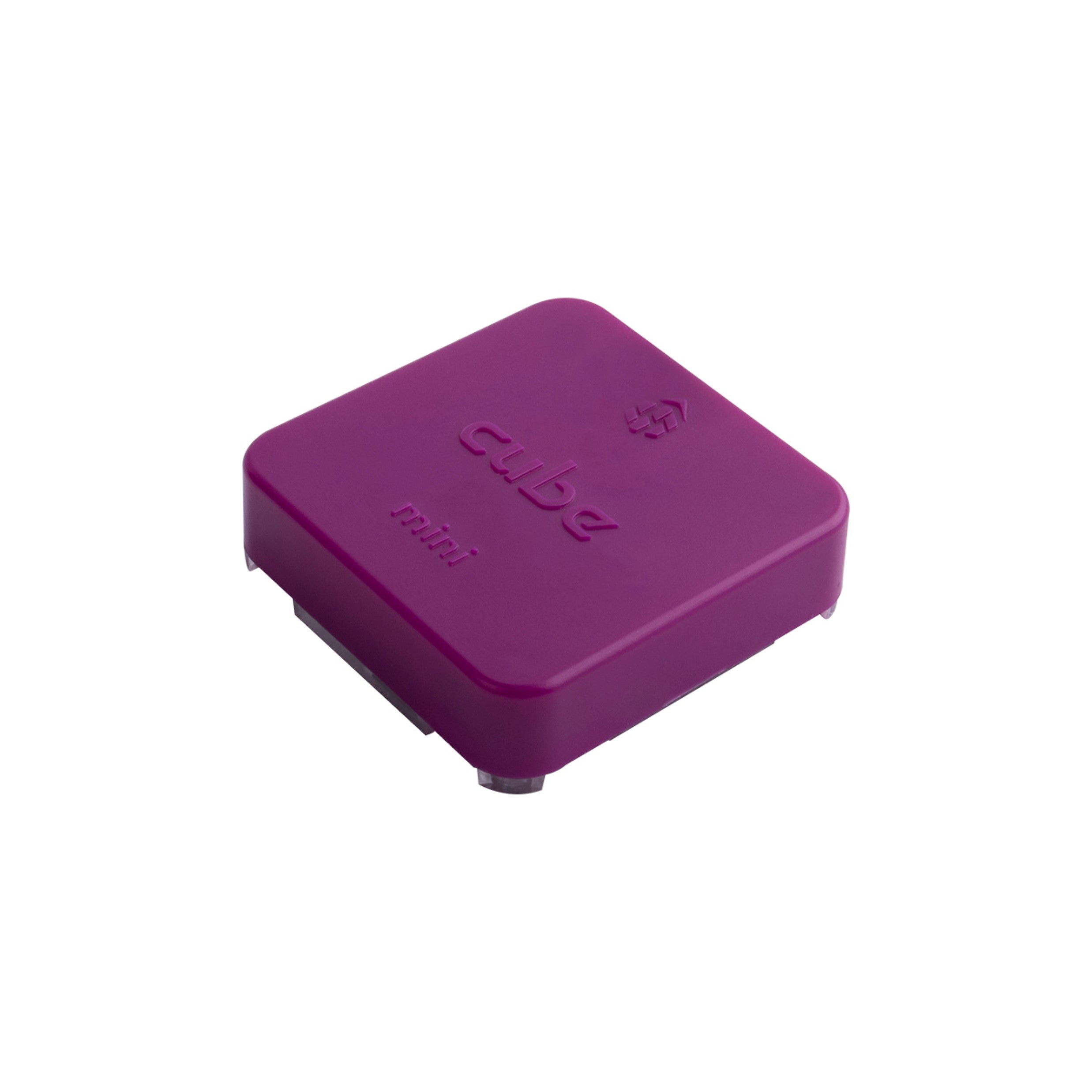

INSIDE CUBE PURPLE
The Cube Purple autopilot is designed for ground based applications such as boat, car or rover. Based on the Cube Black main module the purple is a much smaller platform for applications where sensor redundancy is not required.
All the Cube models are compatible with all of the carriers which allows users to choose an off the shelf carrier board design that best suits their needs. System designers are able to integrate the Cube directly into their designs via published carrier board specifications.
-Single IMU sensor
-Single Baro Sensor

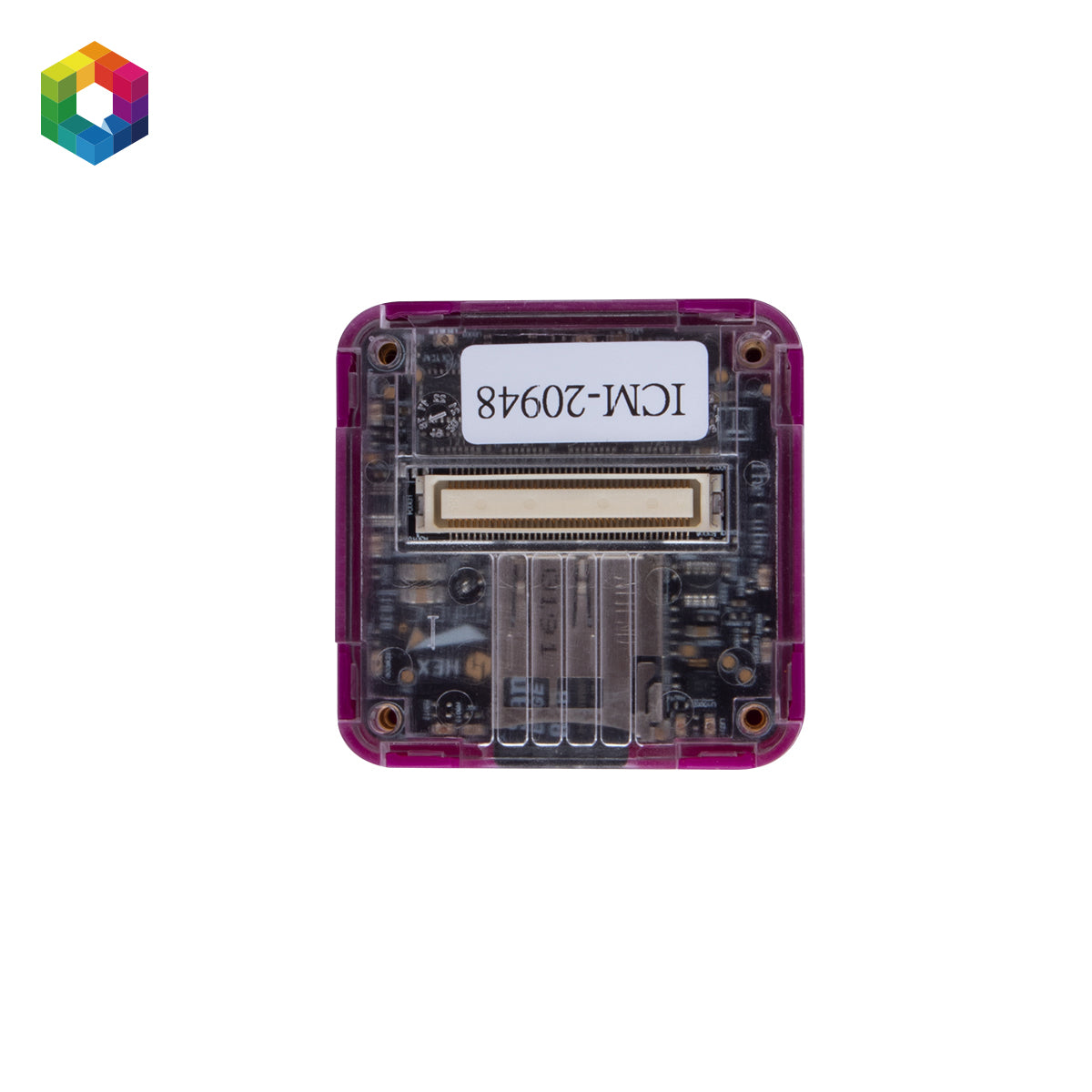

The entire flight management unit(FMU) and inertial management unit(IMU) are housed in a relatively small form factor (a cube). All inputs and outputs go through a 80-pin DF17 connector, allowing a plug-in solution for manufacturers of commercial systems.
Manufacturers can design their own carrier boards to suit their specific needs.
