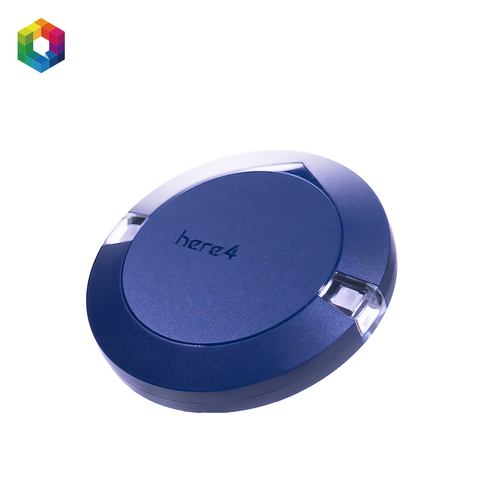

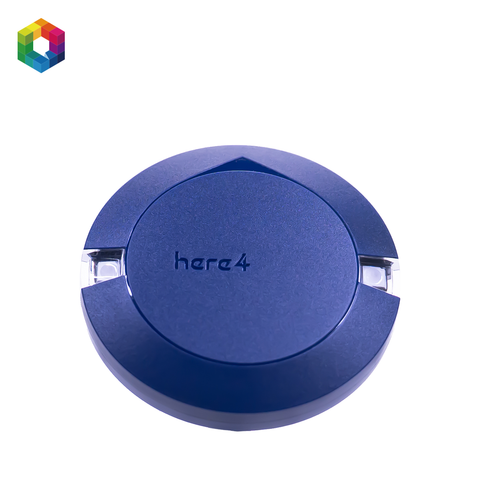

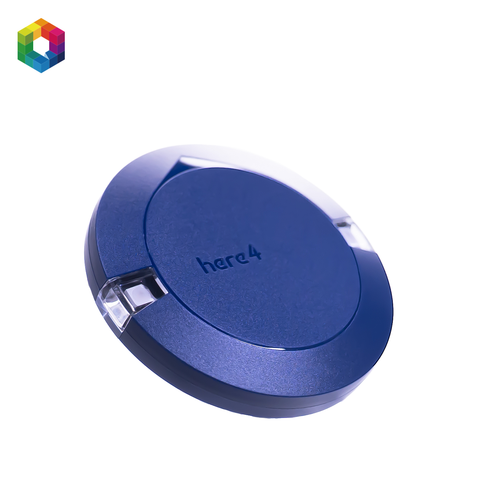

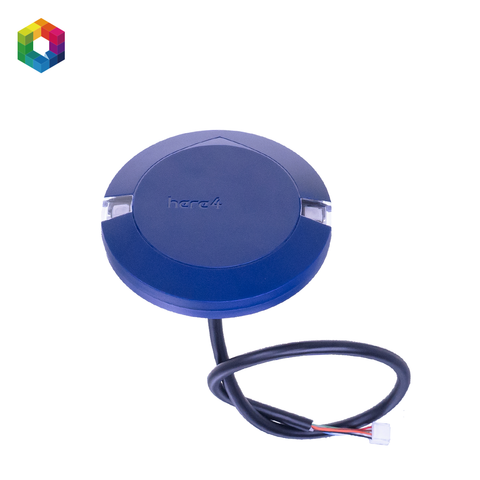

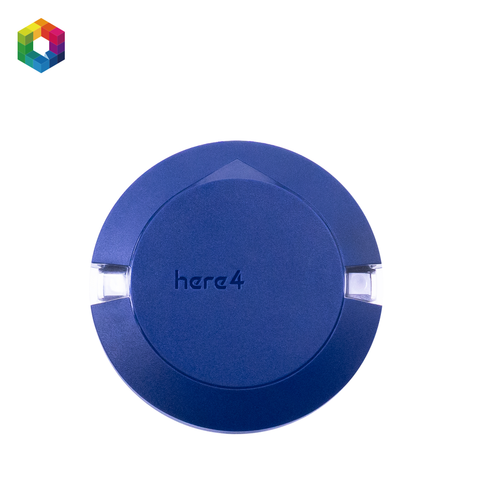

Here4 Blue Multiband RTK GNSS with Bluetooth 5.2 (ALPHA VERSION)
MPN: HX4-06279 (ALPHA)
ALPHA units shipping now!
This is an ALPHA version of the product intended for testing/development.
Purchases from this batch are limited to 2 units per customer.
Here4 Blue includes Bluetooth 5.2 for Remote ID. Manufactured in the USA. (*initial ALPHA batch is manufactured in Taiwan)

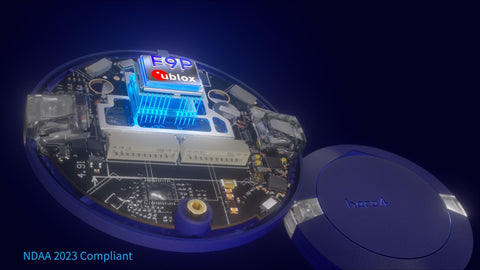

Centimeter level high-precision positioning: Equipped with the uBlox NEO-F9P L1/L5 RTK Multi Constellation GNSS module. Fastest lock times of any of the standard Here GPS series. Reliable centimeter-level navigation.
More onboard compute and mems: Built-in STM32H757 dual-core processor. The combination of the RM3100 magnetic compass and ICM42688 sensor has better performance in more applications.
Integrated module with multiple features: Here4 is more than a GNSS module. It has both flight control and navigation capabilities. Fitted with 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, accurate mapping has never been more self-contained.
Supports further expansion/customization: The reliable DRONECAN FD communication protocol ensures fast (8Mbps) and stable transmission. Based on the AP-Periph open source platform, users can better carry out further development and customization.
